WEG 5 HP 1 Ph Magnetic Starter Electric Motor Control On/Off NEMA 4X 22-32 Amps(Weg 5 Hp 1 Ph Magnetic Starter Electric Motor Control On Off Nema 4x 22 32 Amps)

WEG PESWS-B32V24AX-RM68 5 HP Single Phase Magnetic Starter with On/Off Buttons
NEMA 4X Enclosure

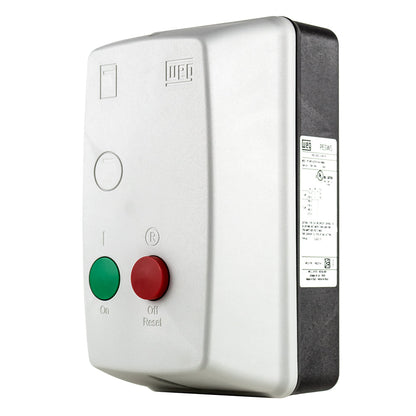

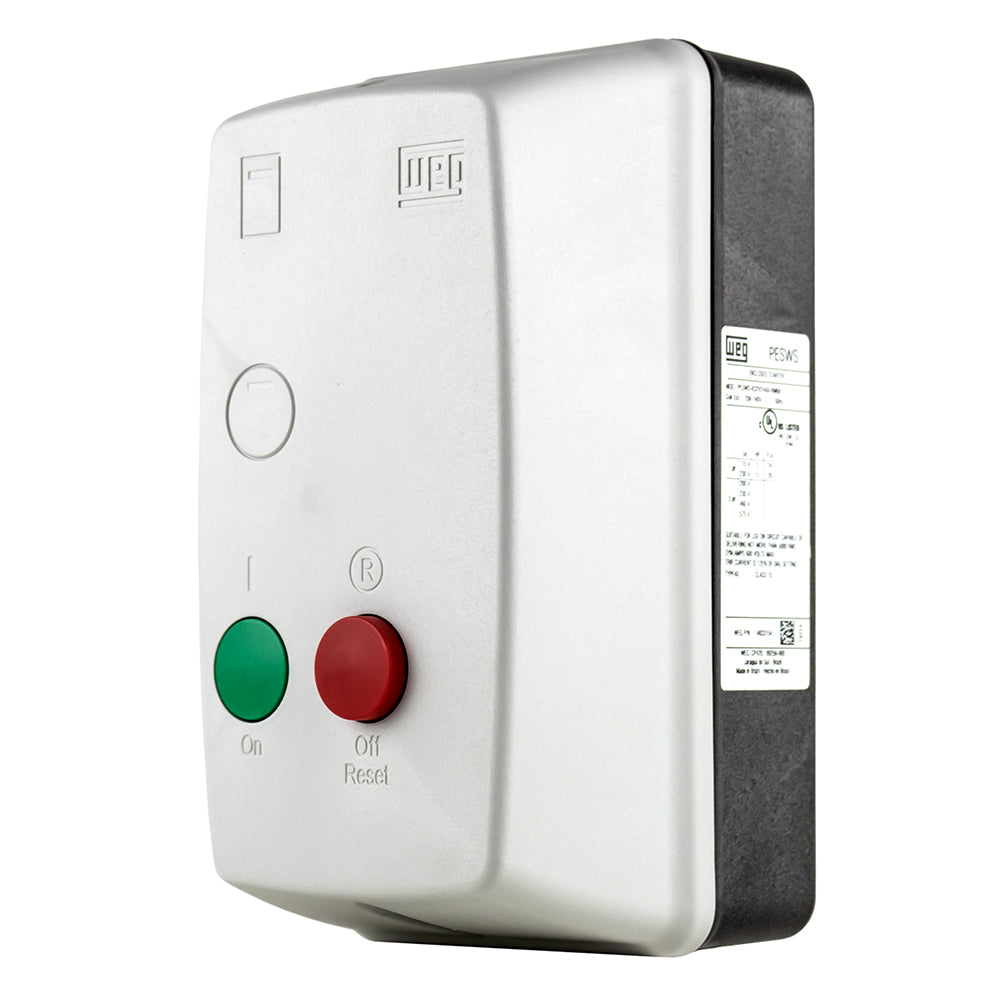

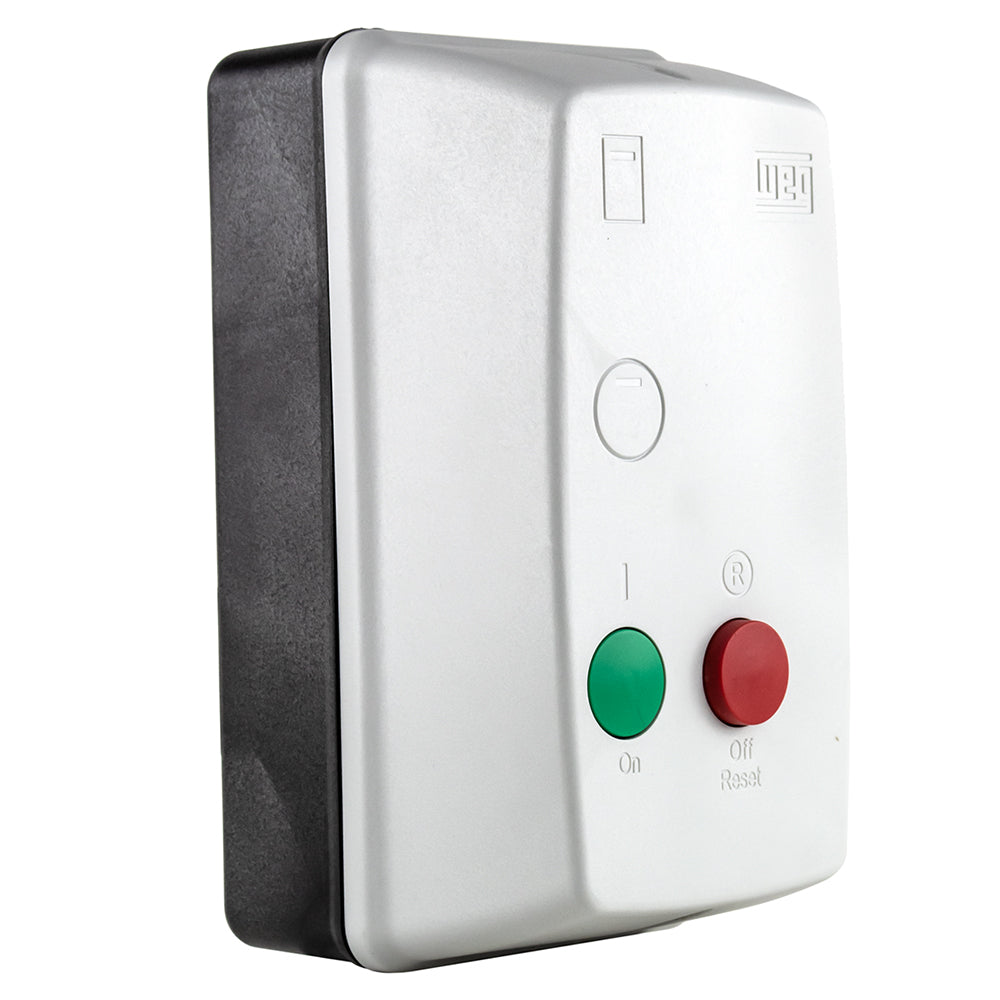

Brand new WEG PESWS-B32V24AX-RM68 5 horsepower, single phase, 208-240 volt magnetic starter with a NEMA 4X enclosure. This is a great quality starter with a built-in overload that is adjustable from 22-32 amps and is equipped with On/Off summarys, making this a great option for power washers and other equipment that will be in wet environments.

The PESW magnetic starters are ideal to protect motors and ensure reliable operation year after year. Assembled together in a NEMA 4x enclosure with On/Off summarys on the cover for quick and easy operation.

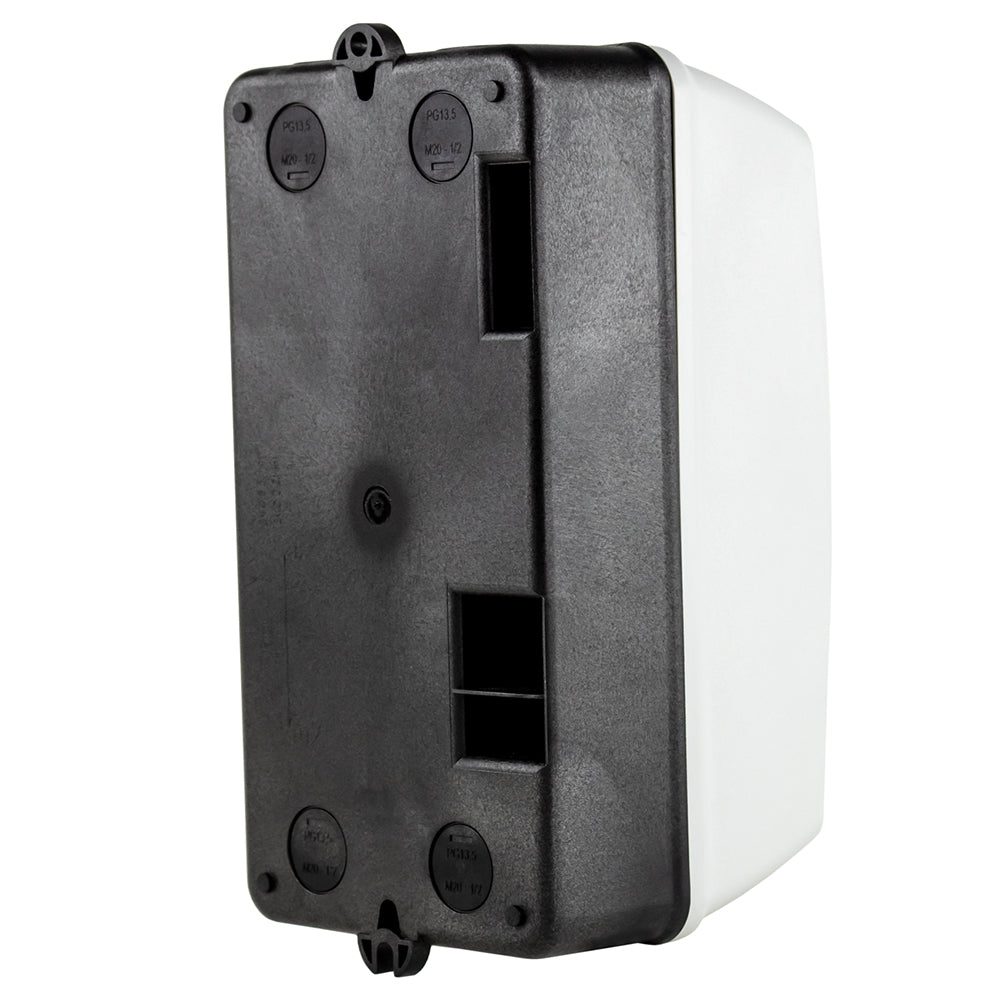

The NEMA 4X enclosure is constructed for either indoor or outdoor use to provide a degree of protection against falling dirt, rain, sleet, snow, windblown dust, splashing water, and hose-directed water. Will be undamaged by the external formation of ice on the enclosure.

Professional Installation Recommended

Specifications:

• HP at 208-240 Volts: 5 HP
• HP at 115 Volts: 2 HP
• Overload Range Min (Amps): 22
• Overload Range Max (Amps): 32
• Coil Voltage: 208-240 Volts
• Phase: Single
• Frequency: 60Hz
• Enclosure Rating: NEMA 4X
• Enclosure Material: Plastic

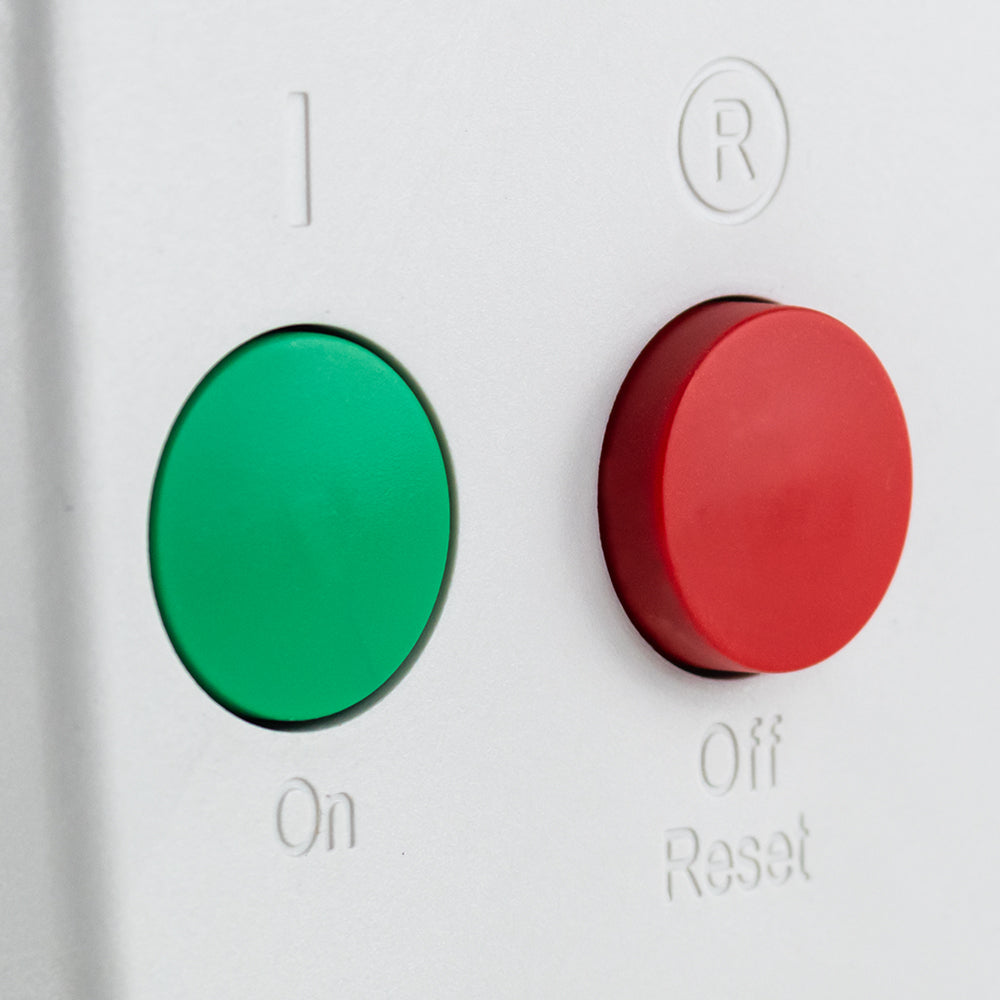

• Push Button Function: On/Off
• Weight: 2.30
• Approximate Dimensions (W x H x D): 4-1/2" x 8-7/8" x 4-3/8"

Standard Features:

• Fast acceleration and high initial torque
• Bimetallic overload relays - class 10
• Adjustable trip current
• Ambient temperature compensated for -4°F to 140°F
• Phase-loss sensitivity protection
• On/Off Function
• Electrically isolated NO-NC auxiliary contacts
• UL, IEC, and CSA Certified
