WEG 10 HP Three Phase Magnetic Starter Electric Motor Control NEMA 1 460-480 V(Weg 10 Hp Three Phase Magnetic Starter Electric Motor Control Nema 1 460 480 V)

WEG ESW-B18D39E-R32 10 HP Three Phase 460-480V Magnetic Starter
NEMA 1 Enclosure

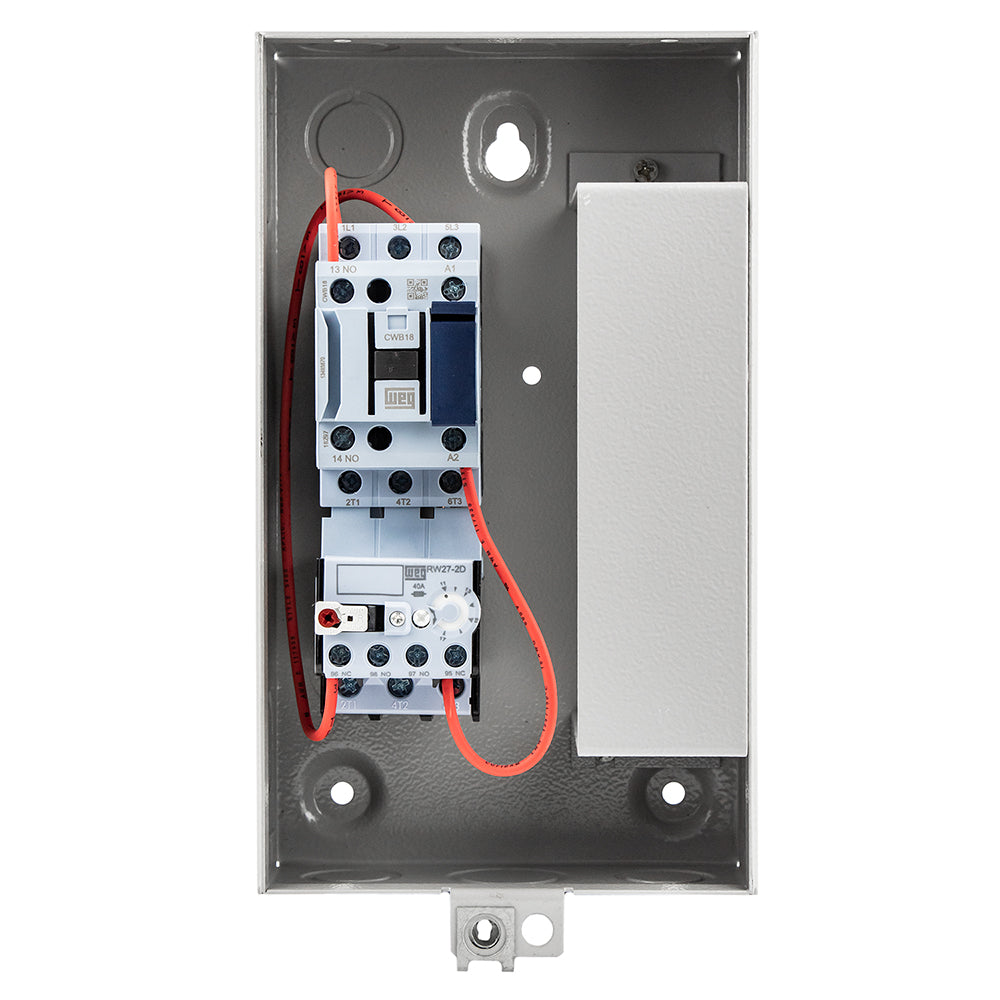

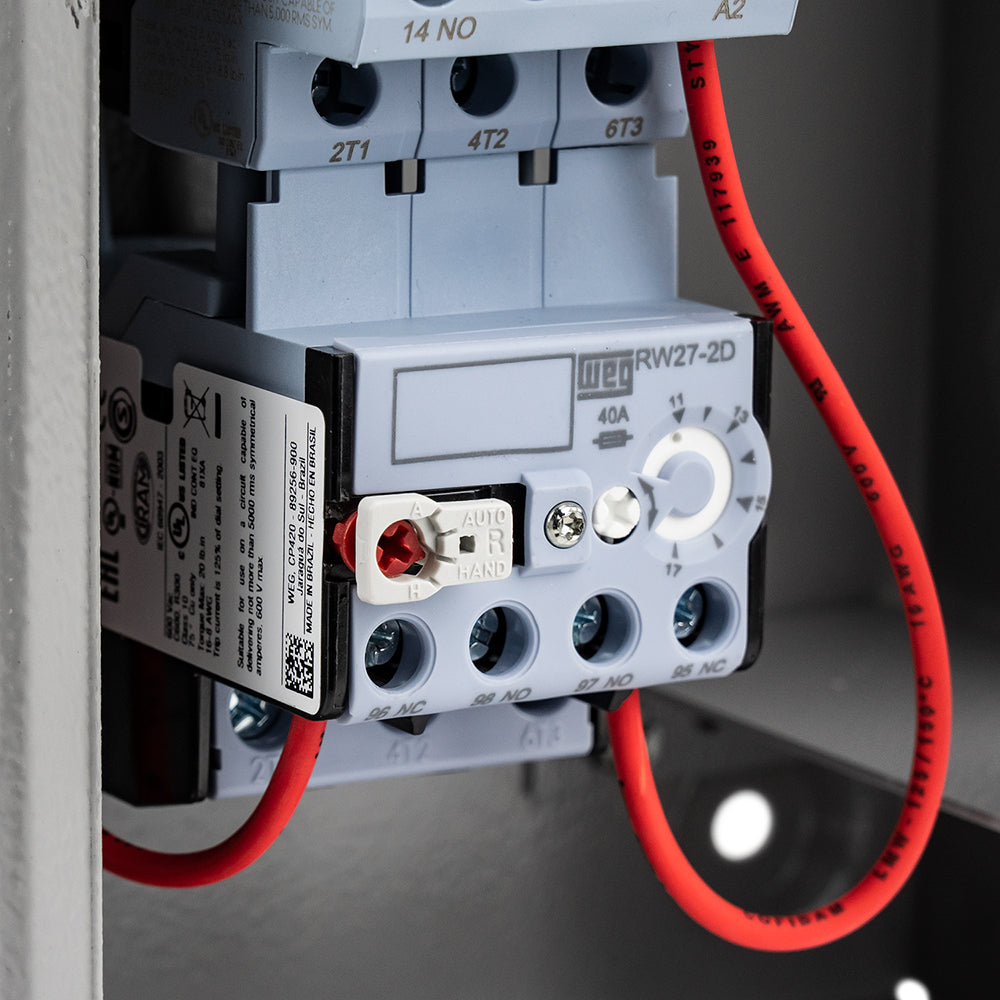

Brand new WEG ESW-B18D39E-R32 10 horsepower, three-phase, 460-480 volt magnetic starter with a NEMA 1 enclosure. This is a great quality starter with a built-in overload which is adjustable from 11-17 amps and is equipped with a manual reset summary.

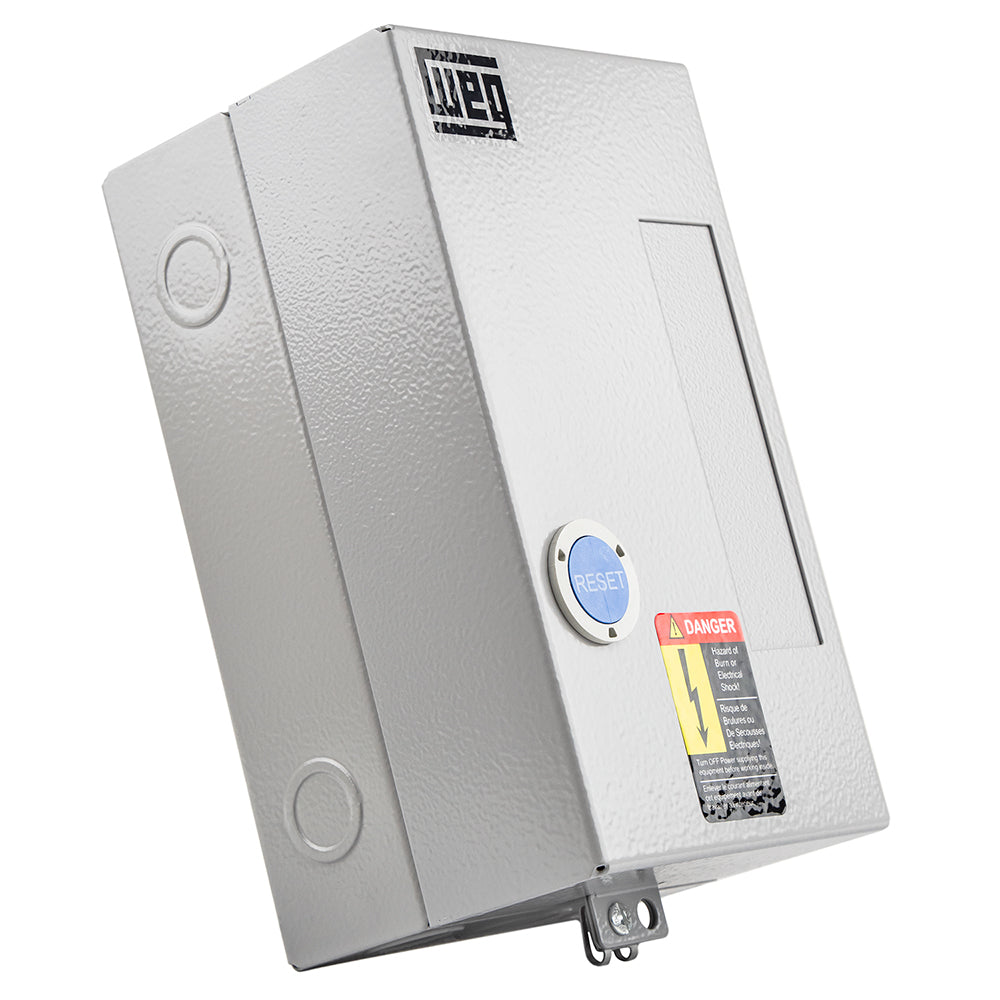

The ESW magnetic starters are ideal to protect motors and ensure reliable operation year after year. Assembled together in a NEMA 1 enclosure with a RESET summary on the cover for quick and easy operation.

The NEMA 1 enclosure is designed primarily for indoor use and provides protection against contact with the enclosed equipment, objects and personnel from shock hazard, limited amount of falling dirt, and accidental contact with live parts.

PROFESSIONAL INSTALLATION RECOMMENDED

Specifications

• HP at 230V (3 Phase): 5
• HP at 460V (3 Phase): 10
• Overload Range Min (Amps): 11
• Overload Range Max (Amps): 17
• Coil Voltage: 480 Volts
• Phase: Three
• Enclosure Rating: NEMA 1
• Enclosure Material: Steel
• Push Button Function: Reset
• Weight: 5.05
• Approximate Dimensions (W x H x D): 5-1/2" x 9-1/2" x 4-3/4"

If you are using this starter on an air compressor, you will also need a pressure switch to control the starter. In this application the pressure switch controls the On and Off of the starter according to the pressure setting of the pressure switch.
