Rolair H5312K28 120 Gallon Horizontal Stationary Air Compressor 5 Hp 15.3 Cfm(Rolair H5312k28 120 Gallon Horizontal Stationary Air Compressor 5 Hp 15 3 Cfm)

Rolair H5312K28 120 Gallon 5 HP Horizontal Stationary Air Compressor

Rolair's H5312K28 stationary air compressor features a 5 hp electric motor and two-stage splash lubricated pump that is paired up to a 120-gallon tank. This combination delivers 15.3 @ 175 PSI and comes with a pre-set pressure switch at 145-175 PSI. For more features and specifications, please see below.

About the Pump

Two-Stage, Cast-Iron Cylinders, Aluminum Head and Crankcase for Faster Heat Dissipation, Ball Bearings, Splash Lubricated, Bearing Inserts on Connecting Rods, Swedish Lamellar Reed Valves, Oil Sight Gauge, Low RPM's to Ensure Long Life and Trouble-Free Performance.

About the Motor

1740 RPM, 60 Hz, Three Phase, Open Drip-Proof Motor

Features:

• Pressure Switch - Start/Stop Operation
• 145-175 PSI Settings
• On/Off Switch
• Automatic Unloading Device for Loadless Starts
• Heavy Duty Brass Shut-Off Valve
• Pressure Gauge, 0-300 PSI in 5 lb. Graduations
• Safety Relief Valve - ASME Approved
• Multiple V-Belt Drive
• Intake Filter/Silencer with Replaceable Element
• Totally Enclosed Steel Belt Guard
• Horsepower: 5
• CFM Displaced: 20.6 CFM
• CFM Delivered: 15.3 CFM @ 175 PSI
• Lubrication Type: Splash Lubrication
• Tank Capacity: 120 Gallons
• Dimensions L x W x H: 72" x 30" x 51"

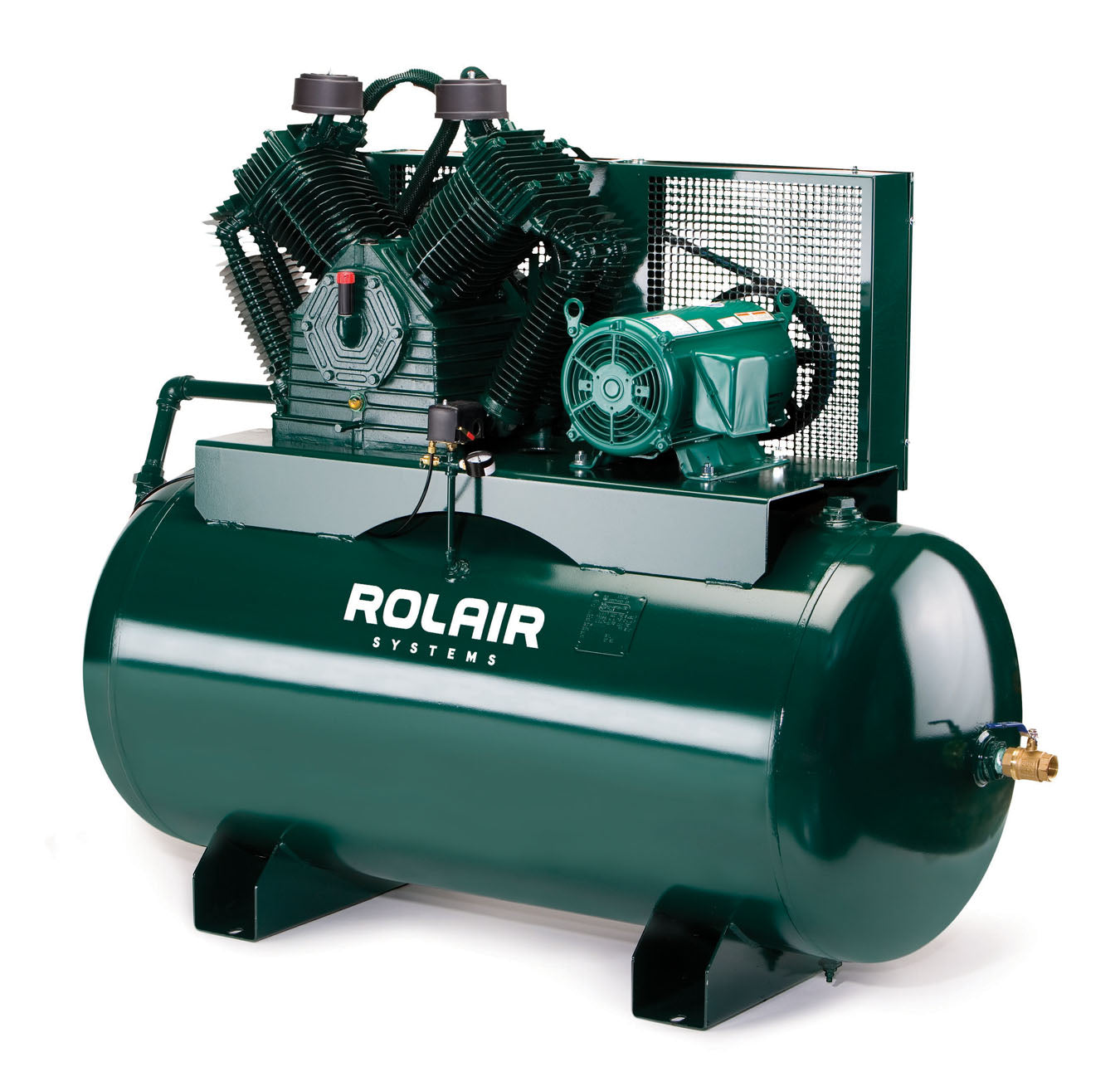

Note: The air compressor pictured is a stock photo from the manufacturer's website and is not the actual air compressor listed. If you have questions, please ask us, and we can go over any differences that there might be.
