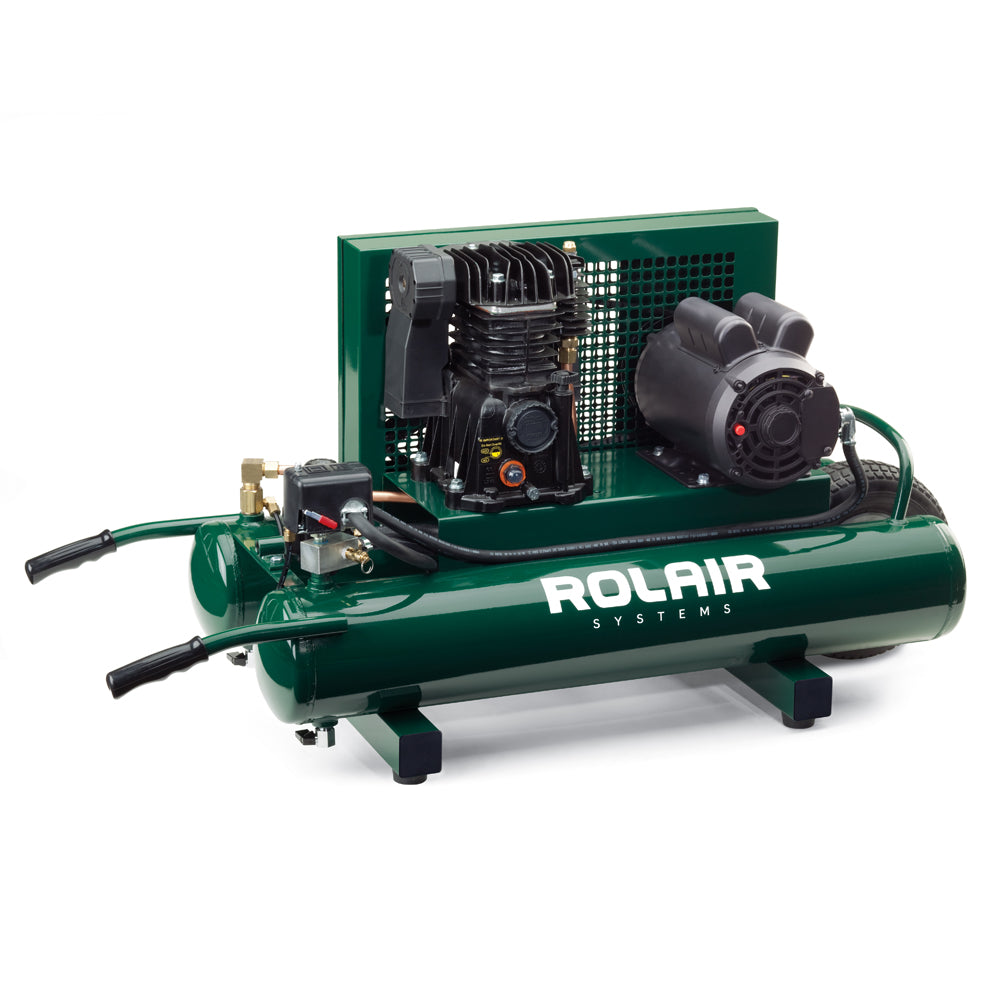

Rolair 5715MK103-0001 Portable Air Compressor(Rolair 5715mk103 0001 Portable Air Compressor)

Rolair 5715MK103 9 Gallon 1.5 HP Portable Air Compressor

Model 5715MK103 is the entry-level choice when the job calls for more air than a direct drive can offer. Capable of running on a 20 Amp breaker, this model will deliver 7.3 CFM, doubling the output of many direct-drive units. Additionally, the low-RPM pump and motor combine for quiet operation. For more features and specifications, please see below.

Features:

• Pressure Gauge 0-200 in 5 lb. Graduations
• Square D Pressure Switch with Unloader
• Accessory Support Clip
• Intake Filter with Silencer and Replaceable Element
• Air-Cooled Aftercooler
• Totally Enclosed Steel Belt Guard
• Safety Relief Valve
• Horsepower: 1.5
• CFM Displaced: 10.1 CFM
• CFM Delivered: 7.3 CFM @ 90 PSI
• Pump/Motor RPM: 1725
• Overload Protection: Yes (Manual Reset Standard)
• Lubrication Type: Splash Lubrication
• Pump Oil Capacity: 17 Ounces
• Reed Valve System: Yes (Standard)
• Number of Cylinders: 2
• Tank Capacity: 9 Gallons
• Dimensions L x W x H: 46" x 19" x 24"
