Rolair 5520MK103A-0001 20 Gallon Portable Air Compressor 1.5 HP 115/230 Volt(Rolair 5520mk103a 0001 20 Gallon Portable Air Compressor 1 5 Hp 115 230 Volt)

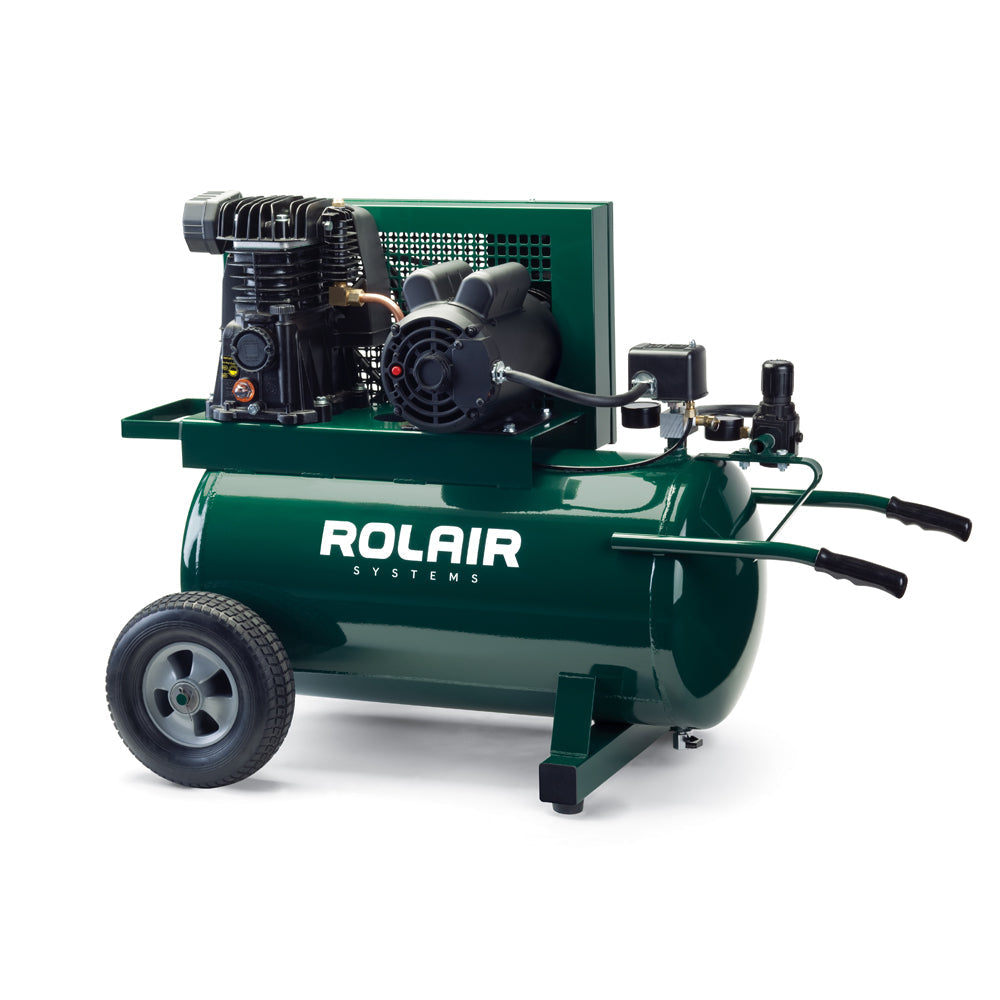

Rolair 5520MK103A 20 Gallon 1.5 HP Portable Air Compressor

Model 5520MK103A is our entry-level 20-gallon wheelbarrow-style air compressor. The larger tank assembly allows the 5520MK103A to sustain 7.3 CFM @ 90 PSI longer than the traditional 9-gallon twin tank design. The low-RPM pump and motor combine for quiet operation and minimal amp draw.

About the Pump

Heavy-Duty, Two Cylinder, Single Stage, Splash Lubricated, High-Efficiency Reed Valve Design, Aluminum-Alloy Connecting Rods, Multi-Finned 10" Flywheel, Oil Sight Gauge, and 17 oz. Oil Reservoir

About the Motor

1.5 HP, 1755 RPM, Open Drip Proof, 115/230 Volt - 60 Hz, Ball Bearings, Overload Protection with Manual Reset

Features:

• Pressure Gauge 0-200 in 5 lb. Graduations
• Square D Pressure Switch with Unloader
• Accessory Support Clip
• Plastic Intake Filter with Silencer and Replaceable Element
• Totally Enclosed Steel Belt Guard
• Safety Relief Valve
• Horsepower: 1.5
• CFM Displaced: 10.1 CFM
• CFM Delivered: 7.3 CFM @ 90 PSI
• Pump/Motor RPM: 1755
• Overload Protection: Yes (Manual Reset Standard)
• Lubrication Type: Splash Lubrication
• Pump Oil Capacity: 17 Ounces
• Reed Valve System: Yes (Standard)
• Number of Cylinders: 2
• Tank Capacity: 20 Gallons
• Dimensions L x W x H: 42" x 22" x 34"
