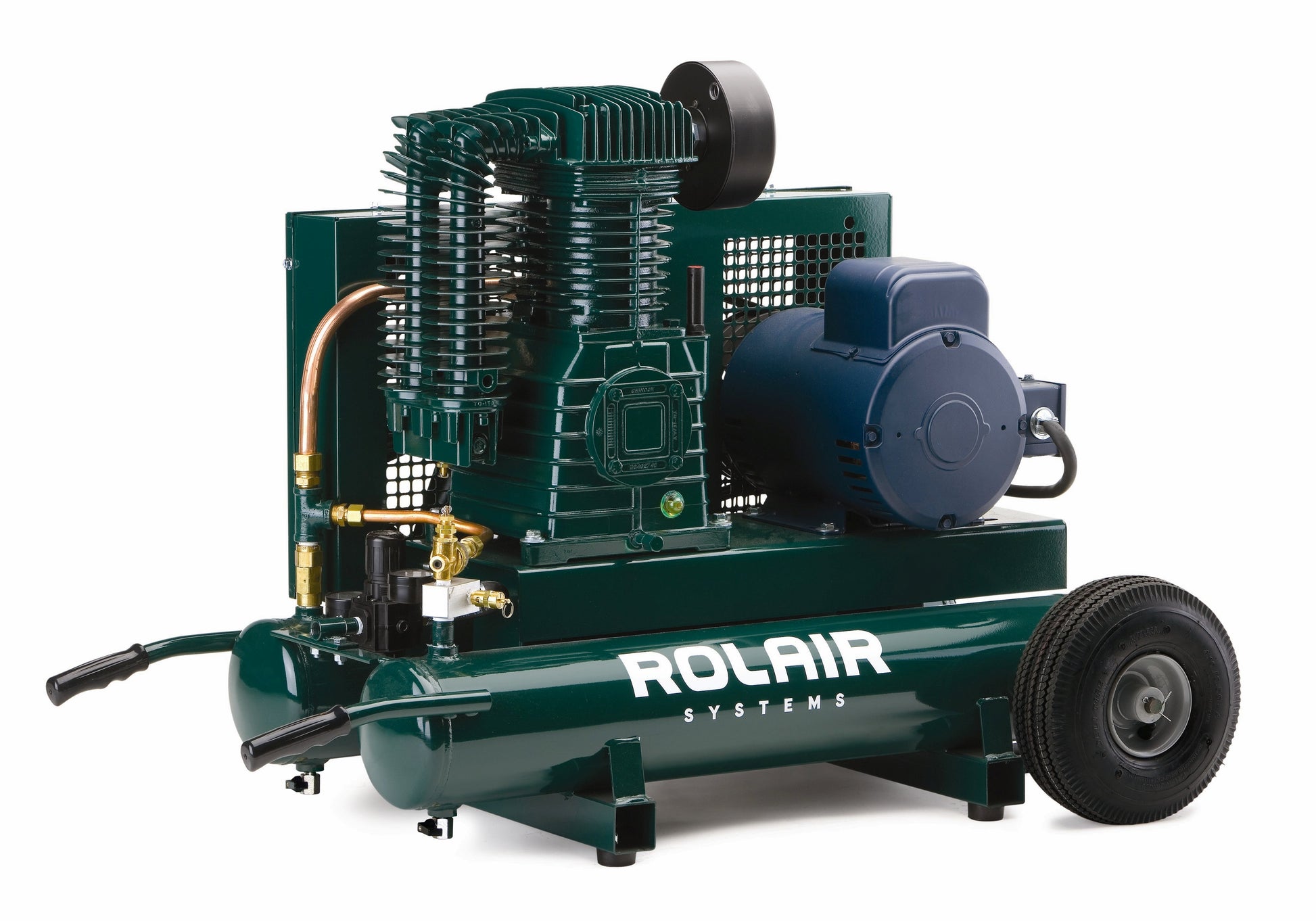

Rolair 5230K30CS-0001 9 Gallon Portable Air Compressor 5 Hp 18.8 Cfm 230 Volt(Rolair 5230k30cs 0001 9 Gallon Portable Air Compressor 5 Hp 18 8 Cfm 230 Volt)

Rolair 5230K30CS-00011 9 Gallon 5 HP Portable Air Compressor

Model 5230K30CS - the biggest electric portable available - delivers 18.8 CFM @ 90 PSI. The two-stage pump allows for cooler and more efficient operation. Because of the high CFM output and for protection of the motor, this unit is built for constant-run operation.

About the Pump

Heavy-Duty, Two-Stage, Cast-Iron Twin Cylinders, Ball Bearings, Splash Lubricated, Cast-Iron Valve Plates with Swedish Lamellar Reed Valves, Aluminum Alloy Connecting Rods with Automotive-Style Inserts, Multi-Finned 15.16" Flywheel, Oil Sight Gauge

About the Motor

5 HP, 1740 RPM, Open Drip Proof, 230 Volt – 60 Hz, Ball Bearings, Overload Protection with Manual Reset

Features:

• On/Off Switch
• Pressure Gauge 0-200 in 5 lb. Graduations
• Pilot Unloader Valve
• Accessory Support Clip
• Intake Filter with Silencer and Replaceable Element
• Multi-Finned Intercoolers
• Air-Cooled Aftercooler
• Totally Enclosed Steel Belt Guard
• Safety Relief Valve
• Constant Speed Operation
• Horsepower: 5
• CFM Displaced: 23.1 CFM
• CFM Delivered: 18.8 CFM @ 90 PSI
• Pump/Motor RPM: 1740
• Overload Protection: Yes (Manual Reset Standard)
• Lubrication Type: Splash Lubrication
• Pump Oil Capacity: 47 Ounces
• Reed Valve System: Yes (Standard)
• Number of Cylinders: 2
• Tank Capacity: 9 Gallons
• Dimensions L x W x H: 46" x 27" x 34"
