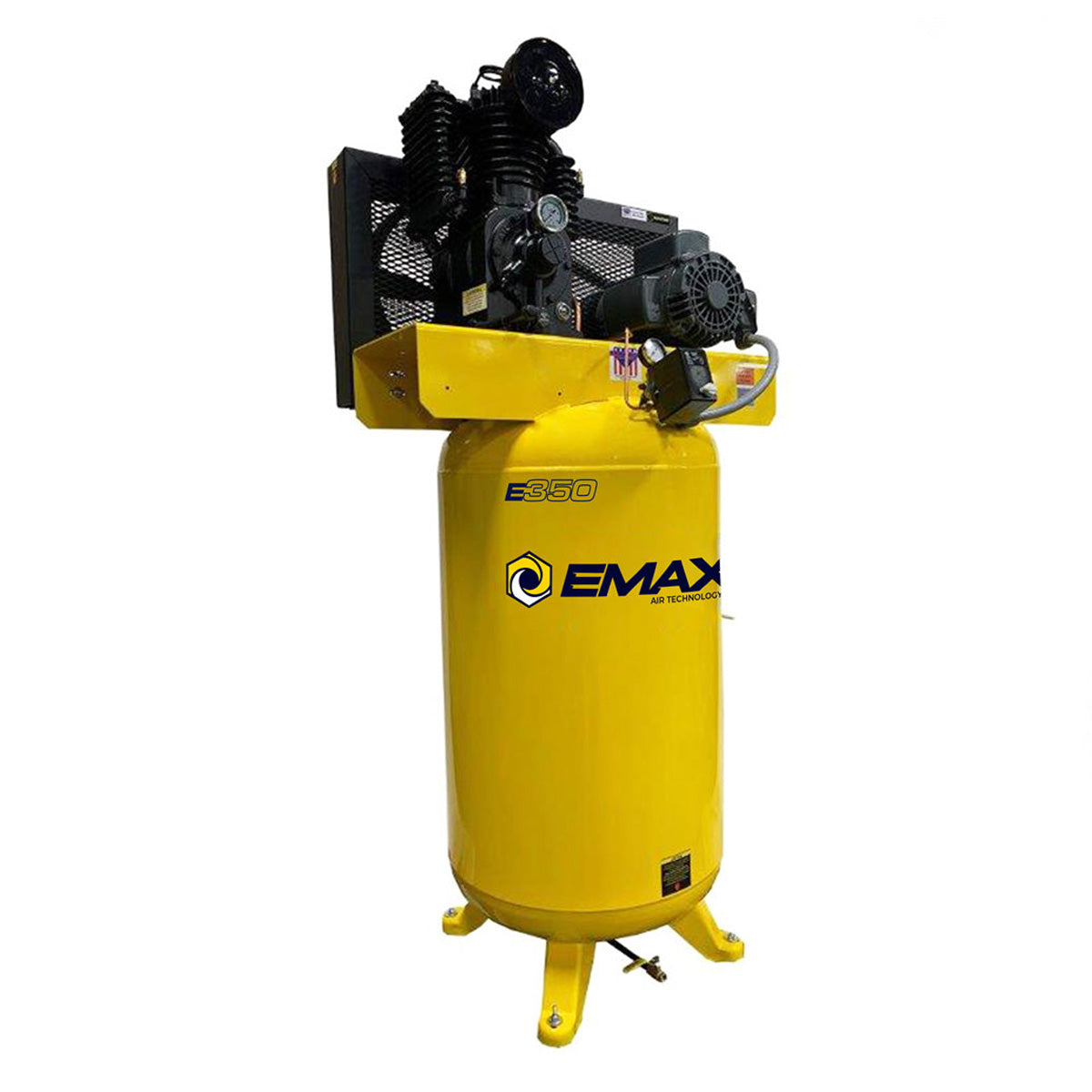

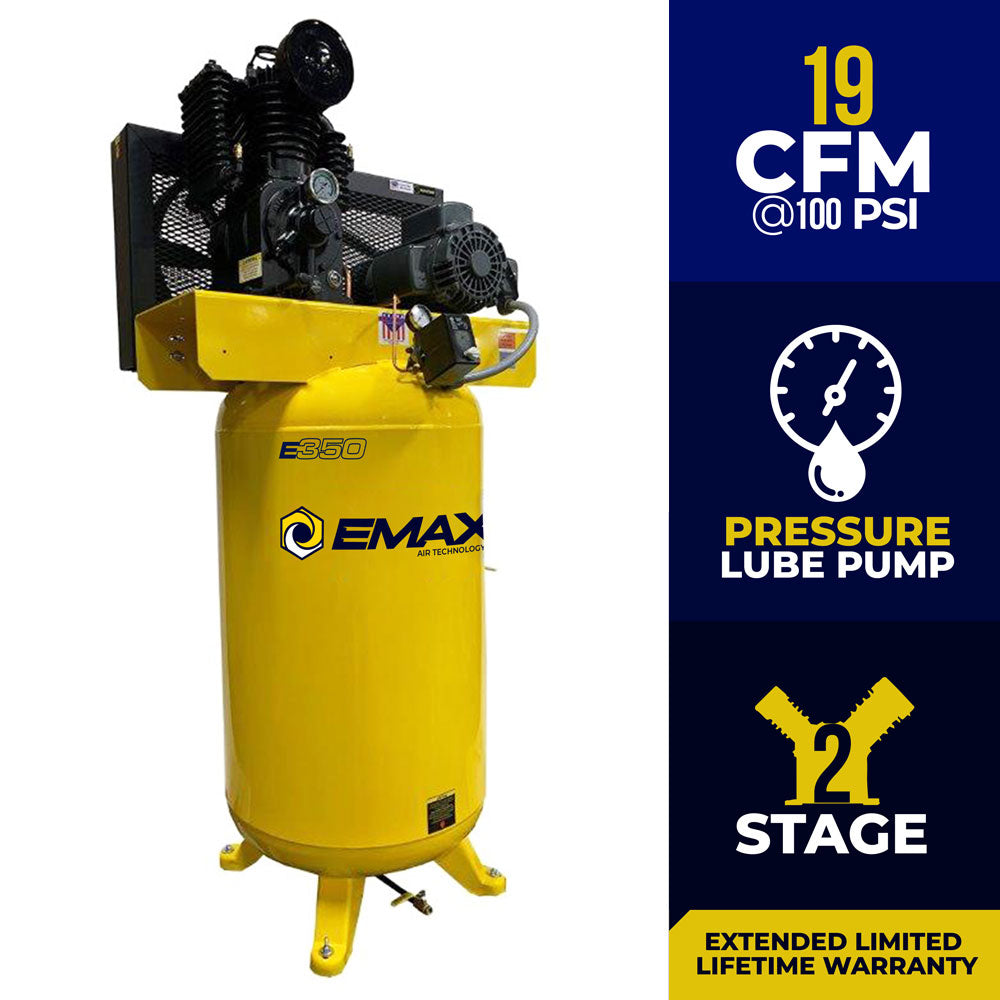

EMAX EI05V080I1 5 HP 2 Stage Air Compressor 1 PH 80 Gallon Vertical Tank(Emax Industrial 5 Hp 1 Phase 2 Stage 80 Gal Vertical Stationary Electric Air Compressor With Pressure Lube Pump)

5 HP 2 Stage Air Compressor 1 PH 80 Gallon Vertical Tank

Introducing the EMAX Industrial 5 HP 2-Stage Single Phase Inline 80-Gallon Vertical Air Compressor, engineered for uncompromising performance in industrial settings. With a robust 5 HP single-phase electric motor and two-stage pump, this compressor delivers consistent and powerful air delivery for demanding tasks. The space-efficient design maximizes floor space utilization while offering an ample 80-gallon tank for reduced cycle frequency and uninterrupted operation. EMAX compressors are known nationwide for their super quiet operation and longevity. When maintained to the manufacturer's specifications, this air compressor is designed to last for up to 70,000 hours. Please see below for more features and specifications.

Features and Specifications:

• Pump Model: APP2I0524TP
• Pump Material: Cast Iron
• Pump RPM: 800
• CFM @ 100 PSI: 19
• Max PSI: 175
• Tank Size: 80 Gallons
• Tank Orientation: Vertical
• Overall Dimensions (LxWxH): 31" x 33" x 75"
• Weight: 576 LBS
• Tank Outlet Size: 3/4" NPT
• Required Voltage: 230
• Running Amps: 24
• Recommended Breaker Size: 40 Amps
• Oil Capacity: 2 Quarts
• Certifications: CSA, ASME, ETL
