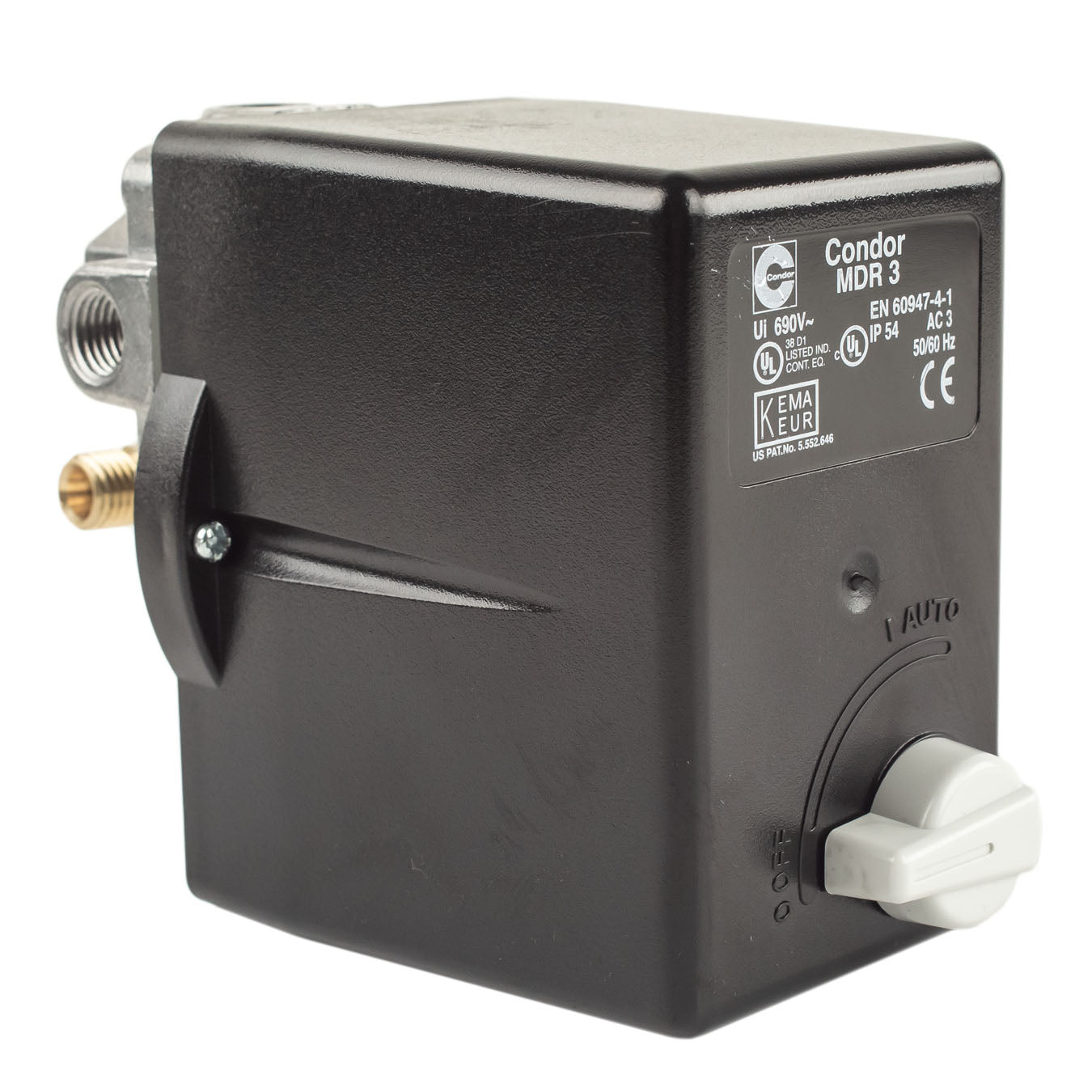

Condor MDR3/16RM 145-175 PSI 4 Port Pressure Switch 22A - 30A Overload 1/4" FNPT(Condor Mdr3 16rm 145 175 Psi 4 Port Pressure Switch 22a 30a Overload 1 4 Fnpt)

Condor 31LC3EMX Four Port Pressure Switch/Magnetic Starter - 145-175 PSI

Brand new 145-175 PSI air compressor pressure switch or also known as a pressure control valve. This switch is an MDR3/16RM and has four ports on the bottom for air inlet hookups, which are all 1/4" female NPT and also has a 1/4" compression unloader valve that comes out the bottom of the switch with a 90-degree elbow and swivels. This switch works with 110/220 volt motors and can handle 30 full load amps at 220 volts. This switch also has an SK R3/20,0A/2 adjustable 22-30 amp overload relay so it also acts as a magnetic starter, which lengthens the life of your motor.

Specifications:

• Factory Set Pressure Range: 145-175 PSI
• Adjustable Pressure Setting up to 20 PSI +/-
• Adjustable Overload: 22-30 Amps
• Max Switching Capacity: 30 Full Load Amps at 220 Volts
• Switch Works with 110/220 Volts
• 1/4" Female NPT Connections
• 1/4" Compression Unloader Valve
• Four Port
• Single or Three Phase
• NEMA 1 Enclosure
• Steel Flange

This listing is for one (1) Condor 31LC3EMX pressure switch.
