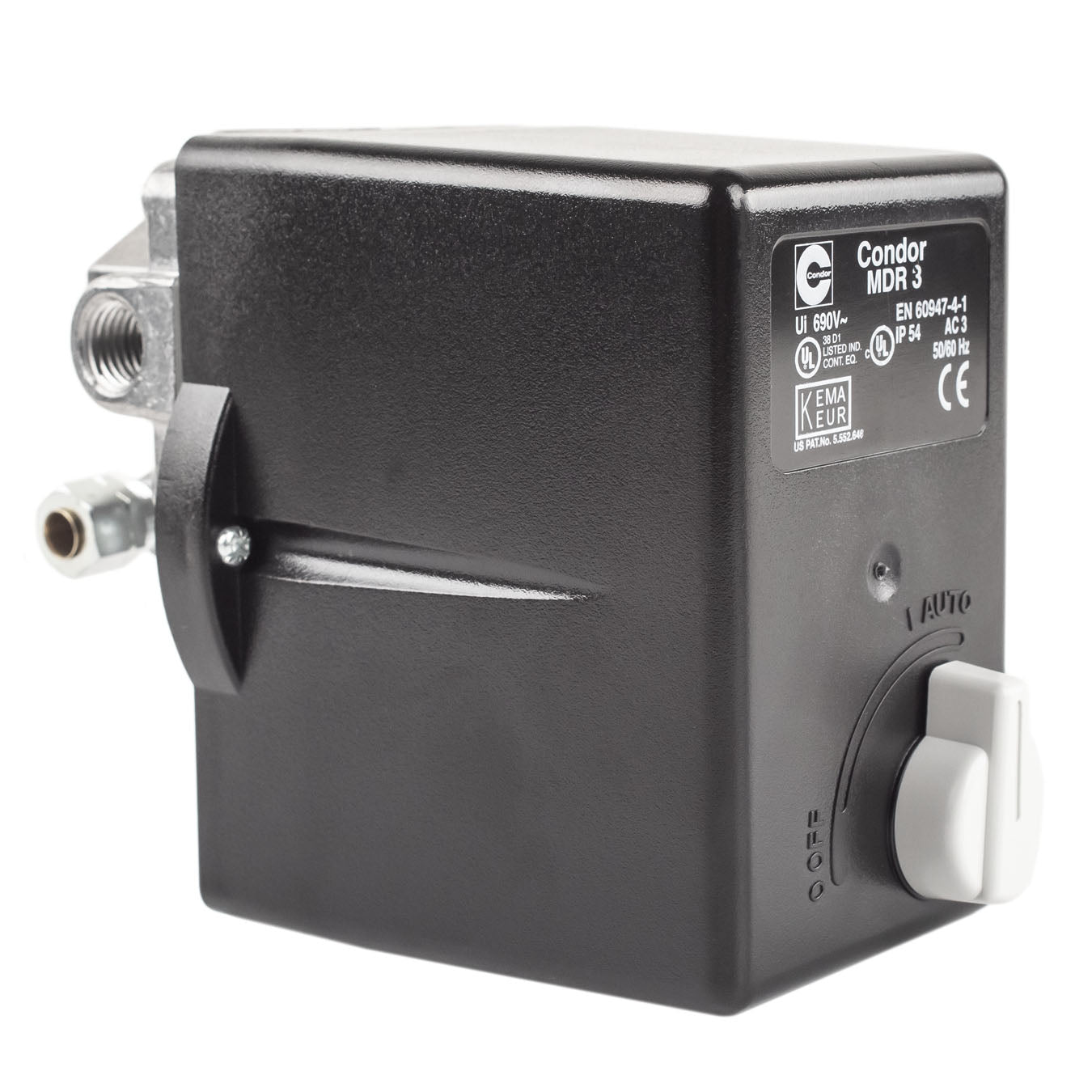

Condor MDR3/11 105-135 PSI 4 Port Pressure Switch Adjustable Overload 1/4" FNPT(Condor Mdr3 11 105 135 Psi 4 Port Pressure Switch Adjustable Overload 1 4 Fnpt)

Condor 31AC3EXXAUW Four Port Pressure Switch/Magnetic Starter - 105-135 PSI

Brand new 105-135 PSI air compressor pressure switch or also known as a pressure control valve. This switch is an MDR3/11 and has four ports on the bottom for air inlet hookups, which are all 1/4" female NPT and also has a 1/4" compression unloader valve that comes out the bottom of the switch with a 90-degree elbow. This switch works with 110/220 volt motors and can handle 30 full load amps at 220 volts. This switch also has an SK3-S adjustable overload relay up to 30 amps so it also acts as a magnetic starter, which lengthens the life of your motor.

Specifications:

• Factory Set Pressure Range: 105-135 PSI
• Adjustable Pressure Setting up to 20 PSI +/-
• Adjustable Overload: Up to 30 Amps
• Max Switching Capacity: 30 Full Load Amps at 220 Volts
• Switch Works with 110/220 Volts
• 1/4" Female NPT Connections
• 1/4" Compression Unloader Valve
• Four Port
• Single or Three Phase
• NEMA 1 Enclosure
• Steel Flange

This listing is for one (1) Condor 31AC3EXXAUW pressure switch.
