Champion HR5D-12 R Series Duplex 5 HP 120 Gallon 1800 RPM Auto Tank Drain 230V 1 Phase(Champion Hr5d 12 R Series Duplex 5 Hp 120 Gallon 1800 Rpm Auto Tank Drain 230v 1 Phase)

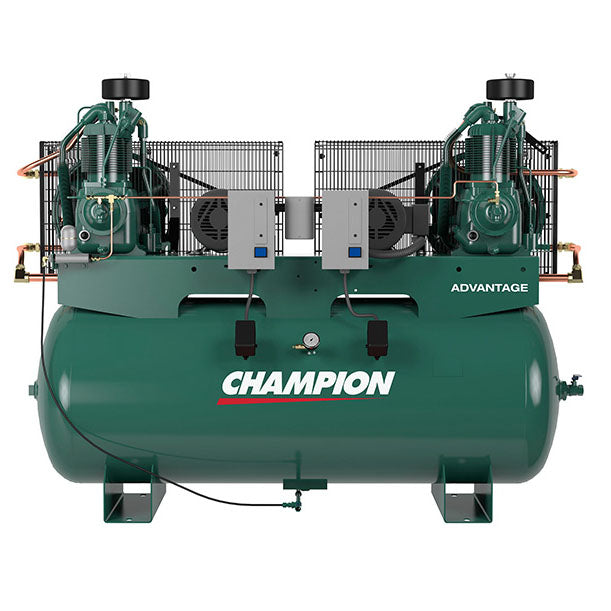

Champion HR5D-12 Dual 5HP Duplex Two-Stage 120 Gallon Horizontal Air Compressor

Champion compressors are proven units, known for their reliability over decades of use. Champion knows their products and understands how they operate in many different operating environments. No matter the application, Champion gets the job done. The R-Series from Champion is ideal for shops and those looking to have multiple people working off of the same air compressor. This HR5D-12 model features two 5 HP electric motors (single-phase 230 volts), dual two-stage pumps that deliver 34 CFM total, and comes equipped with two magnetic starters. Please see below for more details and specifications.

Features and Specifications:

• Heavy Duty Two Stage, Splash Lubricated Air Compressor Pump(s)
• Multi-Finned Cylinders
• Integral Cylinder Head
• Intercoolers for Cooling Between Stages
• Reliable High Flow Disc Valves
• Oversized Main Bearings
• Balanced Crankshaft
• Oil Level Site Glass
• Centrifugal Unloader for Loadless Starting

Pump Specifications:

• Pump Stages: 2
• Pump RPM: 737
• CFM Delivered: 34 (Both Pumps Combined)
• Splash Lubricated
• 100% Cast Iron
• Oil Level Sight Glass
• Large Flywheel Blades for Maximum Cooling
• Disc Valve Design
• Deep Finned Intercooler
• All Pumps are Factory Tested

Motor and Tank Specifications:

• Electric Motor HP: 5
• Voltage: 230 Volts
• Phase: Single
• Tank Capacity: 120 Gallons
• Tank Orientation: Horizontal
• Dimensions: 75" x 33" x 54"
• Approximate Weight: 980 LBS
