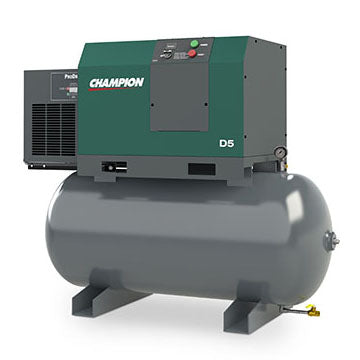

Champion D5AS 5HP Rotary Air Compressor 60 Gallon Horizontal Air Compressor(Champion Rotary D Series 5 Hp)

Champion D5AS 5HP Rotary Air Compressor 60 Gallon Horizontal Air Compressor

D Series compressors feature innovative, integrated airend designs that reduce connection points, enhance reliability, and promote superior serviceability. The simplified, reduced-component approach extends beyond the airend into the oil and air cooler. This combination cooler results in a reduction in energy consumption, low discharge air temperatures, and an increase in overall system reliability. Designed to operate at a 100% duty cycle, D Series compressors from Champion are ideal for demanding environments where dry, clean, continuous-use compressed air is required. The quiet enclosed design enables you to install the compressor near the point of use without any concern of elevated noise levels. The D Series yields noise levels as low as 65 dBA allowing you to work comfortably 24/7.

Features and Specifications:

• Rotary Screw Compressor
• Dry Tank Air Receiver
• Refrigerated Air Dryer & 1 Micron Pre-filter
• Two Separate Electrical Connections (Compressor & Dryer)
• Pressure Gauge
• Tank Drain
• Controller
• Motor Horsepower: 5
• Single Phase 230 Volt
• SCFM @ 145 PSI: 16
• Motor RPM: 1740
• Tank Capacity: 60 Gallons
• Controller: CSC15
• Sound: 65 dBA
• Dimensions: 52" x 23" x 44"
• Approximate Weight: 505 LBS
