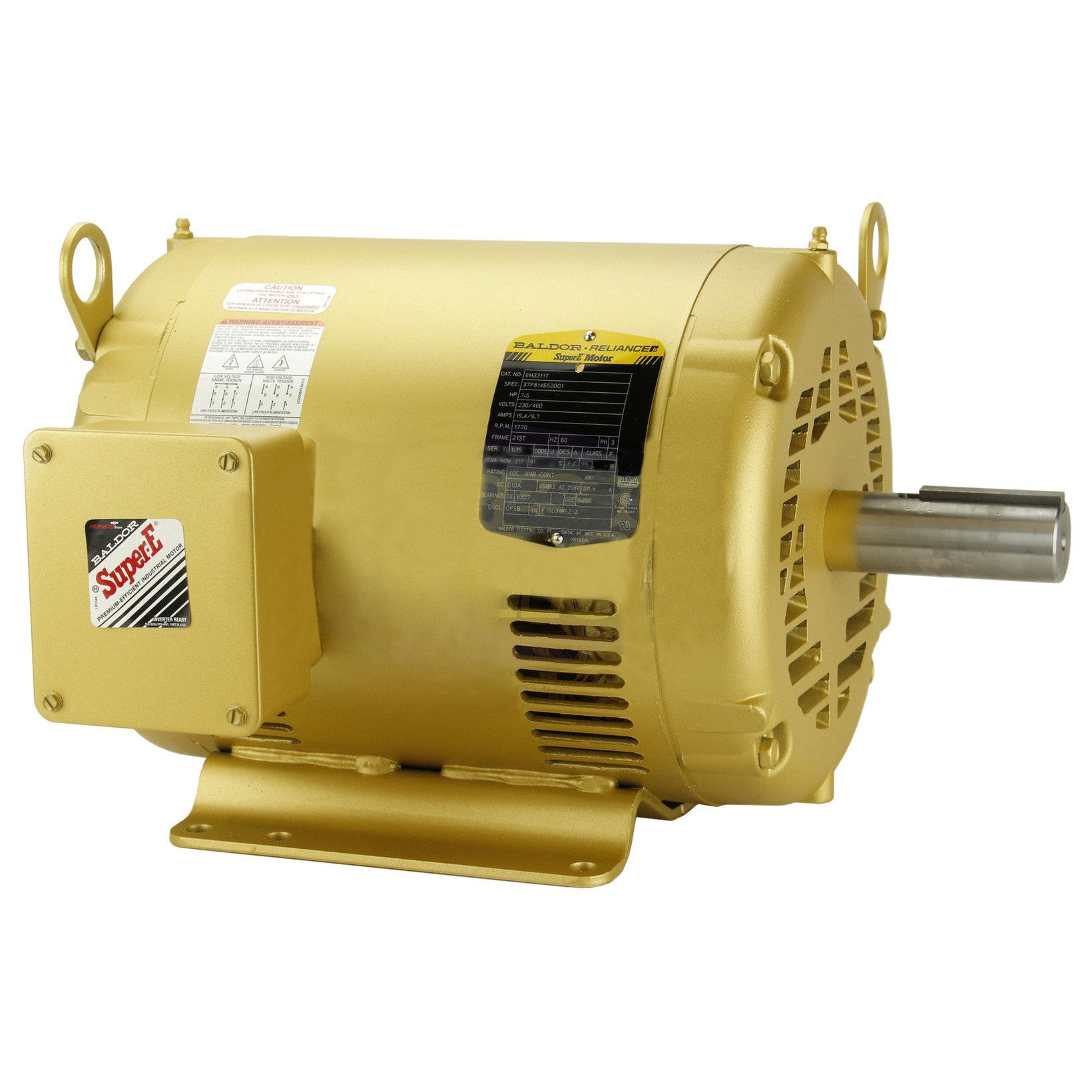

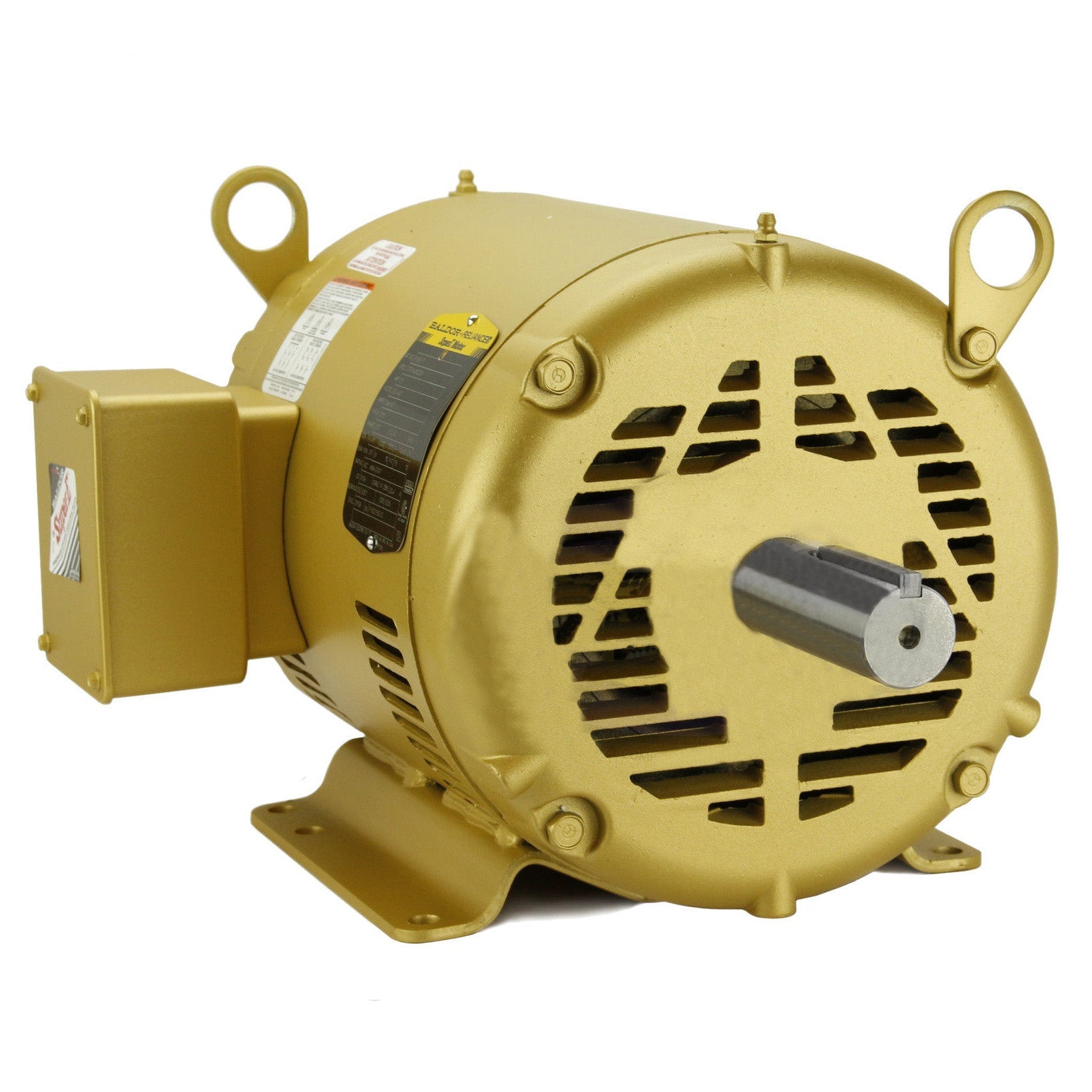

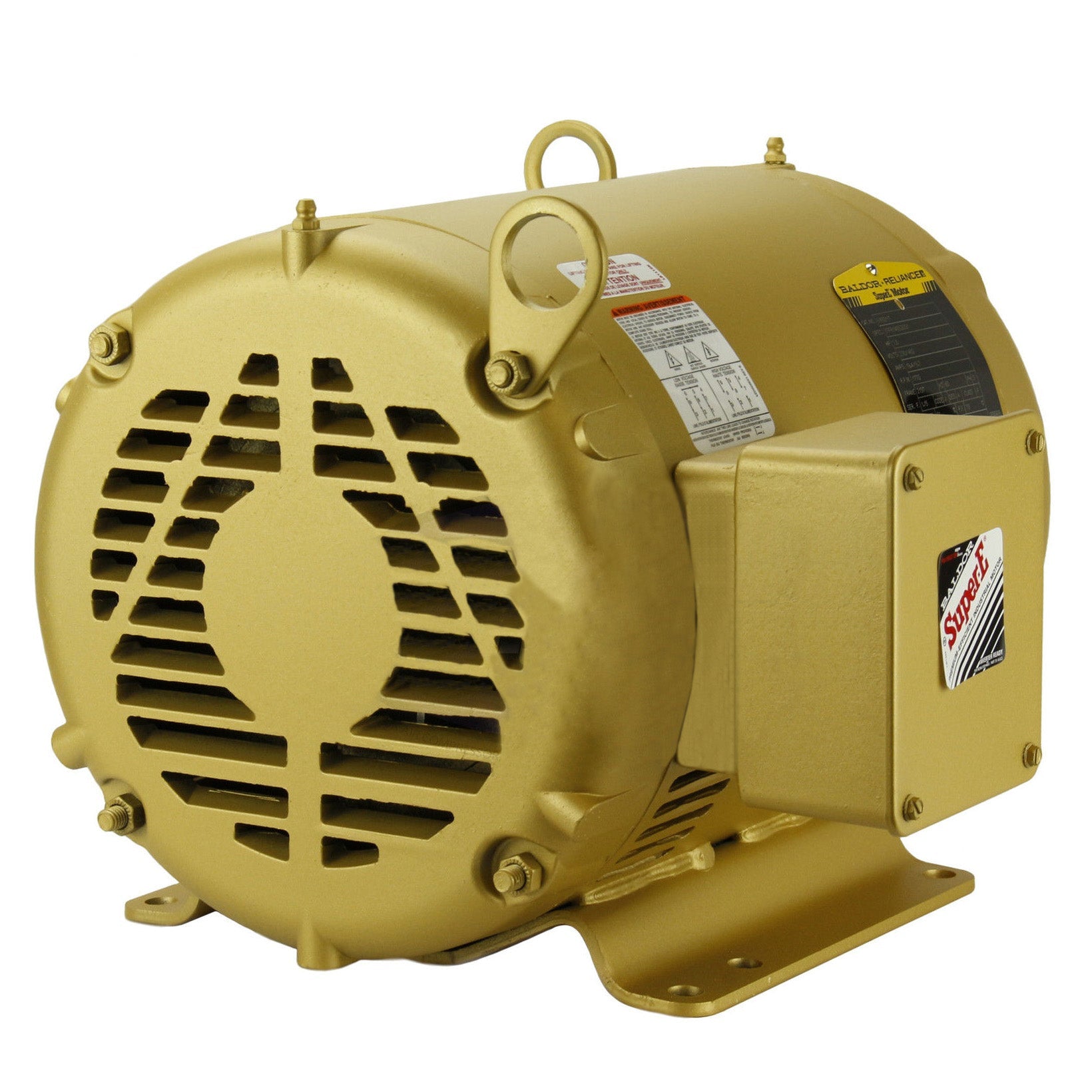

Baldor EM3311T 7.5 HP 3 Phase Super-E Electric Motor 1770 RPM 213T Frame 230/460V OPSB(Baldor 7 5 Hp 3 Phase Electric Compressor Motor 213t Frame 230v 1770 Rpm)

The Baldor EM3311T is a 7.5-horsepower, three-phase, AC, Super-E electric motor rated for 1770 RPM, running on 230/460V at 60Hz, and is designed for use with air compressors, fans, blowers, pumps, machine tools, conveyors, and other belt-driven systems where moisture and dust exposure is limited. It features a 213T mounting frame, an open slotted band enclosure with greater ventilation than standard ODP, and it is rated for continuous duty.

Features & Specifications:

• Output: 7.5 HP
• Phase: 3 Phase
• Frame: 213T
• Speed: 1770 RPM
• Shaft Rotation: Reversible (CW & CCW)
• Rated Voltage: 230/460 Volts (Usable at 208V)
• Frequency: 60 Hz
• Duty Rating: Continuous
• Insulation Class: F
• Enclosure: Open Slotted Band (OPSB)
• Shaft Diameter: 1-3/8" Keyed
• Shaft Length: 3-3/8"
• Amps: 19.4/9.7
• Shipping Weight: 115 lbs
• Made in USA

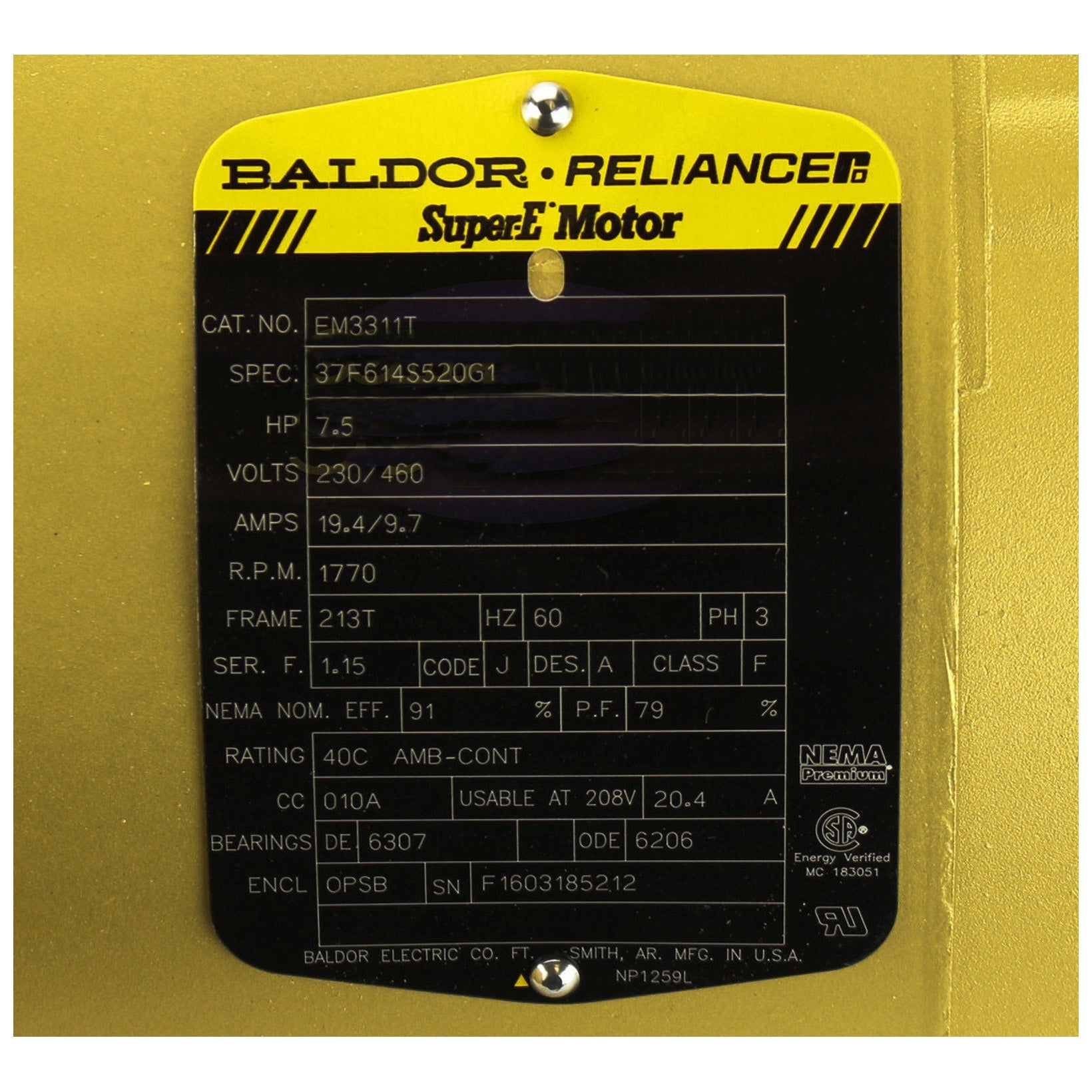

• Spec.: 37F614S520G1
• UPC: 781568104675
• Nominal Efficiency: 91%
• Manufacturer Warranty:Baldor general-purpose AC motor warranty covers defects in workmanship and materials for 18 months from installation or 24 months from the manufacture date through your local Baldor-Reliance and ABB service center
• 30-Day Compressor Source warranty

This item only ships to the 48 continental United States. See the EM3311T spec sheet.
