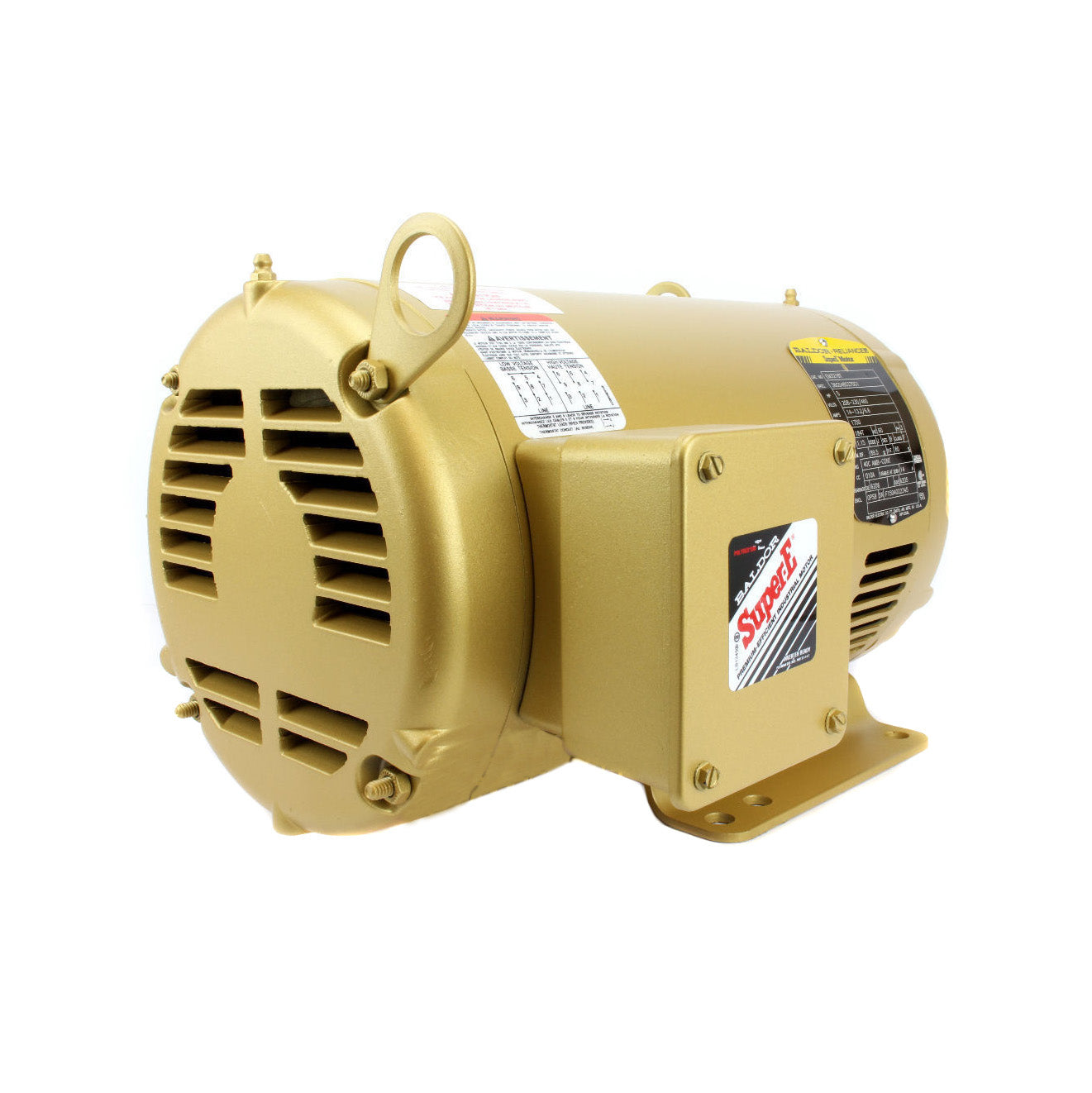

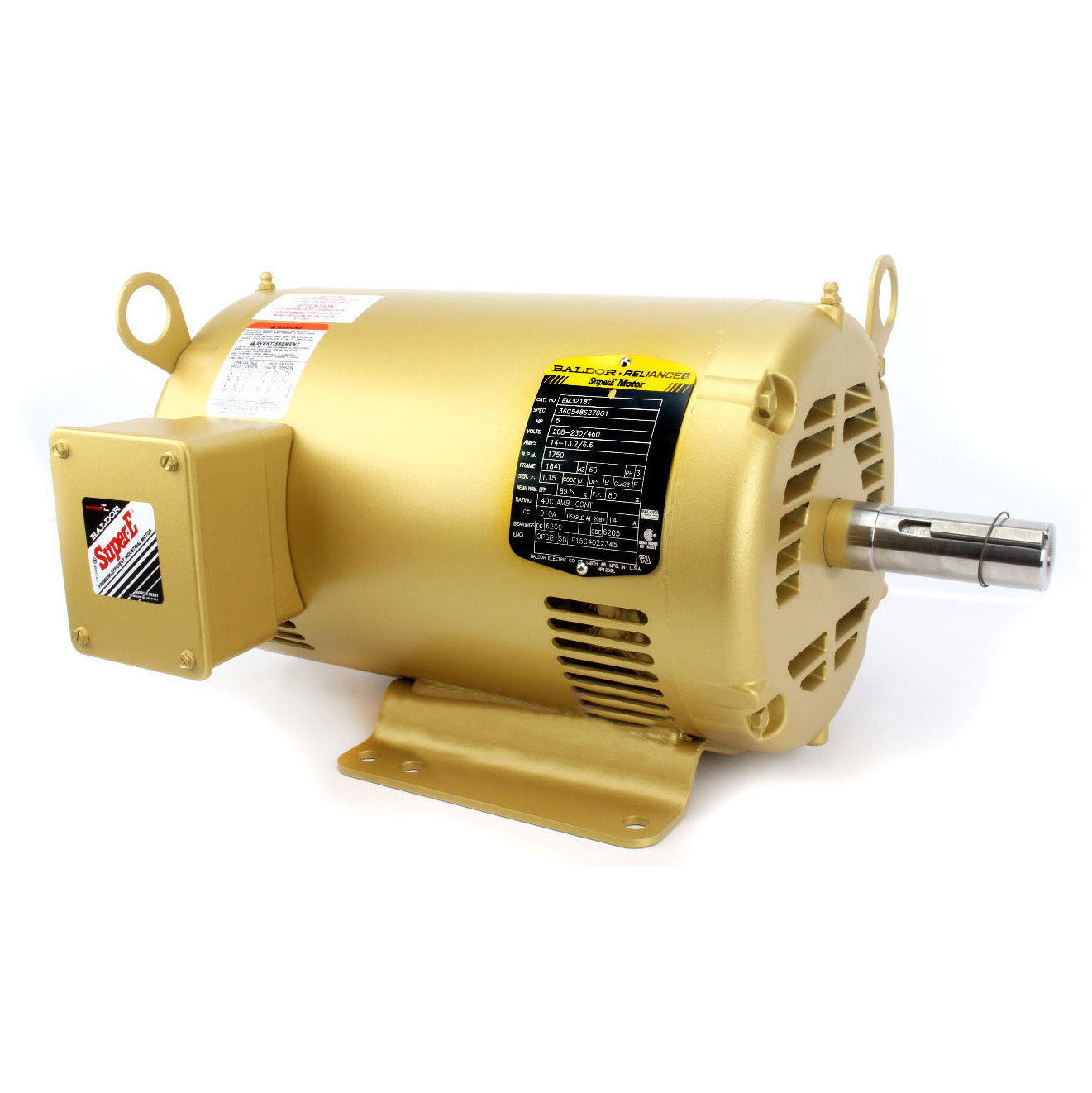

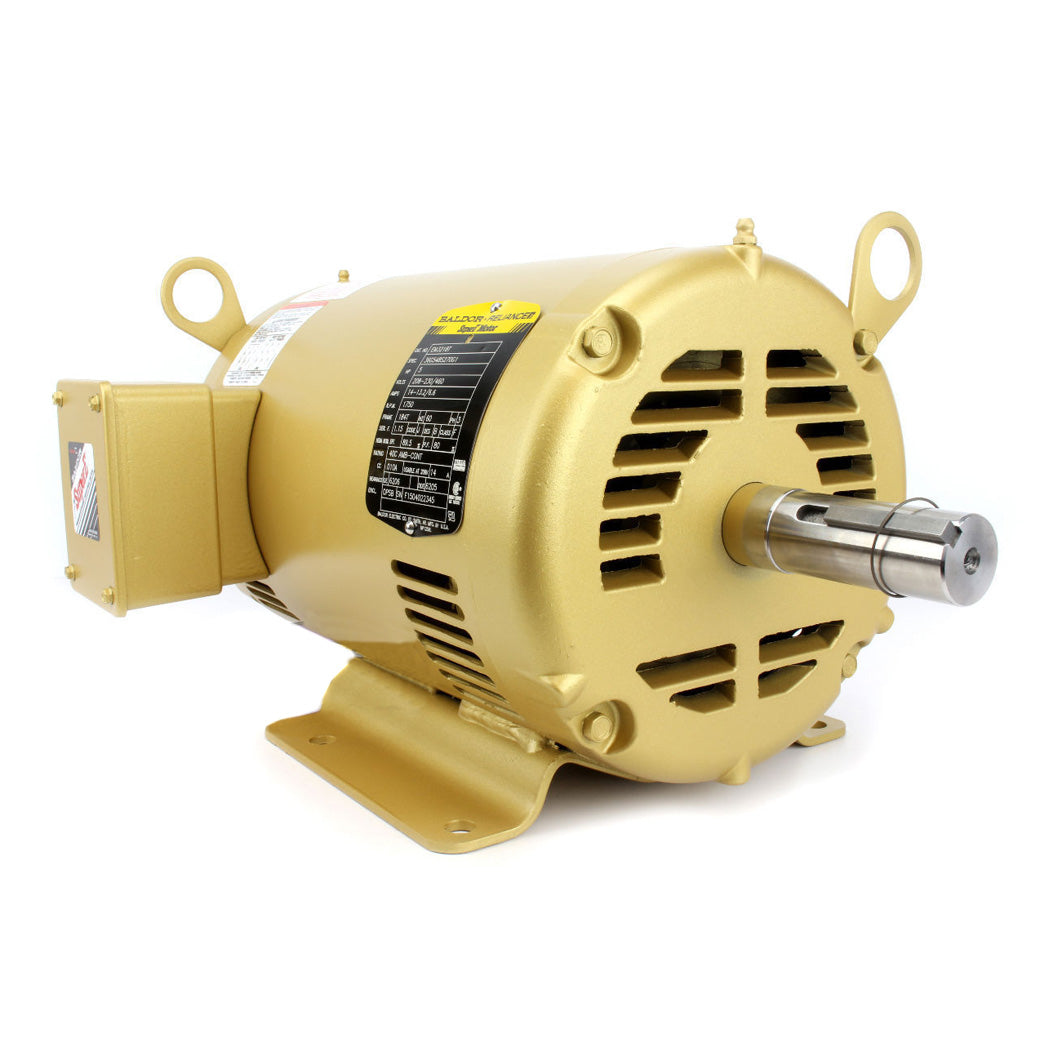

Baldor EM3218T 5 HP 3 Phase Super-E Electric Motor 1750 RPM 184T Frame 208-230/460V OPSB(Baldor 5 Hp Three Phase Electric Compressor Motor 184t Frame 230v 1750 Rpm)

Brand new Baldor 5 horsepower 3 phase electric motor model: EM3218T. This motor is a 5 hp, 3 phase, multi-voltage 208 / 230 / 460, 1750 RPM, 184T frame, continuous duty motor. This motor is specifically designed to be used with air compressors to meet start-up load/torque specifications. This Baldor electric motor spins at 1750 RPM. It can replace a higher RPM motor; however, you will have to use a larger pulley to make the RPMs match. This motor has a 1 year limited manufacturer's warranty available through your local Baldor electric motor service center.

This is a multi-voltage motor and can run at 208, 220, 230, or 460 volts. Amperage draw will vary depending on the voltage refer to specifications for amp draw ratings.

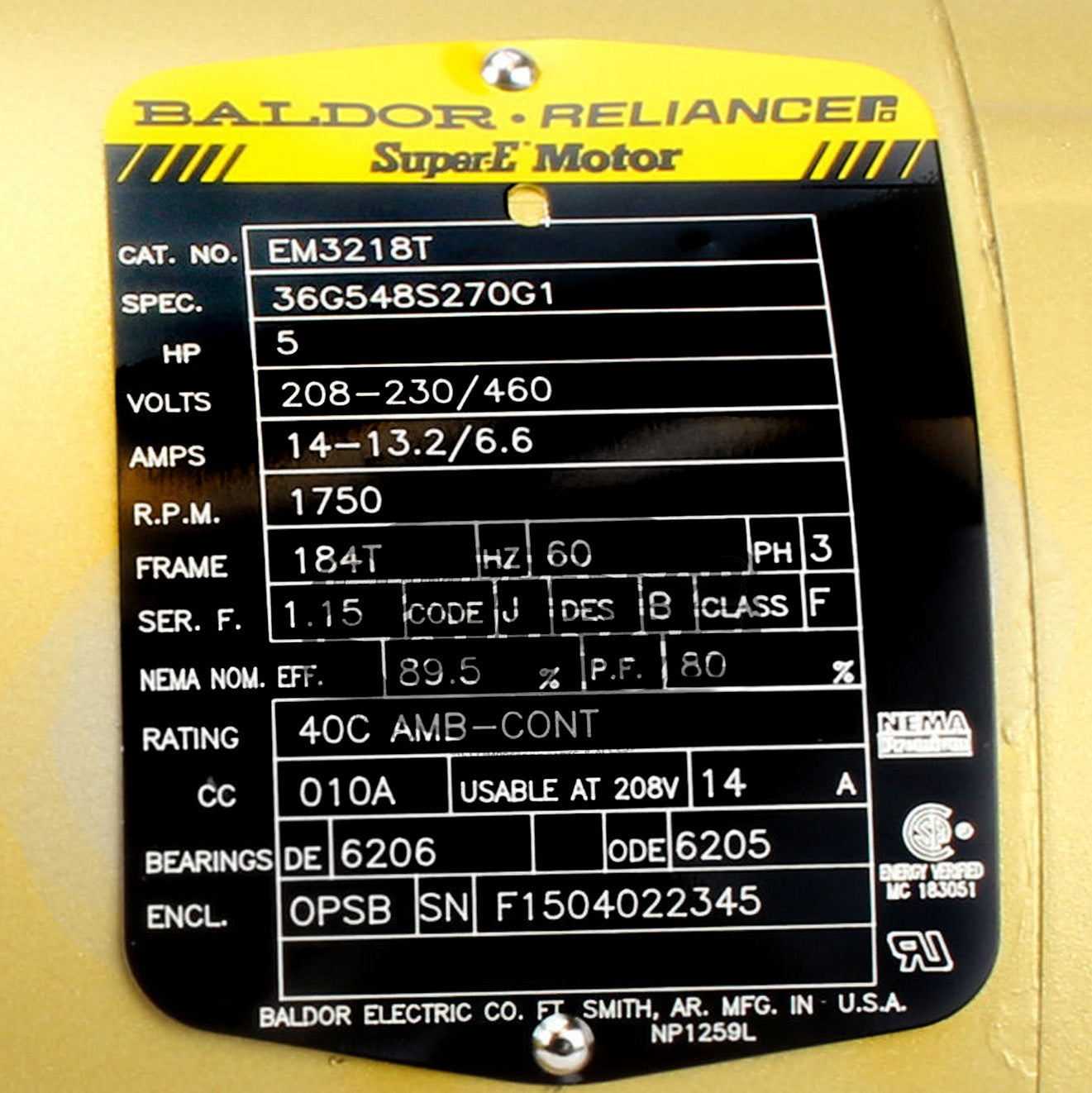

Specifications:

• 5 Horse Power
• Voltage: 208 / 230 / 460
• FL Amps: 14-13.2 / 6.6
• 208V AMPS: 14
• FL Efficiency: 89.5
• 184T Frame
• 60Hz
• 1750 RPM
• Three Phase
• 40C AMB-CONT - Rating
• Enclosure: OPSB
• Shaft Length: 3.5"
• Shaft Diameter: 1-1/8"
• Part Number: EM3218T
