7.5 HP Single Phase Electric Motor 1760 RPM 213/5T Frame 208-230V ODP WEG 00718OS1CCD215T(7 5 Hp Air Compressor Duty Electric Motor 215t Frame 1760 Rpm Single Phase Weg)

7.5 HP 215T Single Phase 1760 RPM WEG Electric Motor

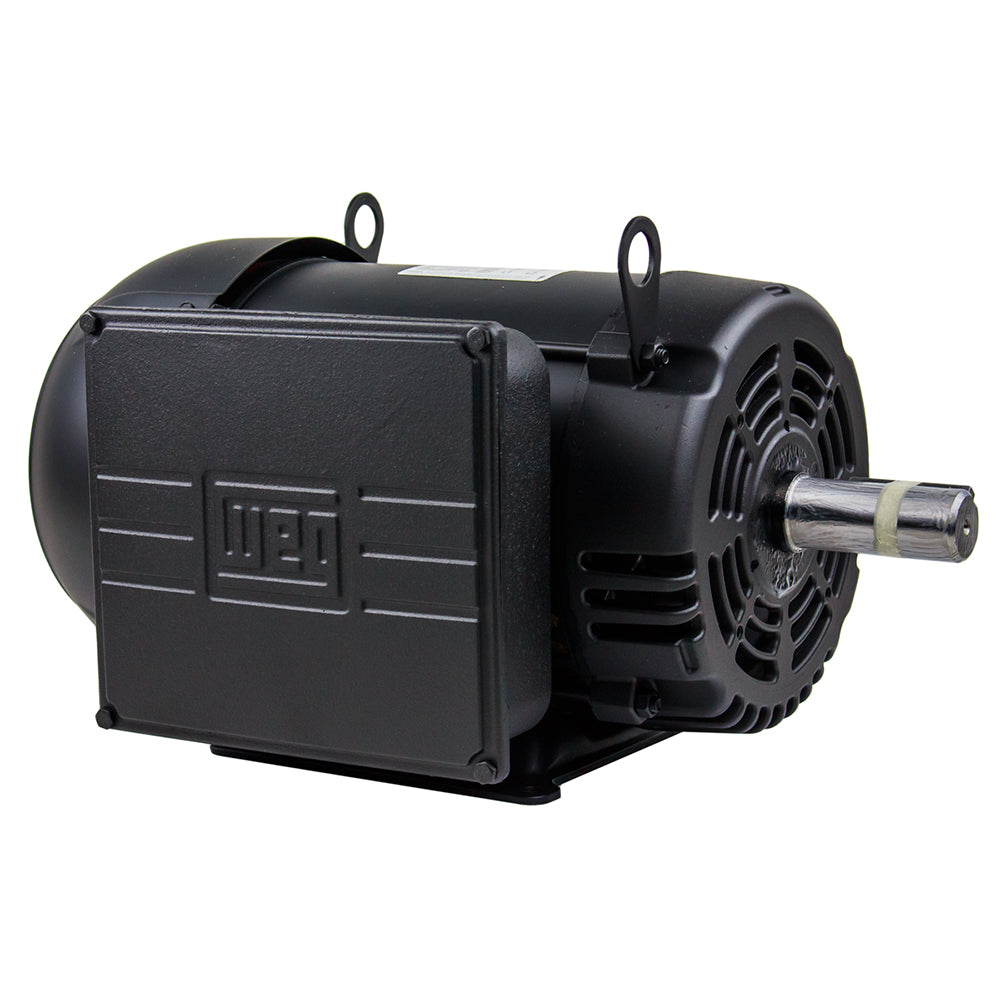

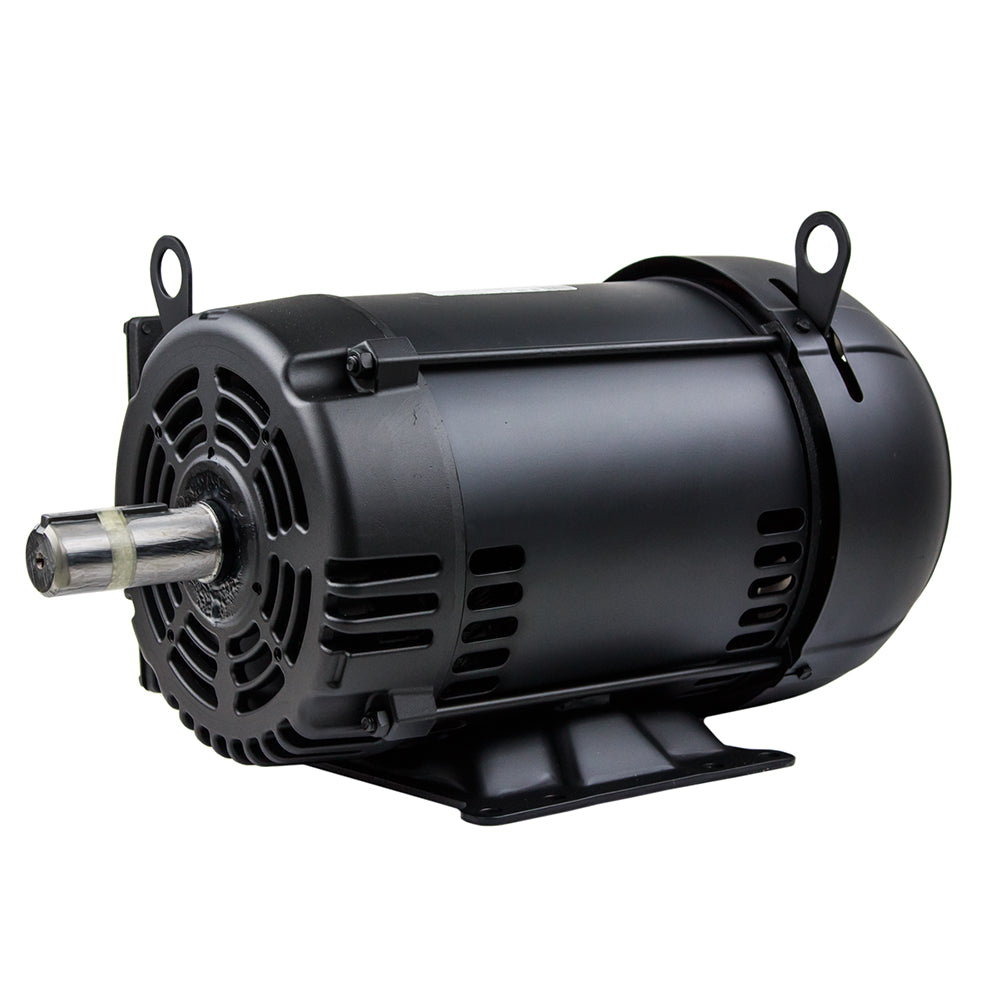

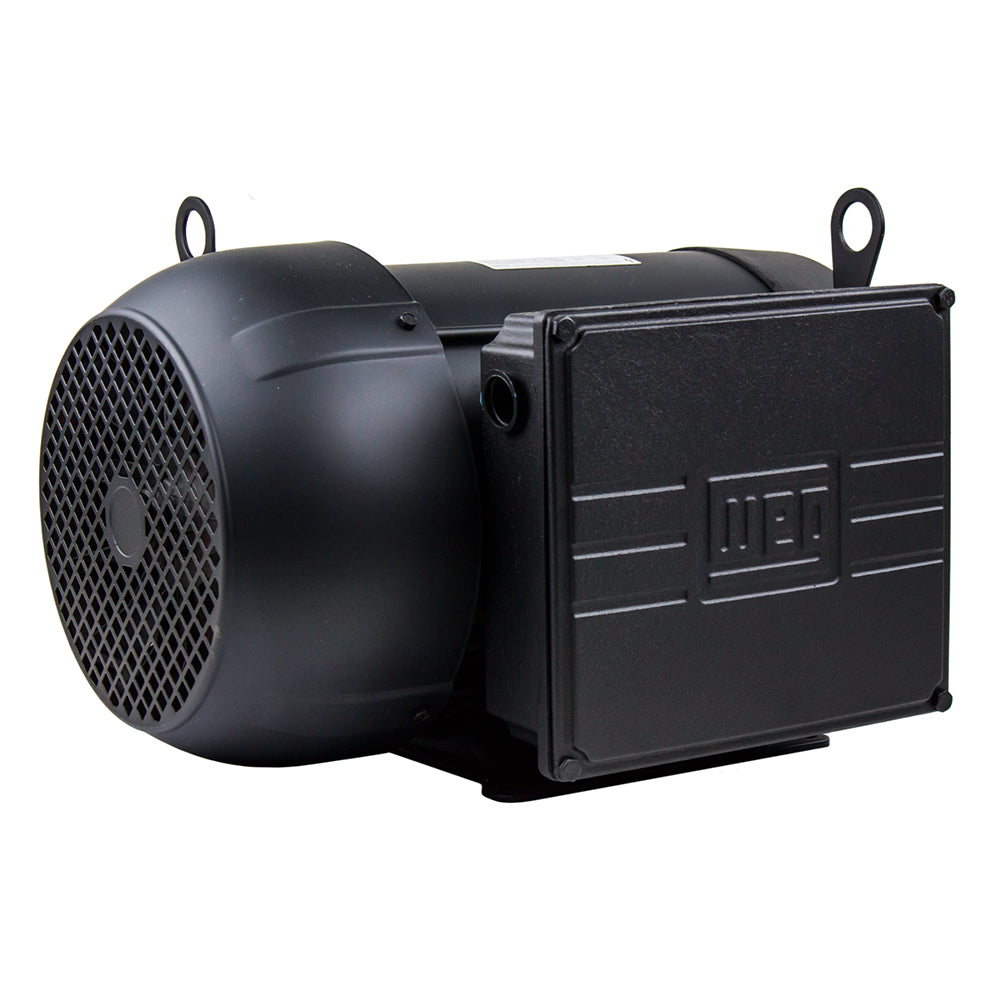

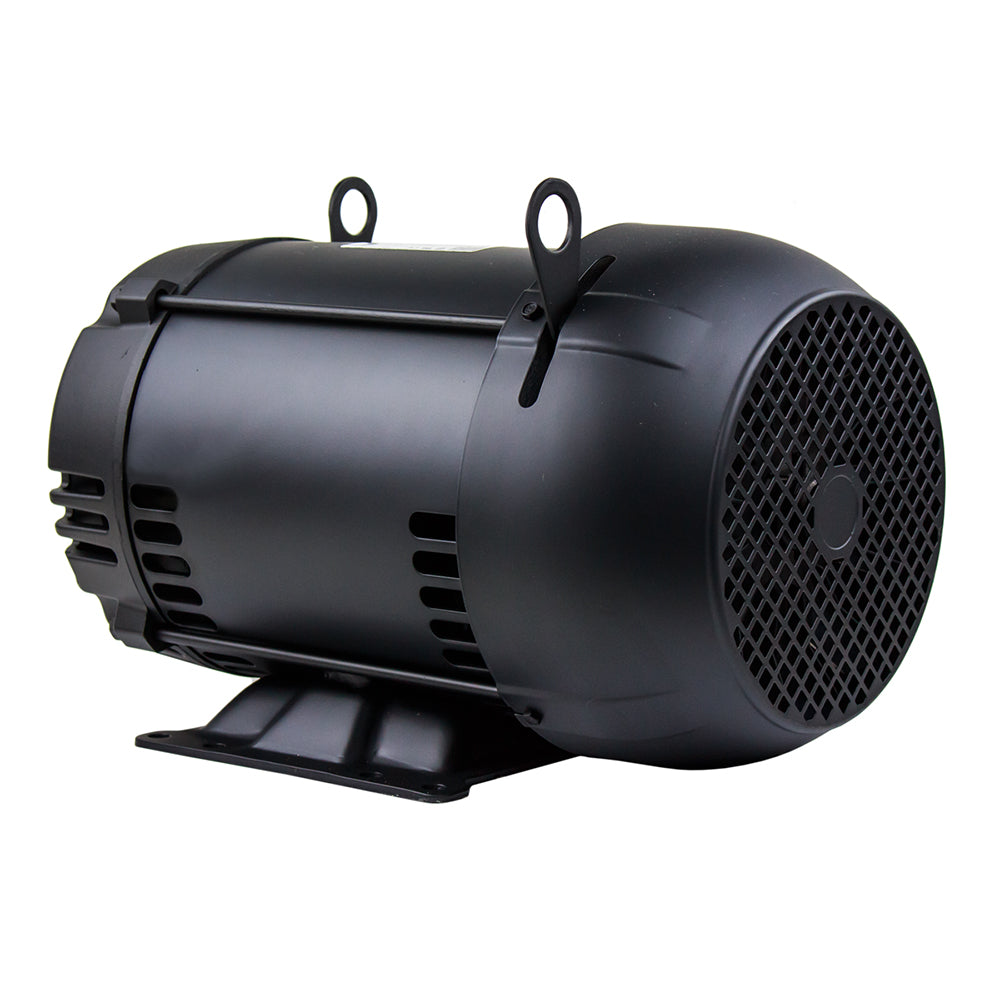

This listing is for a brand new WEG 7.5 horsepower air compressor motor model number 00718OS1CCD215T, this motor is 208-230 volt, 33.00-31.40 AMPS, 60 Hz, 215TFrame, single phase, 1-3/8" diameter shaft, and 1760 RPM. This motor is specifically designed for use with air compressors to meet start up load / torque specifications. This can replace a higher rpm motor, you will just have to use a larger pulley to make up the RPMs on your compressor. If you have any questions about this motor or if it will work as a replacement on your compressor feel free to contact us.

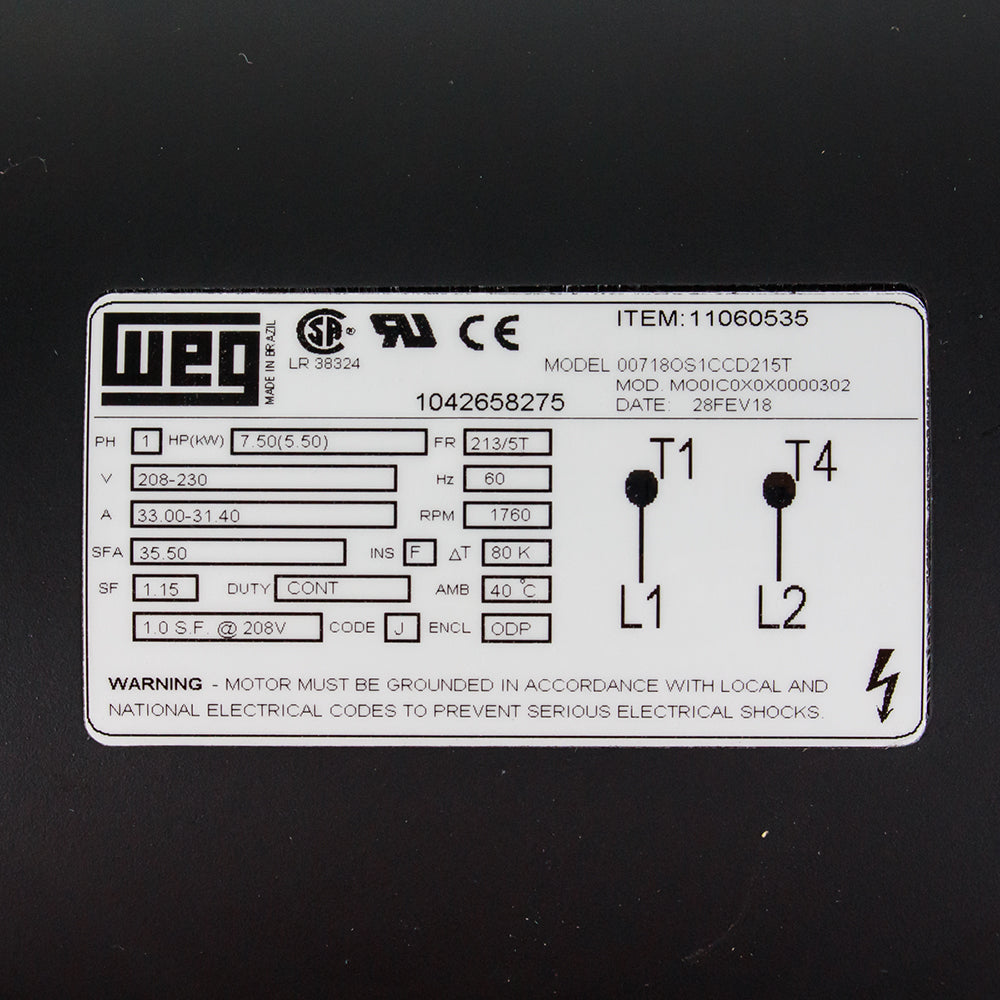

Specifications

• Frame: 215T
• Output: 7.5 HP
• Frequency: 60 Hz
• Rated Speed: 1760 RPM
• Rated Voltage: 208-230 Volts
• Rated Current: 33.00-31.40 Amps
• Service Factor: 1.15 (1.00 at 208V)
• Ambient Temperature: -20°C to +40°C
• Enclosure: ODP
• Rotation: Counter Clockwise
• Approx. Weight: 98lbs

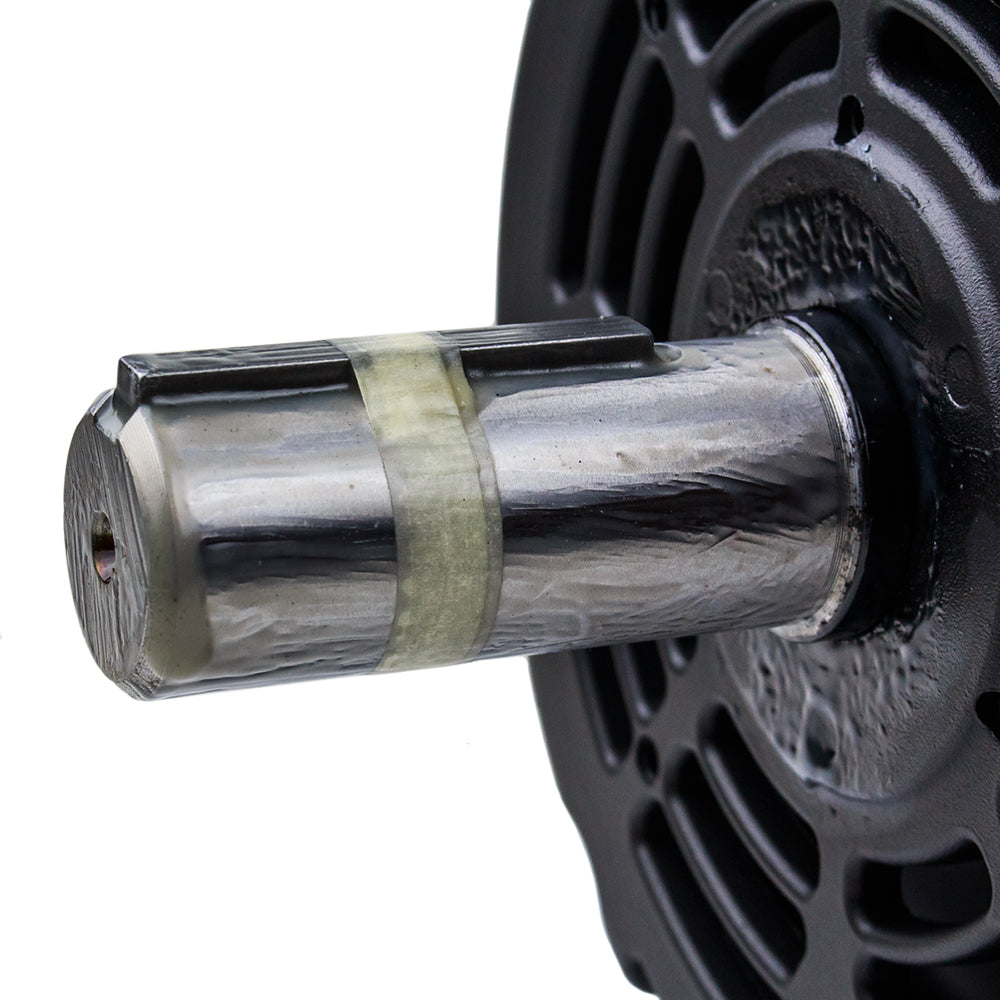

• Shaft Diameter: 1-3/8"
• Shaft Length: 3-1/4"

"THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES"

This motor has a 1 year limited manufacturer's warranty

We strive for 100% customer satisfaction! We take the time to package these motors extremely well to make sure they get to you in perfect condition.

If you have any questions about this motor, feel free to reach out to us.
