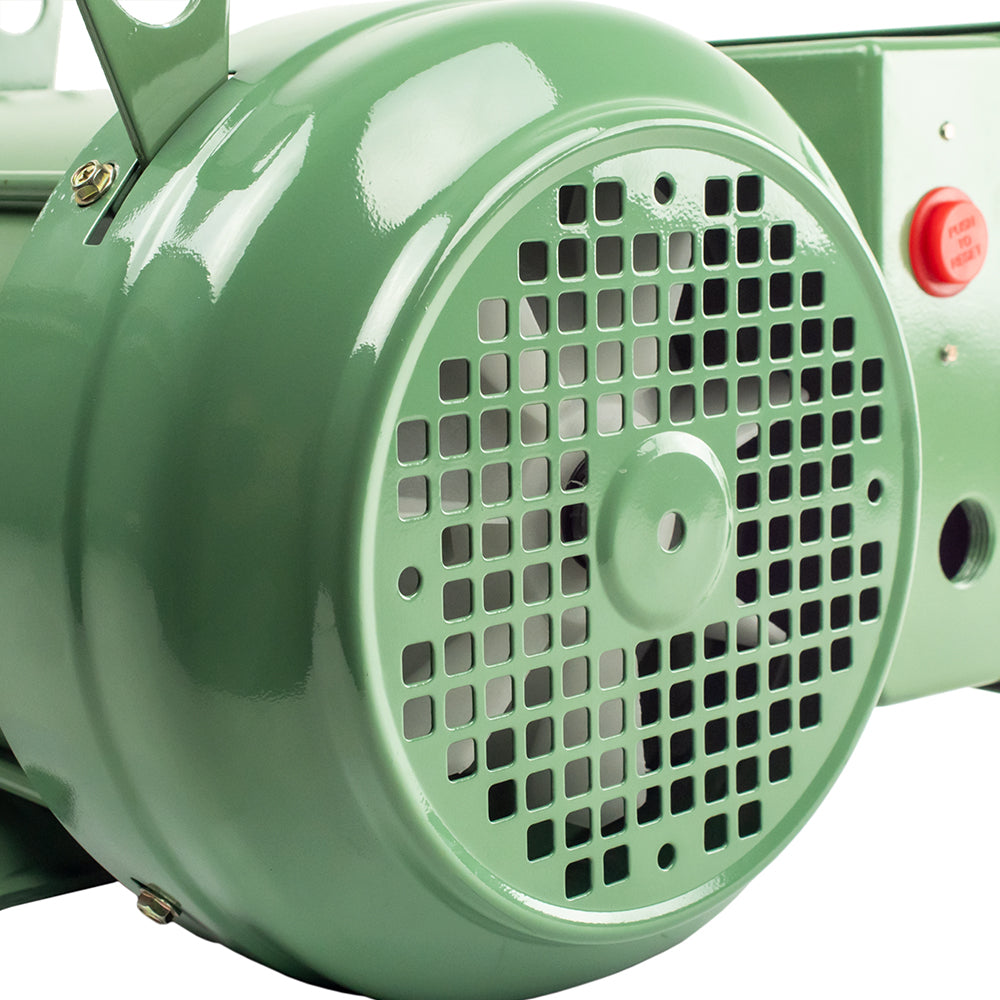

5 HP Single Phase Farm Duty Electric Motor 1769 RPM 184TC Frame 208-230V TEFC C-Face(5 Hp Farm Duty Single Phase Electric Motor C Face 1800 Rpm 184tc Tefc 208 230v)

Worldwide Electric 5HP 1800 RPM 184TC Frame C-Face Electric Air Compressor Motor

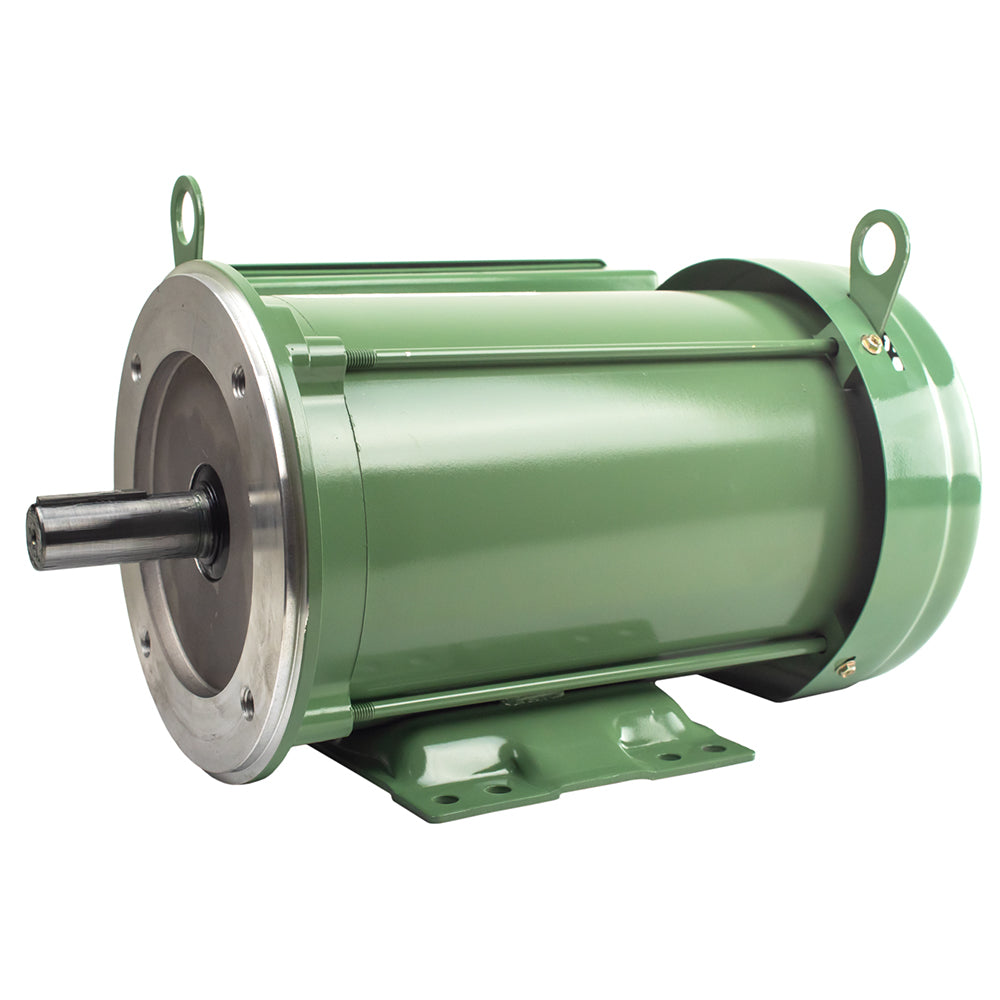

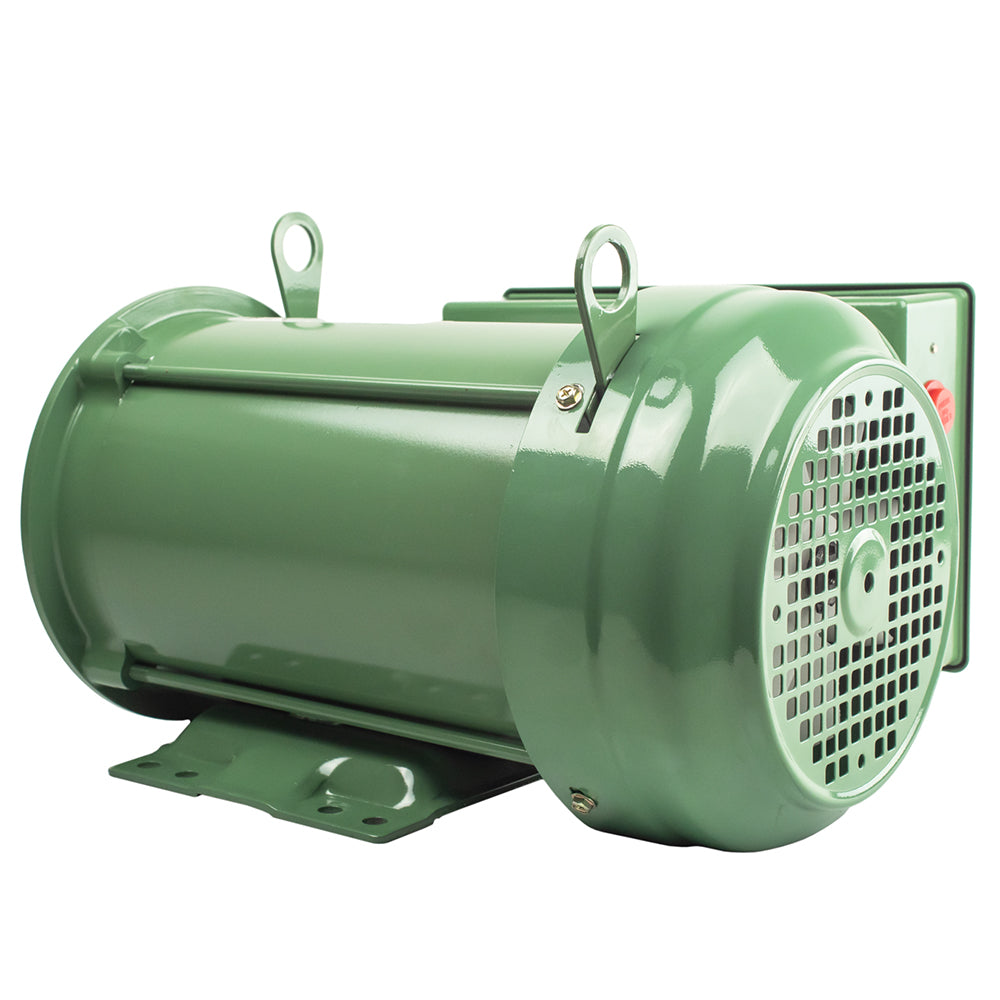

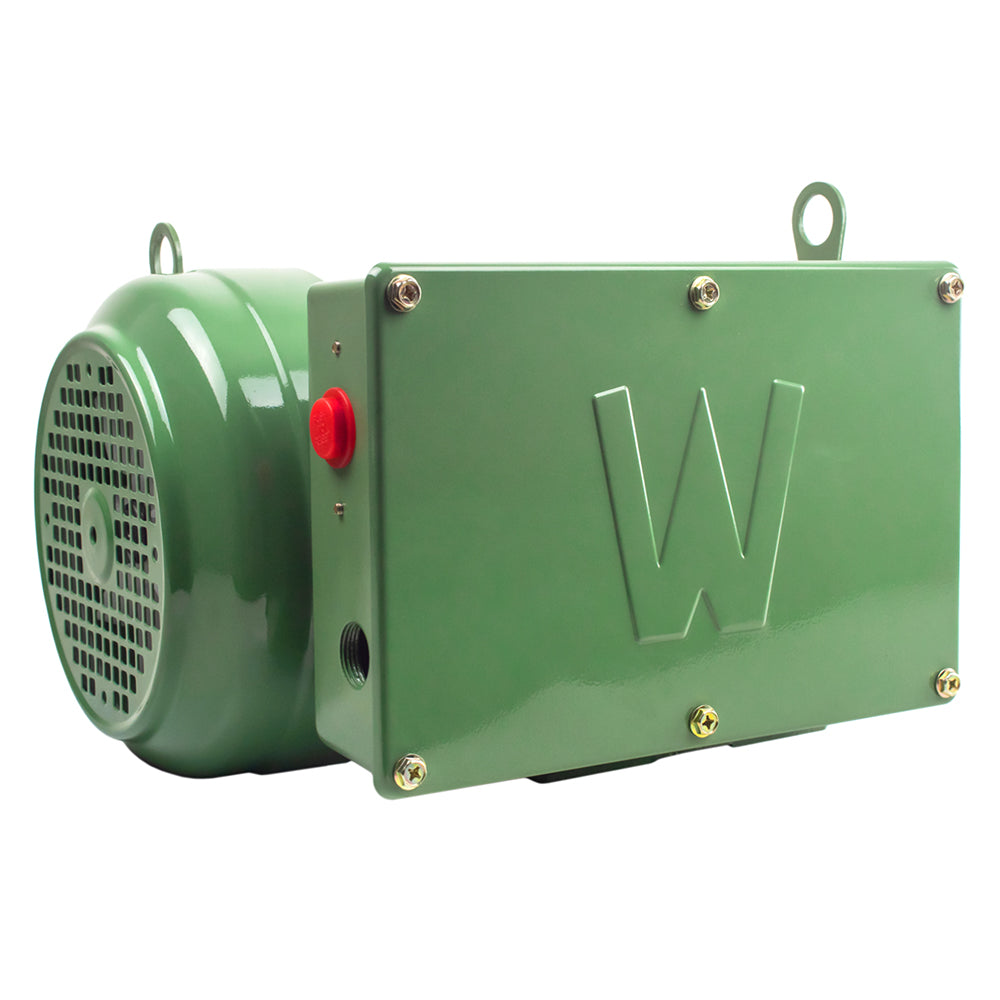

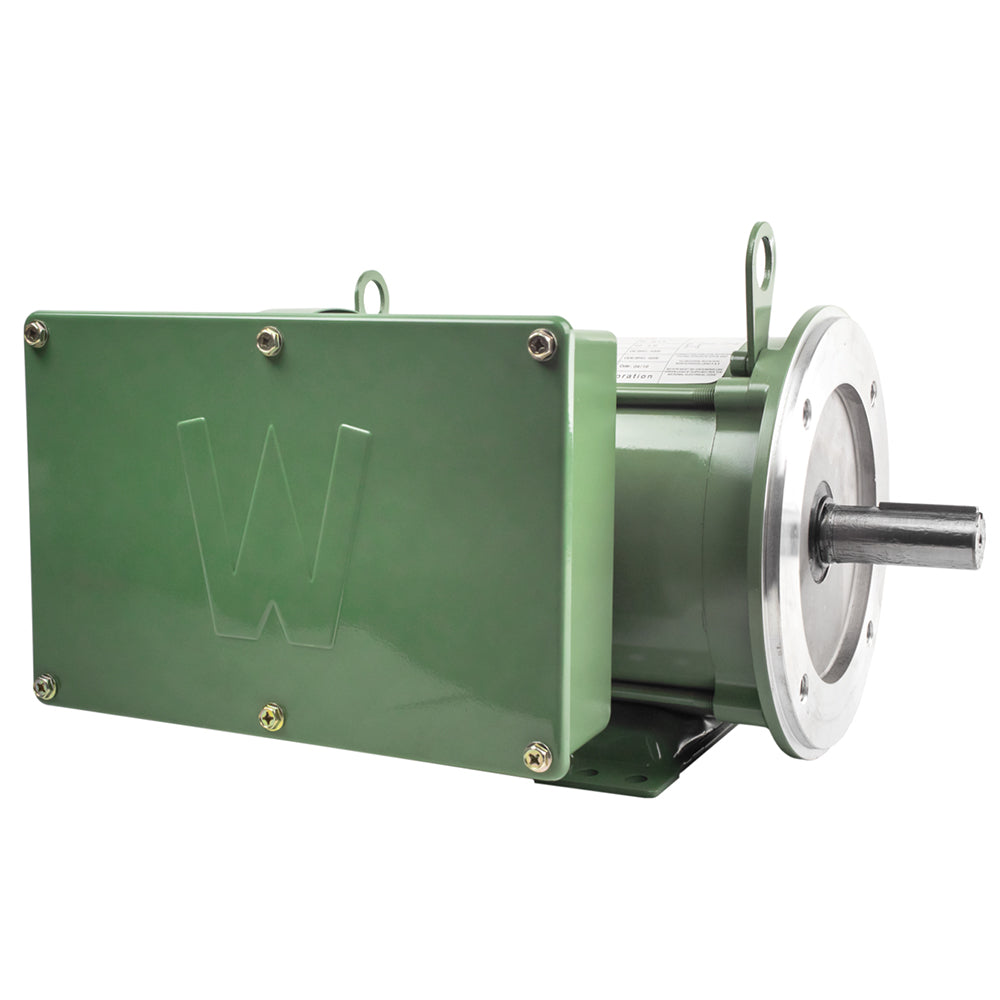

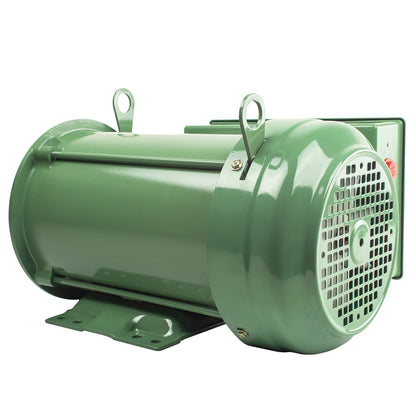

This is a brand new 5 horsepower, single phase farm duty, TEFC electric motor with a rigid base from Worldwide Electric. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, external fan cooling, a 1.15 service factor, a TEFC / IP55 enclosure, and a manual overload. It is also a C-Face motor with bolt holes that allow it to be mounted to pumps. Designed for 60Hz and is a 184TC frame.

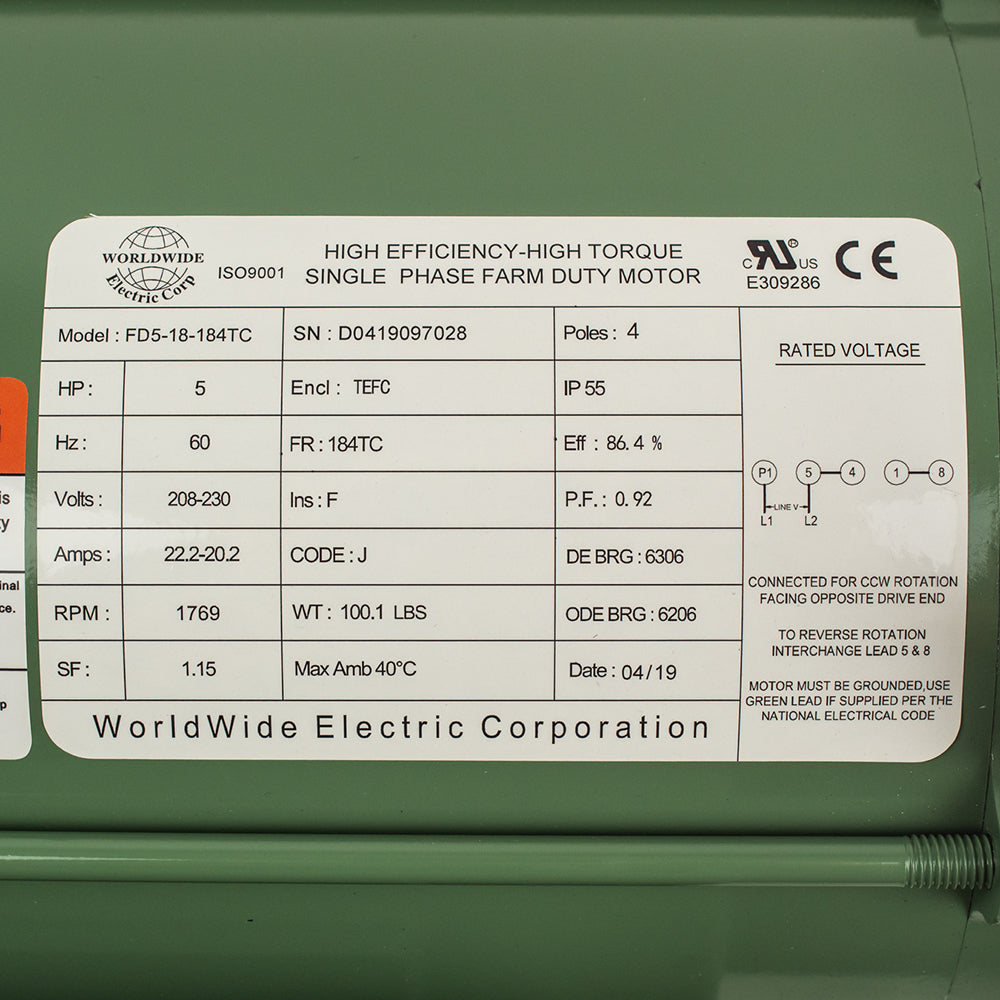

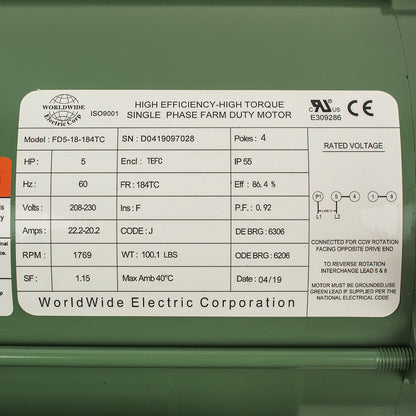

Specifications:

• 5 Horsepower
• Single Phase
• TEFC / IP55 Fully Enclosed
• Poles: 4
• 184TC Frame
• Service Factor 1.15
• Class F Insulation
• 208-230 Volt
• 1769 RPM
• Externally Fan Cooled

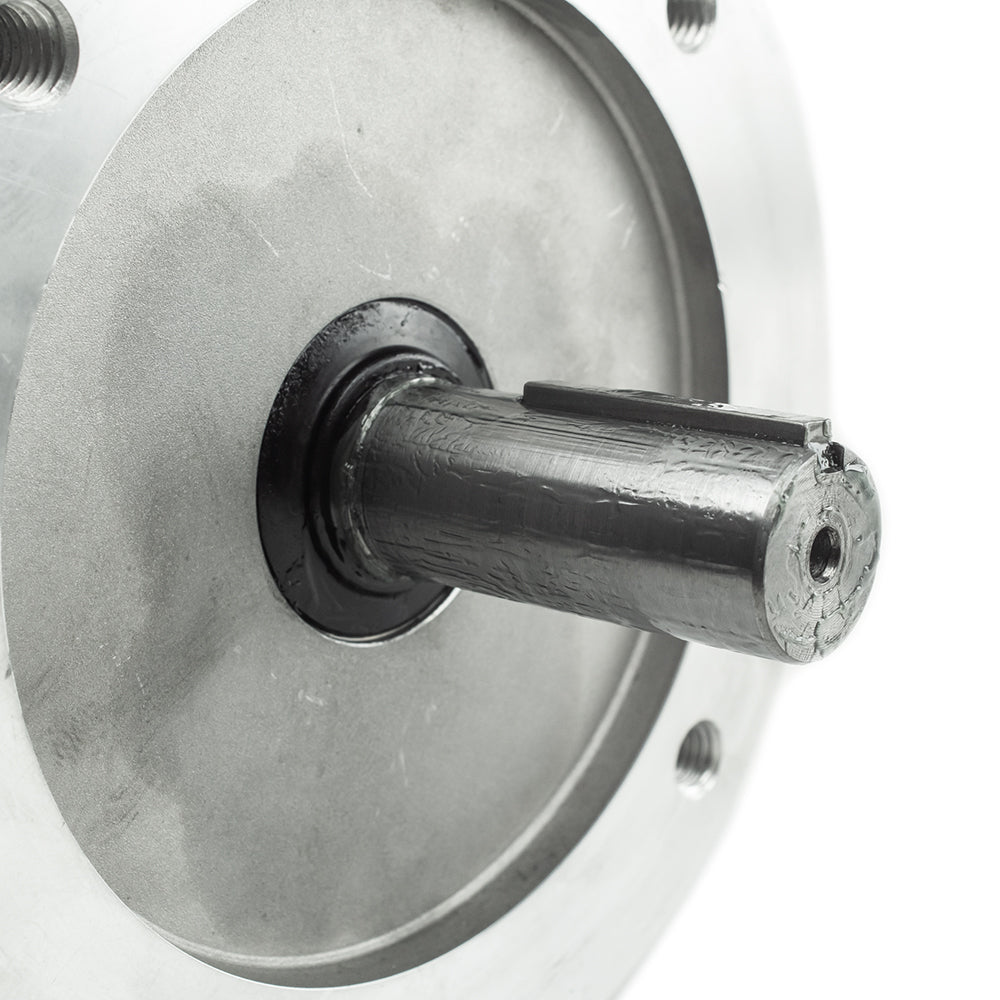

• Shaft Diameter: 1-1/8"
• Full Load Amps: 22.2-20.2
• Efficiency: 86.4%
• Rotation: Reversible
• 60 HZ
• Shaft Material: 1045 Carbon Steel
• Max Amb Temp: 40°C
• Weight Approx: 100.1 Lbs.
