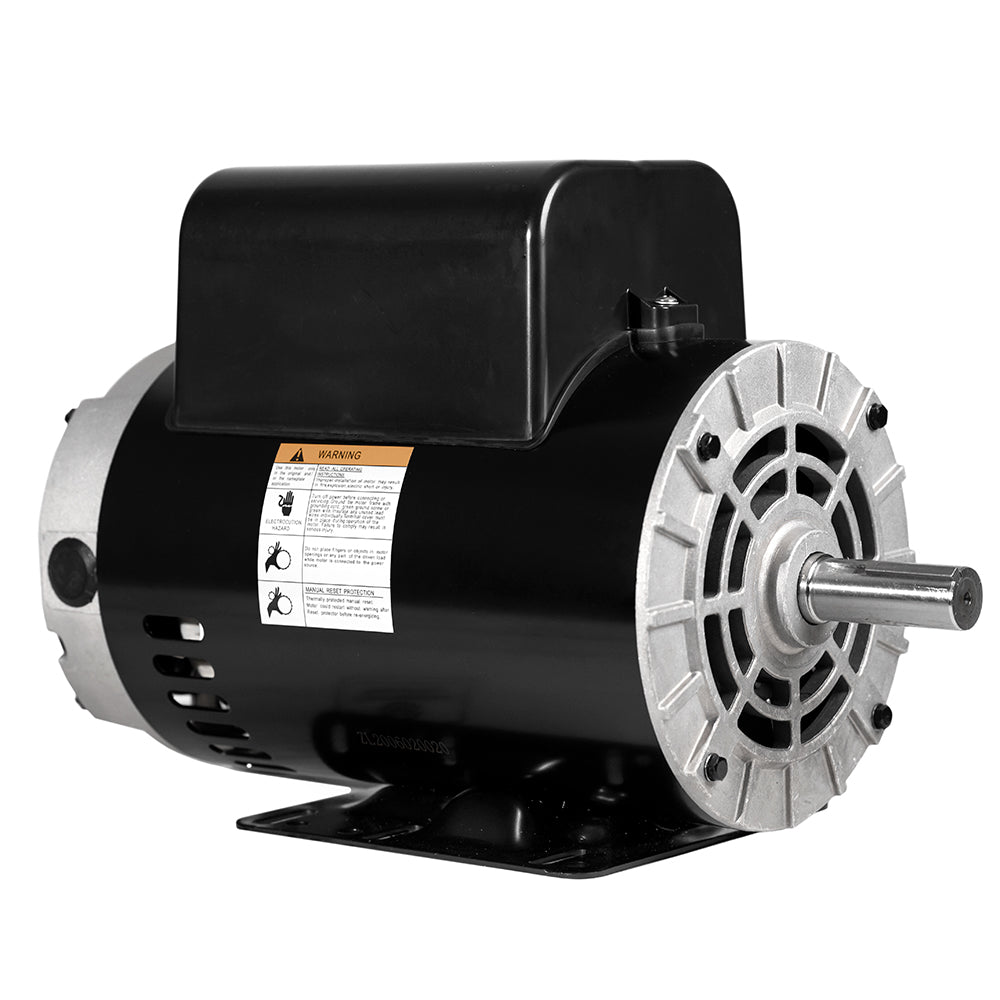

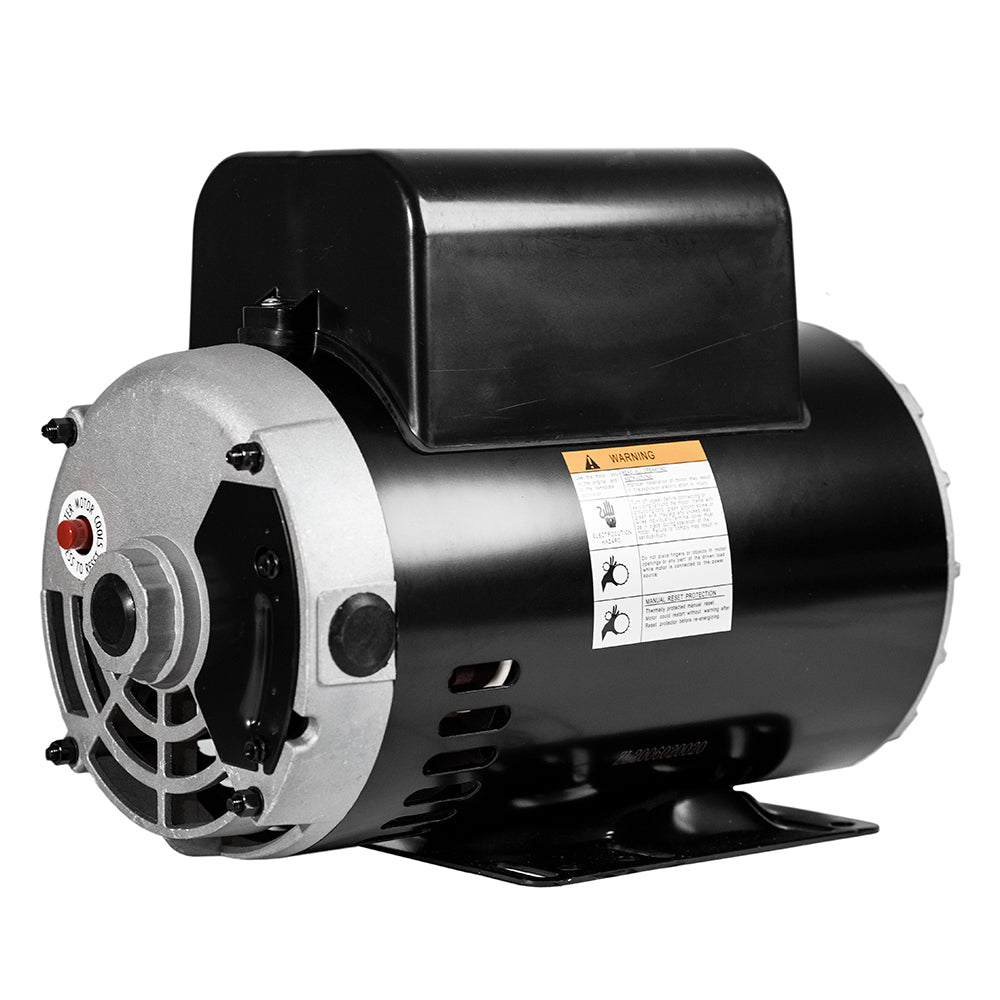

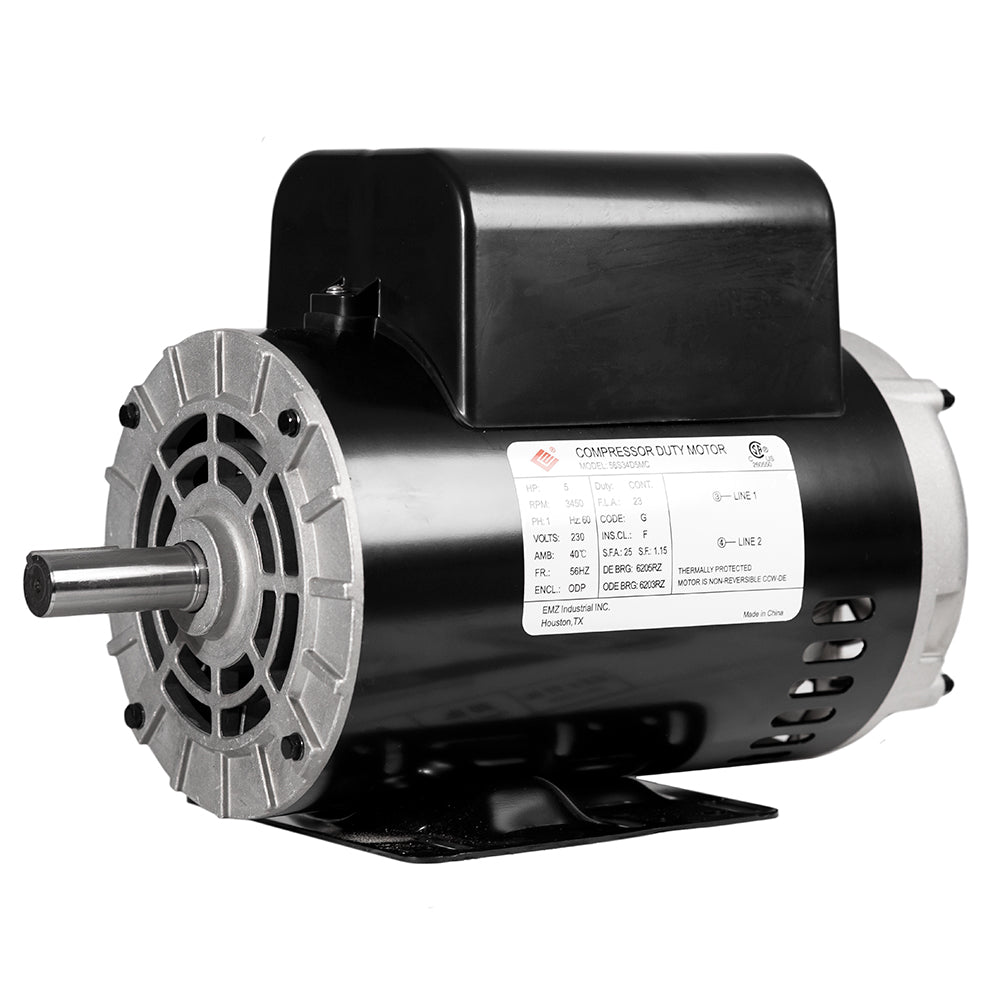

5 HP Single Phase Electric Motor 56HZ Frame 3450 RPM 230V ODP EMZ 56S34D5MC(5 Hp Compressor Duty Electric Motor 230v 1 Phase 56hz Frame 7 8 Shaft 3450 Rpm)

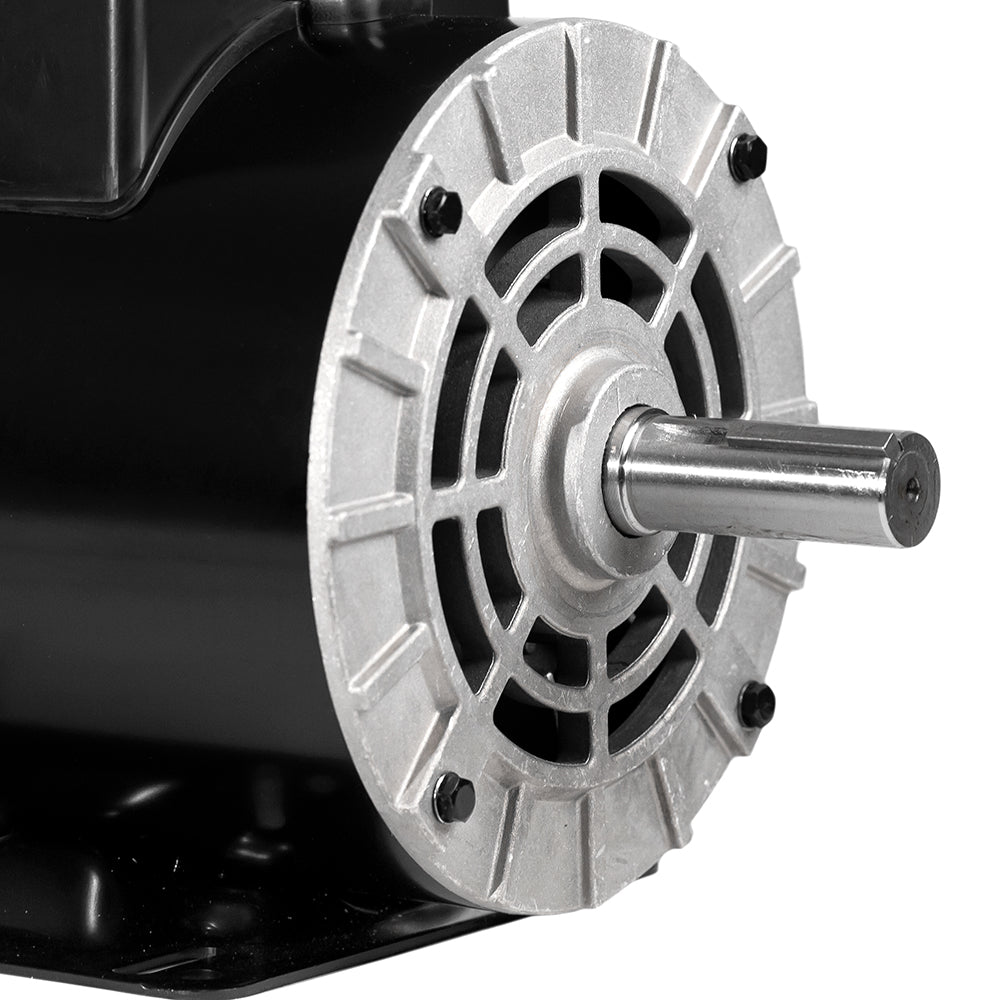

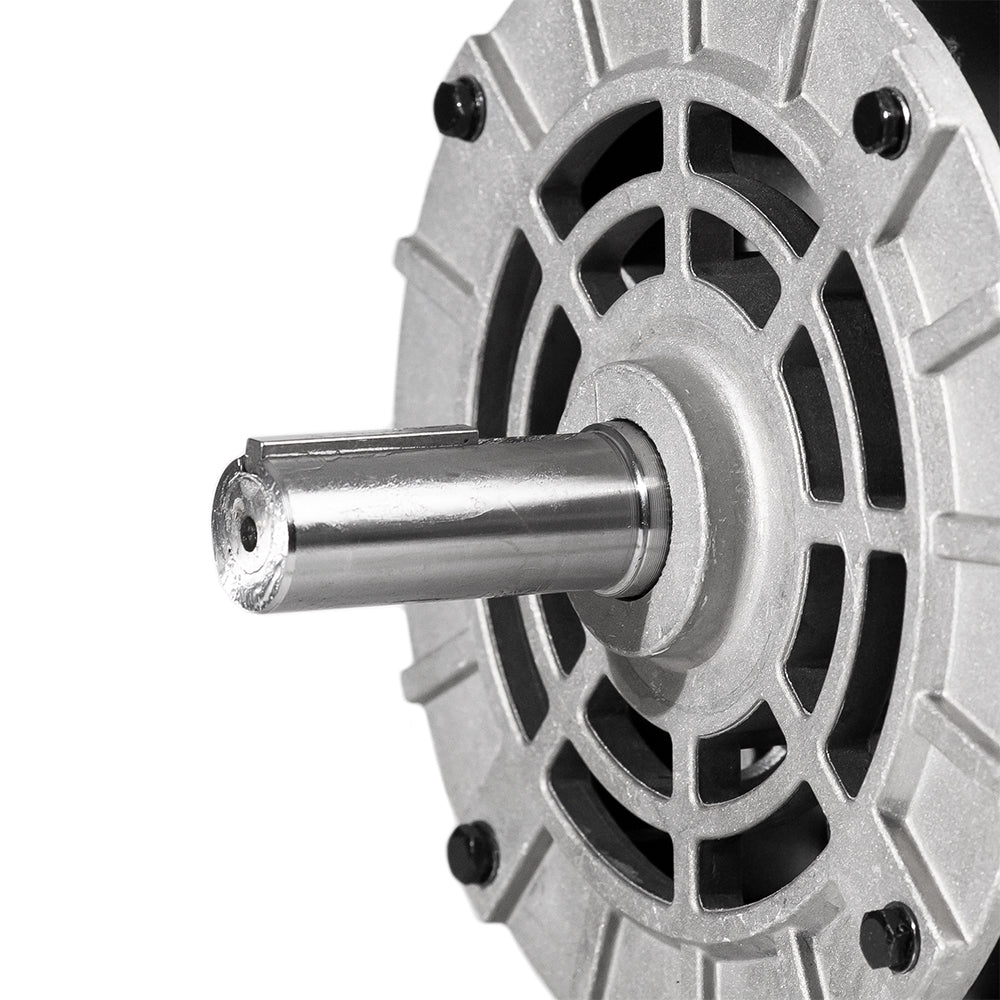

5 HP Compressor Duty Electric Motor with 7/8" Shaft

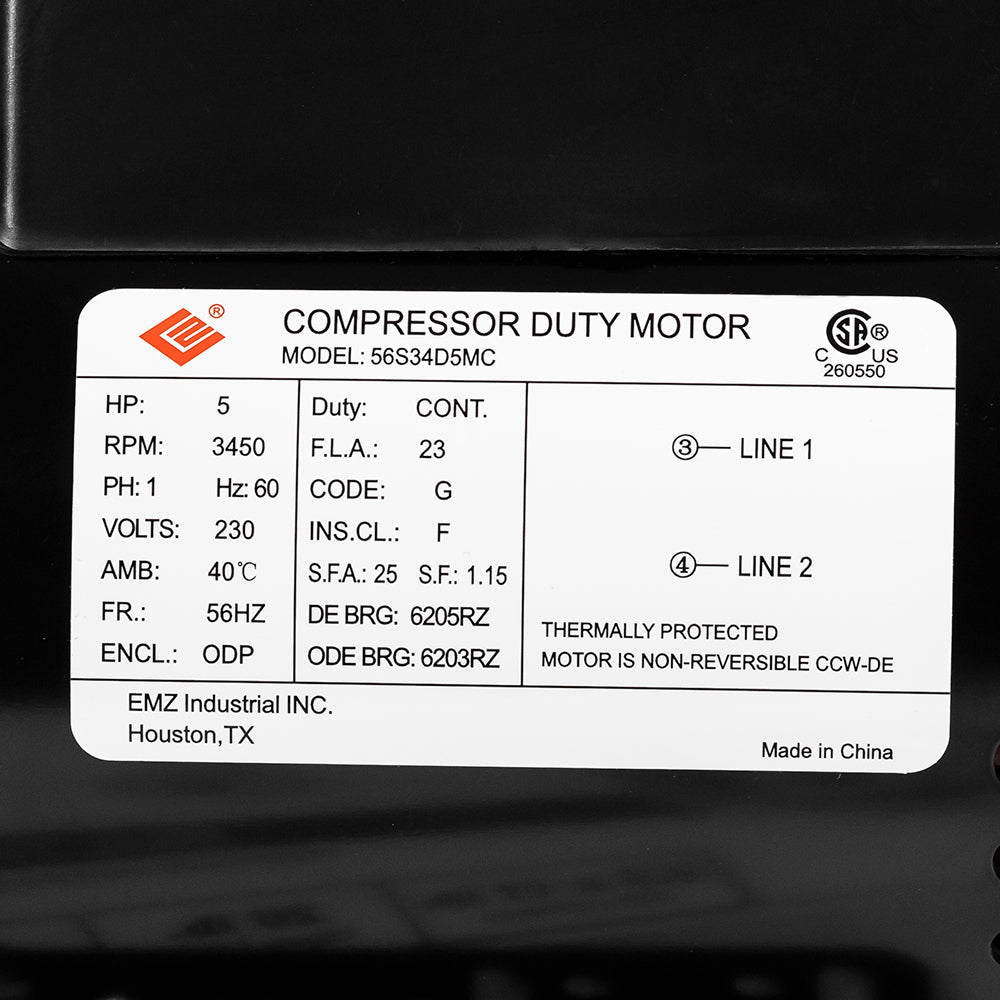

Brand new 5 HP 230 volt compressor duty electric motor. This motor features a 56HZ frame with a 7/8" diameter shaft and rotates at 3450 RPM. This is a non-reversible motor that spins counter-clockwise (CCW) rotation when you are facing the shaft. This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications. A wiring diagram is listed on the side of the motor for reference during installation. Please see below for more features and specifications.
Specifications:

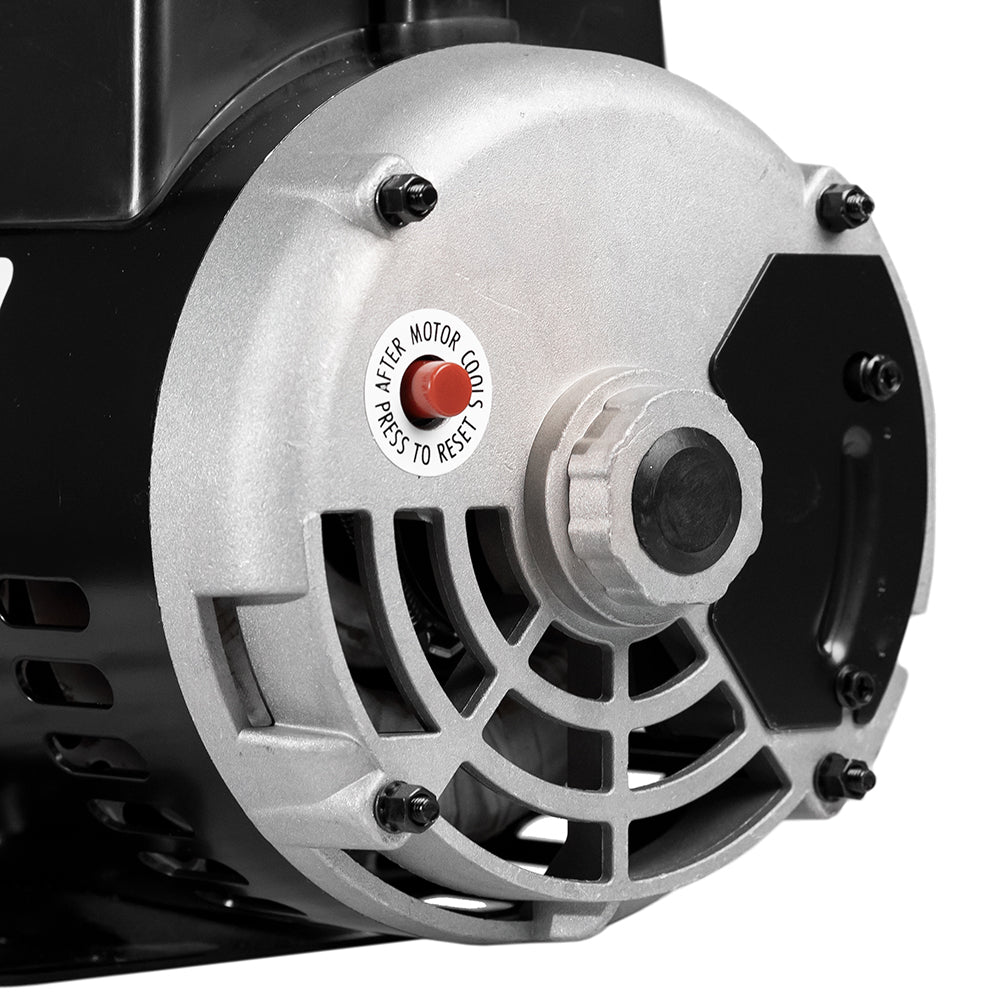

• Open Drip Proof Enclosure (ODP) • Single Phase • 5 HP • 3450 RPM • 60hz • 230 Volts • AMB 40 °C • Frame: 56HZ • Duty: Cont. Compressor • Service Factor: 1.15 • Full Load Amps: 23 • INS.CL: F • Non-reversible, CCW Rotation Facing Shaft • Thermally Protected
