5 HP Single Phase Electric Motor 3515 RPM 184T Frame 115/208-30V TEFC WEG(5hp Electric Motor 184t Frame 3600 Rpm Single Phase Weg Farm Duty Air Compressor)

5 HP 184T Single Phase 3515 RPM WEG Electric Motor

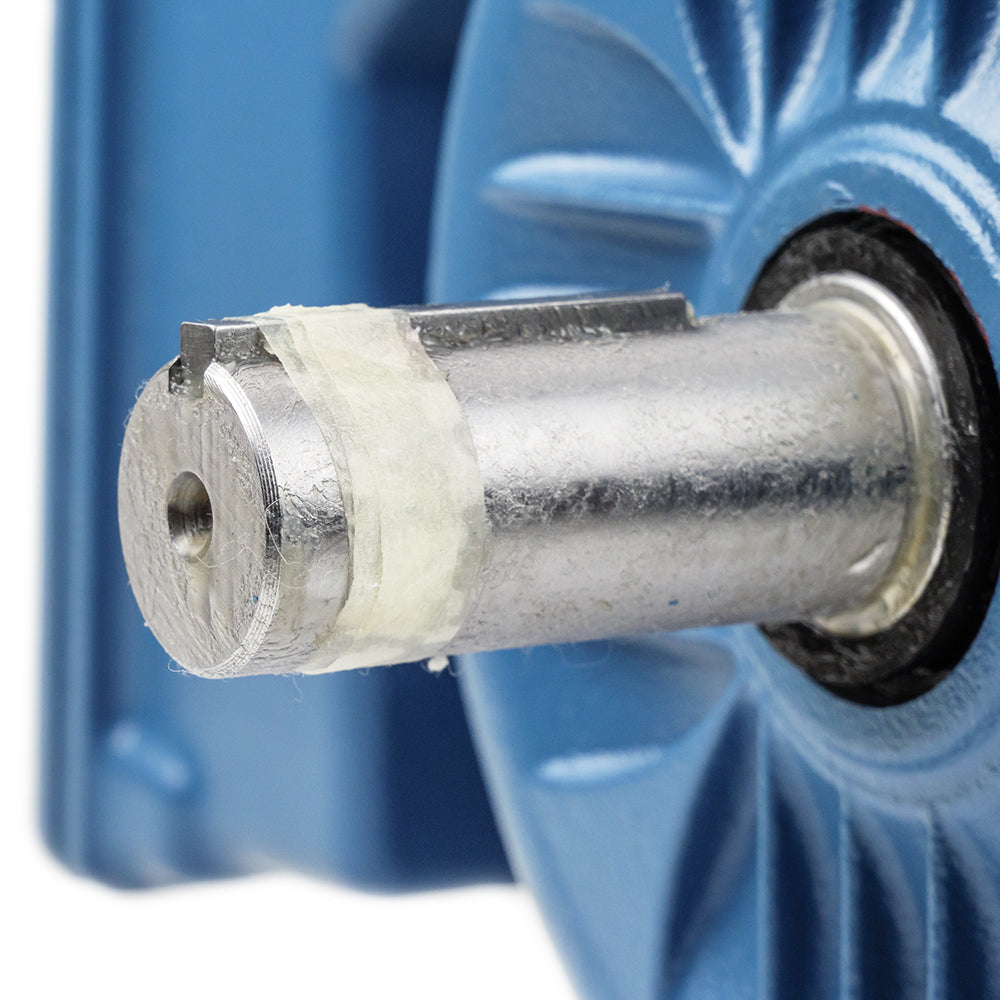

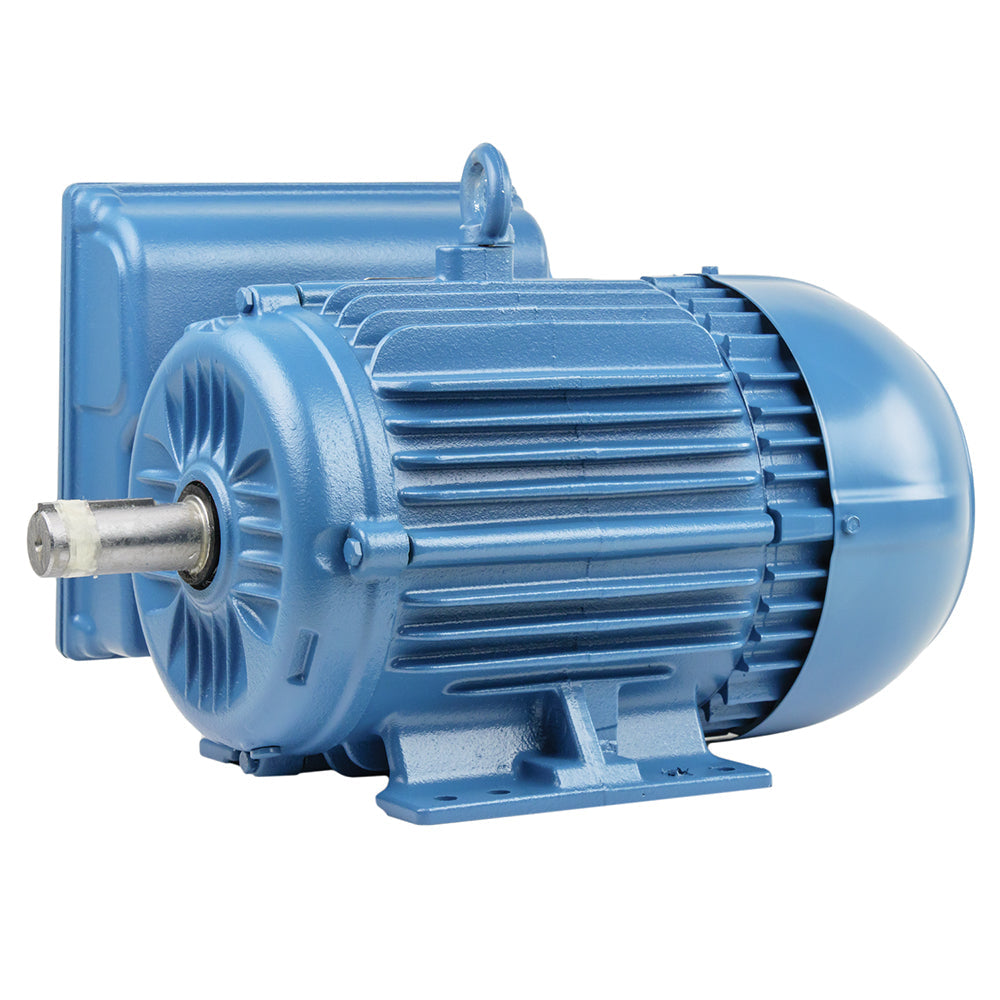

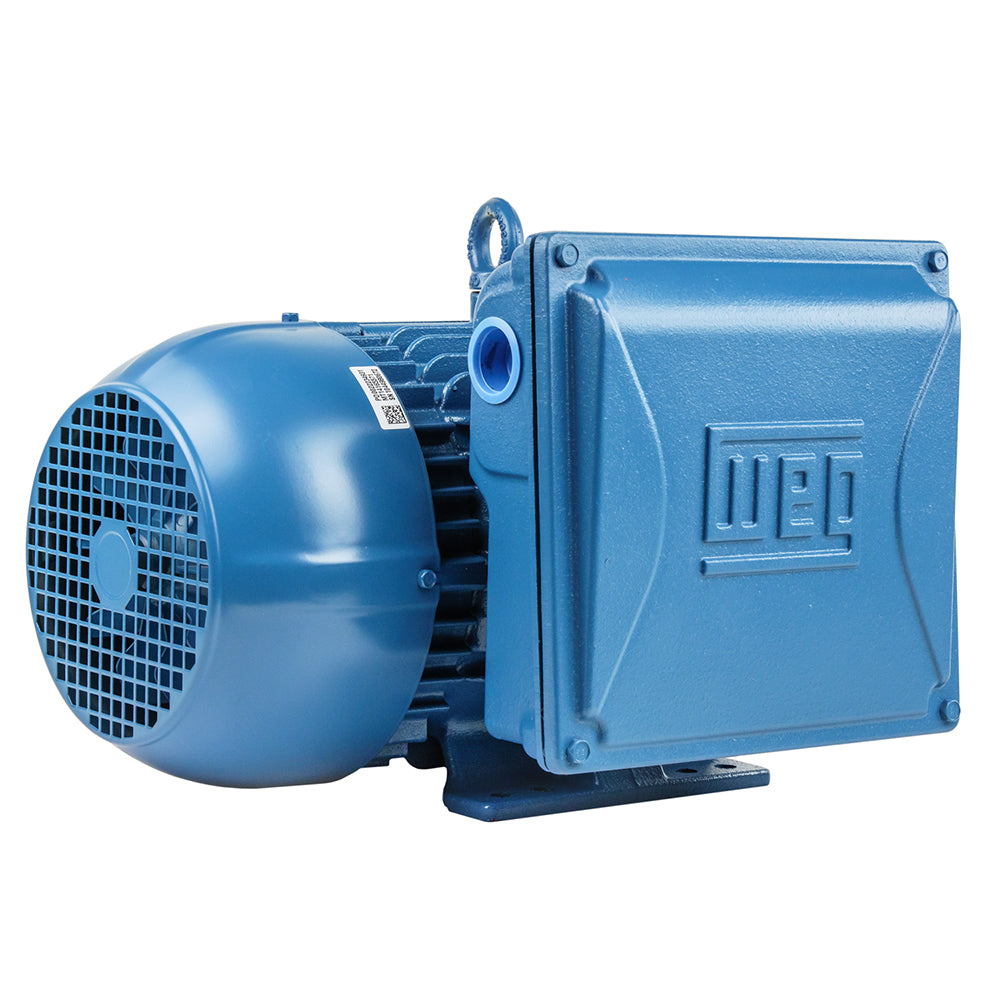

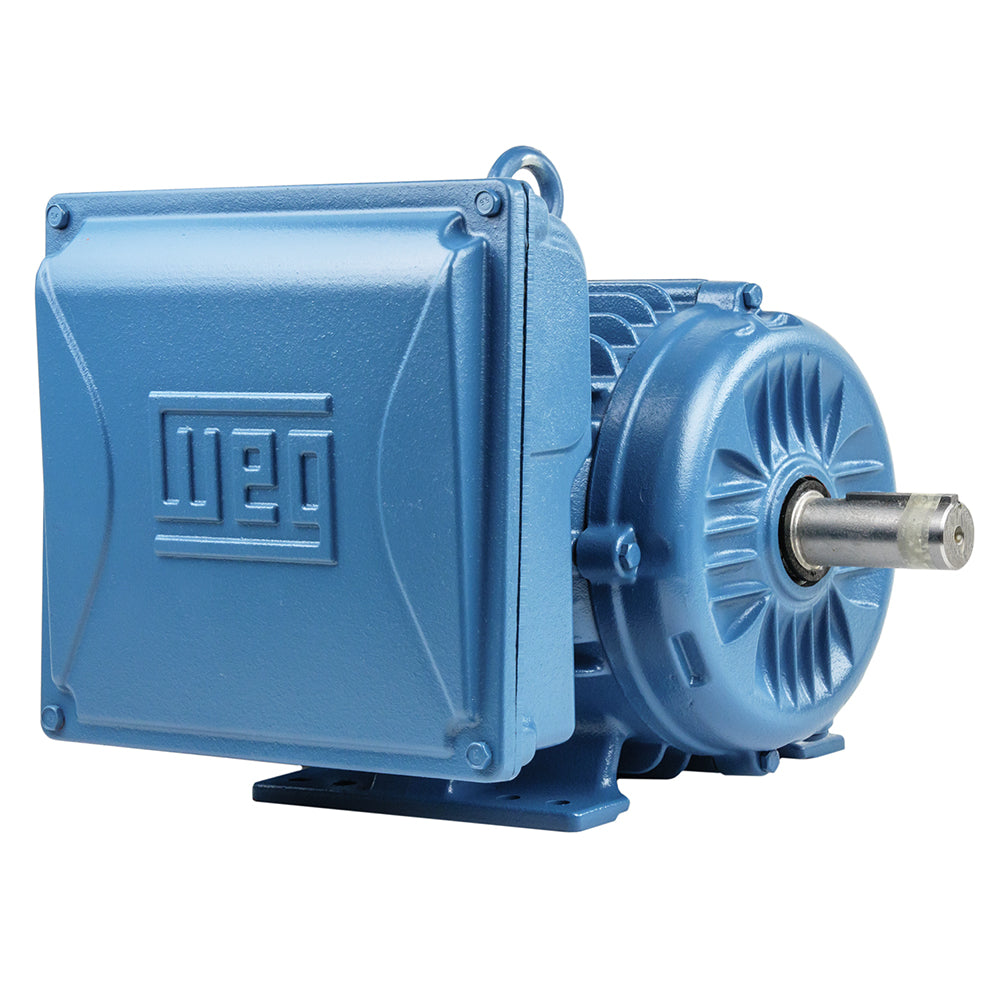

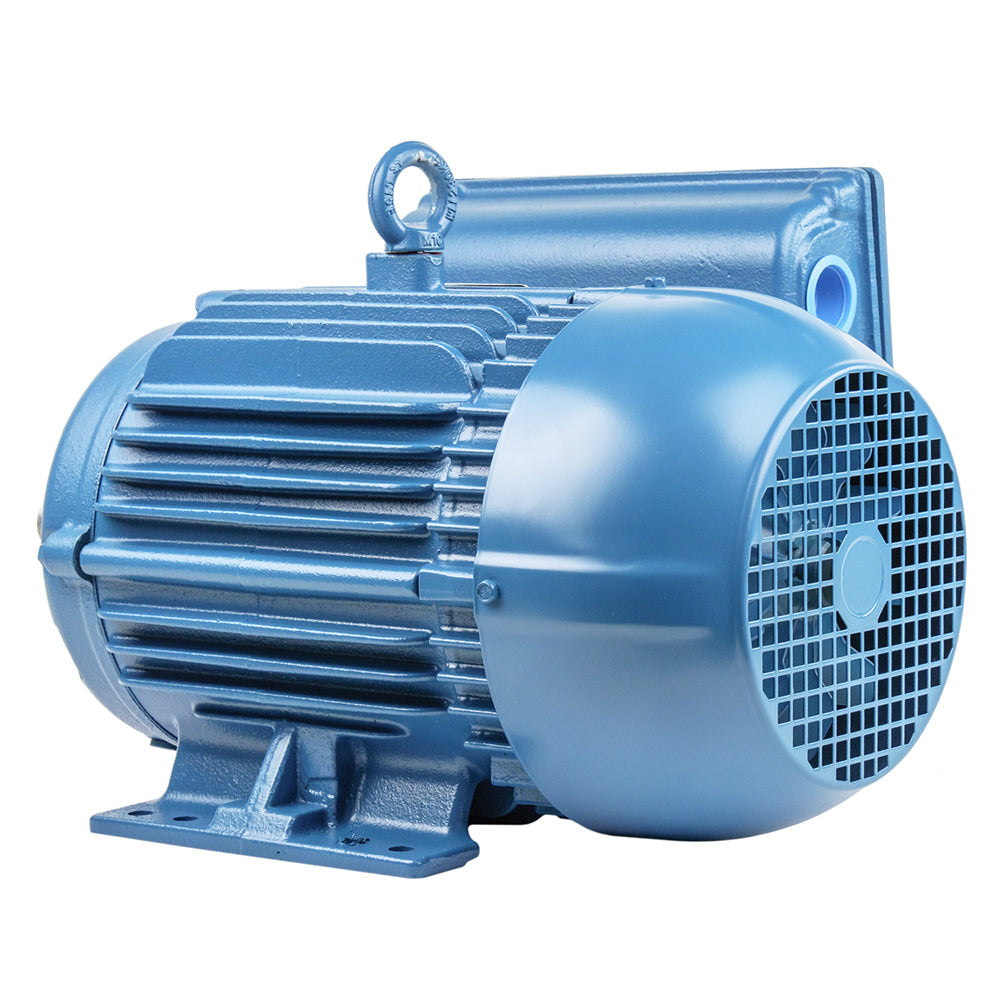

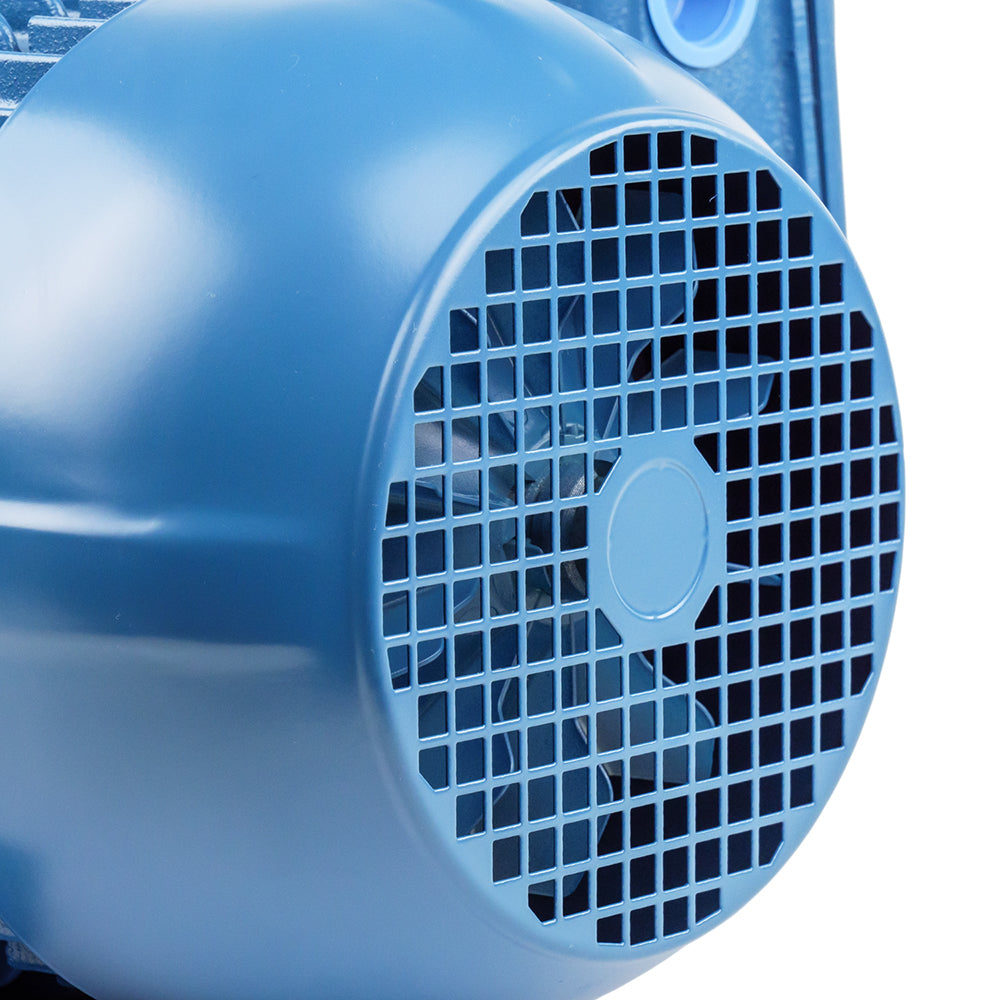

This listing is for a brand new WEG 5 horsepower air compressor motor model number 00536ES1B184T-W22. This motor is 115/208-230 volt, 41.1/22.1-20.8 AMPS, 60 Hz, 182/184T Frame, single phase, 1-1/8" diameter shaft, and 3515 RPM (works great as a replacement for 3500-3600 RPM). This motor can rotate in either direction. This can replace replace motors rated for different RPMs, you will just have to use a different sized pulley to make up the RPM difference on your compressor. If you have any questions about this motor or if it will work as a replacement on your air compressor feel free to contact us.

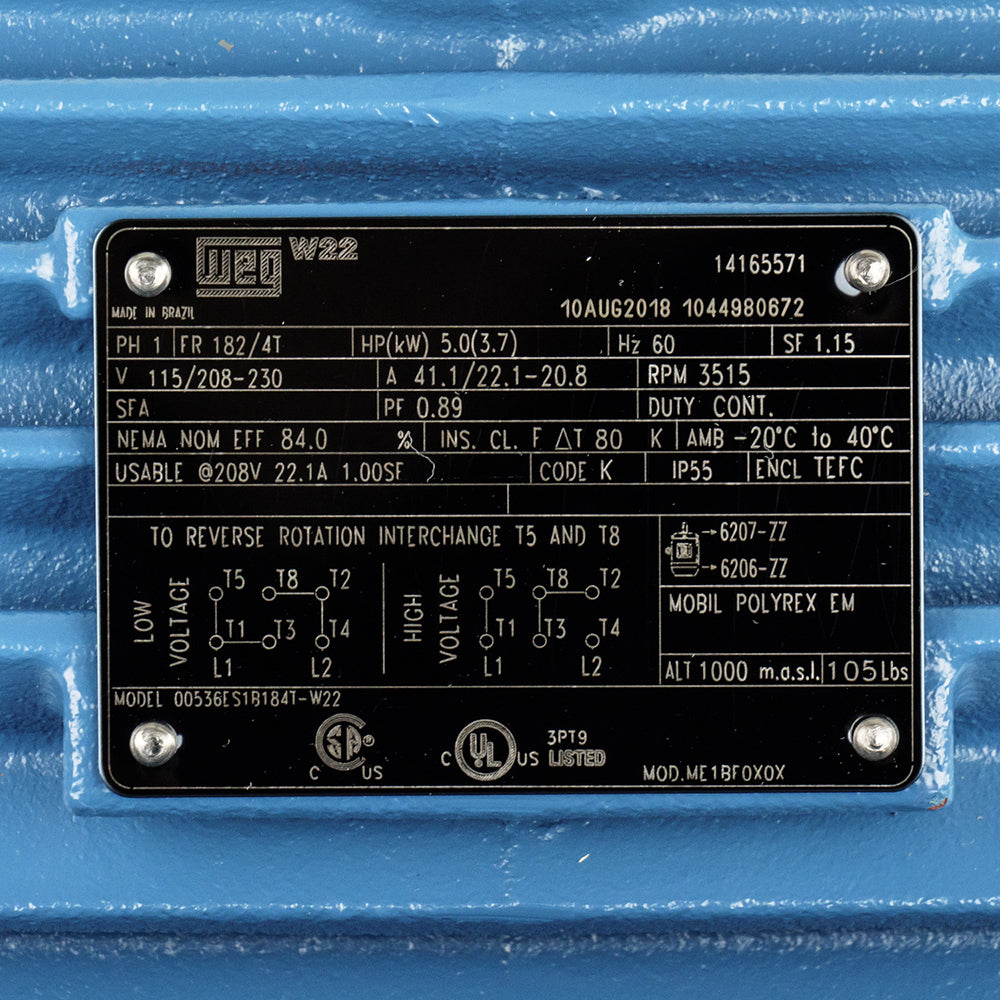

Specifications

• Frame: 182/4T
• Output: 5 HP
• Frequency: 60 Hz
• Rated Speed: 3515 RPM
• Rated Voltage: 115/208-230 Volts
• Rated Current: 41.1/22.1-20.8 Amps
• Insulation Class: F
• Service Factor: 1.15
• Ambient Temperature: -20°C to +40°C
• Enclosure: TEFC
• Rotation: Both (CW and CCW)
• Approx. Weight: 103.45 lbs
• Approximate Shaft Length: 2.75"
• Approximate Shaft Diameter: 1 1/8"

"THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES"

This motor has a one-year limited manufacturer's warranty

We strive for 100% customer satisfaction! We take the time to package these motors extremely well to make sure they get to you in perfect condition.

If you have any questions about this motor, feel free to reach out to us.
