5 HP Single Phase Electric Motor 3450 RPM 56HZ Frame 230V ODP EMZ 56S34D5MC(56s34d5mc 5 Hp Single Phase Electric Air Compressor Motor 23 Amp 7 8 Shaft 3450 Rpm 56hz Frame)

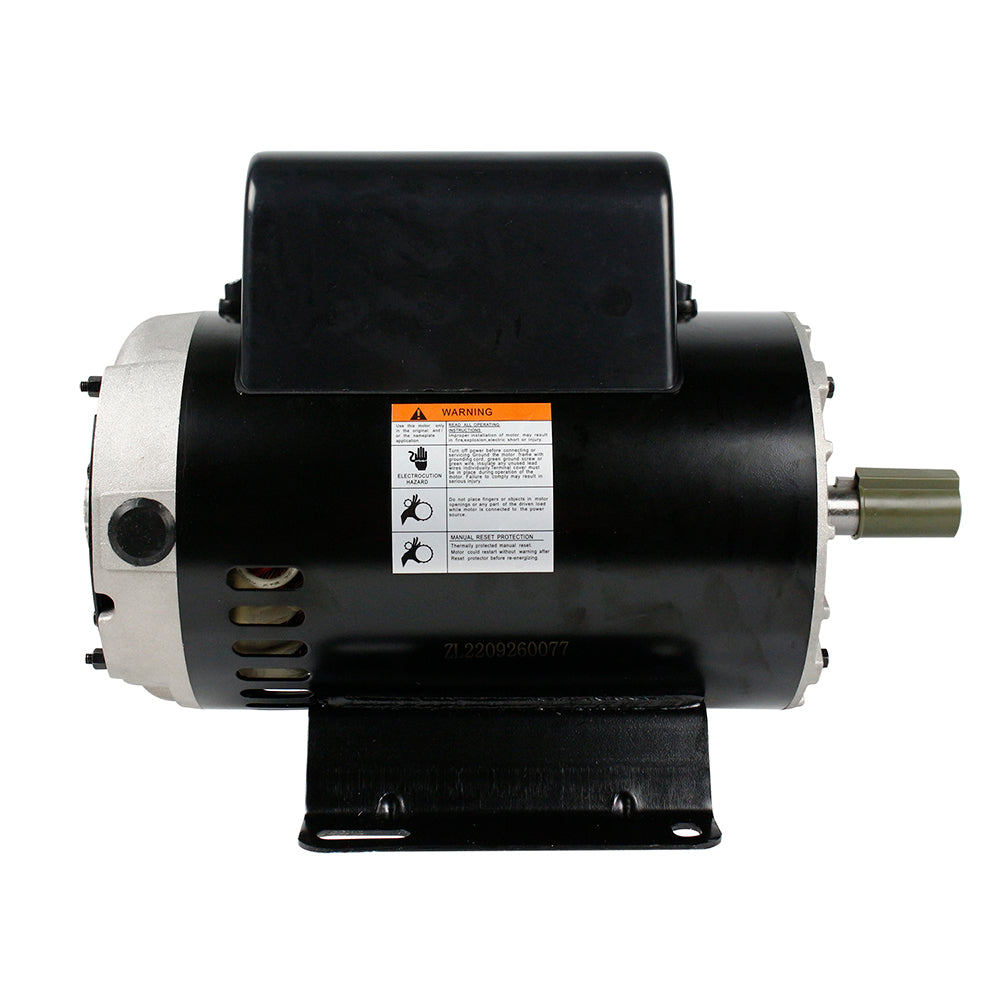

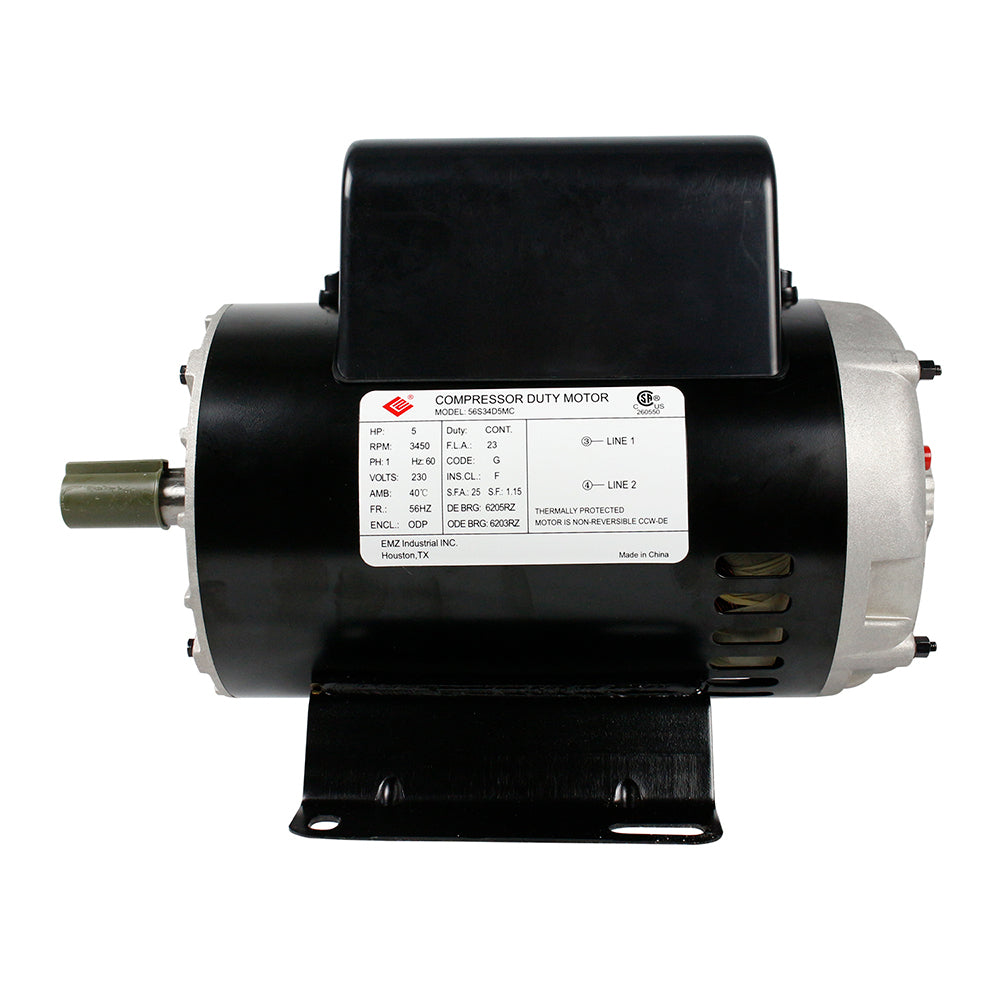

This 5 HP single-phase electric motor is specifically built to power heavy-duty air compressors and other equipment that demand high start-up torque and continuous operation. Operating at 3450 RPM, this 230V compressor-duty motor provides a reliable power source for commercial and industrial-grade applications.

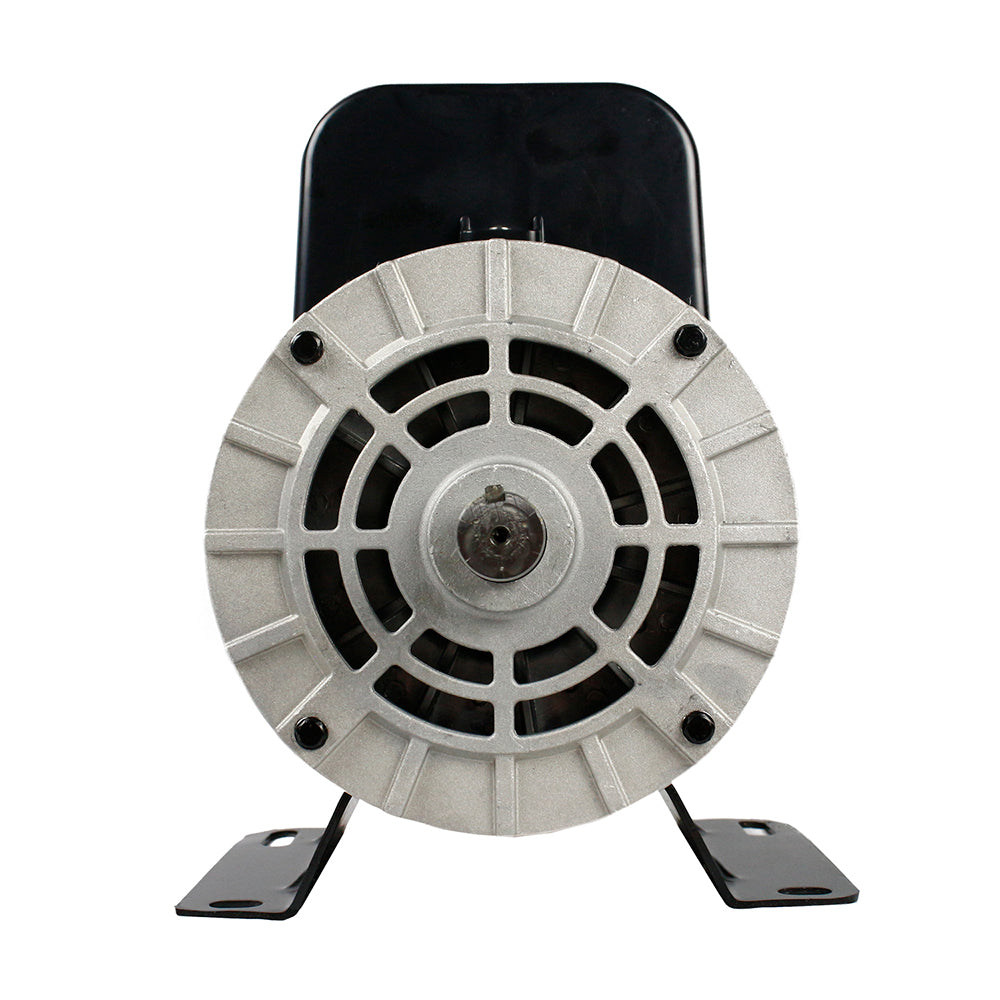

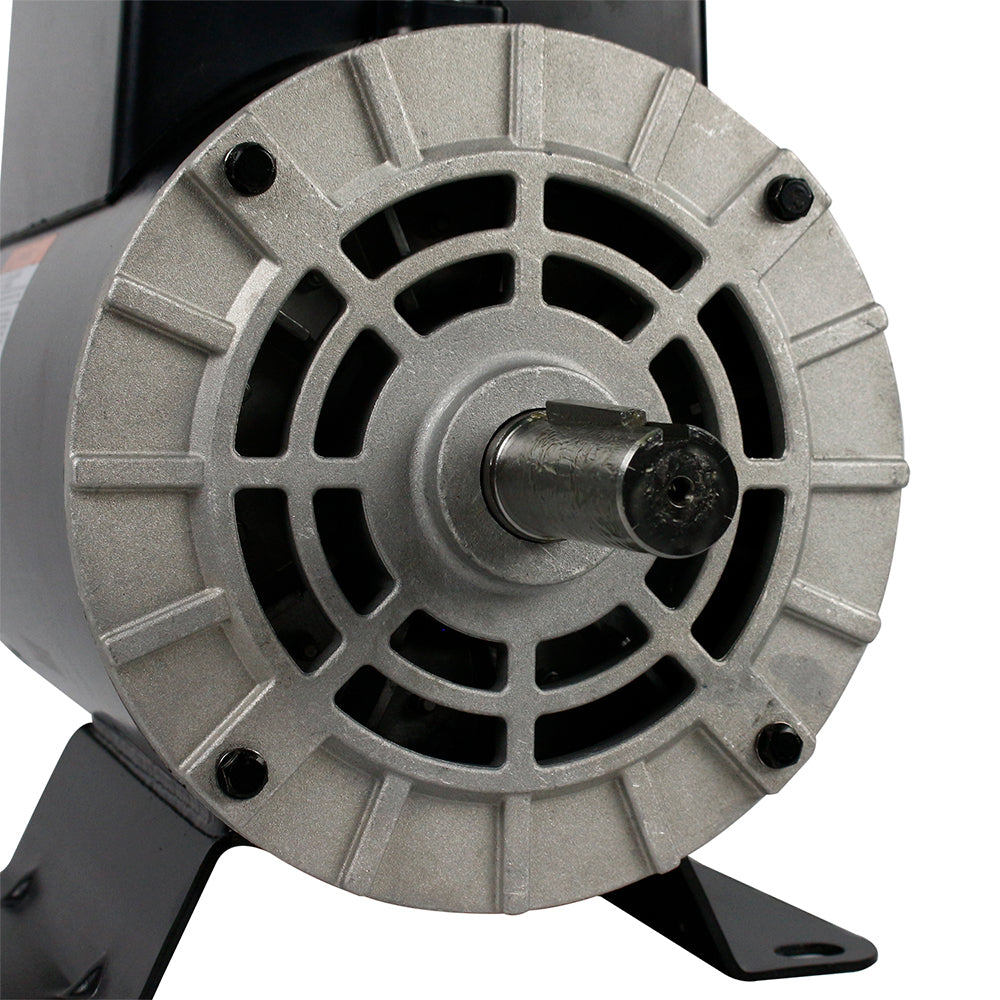

Built with a 56HZ frame, it features a 7/8" diameter shaft, a 2.24" shaft length, and a standard 3/16" keyway—ideal for most standard pulley systems. It is also compatible with 56Y and W182/4Y frame mounting patterns which are common and compatible with the 5 HP Ingersoll Rand air compressors.

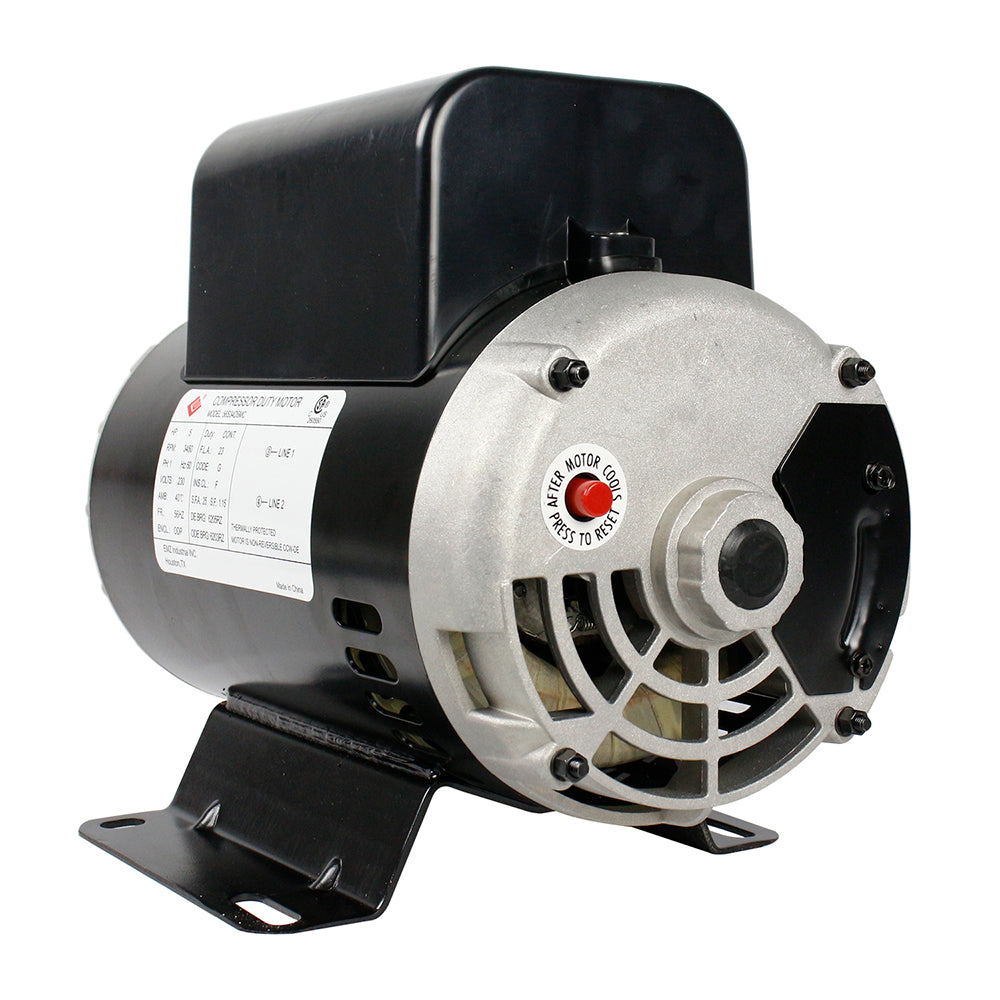

This non-reversible motor spins counter-clockwise when viewed from the shaft end, making it ideal for fixed-rotation air compressor systems. The Open Drip Proof (ODP) enclosure allows for better airflow while keeping the motor compact and cool during long duty cycles. Plus, the built-in manual reset thermal overload protection offers added peace of mind for demanding environments.

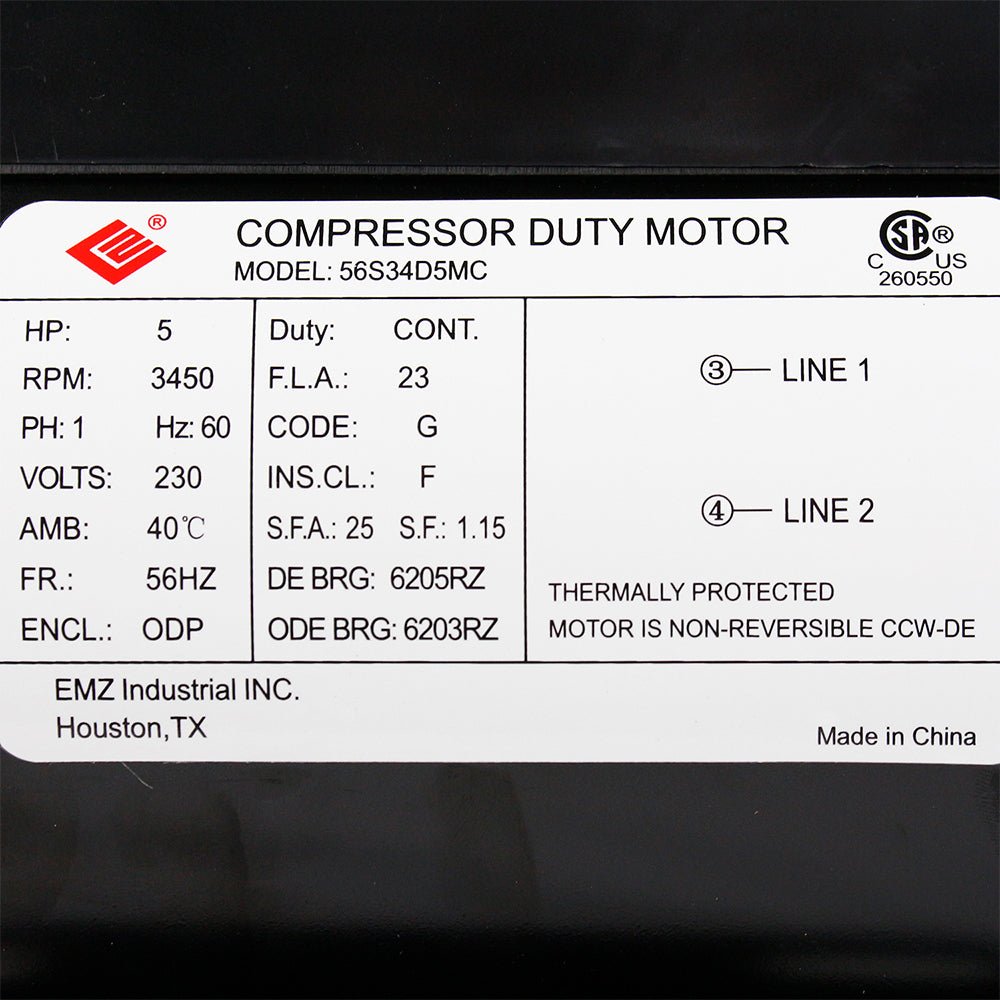

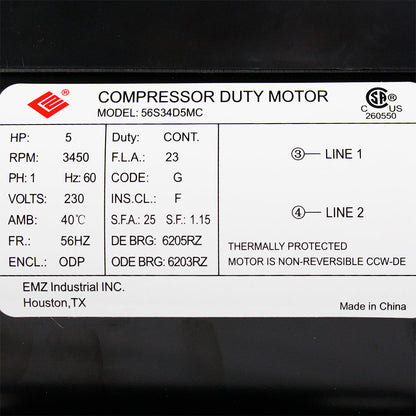

Specifications

• Frame: 56HZ
• Output: 5 HP
• Frequency: 60 Hz
• Rated Speed: 3450 RPM
• Rated Voltage: 230 Volts
• Rated Current: 23 Amps
• Insulation Class: F
• Service Factor: 1.15
• Ambient Temperature: 40°C
• Enclosure: ODP
• Rotation: Counterclockwise-(Drive End) Non-Reversible
• Approx. Weight: 50 lbs
• Shaft Diameter: 7/8"
• Approximate Shaft Length: 2.24"
