5 HP Replacement Air Compressor Pump Single Stage 3 Cylinder 18.5 CFM 140 PSI Max(5 Hp Replacement Air Compressor Pump Single Stage 3 Cylinder 18 5 Cfm 140 Psi Max)

5 HP Replacement Air Compressor Pump Single Stage 3 Cylinder 18.5 CFM 140 PSI Max(5 Hp Replacement Air Compressor Pump Single Stage 3 Cylinder 18 5 Cfm 140 Psi Max)

$95.99 USD
$119.00 USD $95.99 USD
Sale Sold out
Shipping calculated at checkout.

5 HP Replacement Single Stage Air Compressor Pump

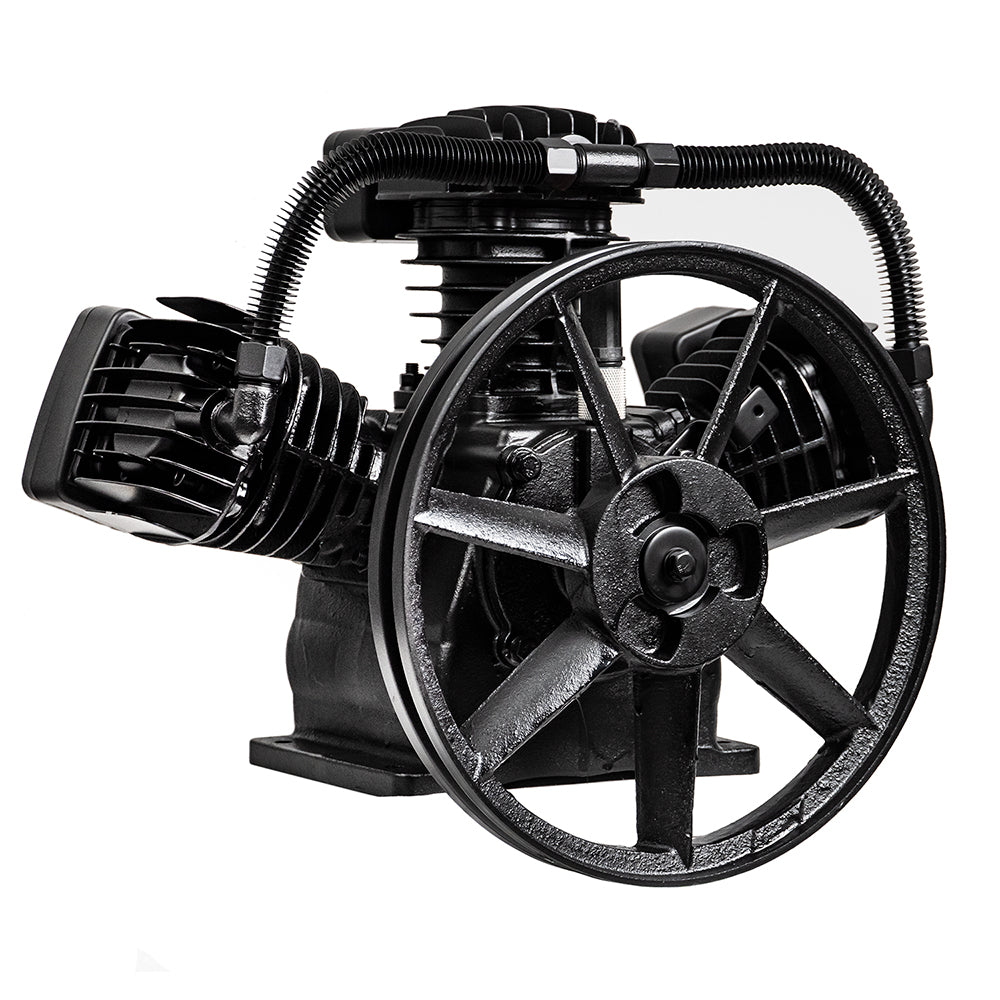

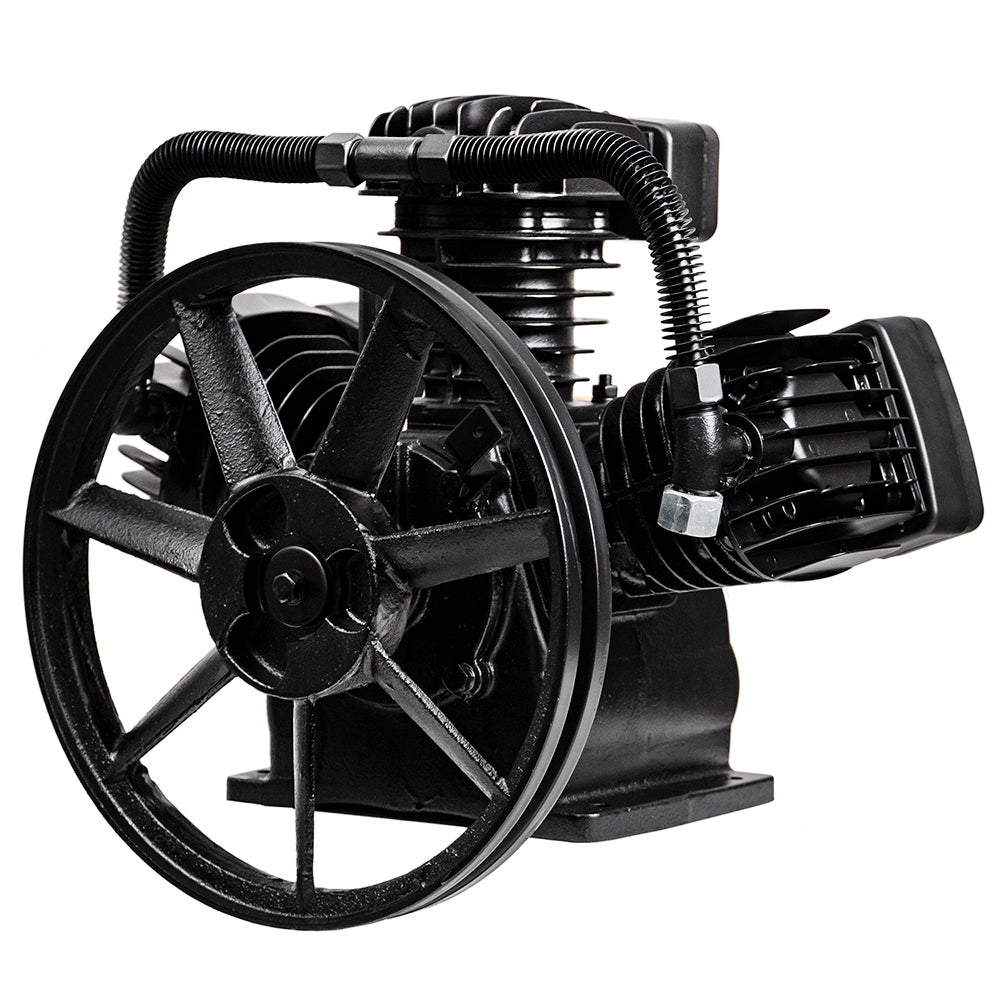

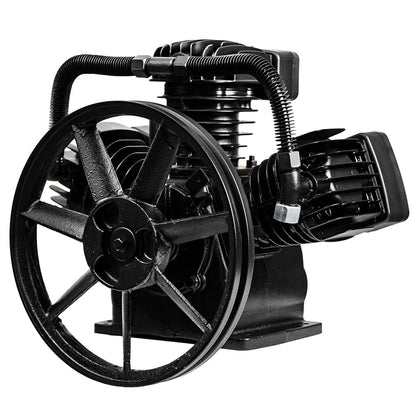

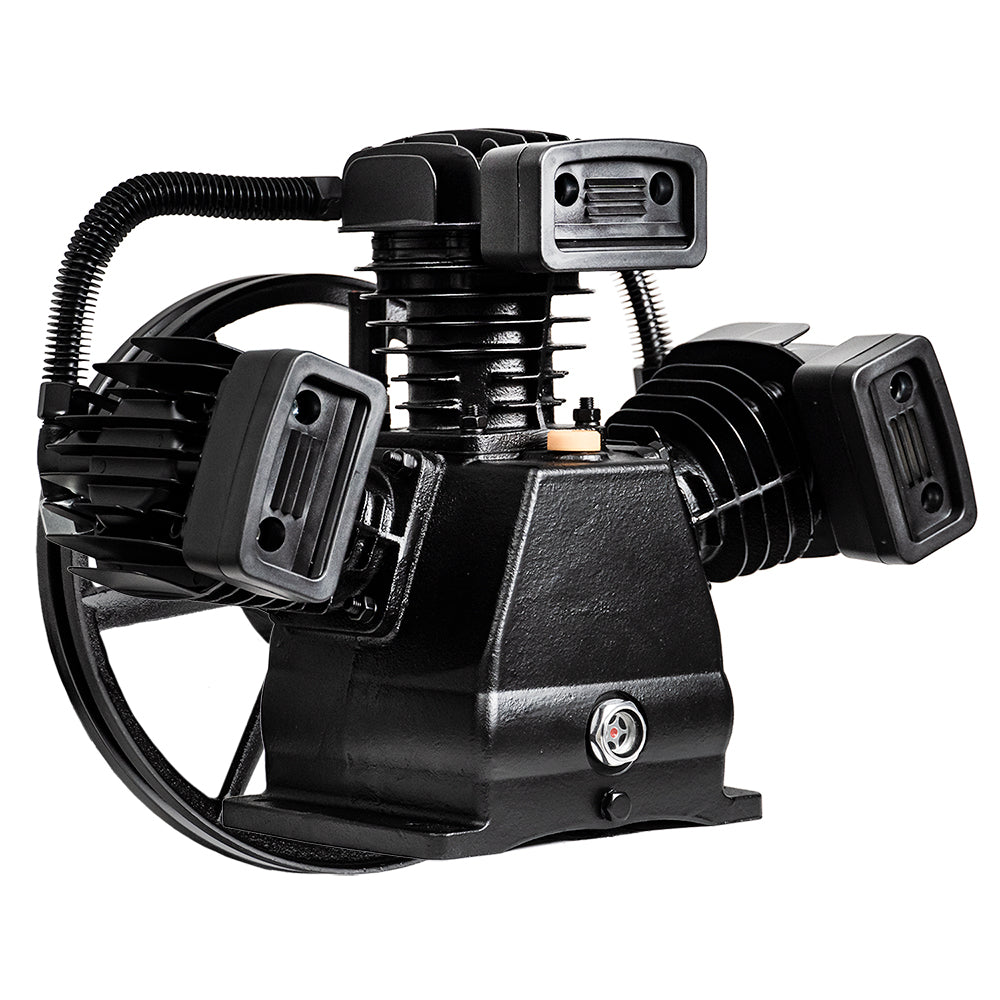

Brand new three-cylinder cast iron single-stage air compressor pump. This is a 5 horsepower pump that will produce 18 CFM. This pump is most commonly used on compressors under 60 gallons in size and can be used with a true 5 horsepower motor (these motors typically run at 20-23 amps on 230 volts). This pump comes complete as shown in the photos, including the intake filters and flywheel. See specifications below for more details.

Features:

• Cast Iron Cylinder and Crankcase

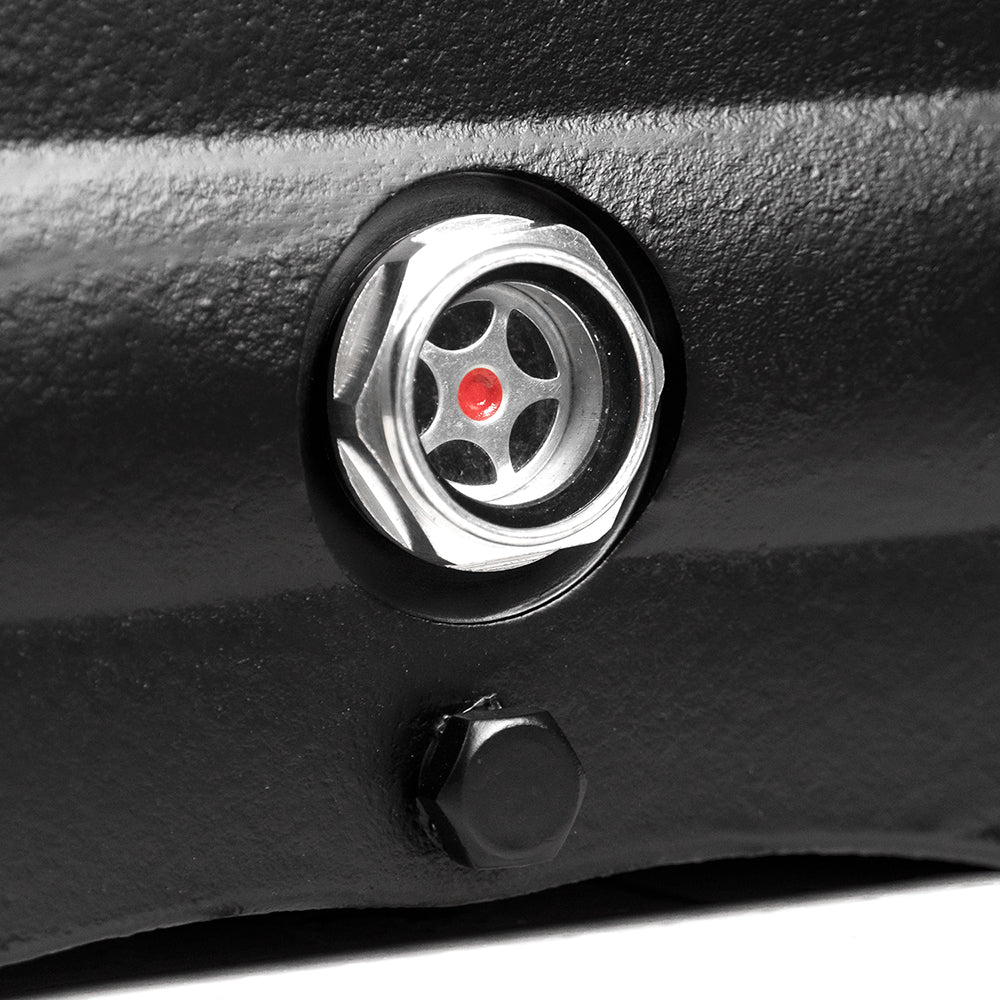

• Equipped with Sight Glass for Easy Viewing of Oil Level

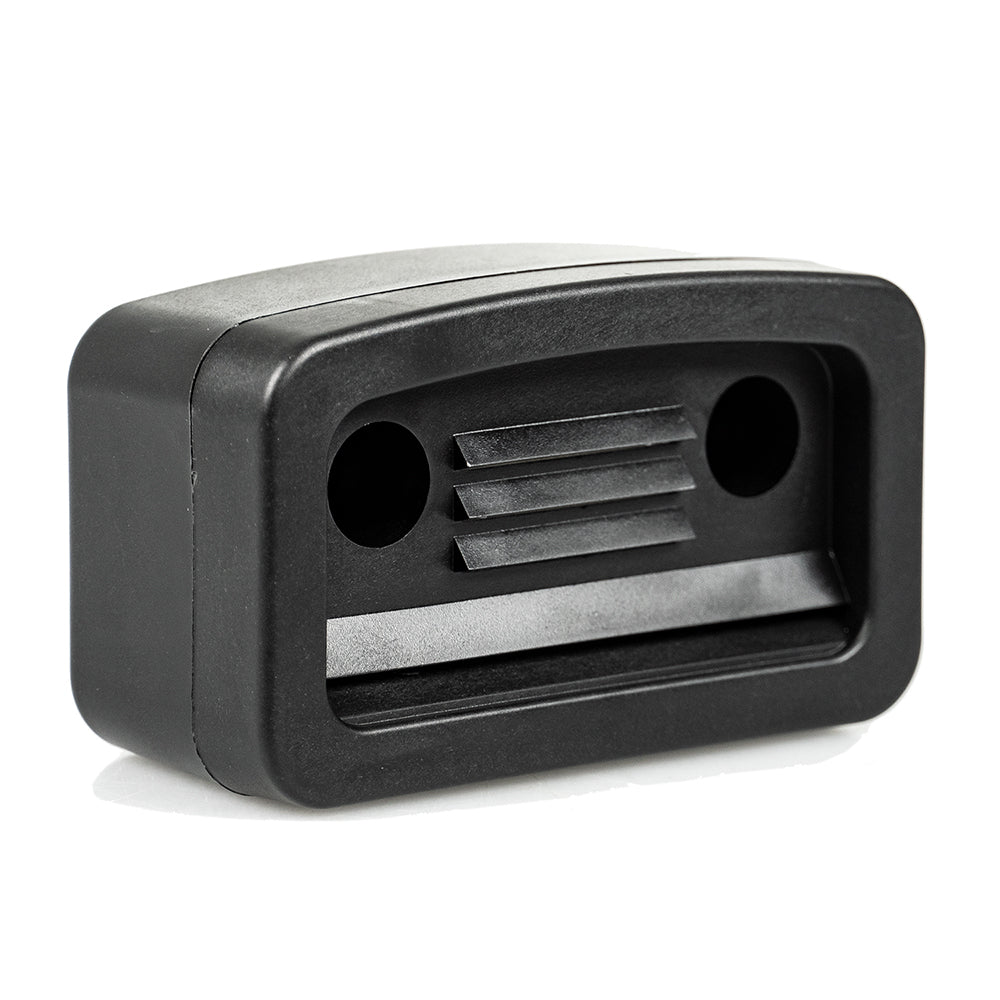

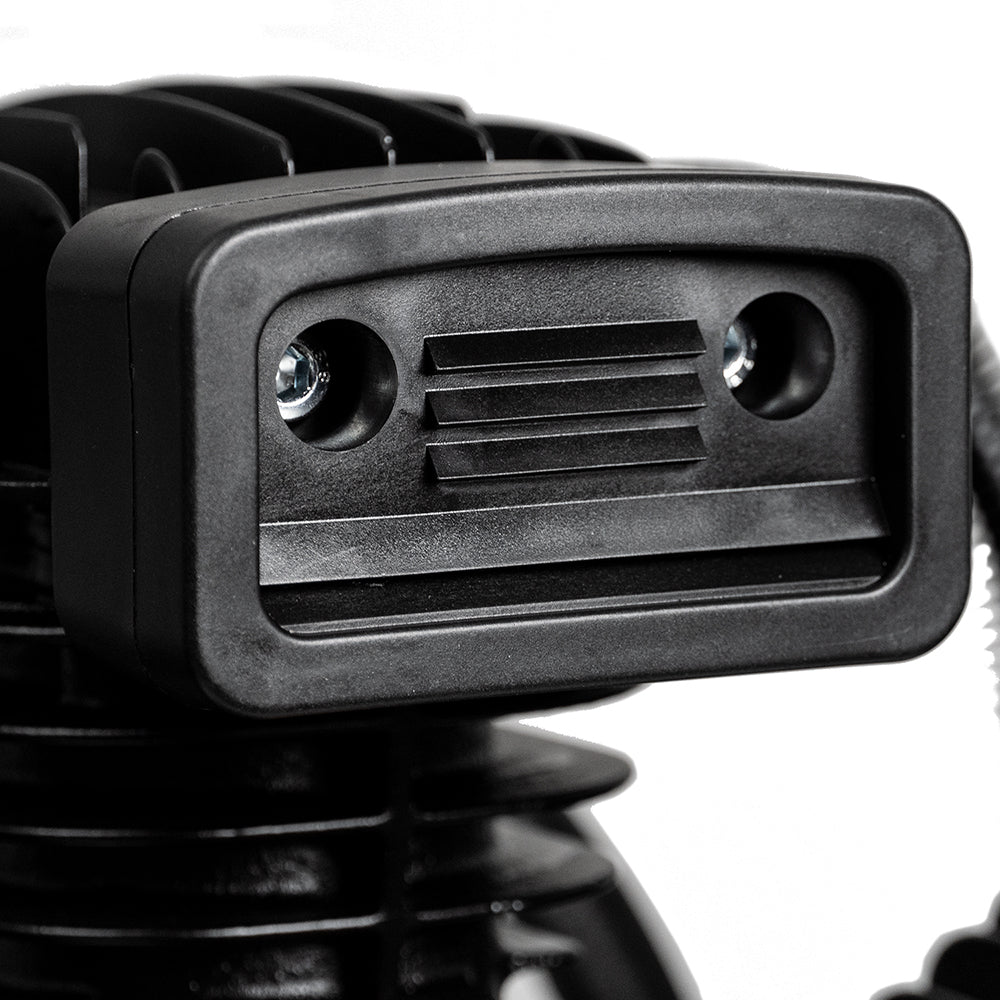

• Comes with Three Intake Filters

Specifications

• Three Cylinder
• Single Stage
• Recommended Motor Size: 5 HP
• CFM at 1050 RPM (Max RPM): 18
• Cylinder Stroke: 48mm
• Pump Flywheel Diameter: 12.5"
• Maximum Pressure: 140 PSI
• Net Weight: 53.20 lbs
• Outside Dimension (W x D x H): 18" x 12.5" x 14.5"
• Bolt Pattern: 7-7/8" x 4-3/4"
