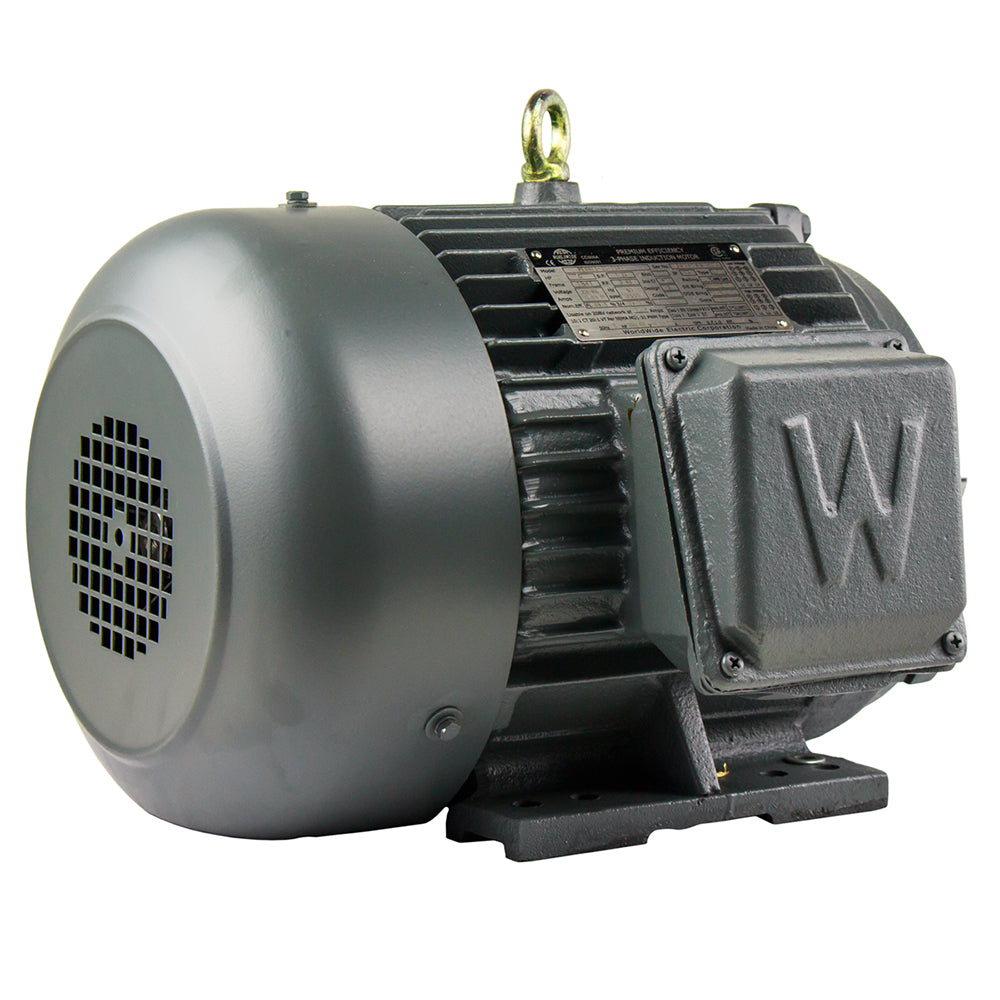

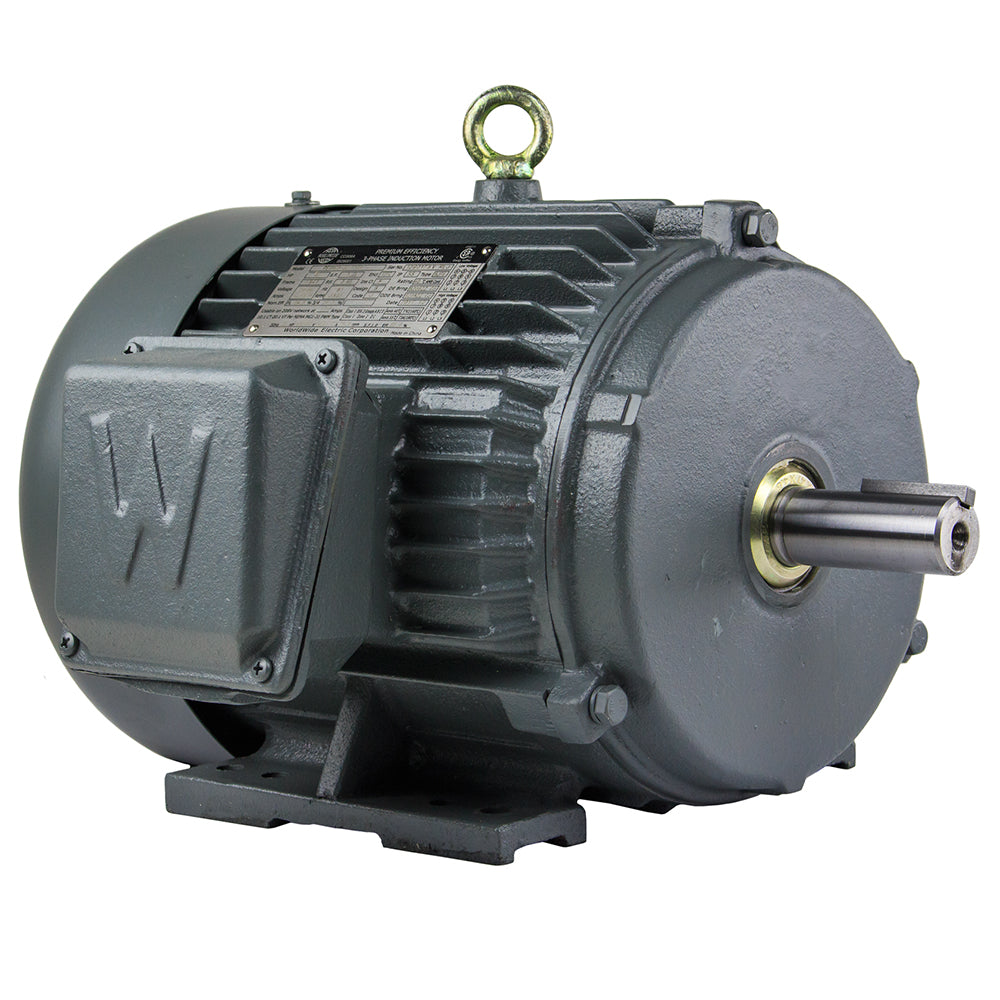

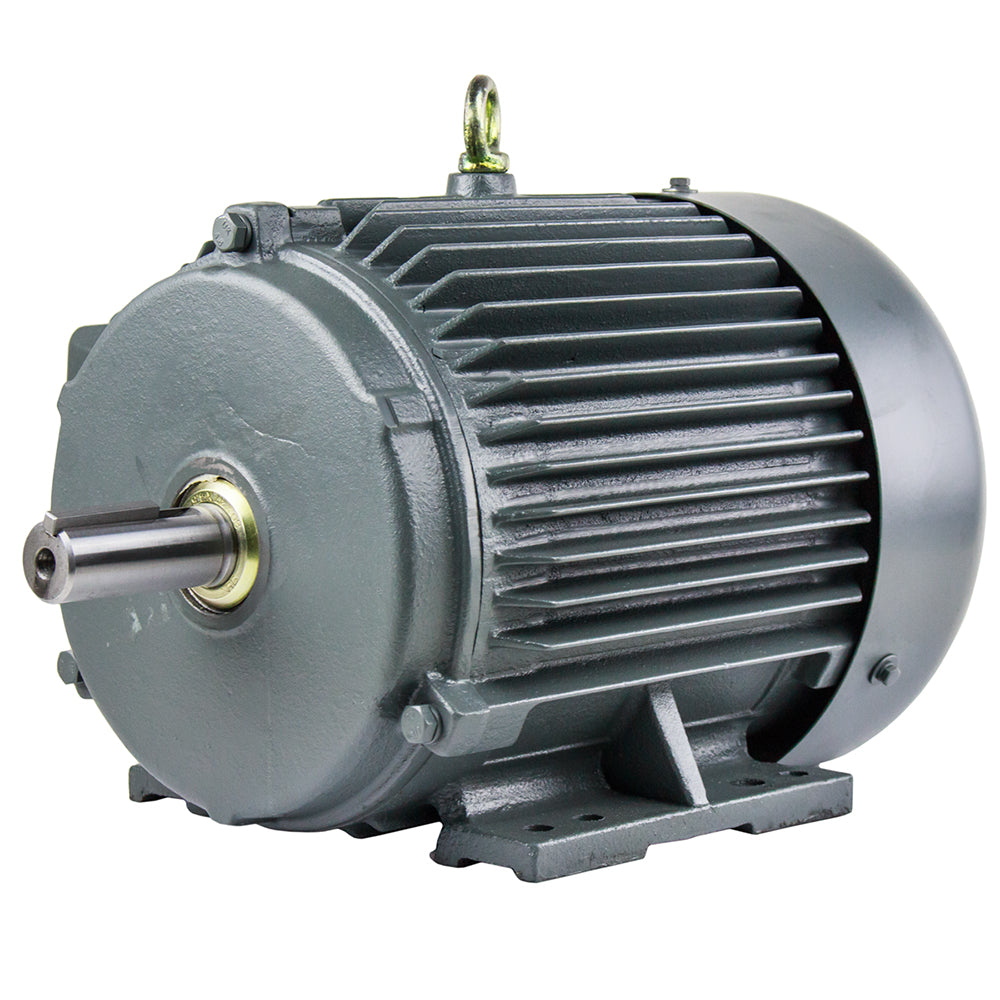

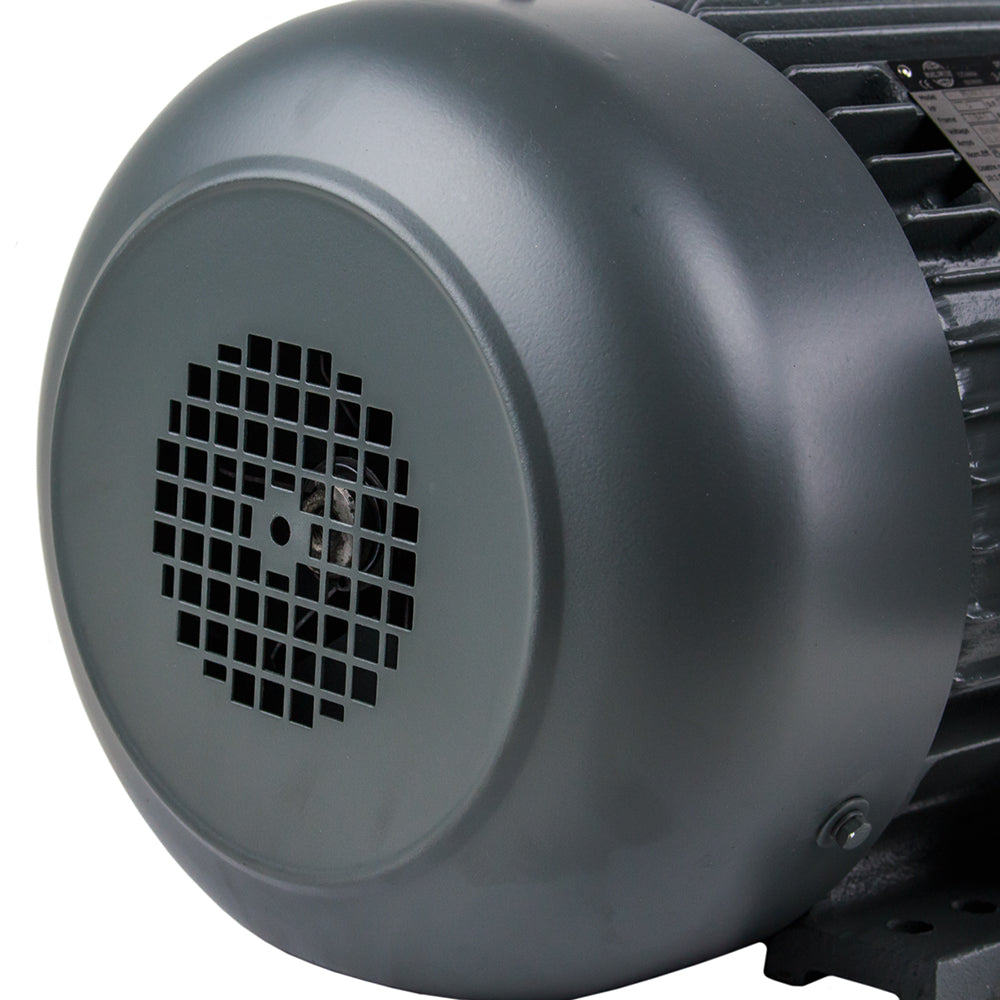

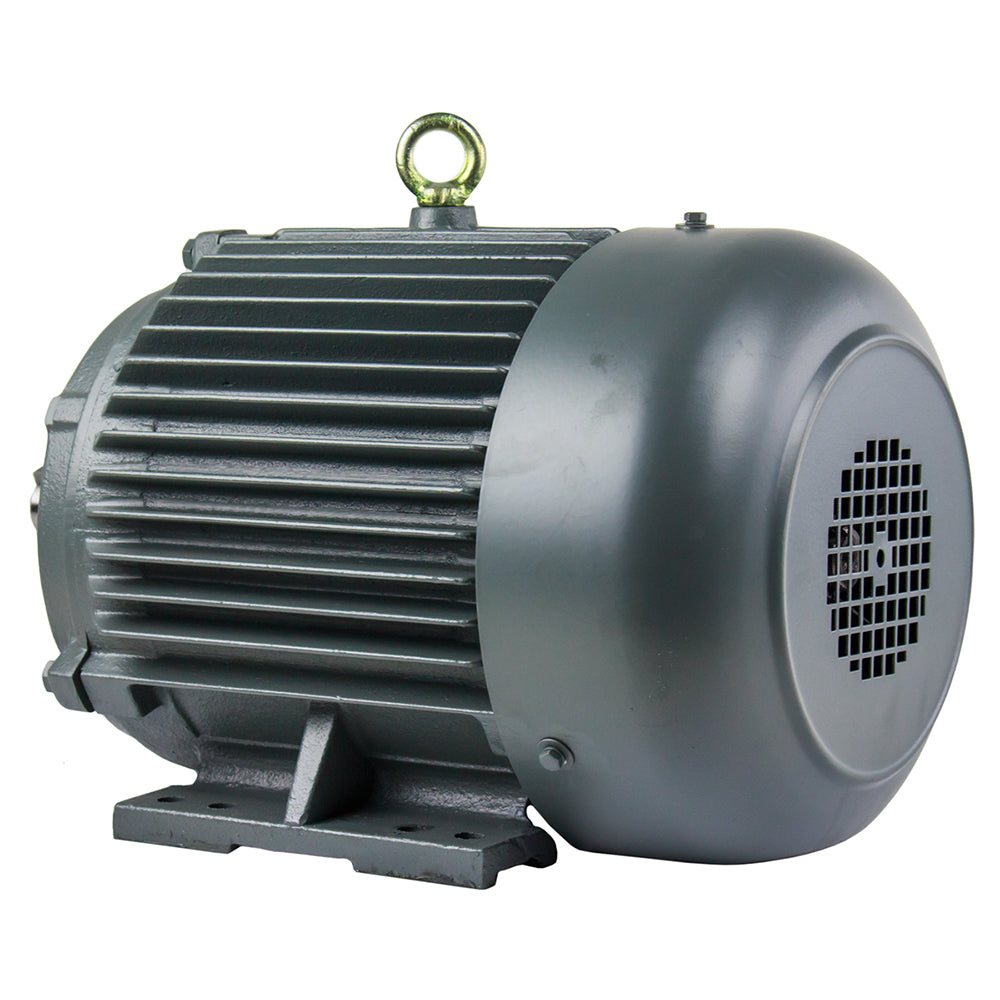

Brand New 5 horsepower, 3 phase premium efficiency severe duty electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.25 service factor, and is a premium efficiency motor. Designed for 60Hz also suitable for 50Hz operation with a 1.0 service factor. Features a TEFC / IP55 enclosure, and is a 184T frame.
SPECIFICATIONS:

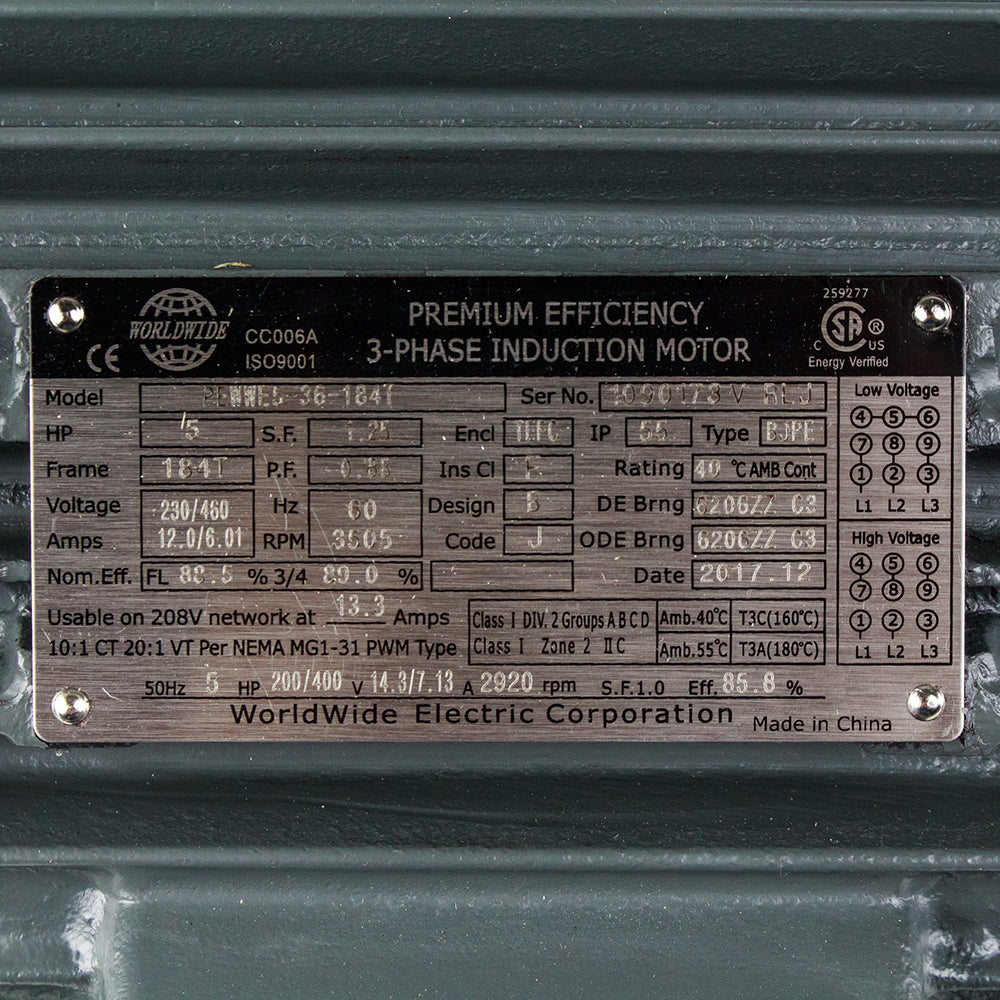

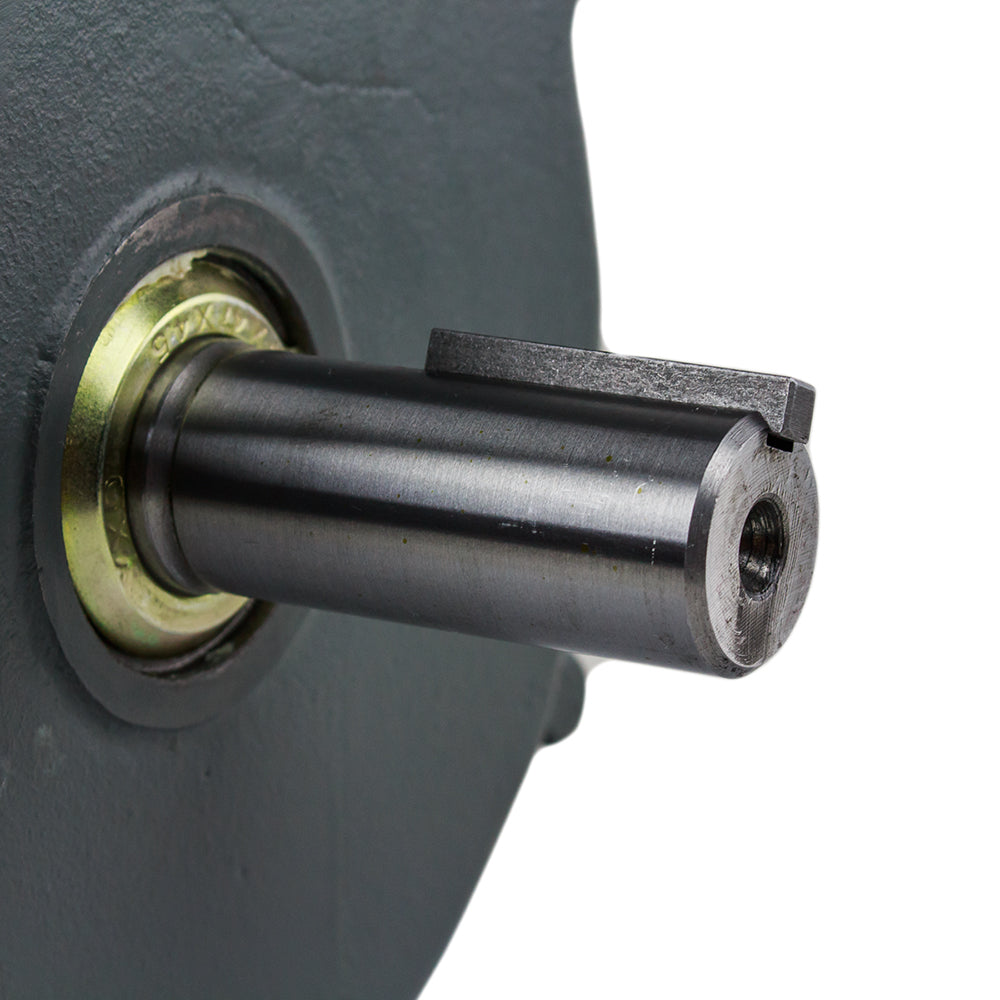

5 Horsepower 3 Phase TEFC / IP55 Fully Enclosed 184T Frame Service Factor 1.25 Class F Insulation 89.75 lbs 208-230/460 Volt 3600 RPM Fan Cooled Worldwide Electric Brand Shaft Length: Approximately 2 7/8" Keyed 1 1/8" Diameter Shaft Current: AC Full Load Amps: 12.0/6.01 60 HZ (Suitable for 50 HZ with 1.0 SF) Shaft Material: 1045 Carbon Steel Nema Design B Max Temp: 40 Degrees C
