Worldwide Electric 5HP 3600 RPM 3 Phase C-Face Electric Air Compressor Motor

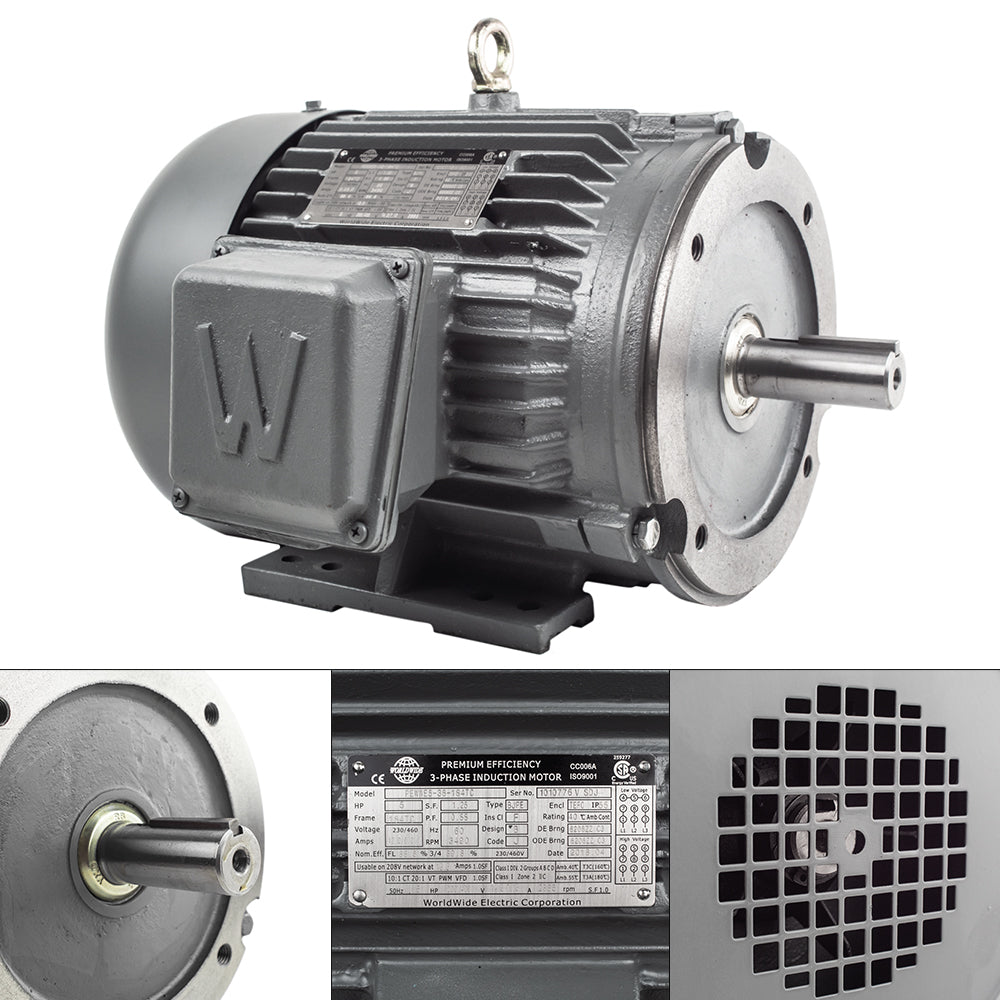

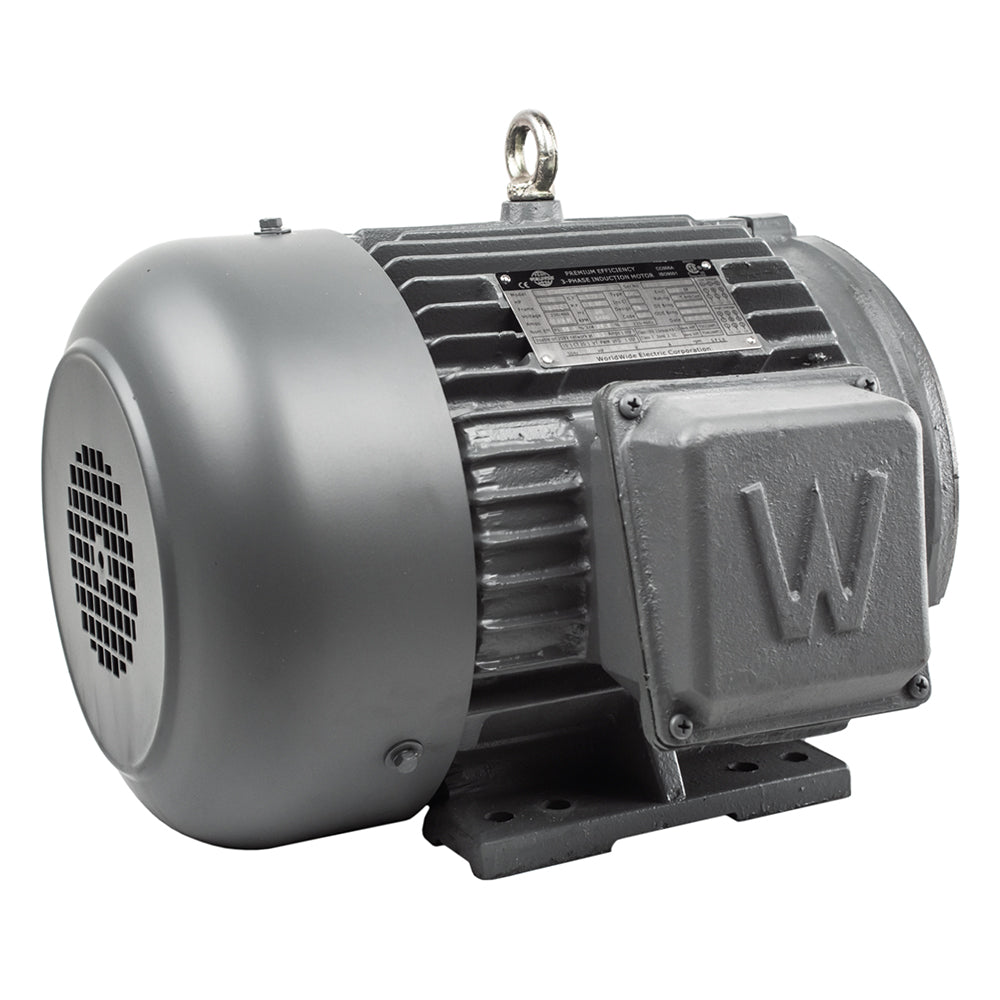

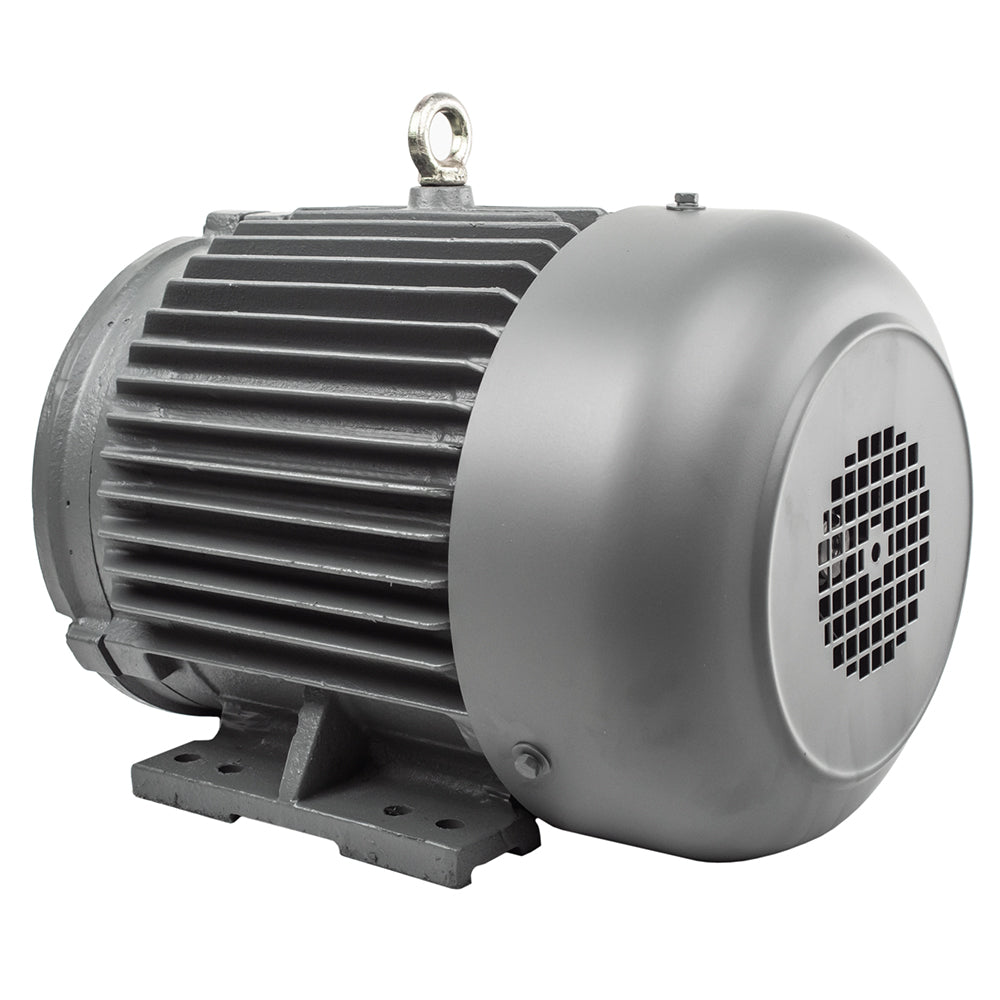

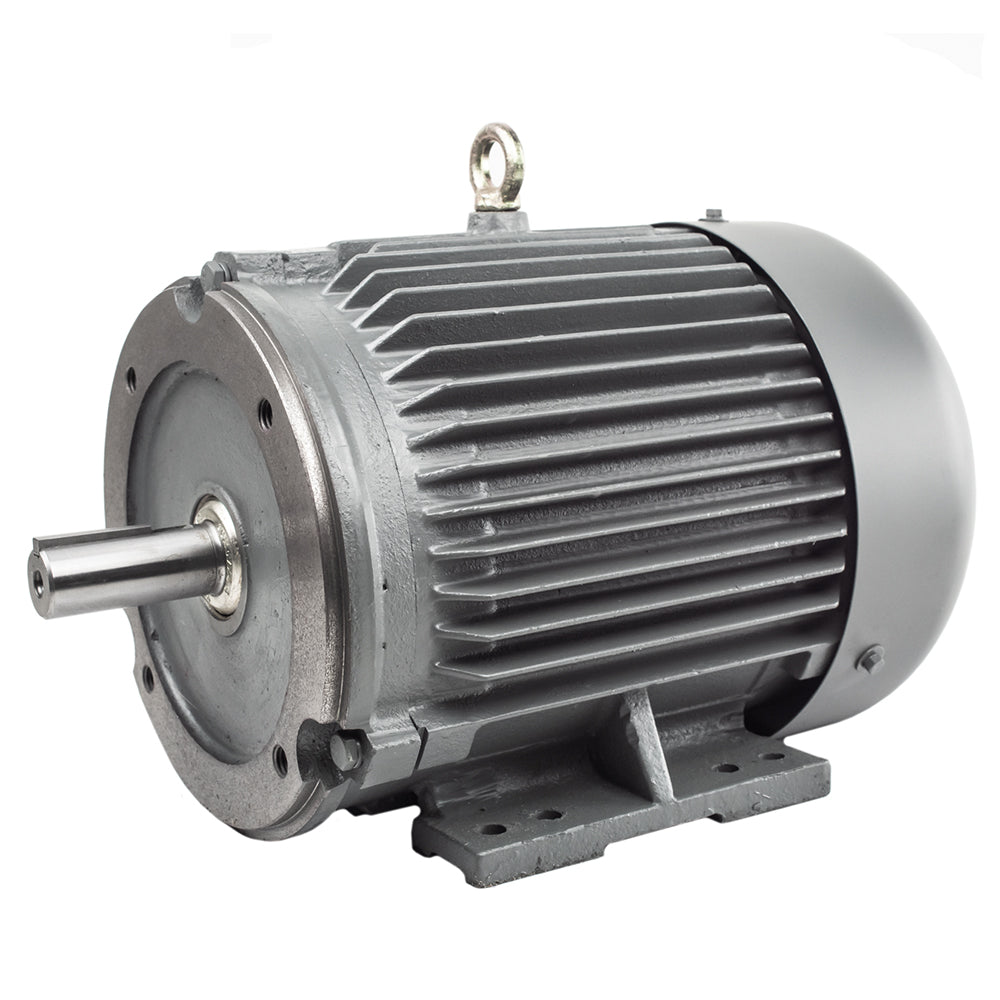

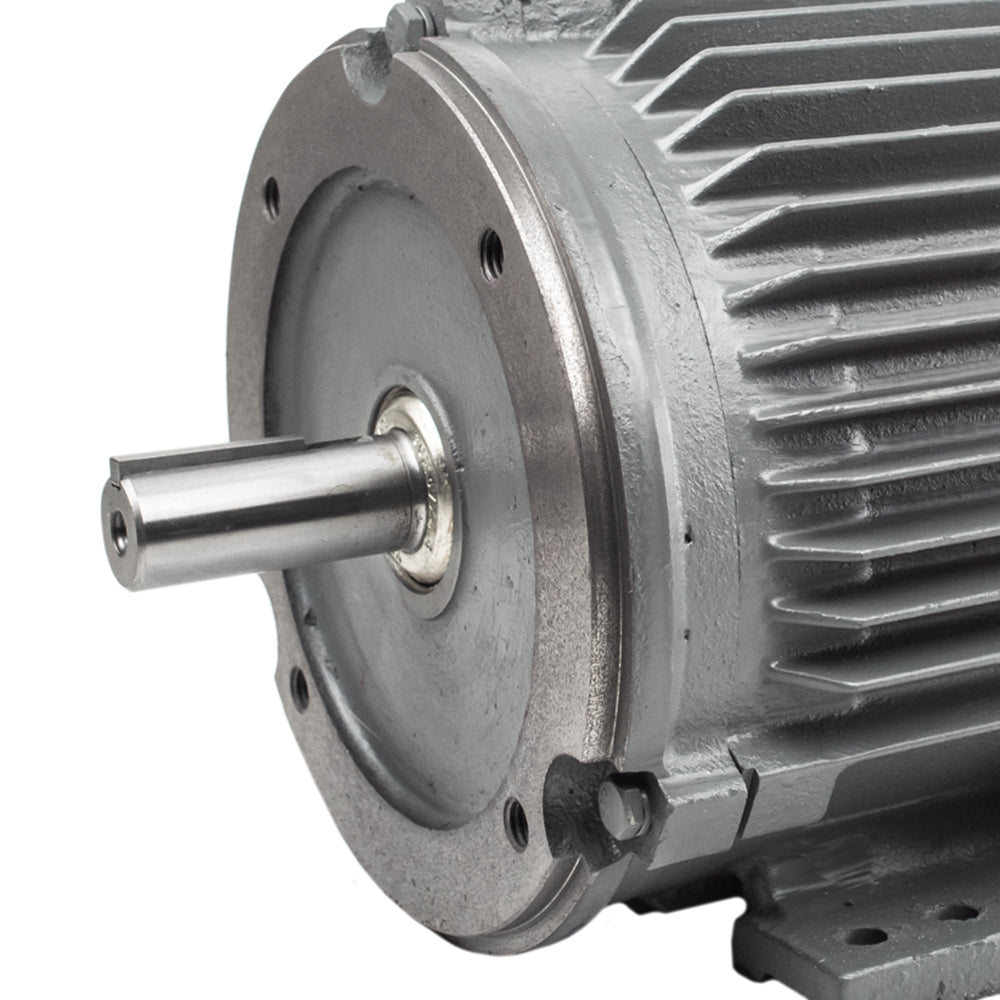

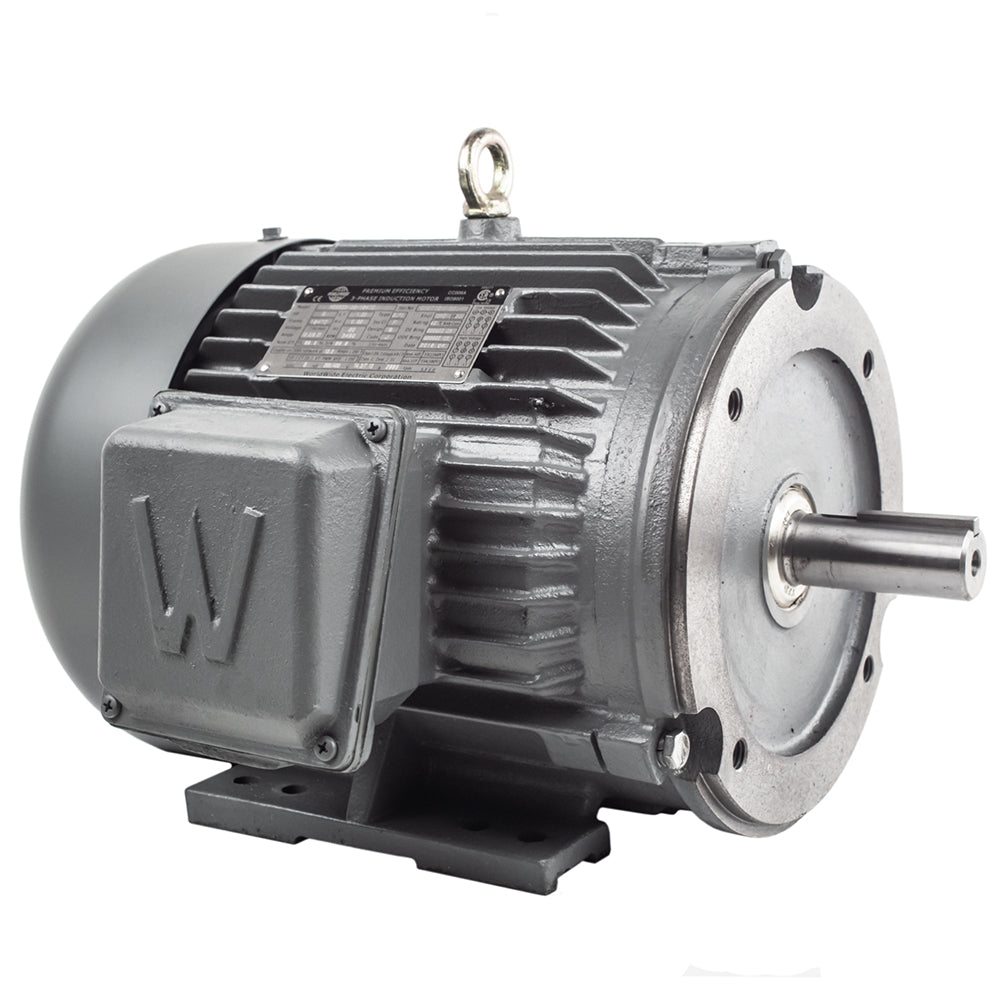

Brand new 5 horsepower, 3 phase premium efficiency severe duty electric motor with a rigid base and C-Face design. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.25 service factor, and a C-Face for mounting the motor directly to a pump. Designed for 60Hz, but is also suitable for 50Hz operation with a 1.0 service factor. Features a TEFC / IP55 enclosure, and is a 184TC frame.
Specifications:

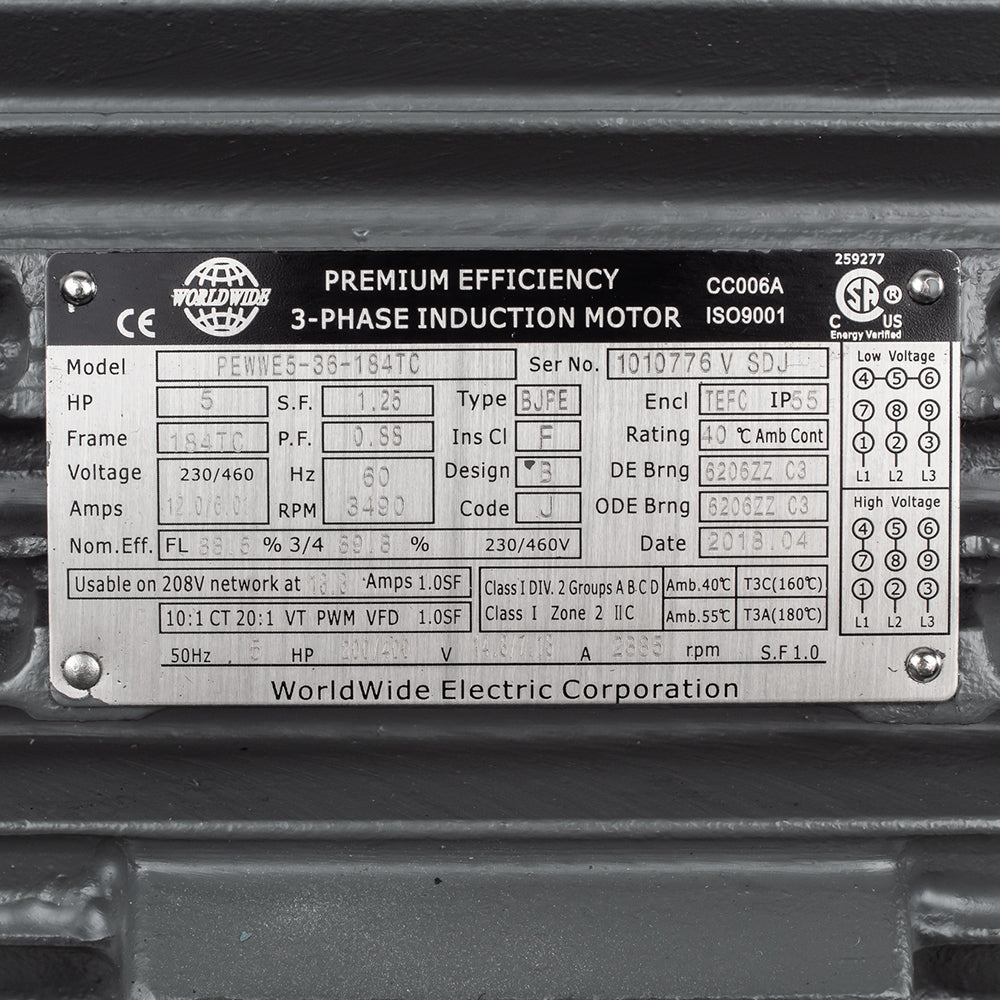

• 5 Horsepower • 3 Phase • TEFC / IP55 Fully Enclosed • 184TC Frame • C-Face • Service Factor 1.25 • Class F Insulation • 89.75 lbs • 208-230/460 Volt • 3490 RPM • Fan Cooled • Worldwide Electric Brand • Shaft Length: Approximately 2 7/8" • Keyed 1 1/8" Diameter Shaft • Current: AC • Full Load Amps: 12.0/6.01 • 60 HZ (Suitable for 50 HZ with 1.0 SF) • Shaft Material: 1045 Carbon Steel • Nema Design B • Max Temp: 40 Degrees C
