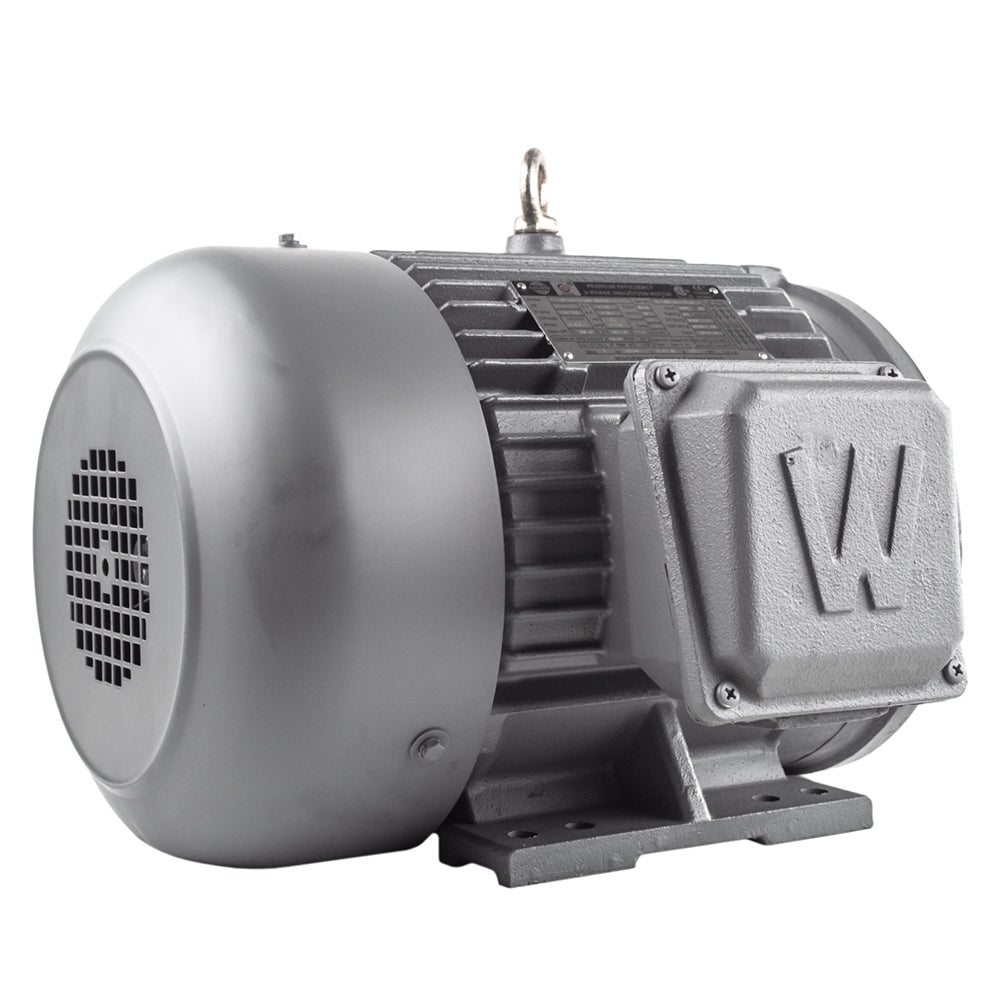

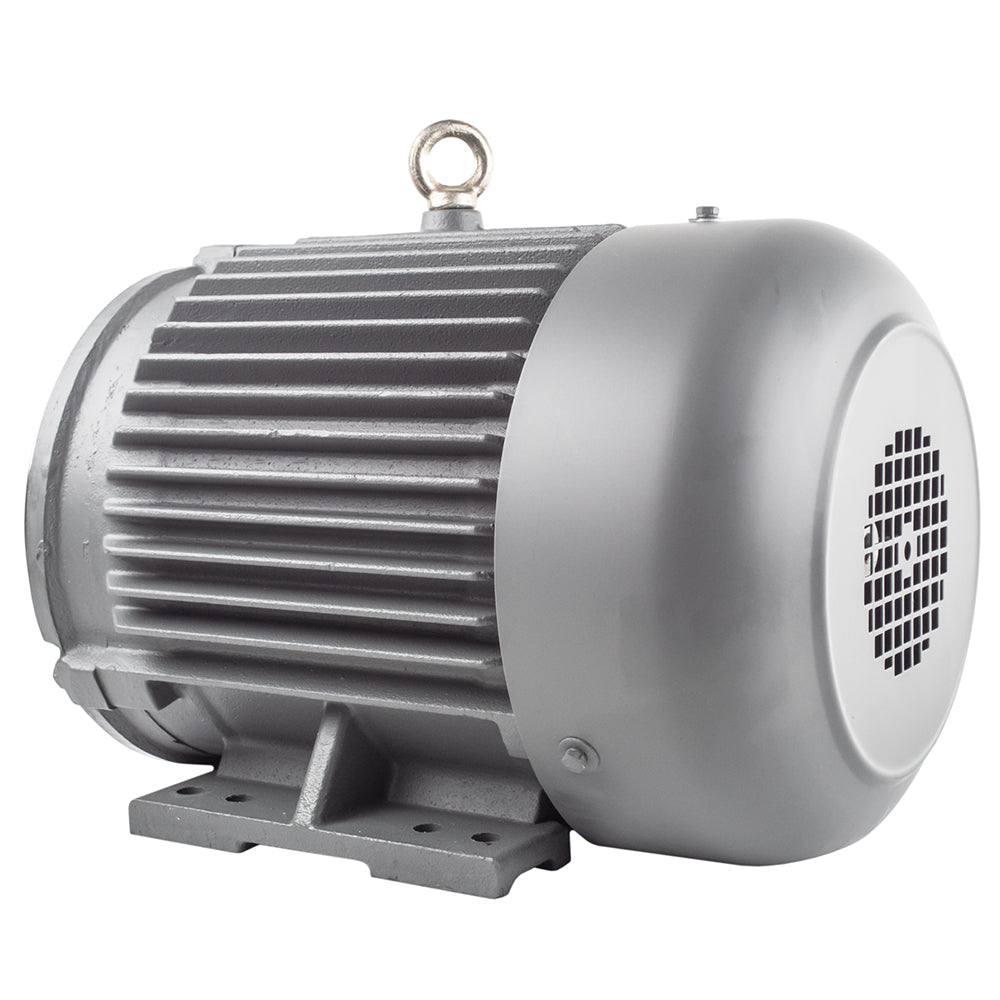

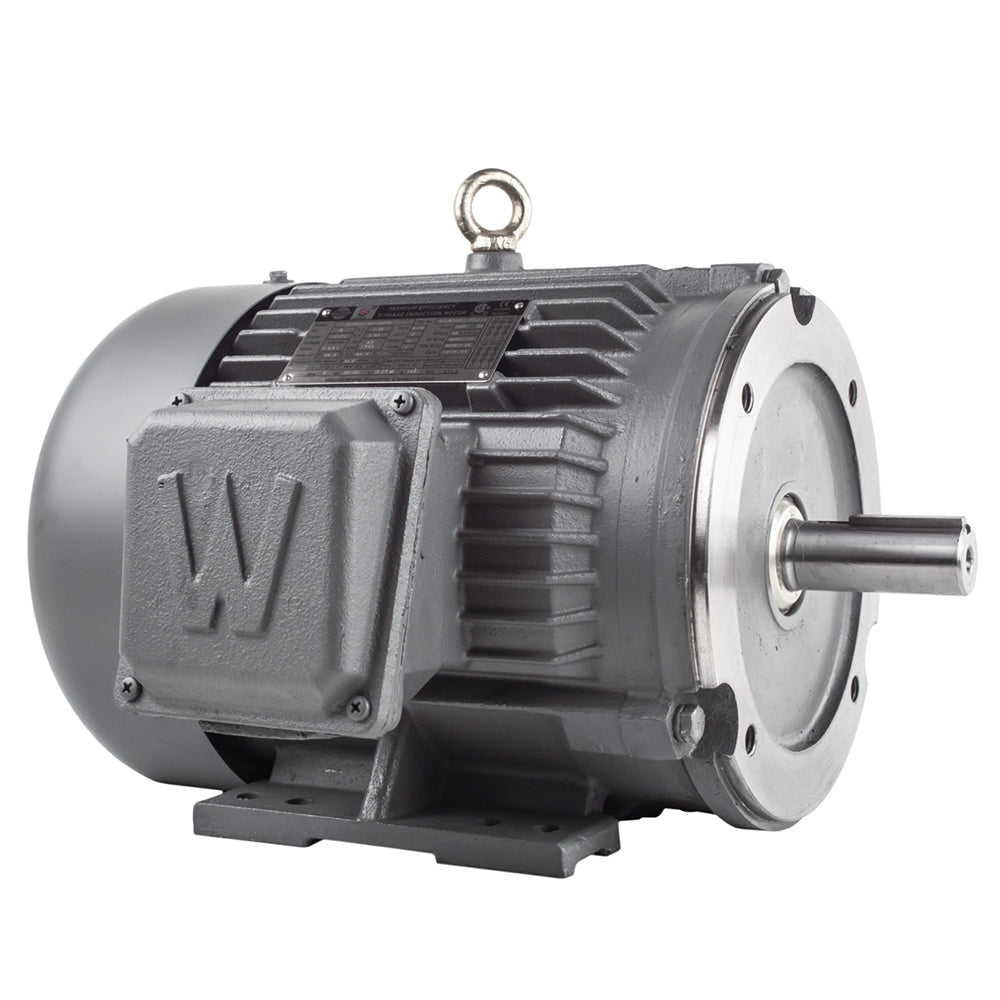

Worldwide Electric 5HP 1800 RPM 184TC C-Face Electric Air Compressor Motor

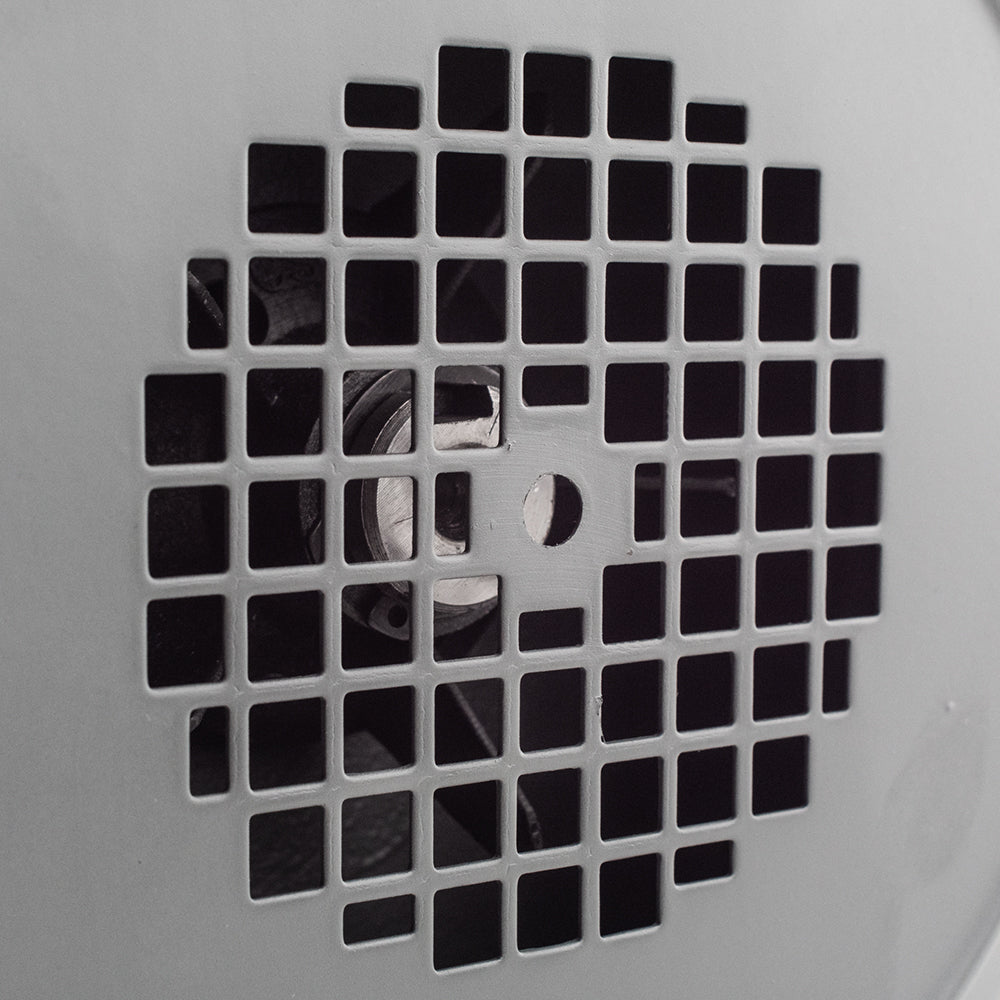

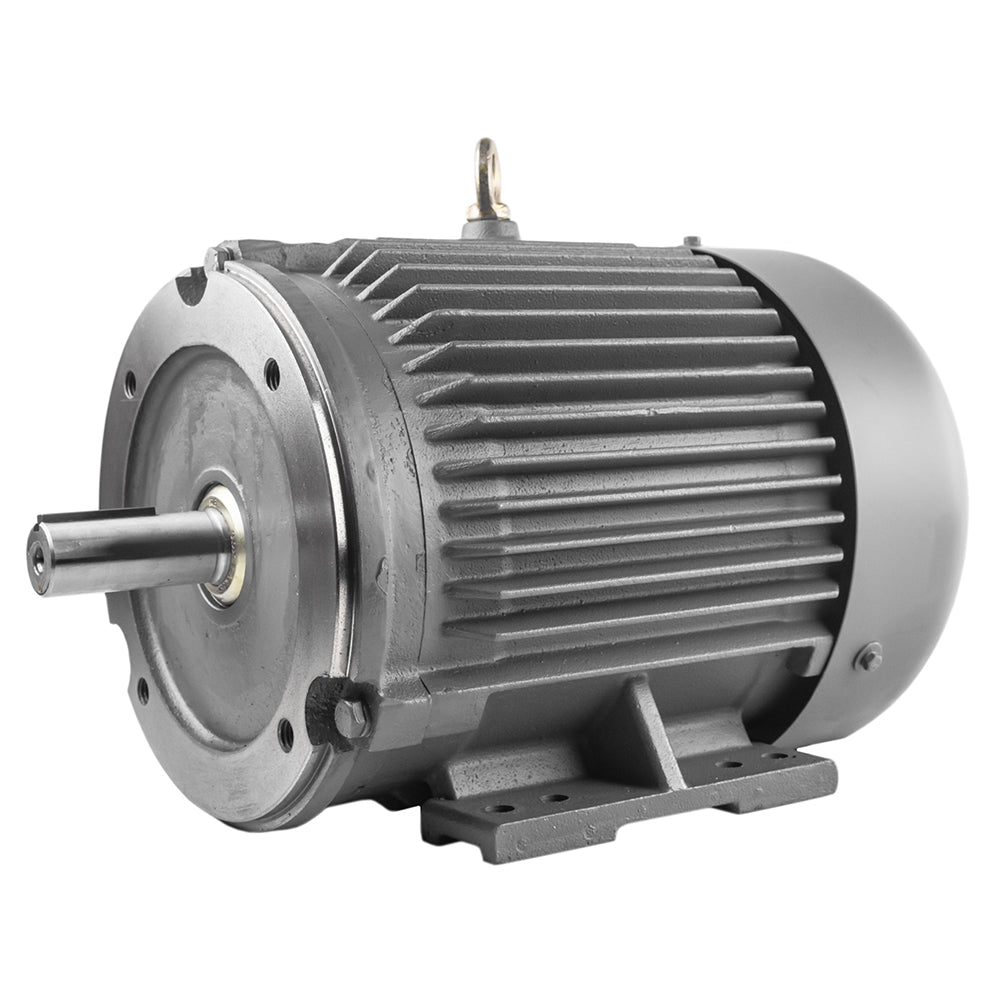

Brand New 5 horsepower, 3 phase premium efficiency severe duty electric motor with a C-Face. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, external fan cooling, a 1.25 service factor, is a premium efficiency severe duty motor, and has a c-face so it can be easily mounted to a pump. Designed for 60Hz but is also suitable for 50Hz operation with a 1.0 service factor. Features a TEFC / IP55 enclosure, and is a 184TC frame.
Specifications:

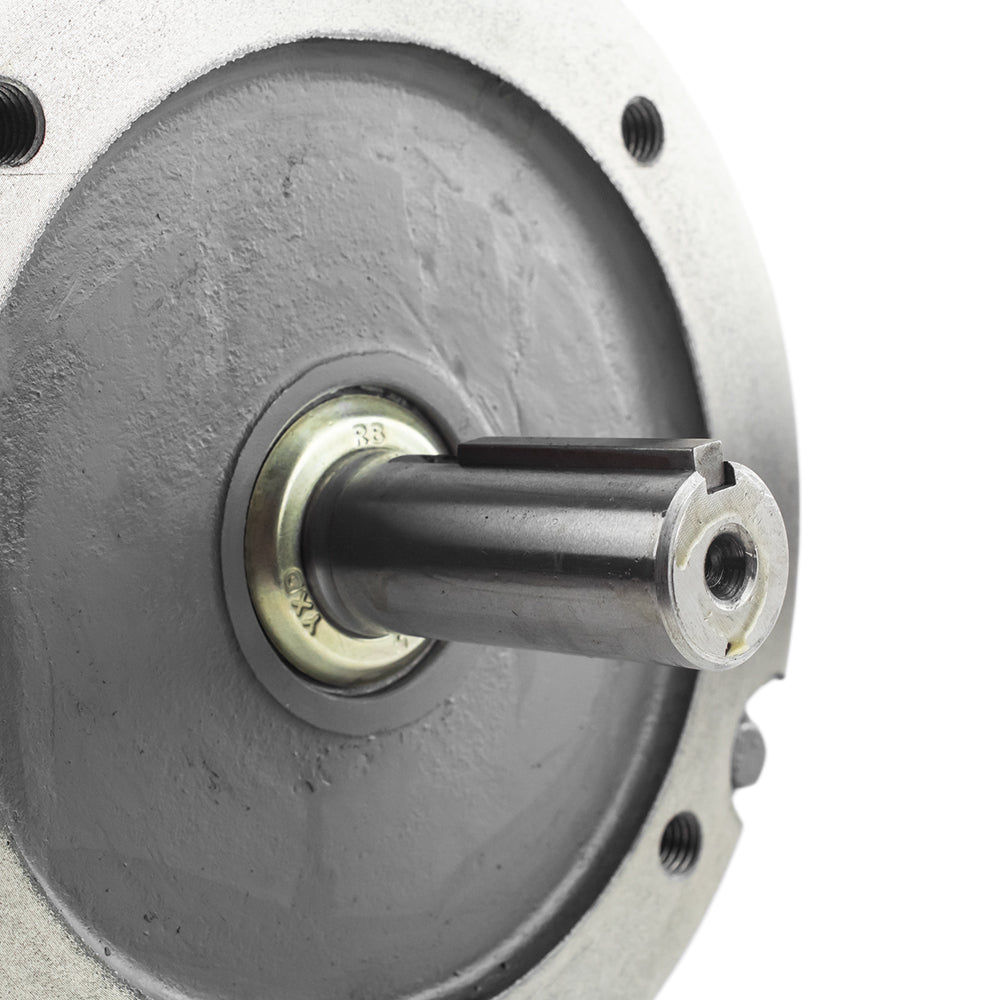

• 5 Horsepower 3-Phase Electric Motor • 184TC Frame, TEFC / IP55 Fully Enclosed, External Fan Cooled • Service Factor 1.25 • Class F Insulation • 104 lbs • 230/460 Volt • 1800 RPM (Full Load Speed 1755), Reversible Rotation • Shaft Length: Approximately 2 7/8" • Keyed 1 1/8" Diameter Shaft • Current: AC • Full Load Amps: 12.6 / 6.3 (Usable on 208V at 13.9) • 60 HZ (Suitable for 50 HZ with 1.0 SF) • Max Amb Temp: 40 Degrees C
