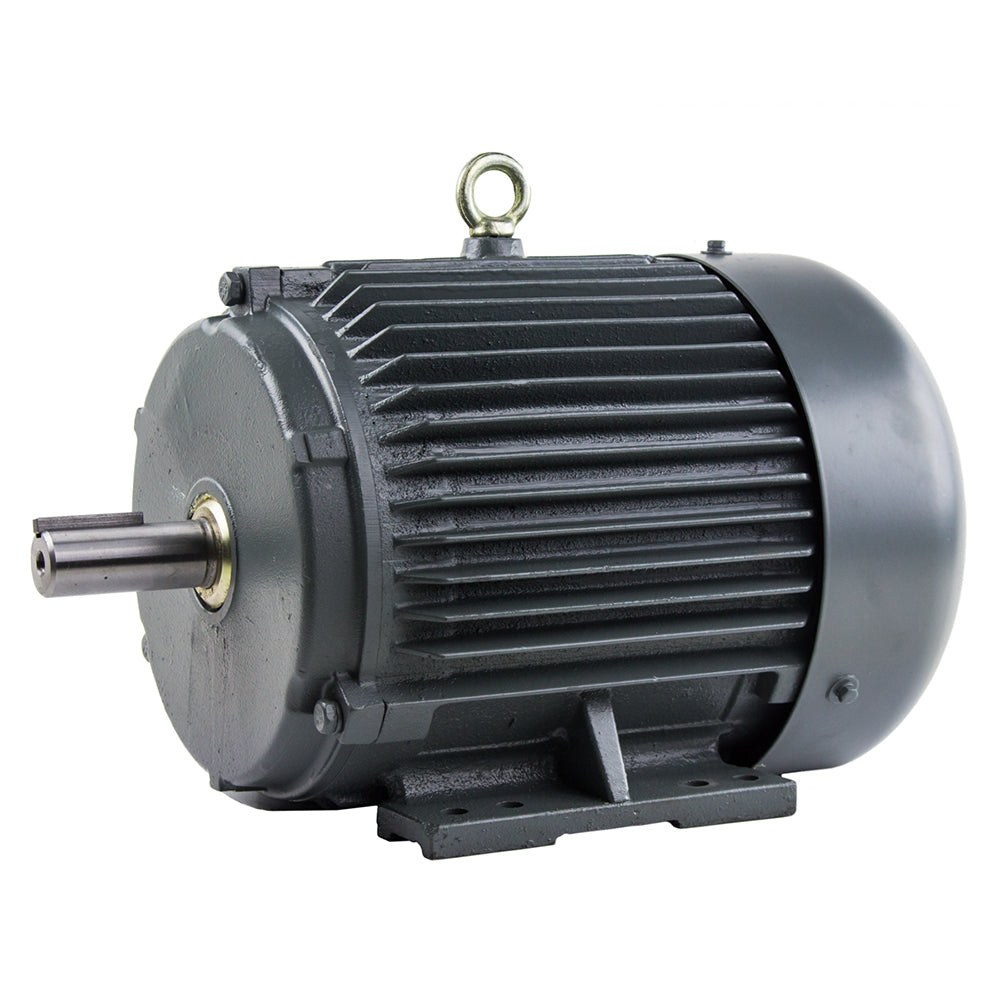

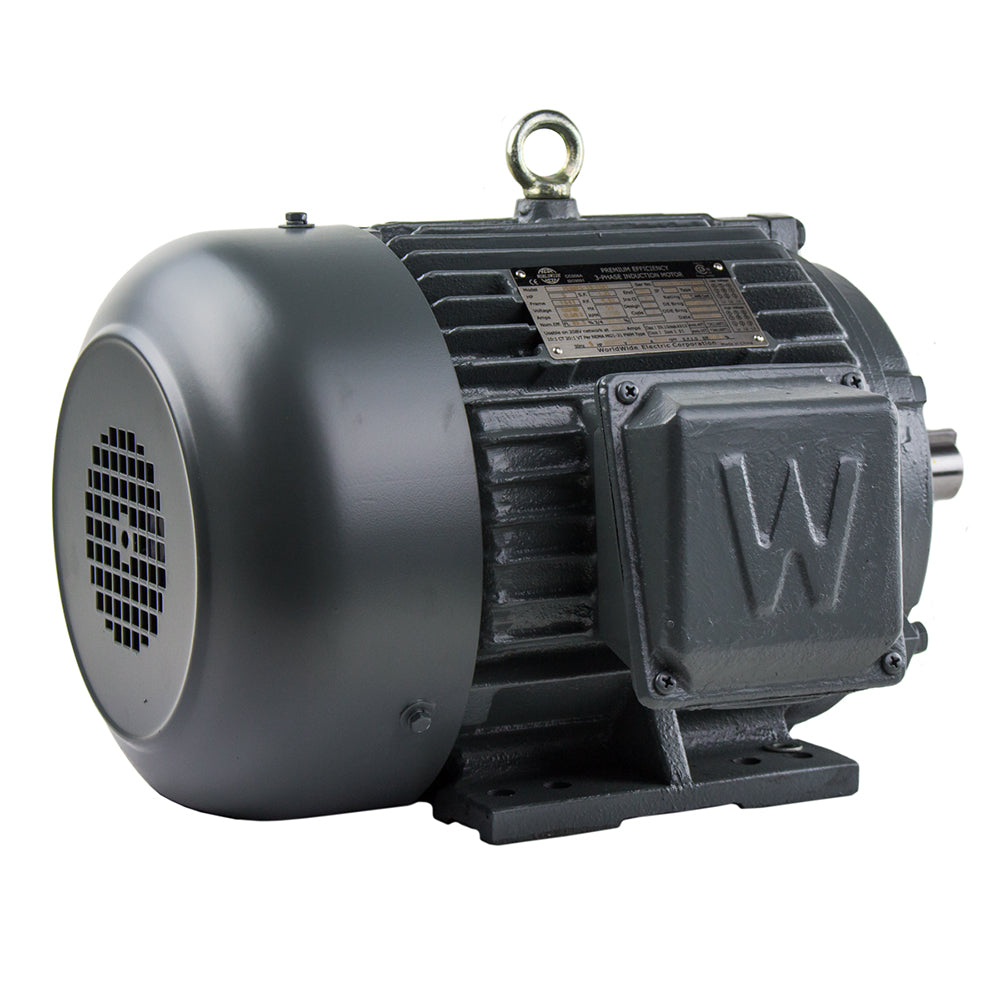

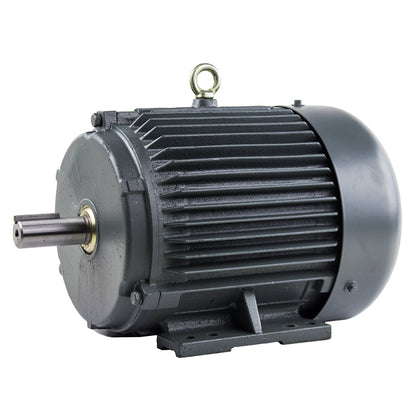

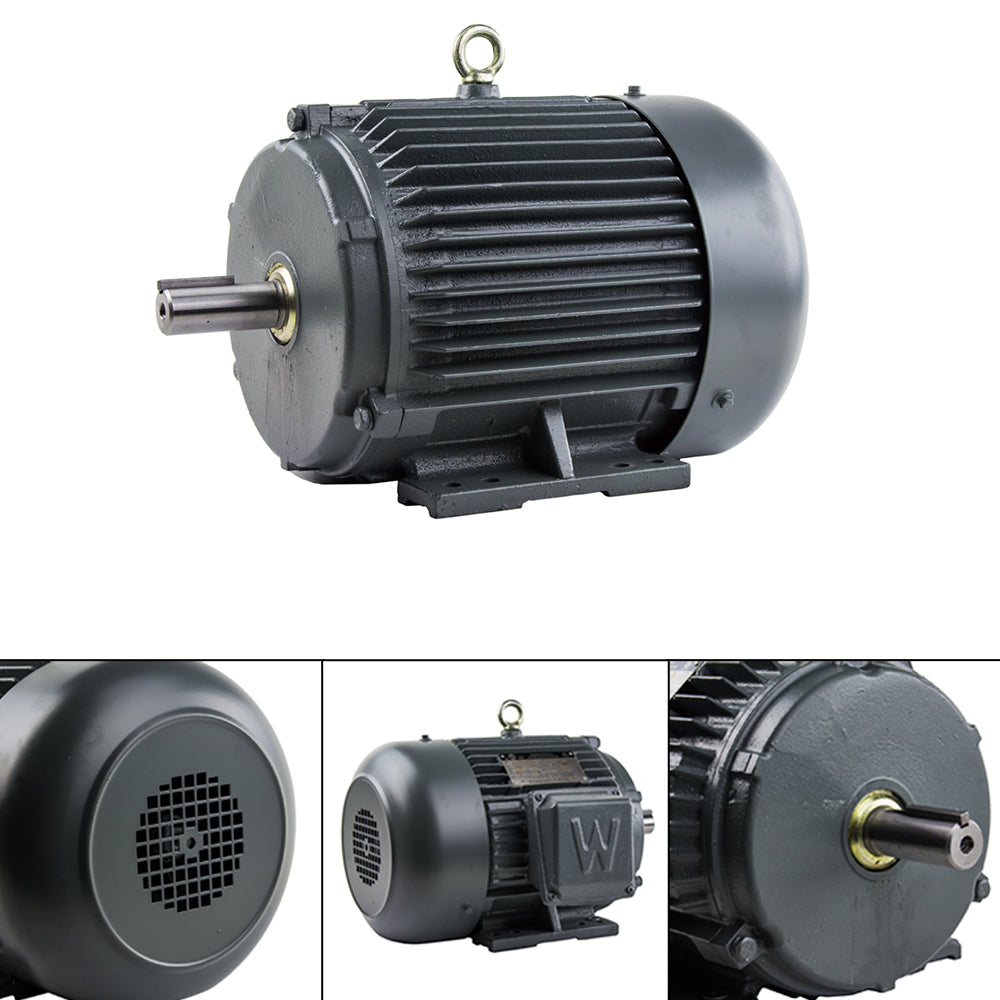

5 HP 3 Phase Electric Motor 1755 RPM 184T Frame 230/460V TEFC PEWWE5-18-184T(5 Hp 3 Phase Electric Motor 1800 Rpm 184t Frame Tefc 230 460 Volt Severe Duty)

Brand New 5 horsepower, 3 phase premium efficiency severe duty electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.25 service factor, is a premium efficiency severe duty motor. Designed for 60Hz also suitable for 50Hz operation with a 1.0 service factor. Features a TEFC / IP55 enclosure, and is a 184T frame.

SPECIFICATIONS

5 Horsepower
3 Phase
TEFC / IP55 Fully Enclosed
184T Frame
Service Factor 1.25
Class F Insulation
104 lbs
208-230/460 Volt
1800 RPM  (Full Load Speed 1755)

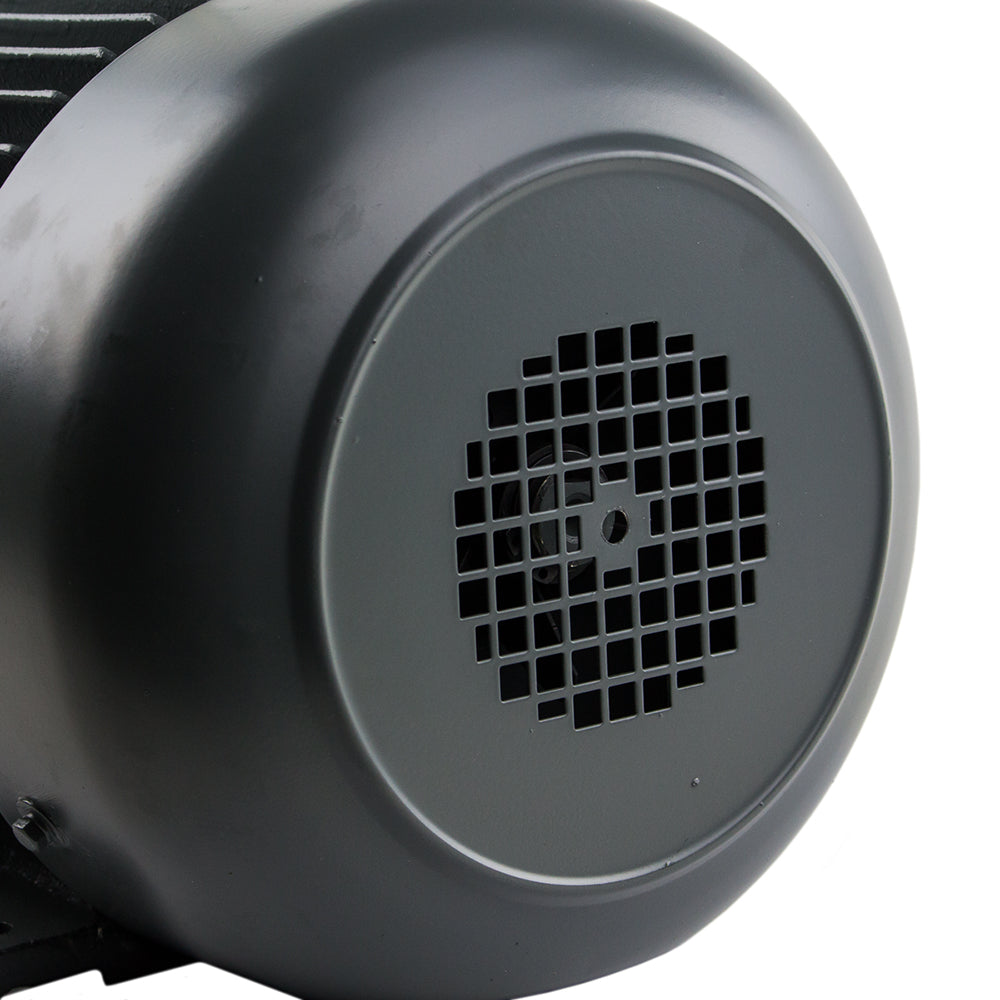

Fan Cooled
Class F Insulation
Worldwide Electric Brand
Shaft Length: Approximately 2 7/8"

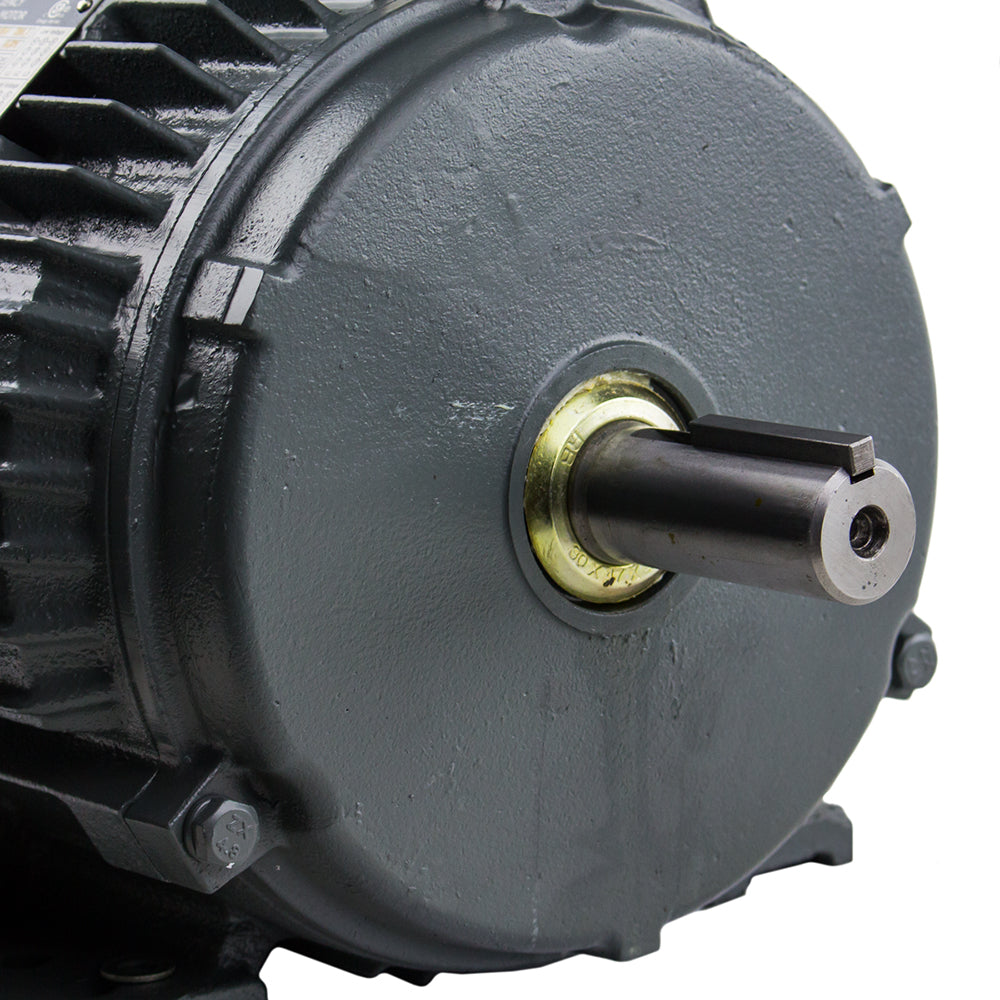

Keyed 1 1/8" Diameter Shaft
Current: AC
Full Load Amps: 12.6 / 6.3 (Usable on 208V at 13.9)
60 HZ (Suitable for 50 HZ with 1.0 SF)
Rotation: Bi-Directional
Shaft Material: 1045 Carbon Steel
Nema Design B
Max Temp: 40 Degrees C
