5 Horsepower Single Phase Electric Magnetic Air Compressor Motor Starter Switch MSP30T(5 Horsepower Single Phase Electric Magnetic Air Compressor Motor Starter Switch Msp30t)

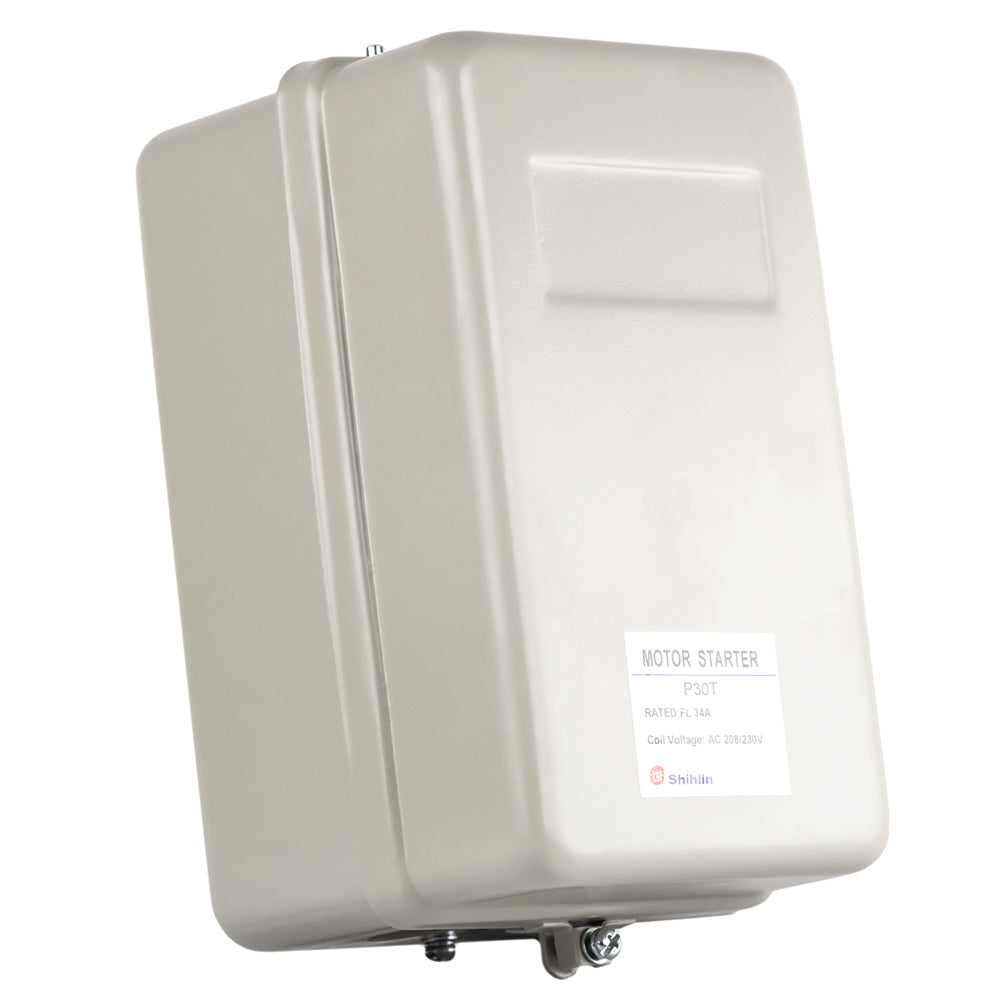

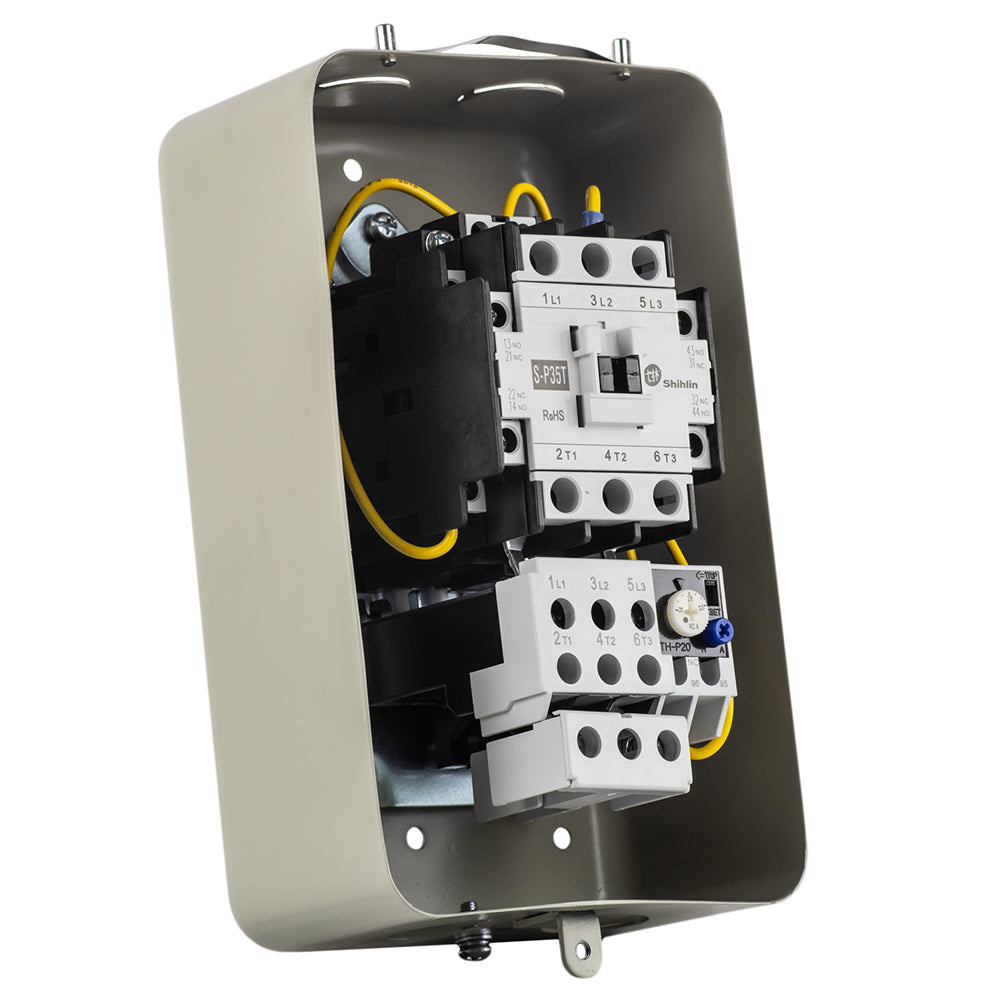

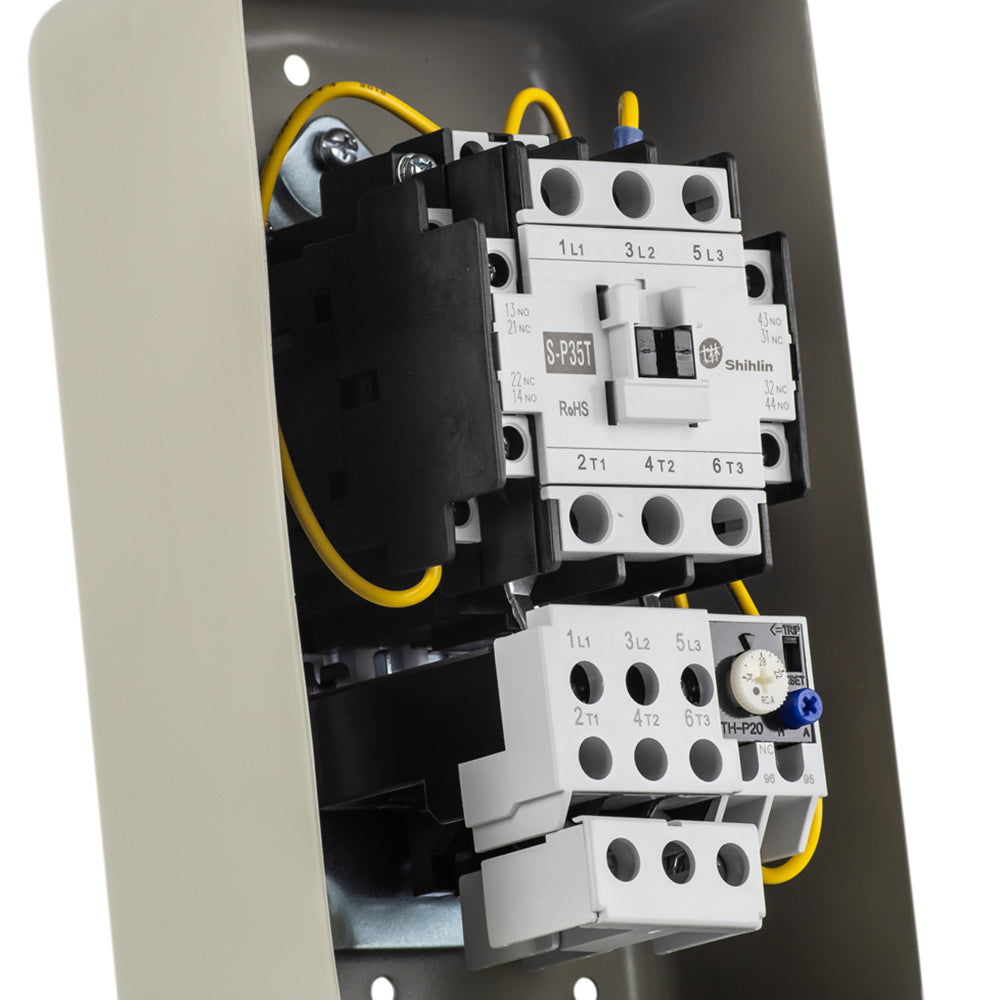

This listing is for a 5 horsepower, single-phase magnetic starter rated for 220–240 volts. Housed in a durable steel enclosure, this high-quality starter features a built-in overload relay adjustable from 22 to 34 amps to help protect your motor from overcurrent damage.

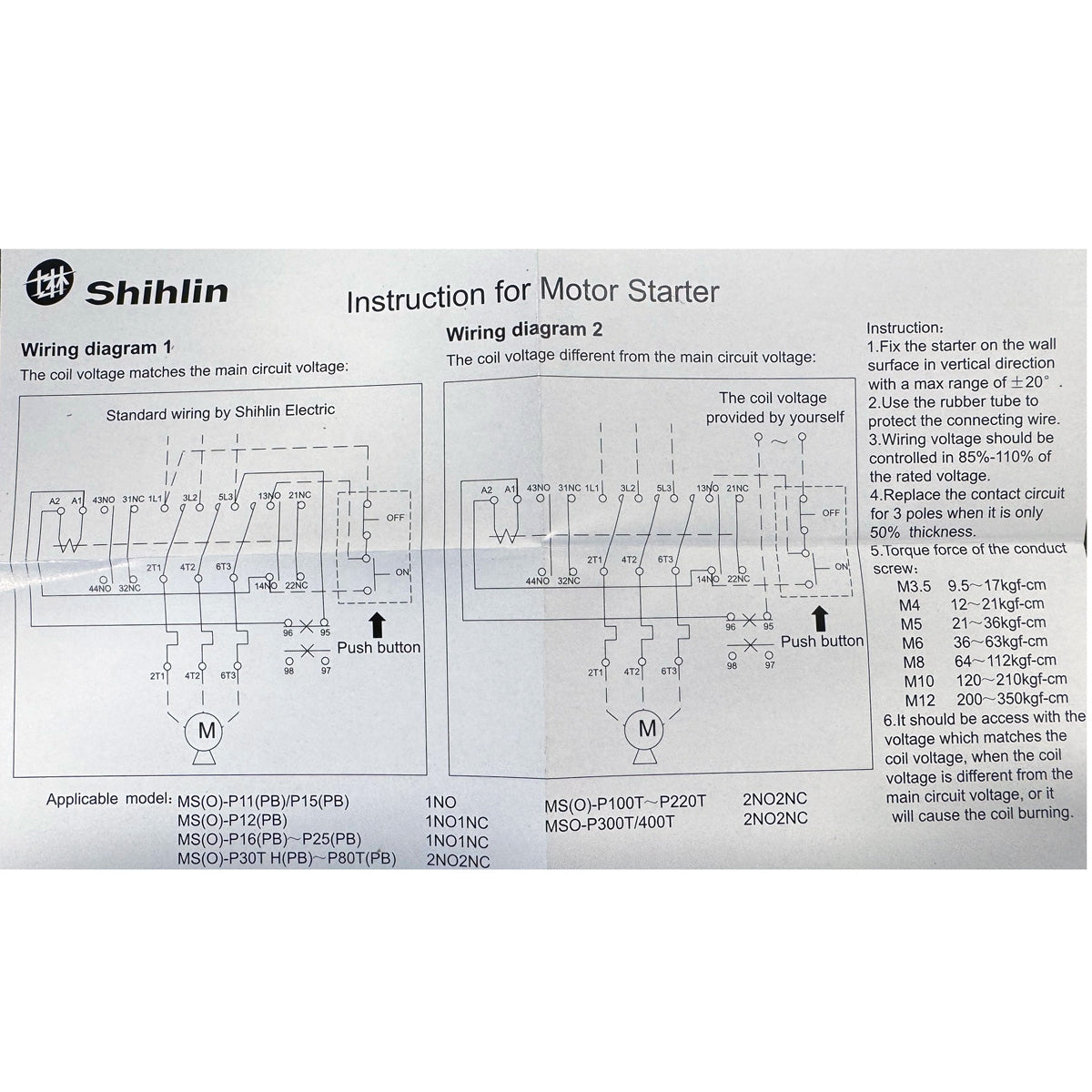

The unit includes a manual reset summary, which can be switched to auto reset mode if needed. The enclosure is equipped with four 3/4" punch-out holes for wiring access and includes three rubber grommets to protect wires during installation. Wiring instructions are included for reference.

If you're running a 5 HP air compressor and experiencing burned-out pressure switch contacts, this magnetic starter is the solution. It offloads the electrical load from the pressure switch and improves reliability.

When used with an air compressor, a pressure switch (sold separately) is required to control the starter. The pressure switch will turn the starter on and off based on the tank pressure settings.

Imporant Notes:

• Professional installation is required.
• No warranty is offered once the item has been installed, due to the nature of electrical components.

Specifications:

• Motor Compatibility: 5 HP
• Voltage: 220–240V AC
• Phase: Single Phase

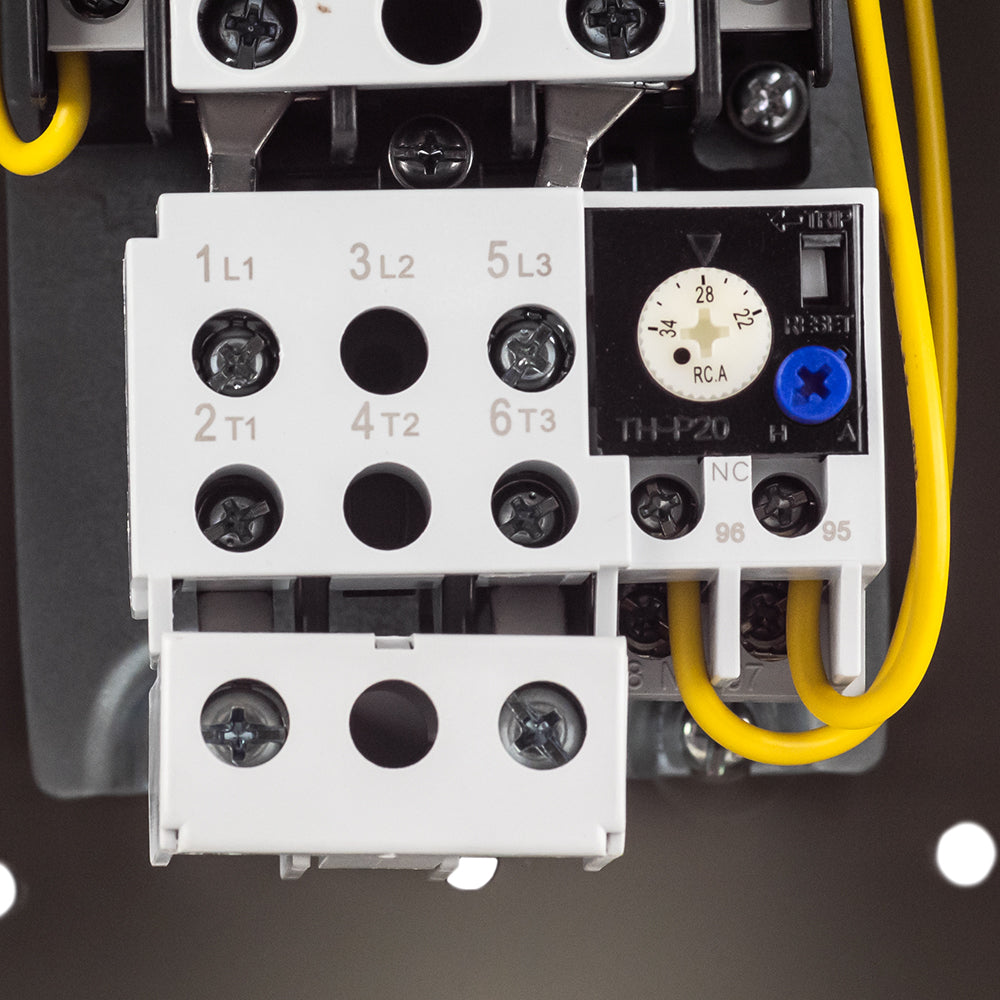

• Overload Protection: Adjustable from 22 to 34 Amps
• Reset Type: Manual (switchable to Auto)

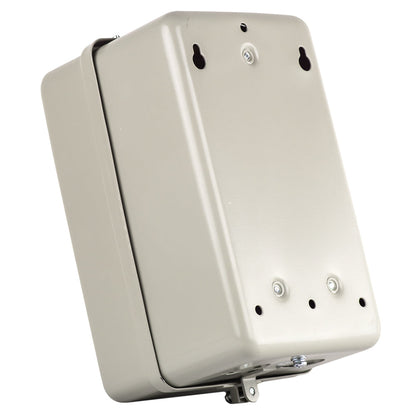

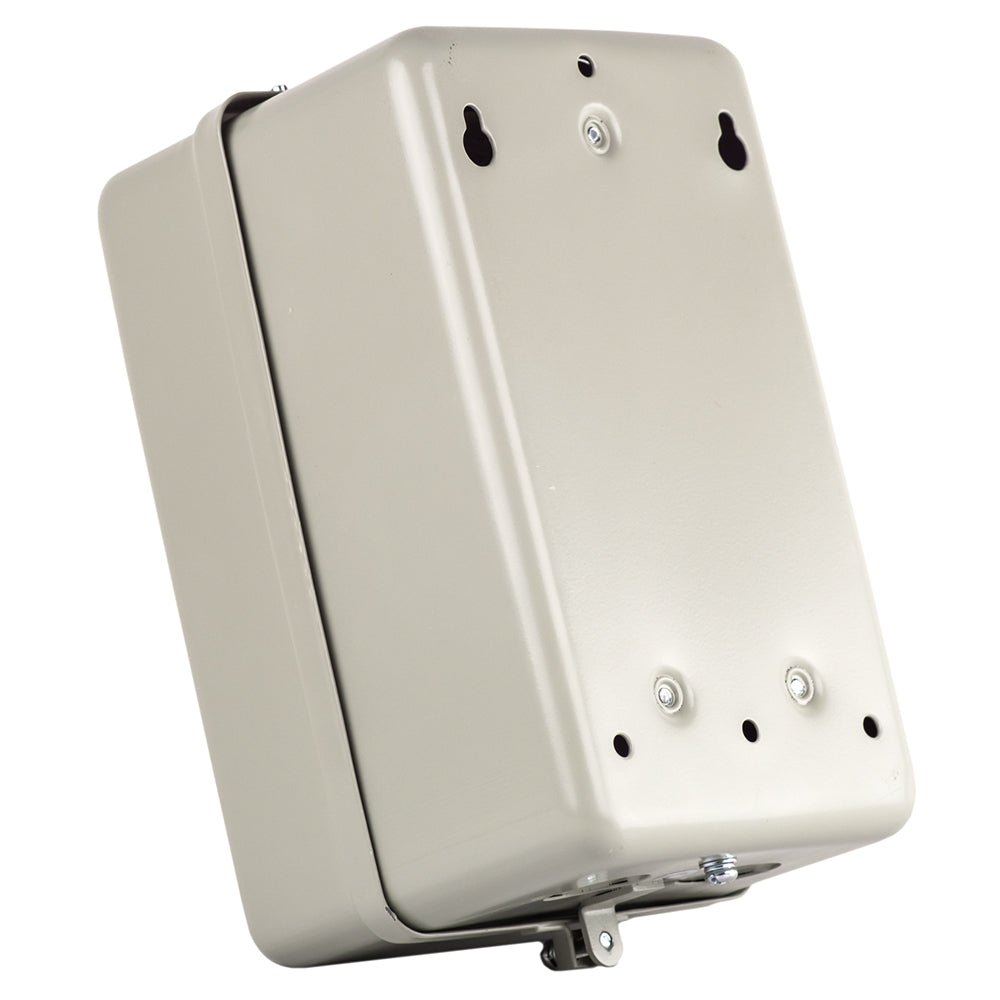

• Enclosure Dimensions (H x W x D): 9" x 5.5" x 5.5"
• Includes: Three rubber grommets and wiring instructions
