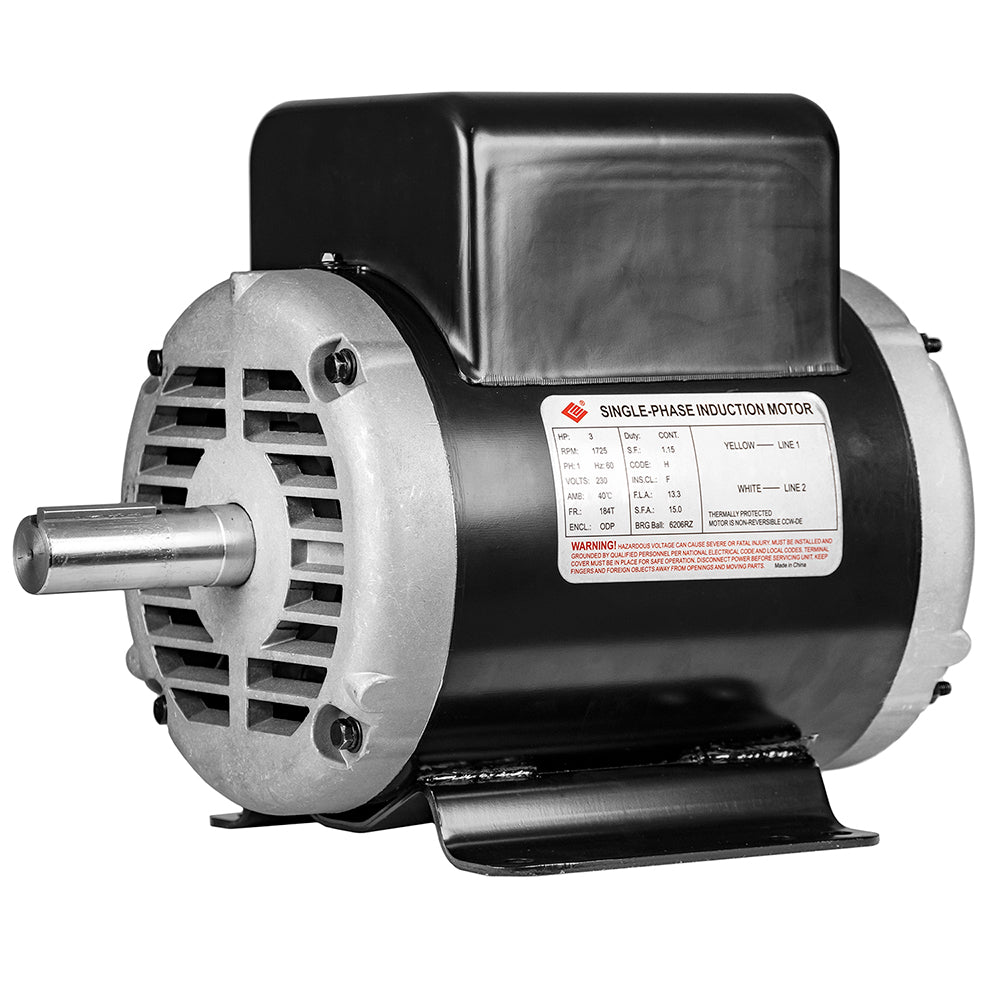

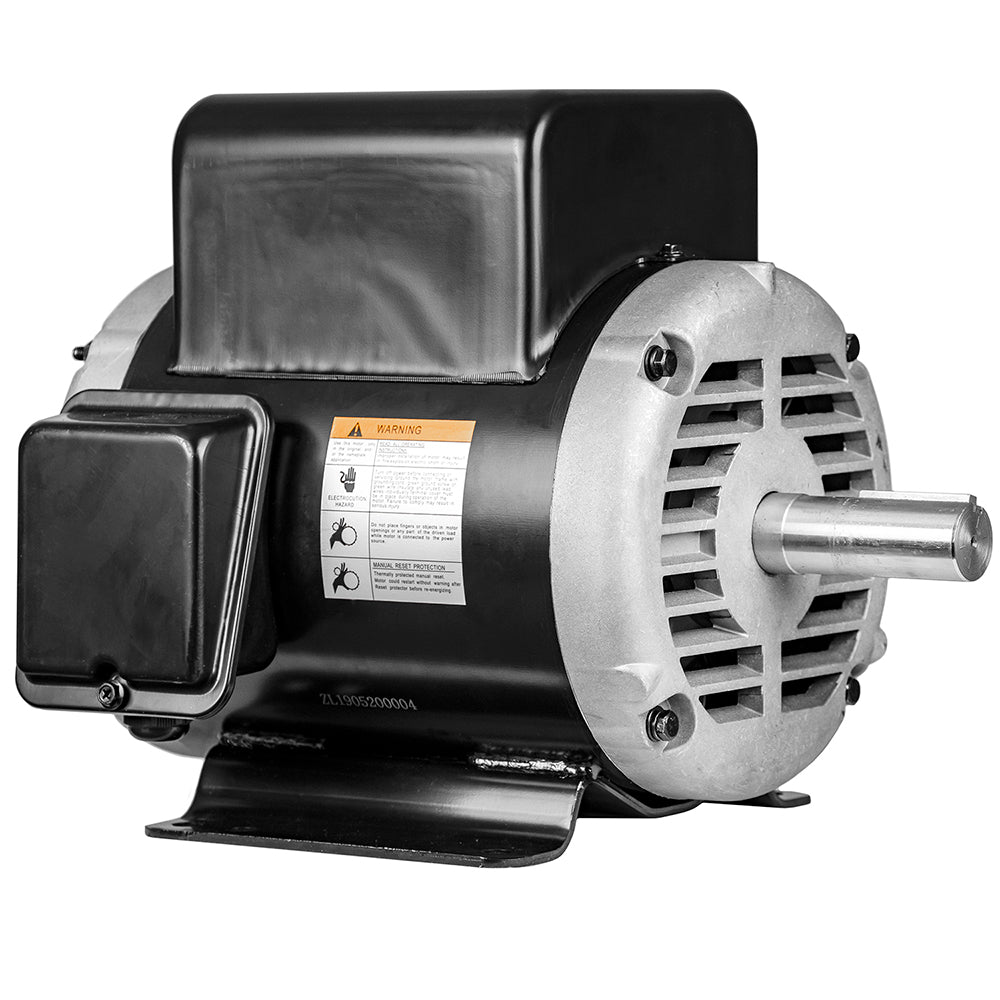

3 HP Single Phase Electric Motor 1725 RPM 184T Frame 230V ODP EMZ(3 Hp Electric Motor 184t Frame 1725 Rpm Single Phase 230 Volts 1 1 8 Shaft)

3 HP Single Phase Electric Motor with 1-1/8" Shaft

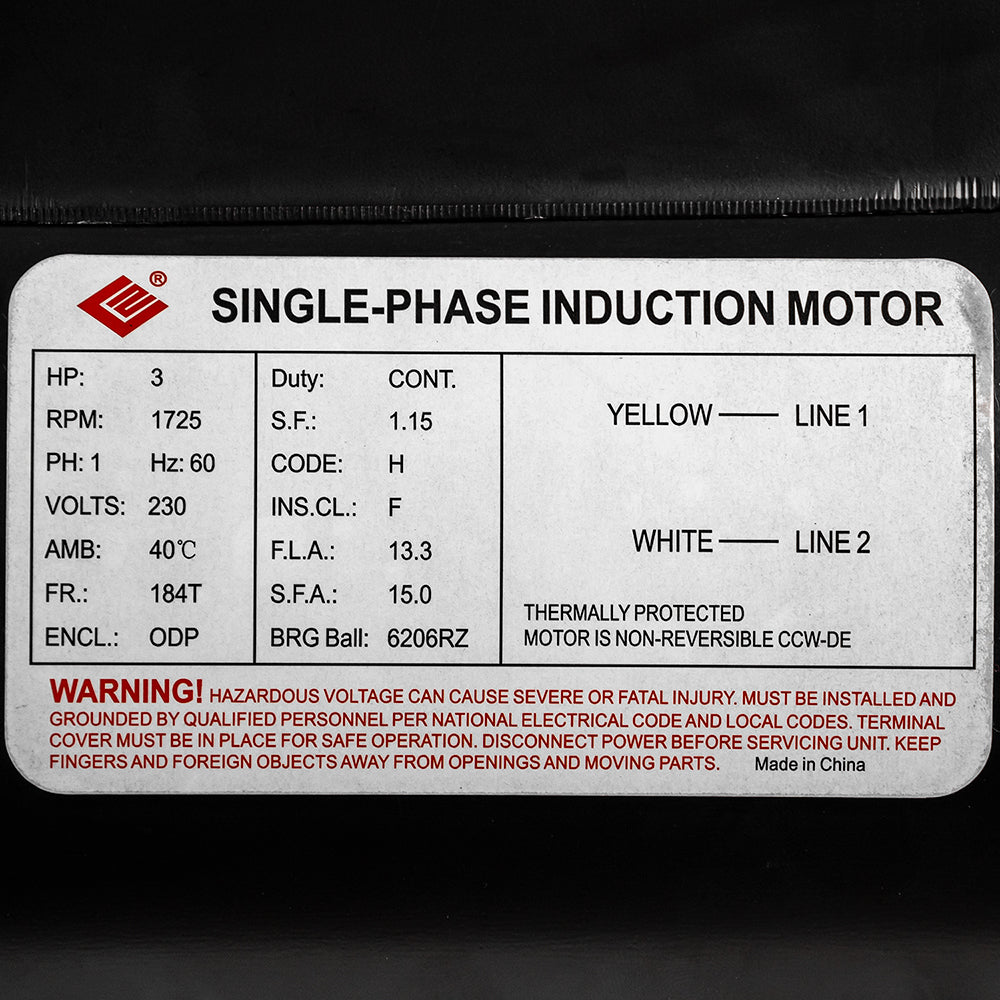

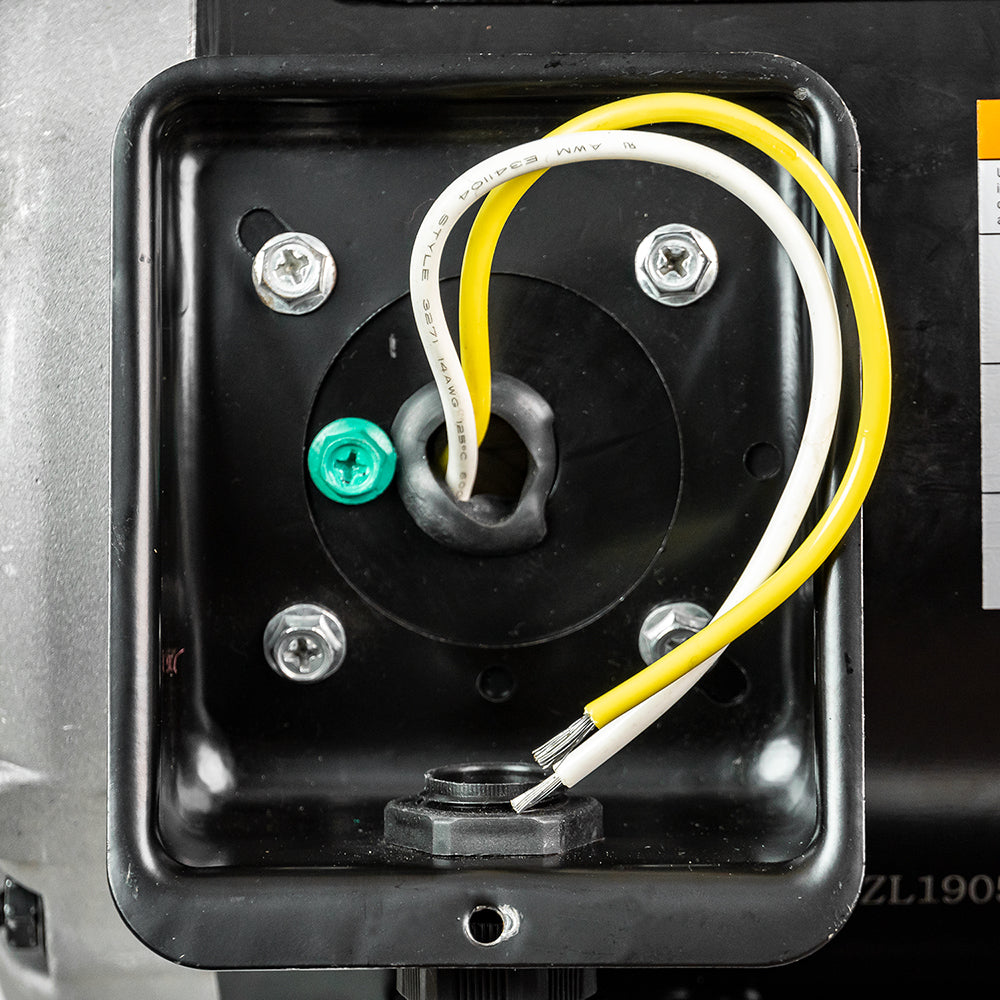

Brand new 3 HP 230-volt single phase electric motor. This motor features a 184T frame with a 1-1/8" diameter shaft and rotates at 1725 RPM. This is a non-reversible motor that spins counter-clockwise (CCW) when you are facing the shaft. This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications. A wiring diagram is listed on the side of the motor for reference during installation. Please see below for more features and specifications.

Specifications:

• Open Drip Proof Enclosure (ODP)
• Single Phase
• 3 HP
• 1725 RPM
• 60hz
• 230 Volts
• AMB 40 °C
• Frame: 184T
• Duty: Cont.
• Service Factor: 1.15
• Full Load Amps: 13.3
• INS.CL: F
• Non-reversible, CCW Rotation Facing Shaft

• Overall Length W/O Shaft: 10-1/2"
• Overall Length With Shaft: 13-3/4"
• Overall Height: 11-1/8"
• Overall Width: 10"

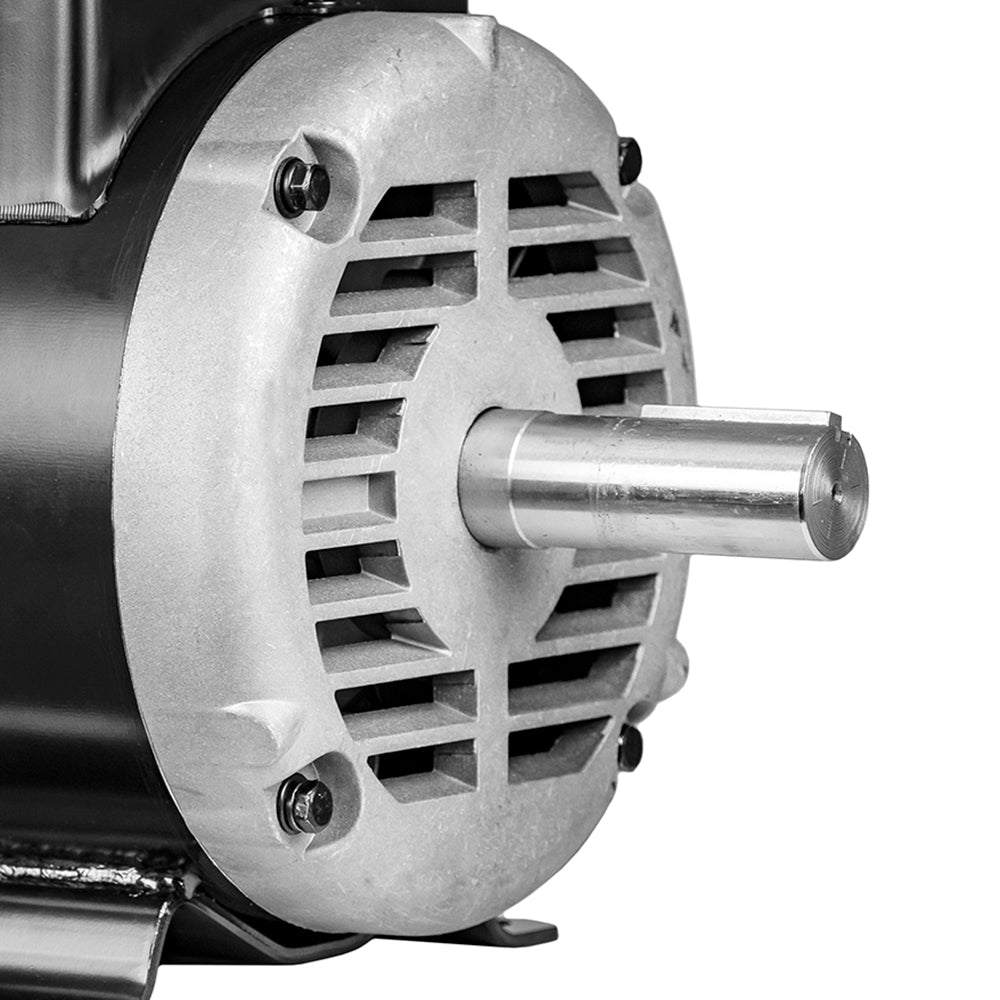

• Shaft Diameter: 1-1/8"
• Shaft Length: 3-1/4"
• Standard Size Keyway: 1/4"
