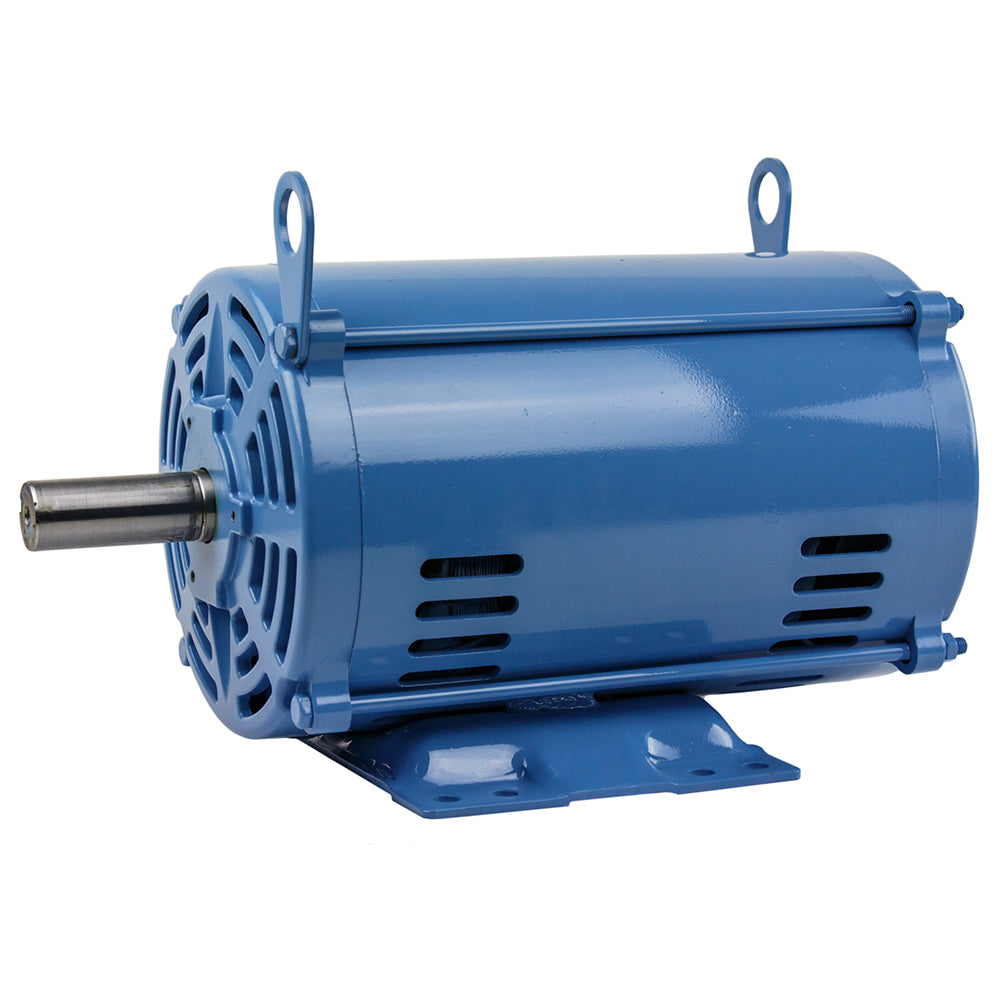

3 horsepower, open drip proof, 3 phase premium efficiency electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.15 service factor (1.00 at 50Hz), and is a premium efficiency motor. Designed for 60Hz, features an ODP enclosure, and is a 182T frame.
SPECIFICATIONS:

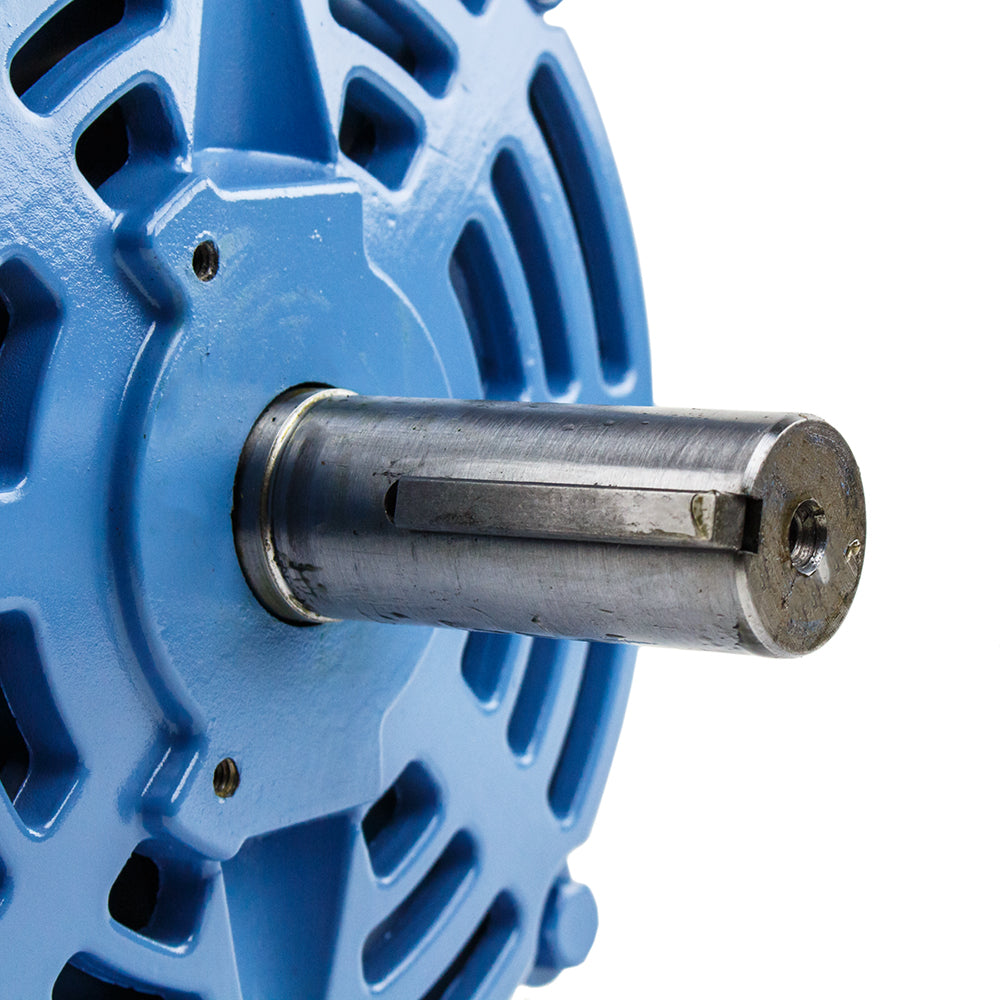

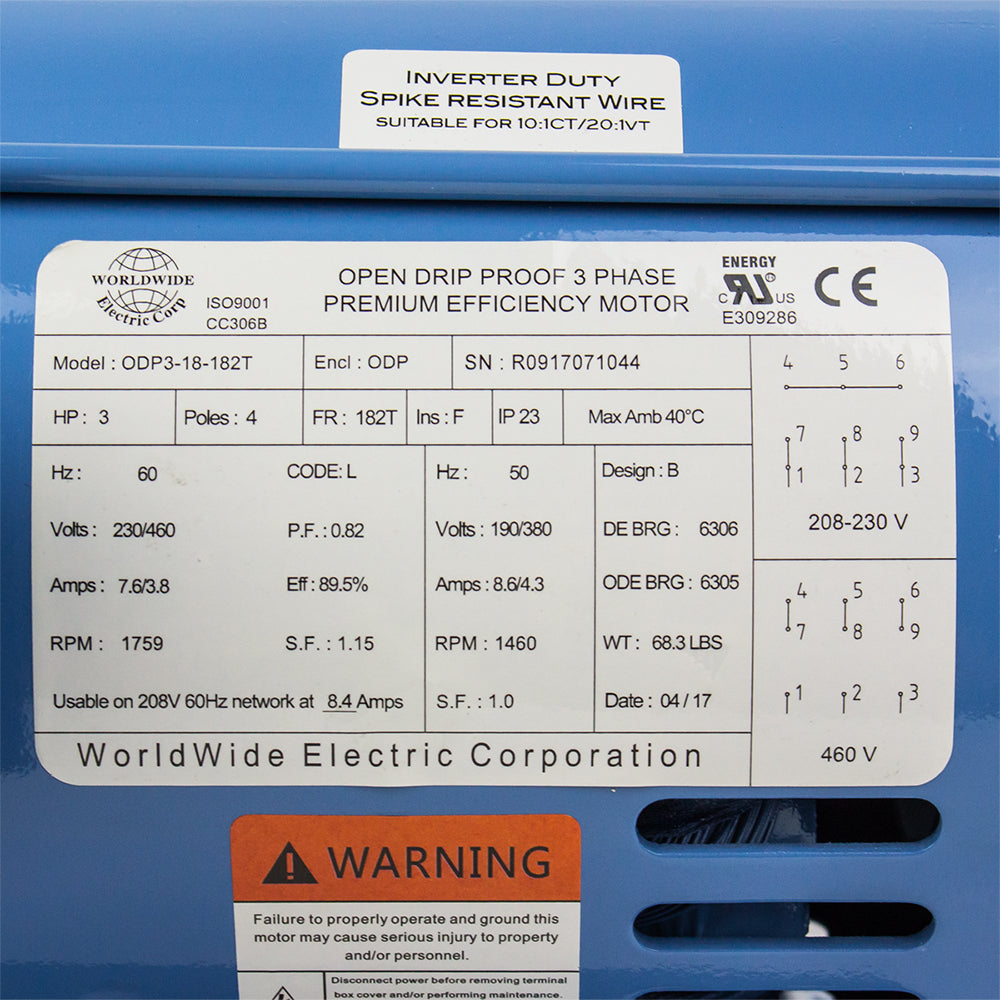

• 3 Horsepower • 3 Phase • ODP Enclosure • 182T Frame • Service Factor 1.15 • Class F Insulation • 68.3 LBS • 230/460 Volt • 1800 RPM • Fan Cooled • Worldwide Electric Brand • Shaft Length: Approximately 2 7/8" • Keyed 1 1/8" Diameter Shaft • Current: AC • Full Load Amps: 7.6/3.8 • Usable on 208V 60Hz Network at 8.4 Amps • 60 HZ • Shaft Material: 1045 Carbon Steel • Nema Design B • Max Temp: 40 Degrees C
