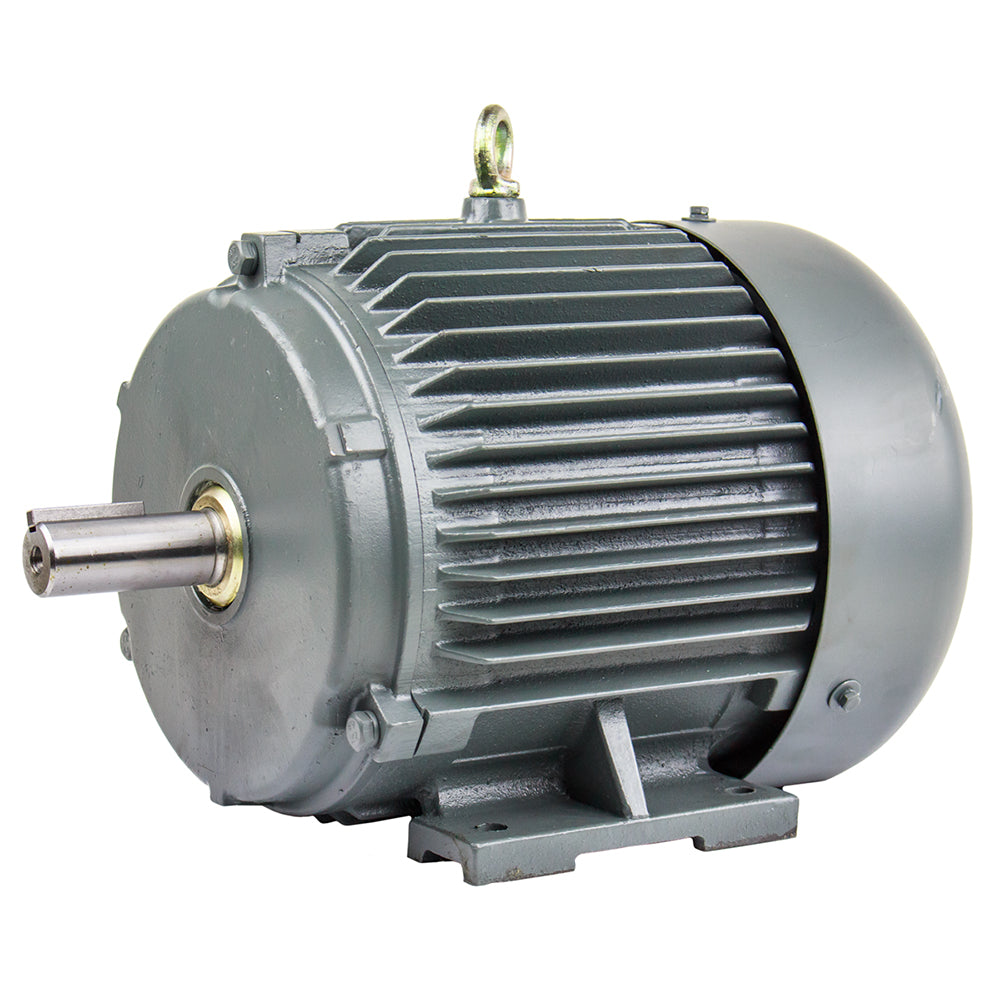

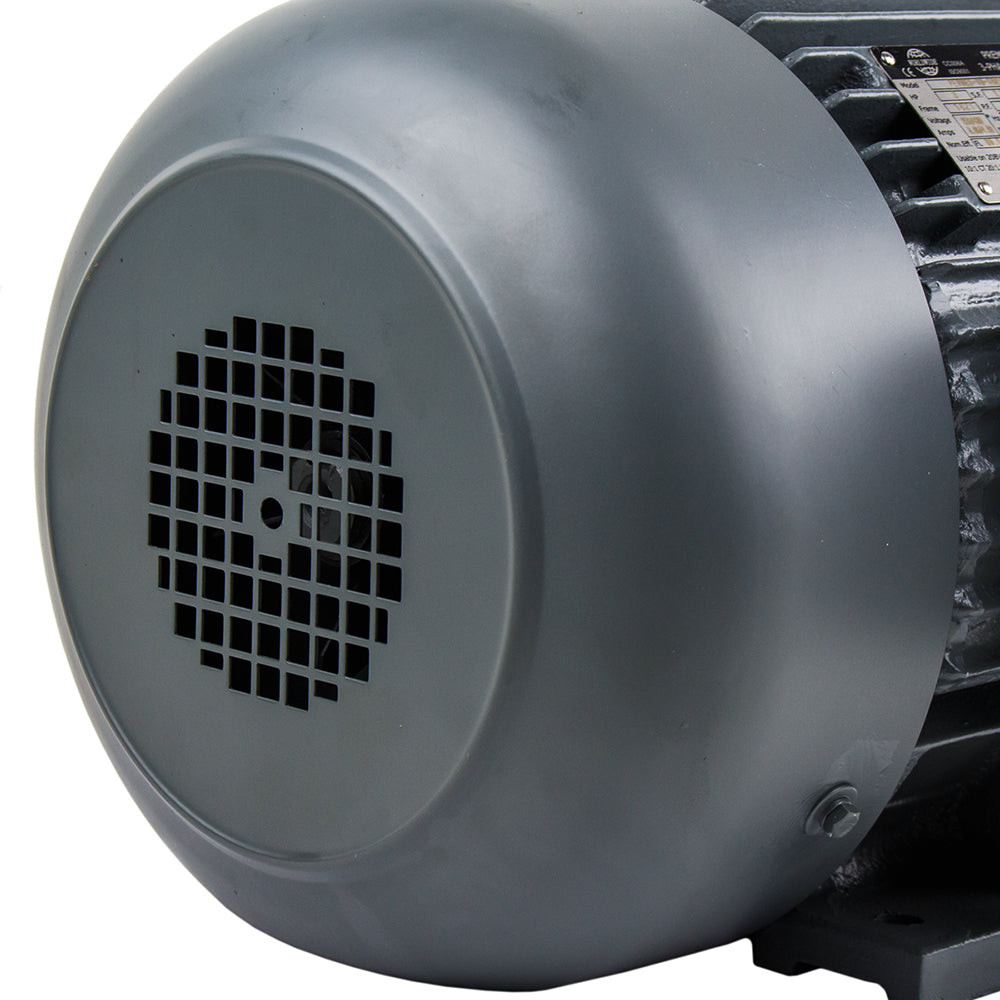

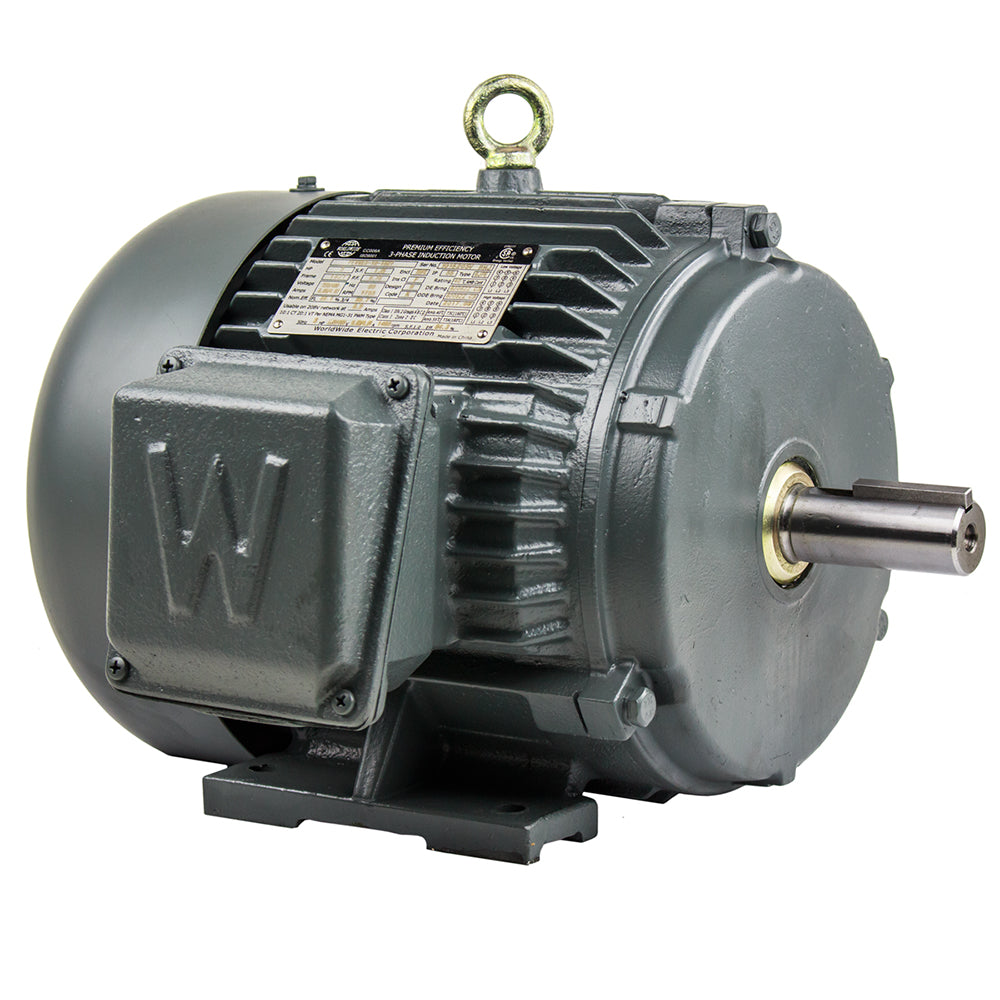

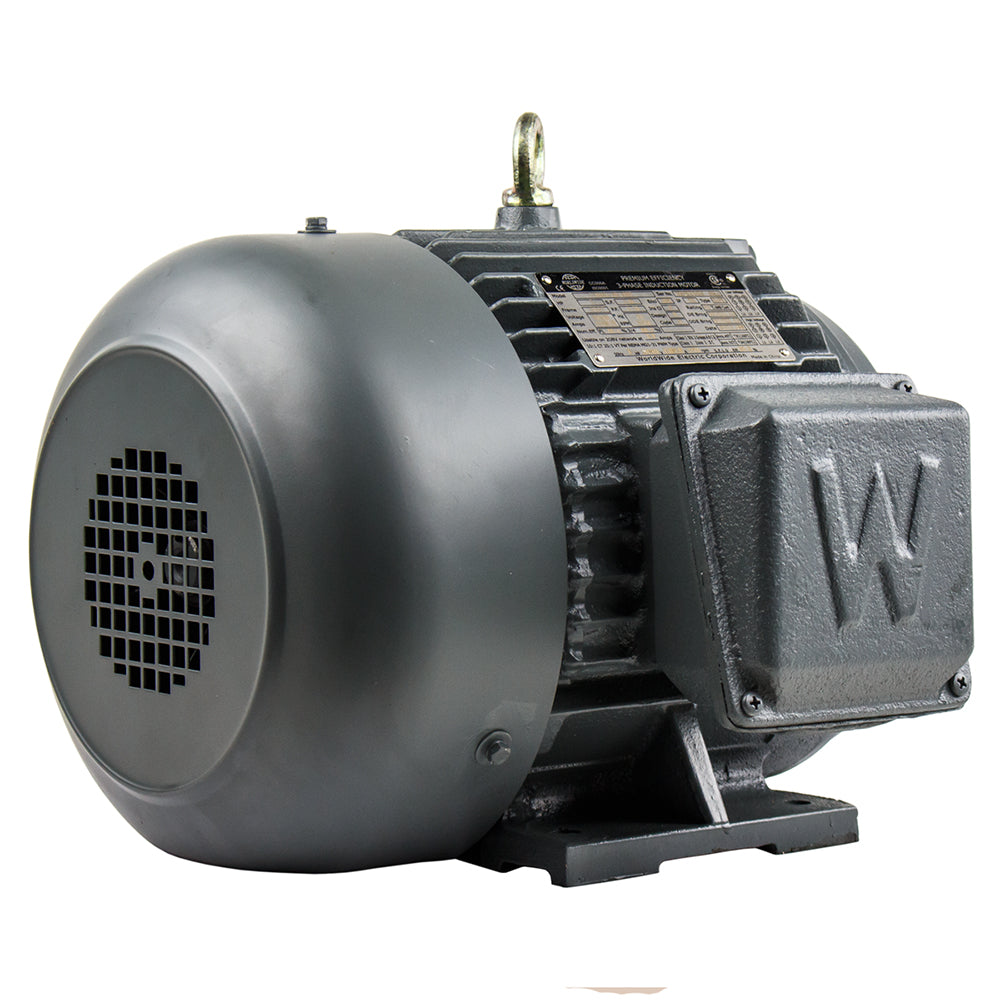

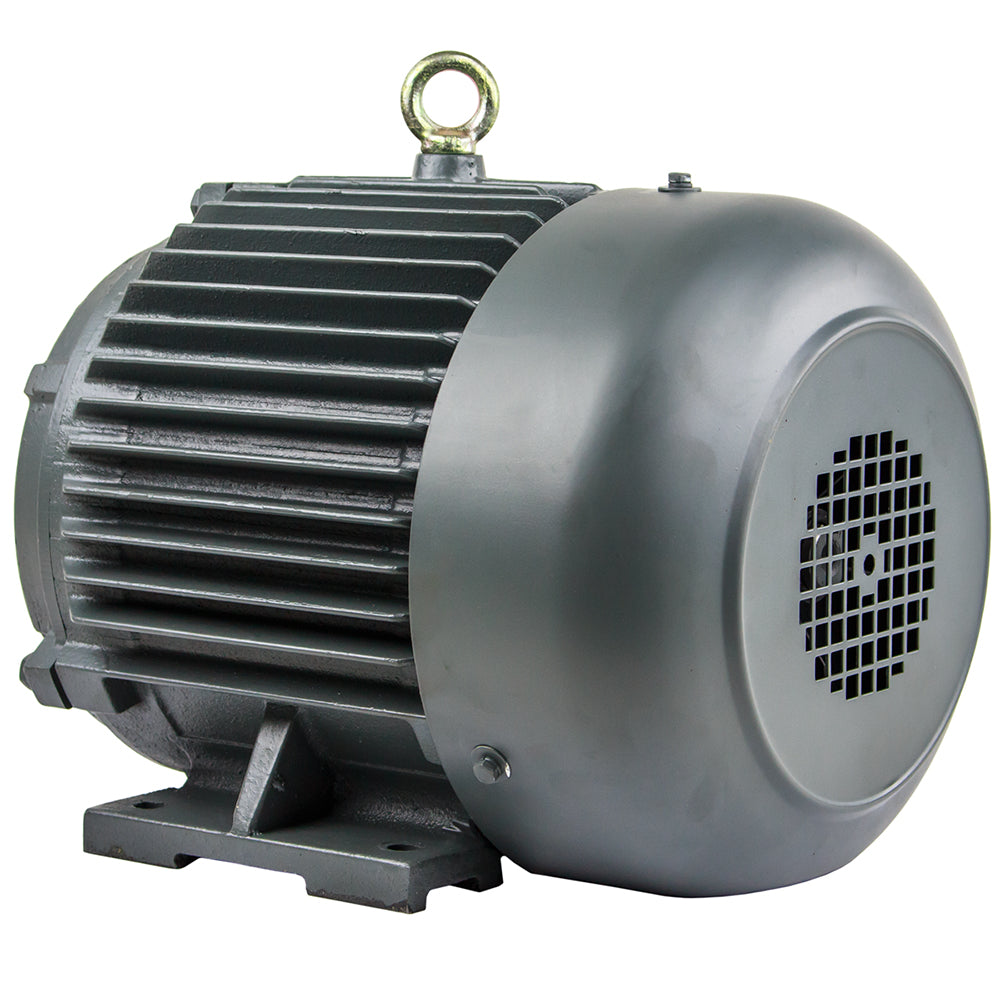

Brand new 3 horsepower, 3 phase premium efficiency severe duty electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.25 service factor (1.00 at 50Hz), is a premium efficiency severe duty motor. Designed for 60Hz, features a TEFC / IP55 enclosure, and is a 182T frame.

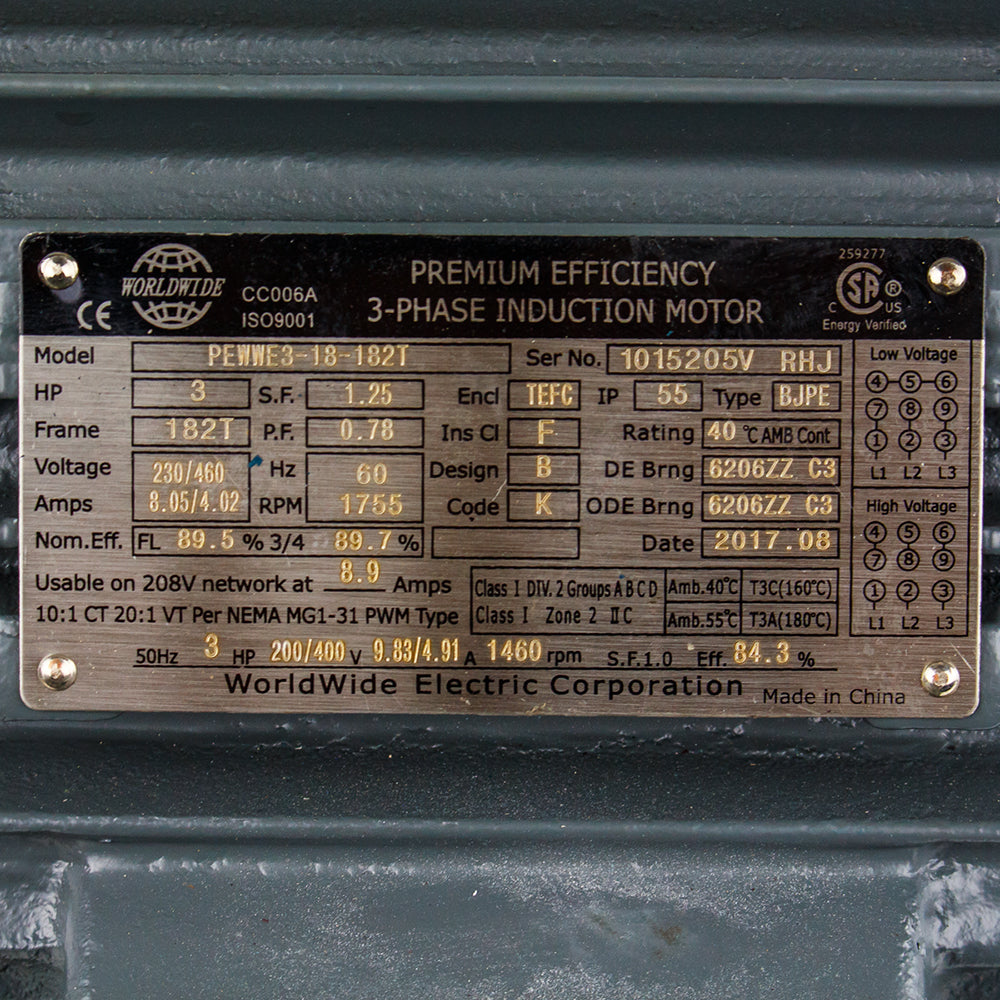

Specifications for PEWWE3-18-182T:

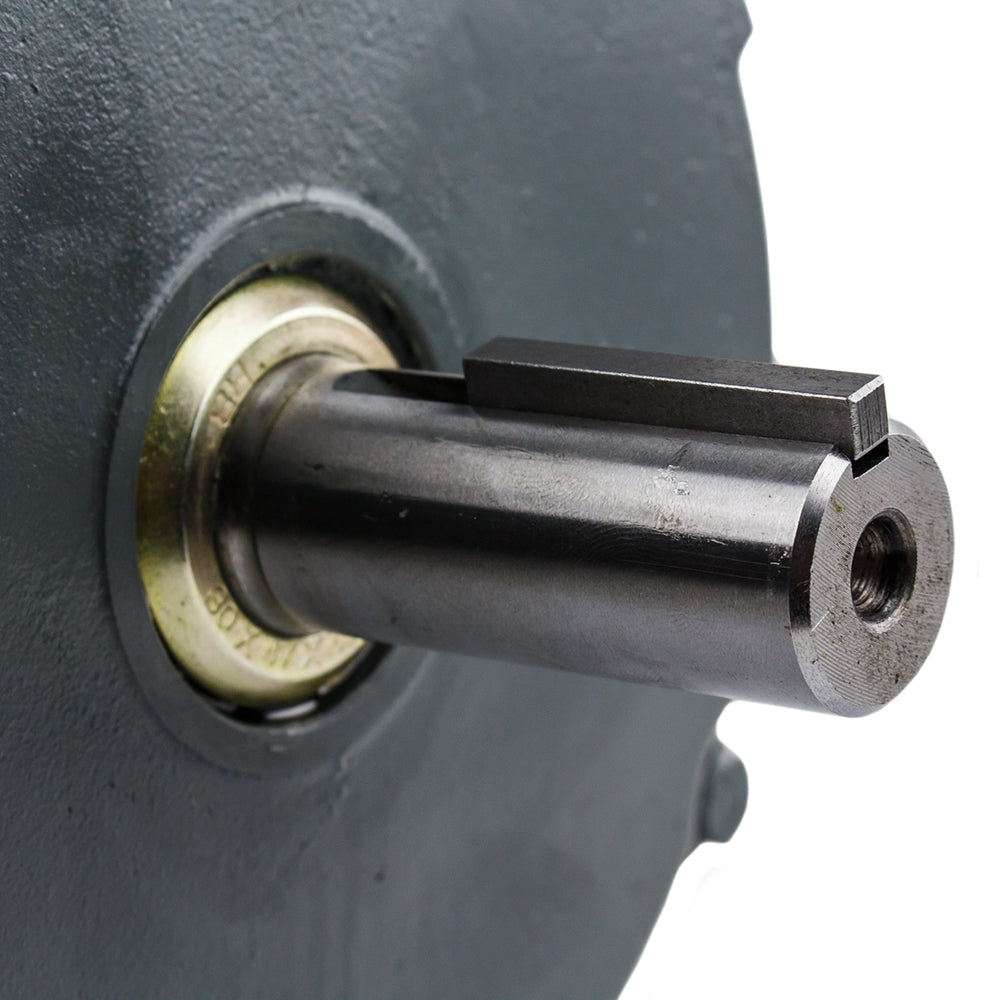

• 3 Horsepower • 3 Phase • TEFC / IP55 Fully Enclosed • 182T Frame • Service Factor 1.25 • Class F Insulation • 85.9 lbs • 208-230/460 Volt • 1800 RPM (Full Load Speed 1755) • Fan Cooled • Class F Insulation • Worldwide Electric Brand • Shaft Length: Approximately 2 7/8" • Keyed 1 1/8" Diameter Shaft • Current: AC • Full Load Amps: 8.05/4.02 (Usable on 208V network at 8.9 amps) • 60 HZ • Rotation: Bi-Directional • Shaft Material: 1045 Carbon Steel • Nema Design B • Max Temp: 40 Degrees C
