3/4" NPT In Line Horizontal Check Valve Air Compressor Solid Cast Brass WOG GV75(3 4 Npt In Line Horizontal Check Valve Air Compressor Solid Cast Brass Wog Gv75)

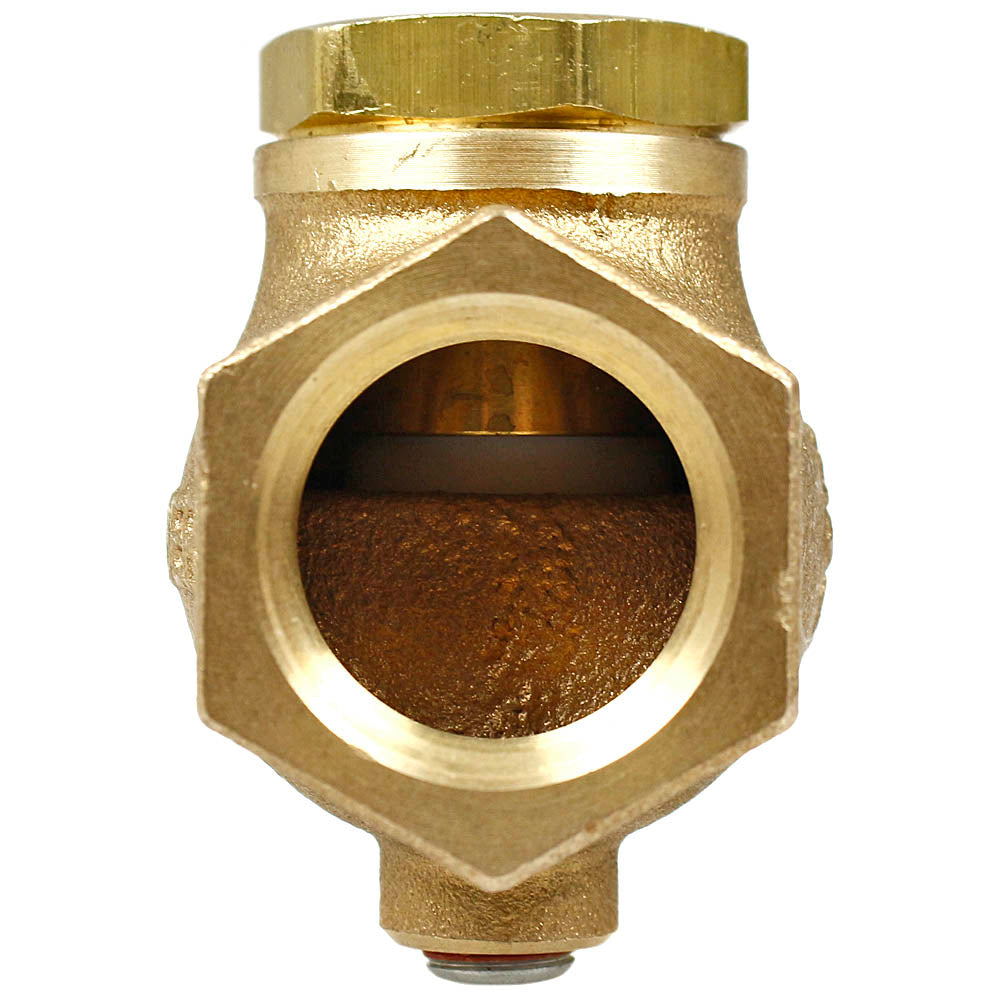

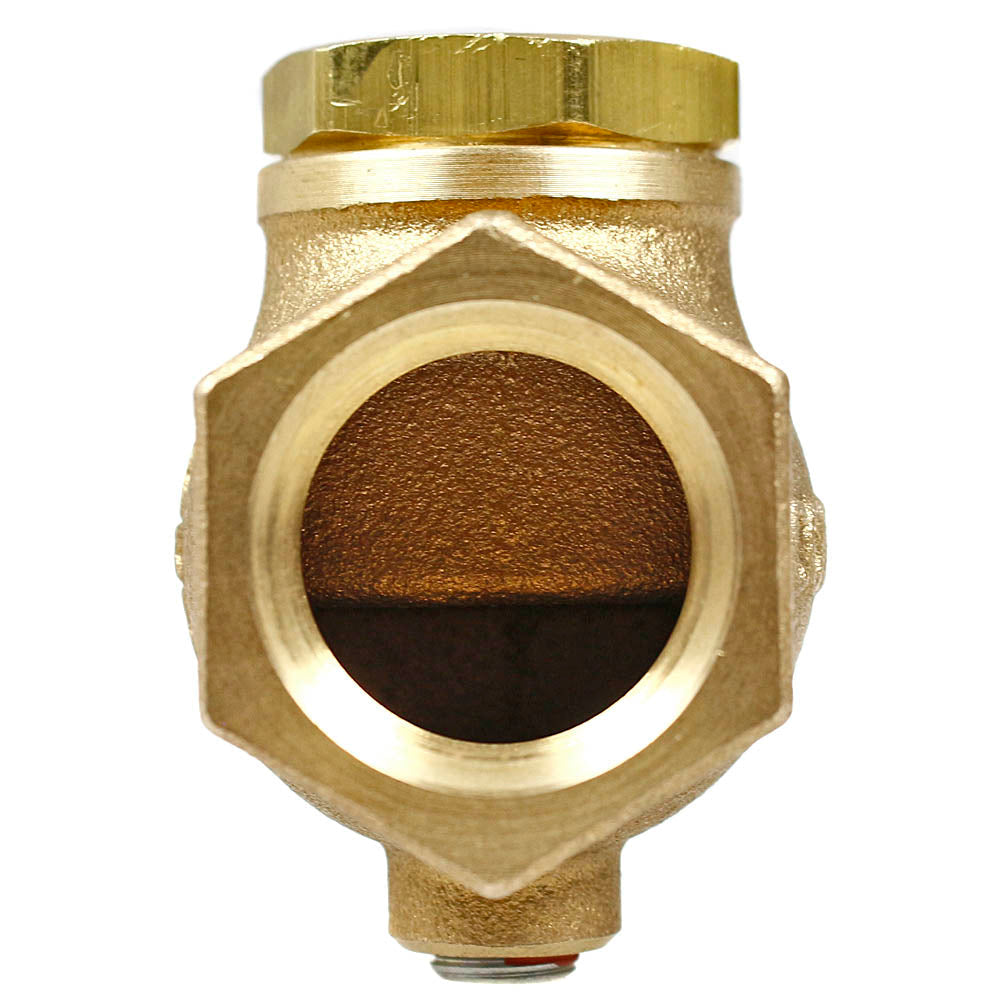

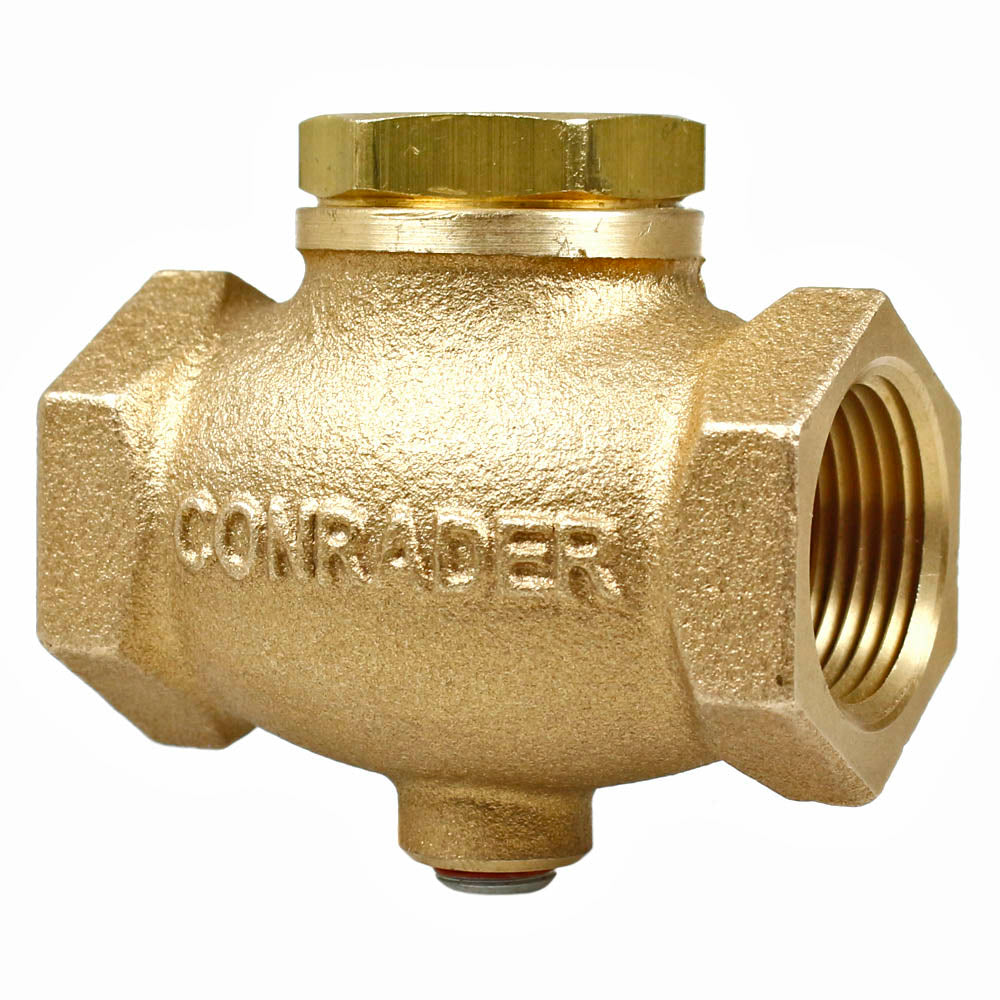

Conrader 3/4" In-Line Horizontal Check Valve GV75

Brand new 3/4" Female NPT in-line air compressor check valve. This check valve features a 1/8" female NPT port on the side to go to an unloader valve if needed. It is a universal inline check valve with female NPT threads on each end. The valve prevents backflow or tank pressure from getting back into the air compressor pump once the compressor is shut off. The 1/8" unloader port on the side of the valve is used to relieve pressure from the pump once it has shut off.

Specifications:

• Valve Inlet Threads- 3/4" Female NPT (Diameter is approx. 1" in diameter)
• Valve Outlet Threads- 3/4" Female NPT (Diameter is approx. 1" in diameter)
• Side Port- 1/8" Female NPT (Diameter measures about 3/8")
• Total Length of Valve: 2-5/8"
• There is an arrow on the valve that shows the airflow direction for installation.

Double-check that you have this valve installed in the right direction before operating.
Improper installation can cause damage to compressor pumps.
