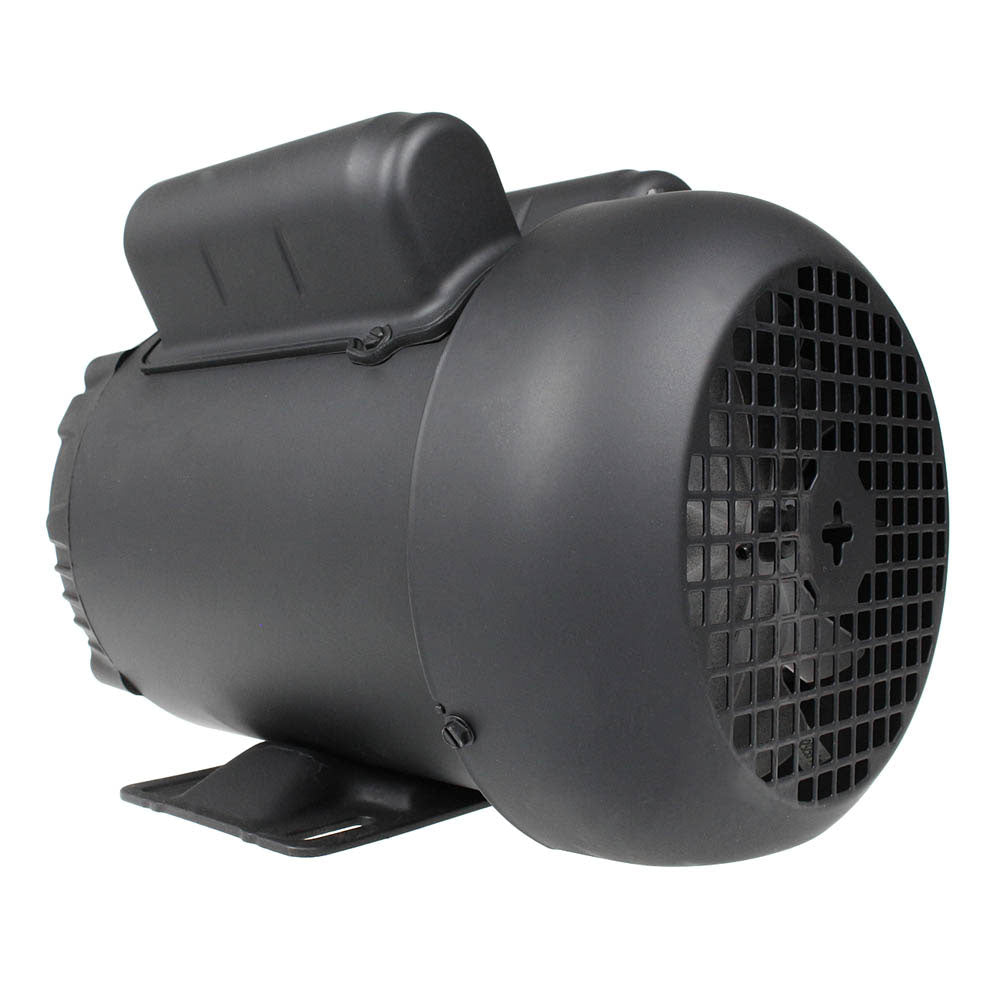

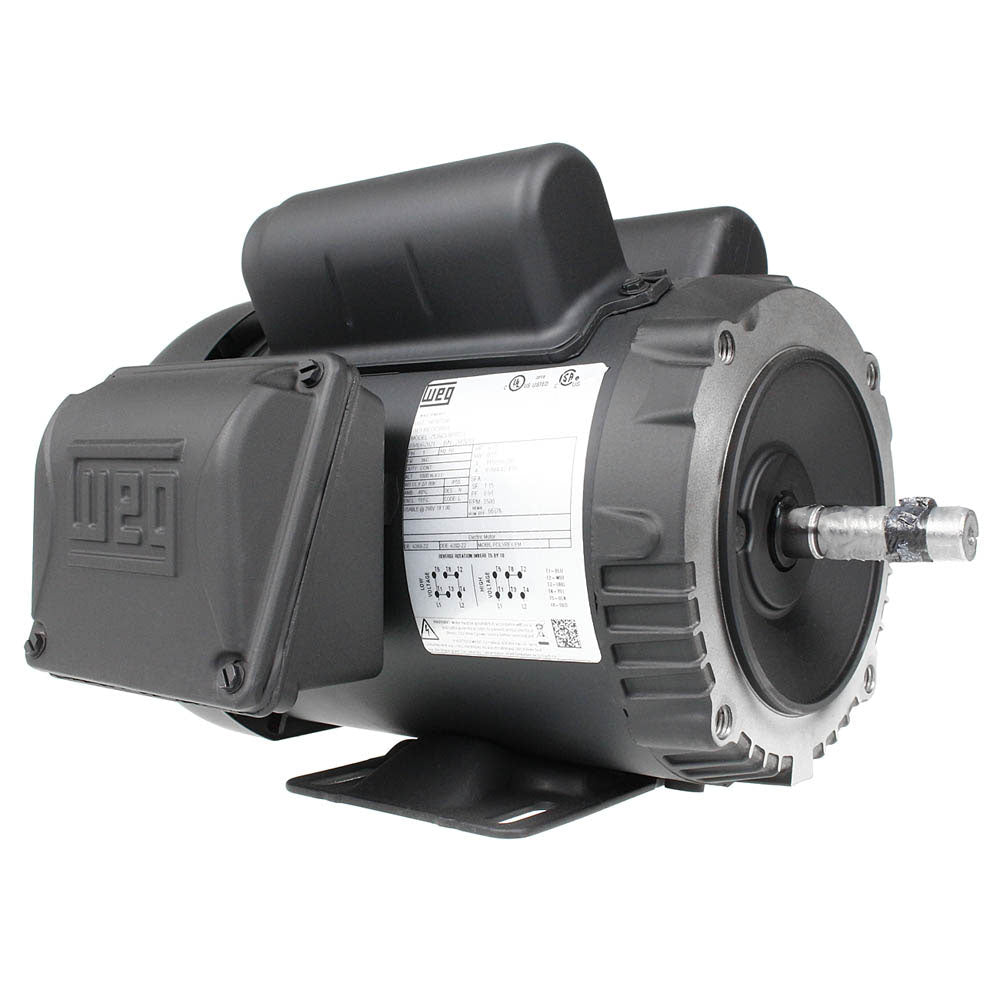

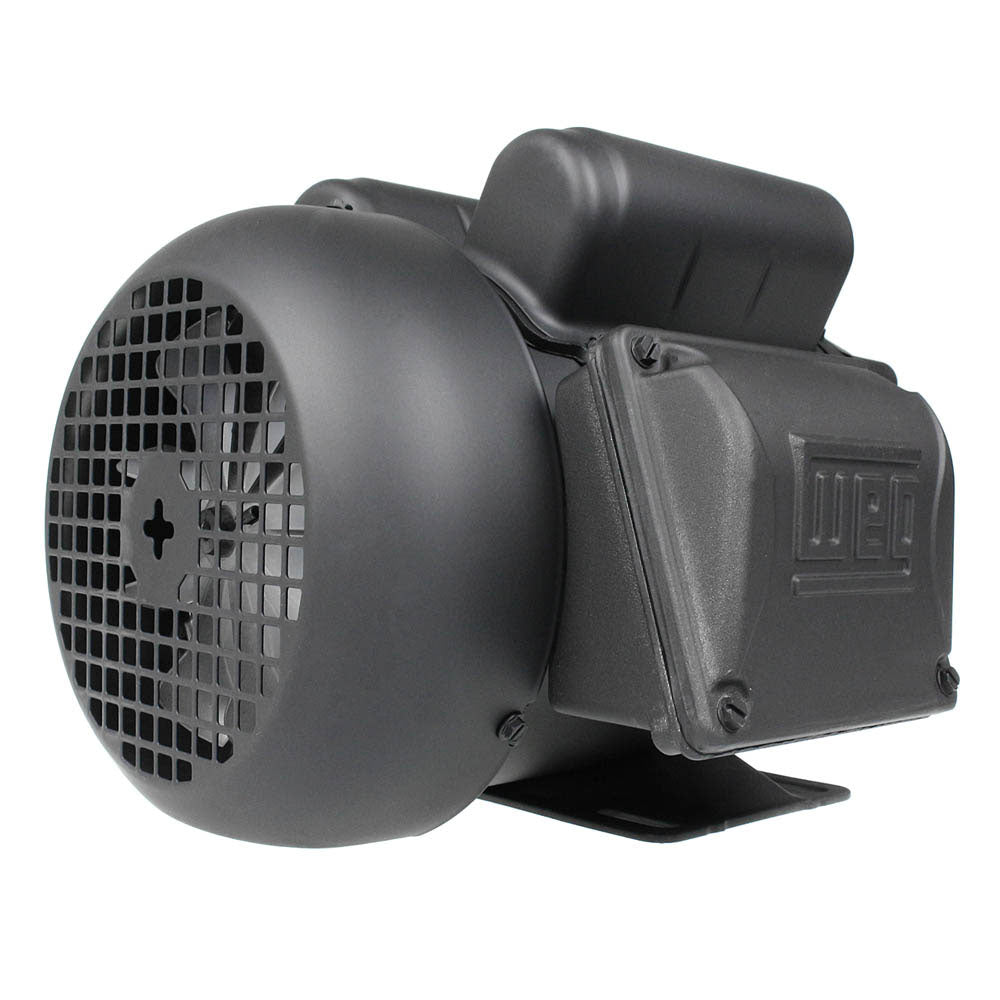

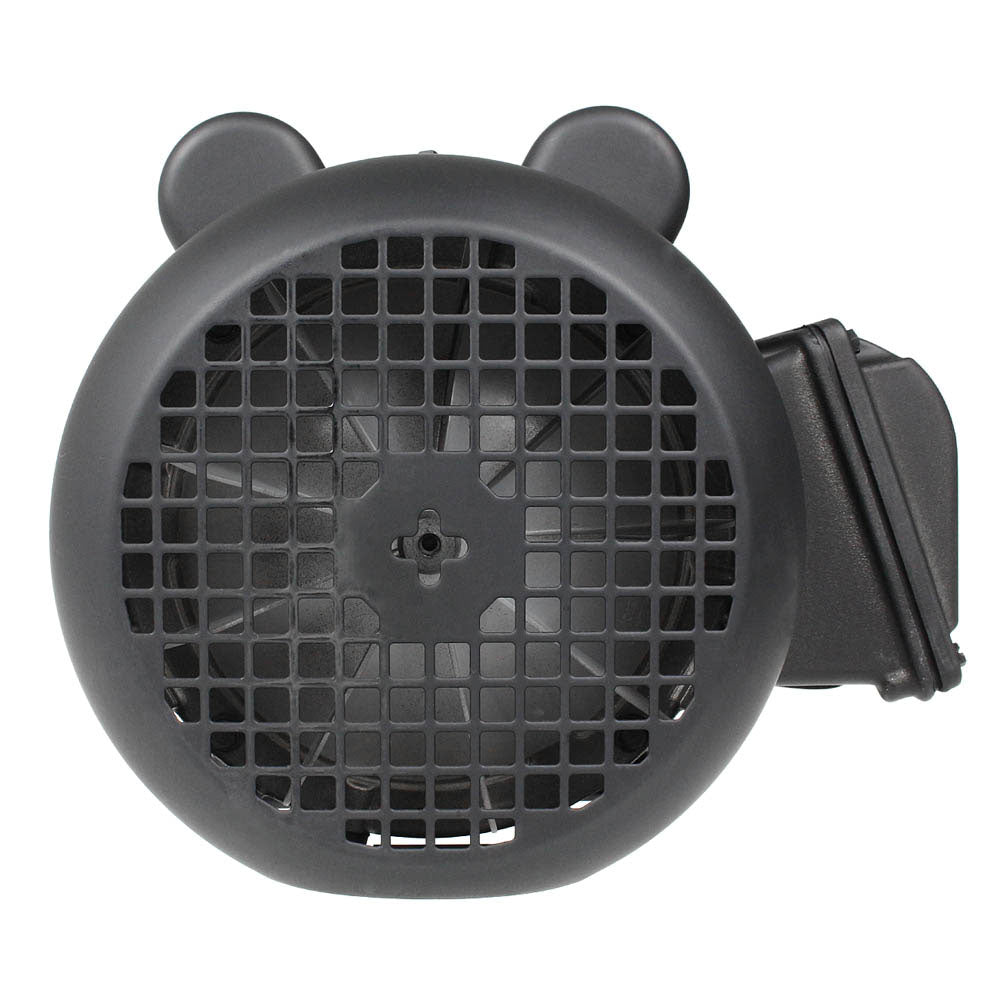

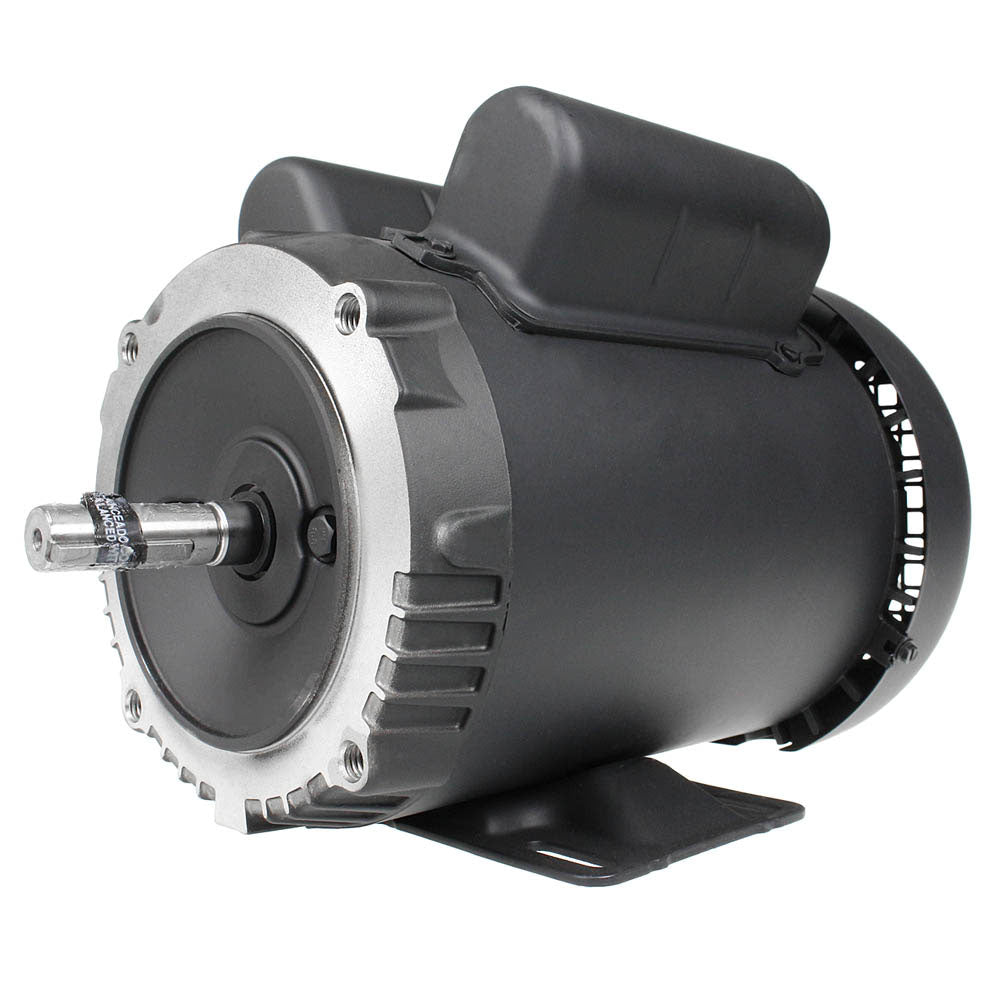

3/4 HP Single Phase Electric Motor 3500 RPM 56C Frame 115/208-230V TEFC C-Face WEG(Rolled Steel 75 Hp Electric Motor 56c 1 Phase 115 208 230v 60hz Ic411 Tefc Weg)

Rolled Steel .75 HP 56C Single Phase WEG Electric Motor

The WEG W01 motor is the perfect option for applications that require robustness, low weight, and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of its high starting torque, it is particularly well-suited for heavy starting loads. If you have any questions about this motor, please feel free to contact us.

Features

• Part Number: .7536ES1B56C-S
• Product Number: 14797714
• Standard: NEMA MG-1
• HP: 0.75
• Phase: Single
• Frame: 56C
• Rated Current: 8.00/4.42-4.00 Amps
• Voltage: 115/208-230V
• Frequency: 60 Hz
• Number of Poles: 2
• Degree of Protection: IP55
• Service Factor: 1.15 (1.00 @ 208V)
• Ambient Temp: +40°C
• Number of Speeds: 1
• Speed (RPM): 3500
• Enclosure: IC411 - TEFC
• Mounting: Foot Mount
• Drive End Flange Type: C-Face
• Construction: Rolled Steel
• Frame Material: Steel Plate
• Mounting: F-1 Foot Mounted
• Terminal Box: Left Position
• Approximate Weight: 32.00 lb
