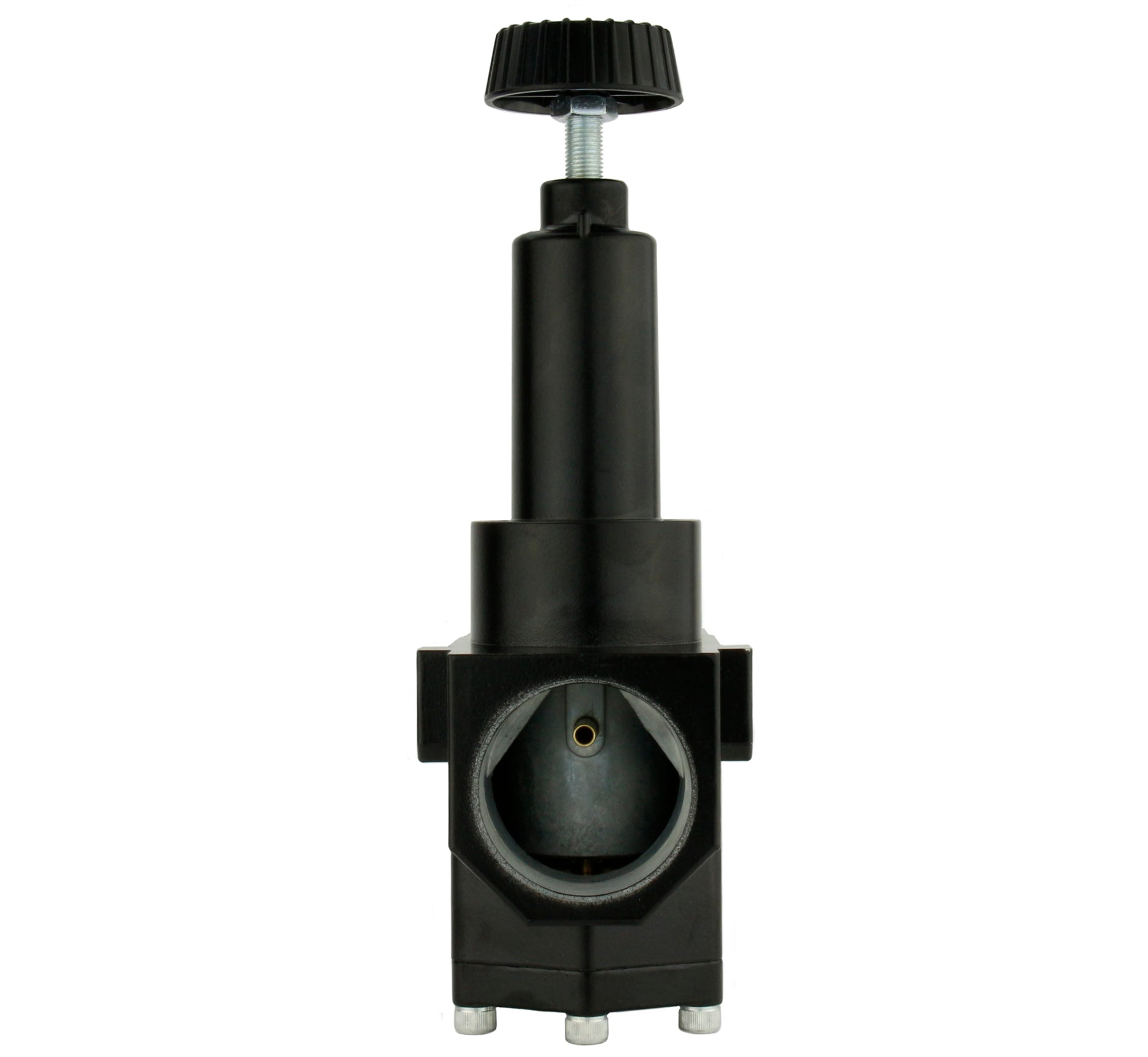

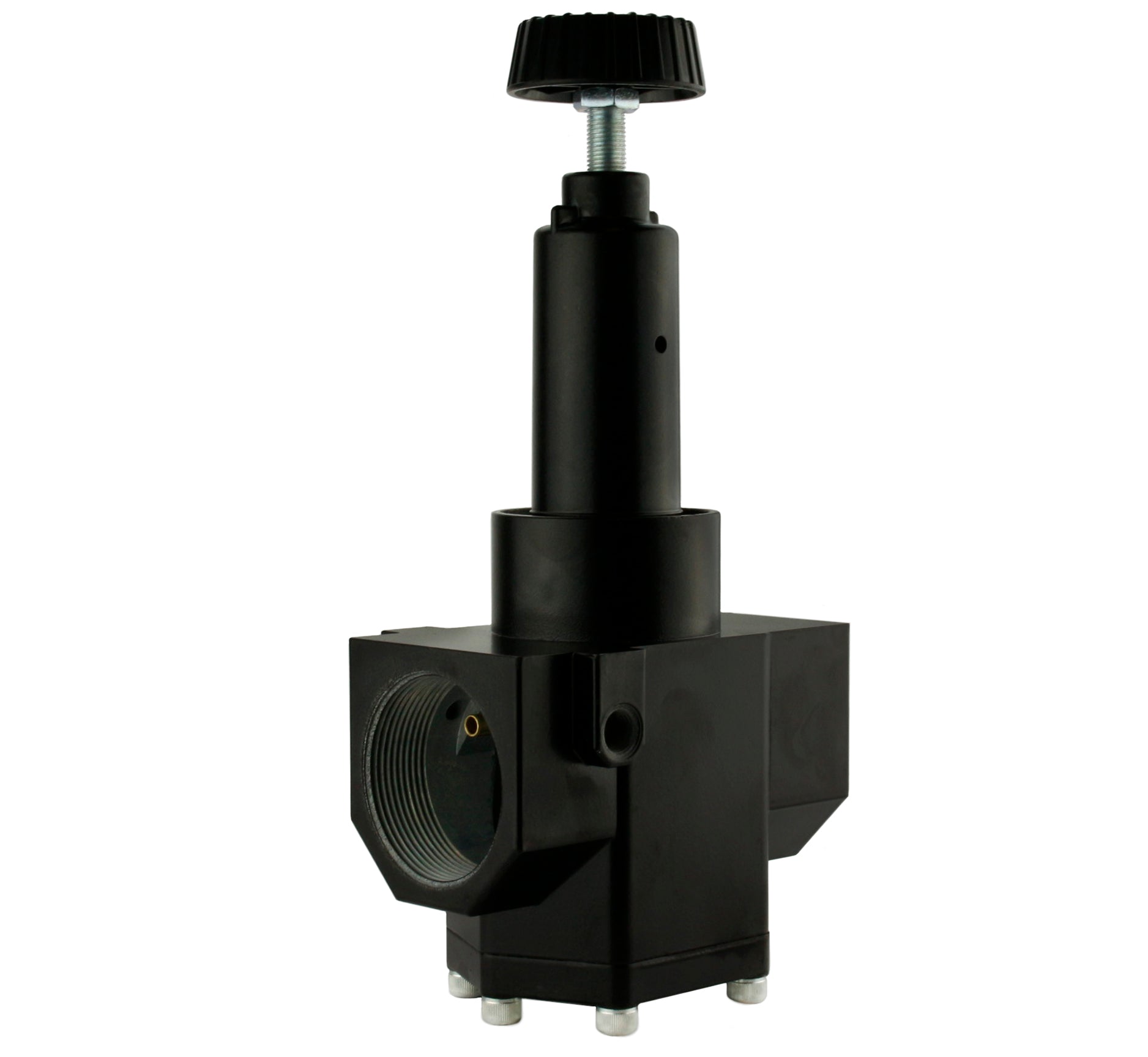

2" In-Line Compressed Air Regulator Air Compressor In Line Regulator 300 PSI Max MCWR40-200B(2 In Line Compressed Air Regulator Air Compressor In Line Regulator 300 Psi Max)

2" NPT industrial grade compressed air pressure regulator. This regulator has a max pressure of 300 PSI and will regulate your air pressure anywhere from 10 PSI up to 180 PSI. The adjustable turn knob makes adjusting your pressure very easy. This regulator features a durable zinc body and a balanced valve design. This is a directional flow regulator that has an arrow on the bottom showing what direction the air needs to flow. There are 2" female NPT threads (measure 2-1/4" diameter) on each side for your main compressed air line and 1/4" threads on the outer sides for your gauge to go on either side and there is a plug to fill whichever side you don't use.

Check the specifications below for complete measurement guide.

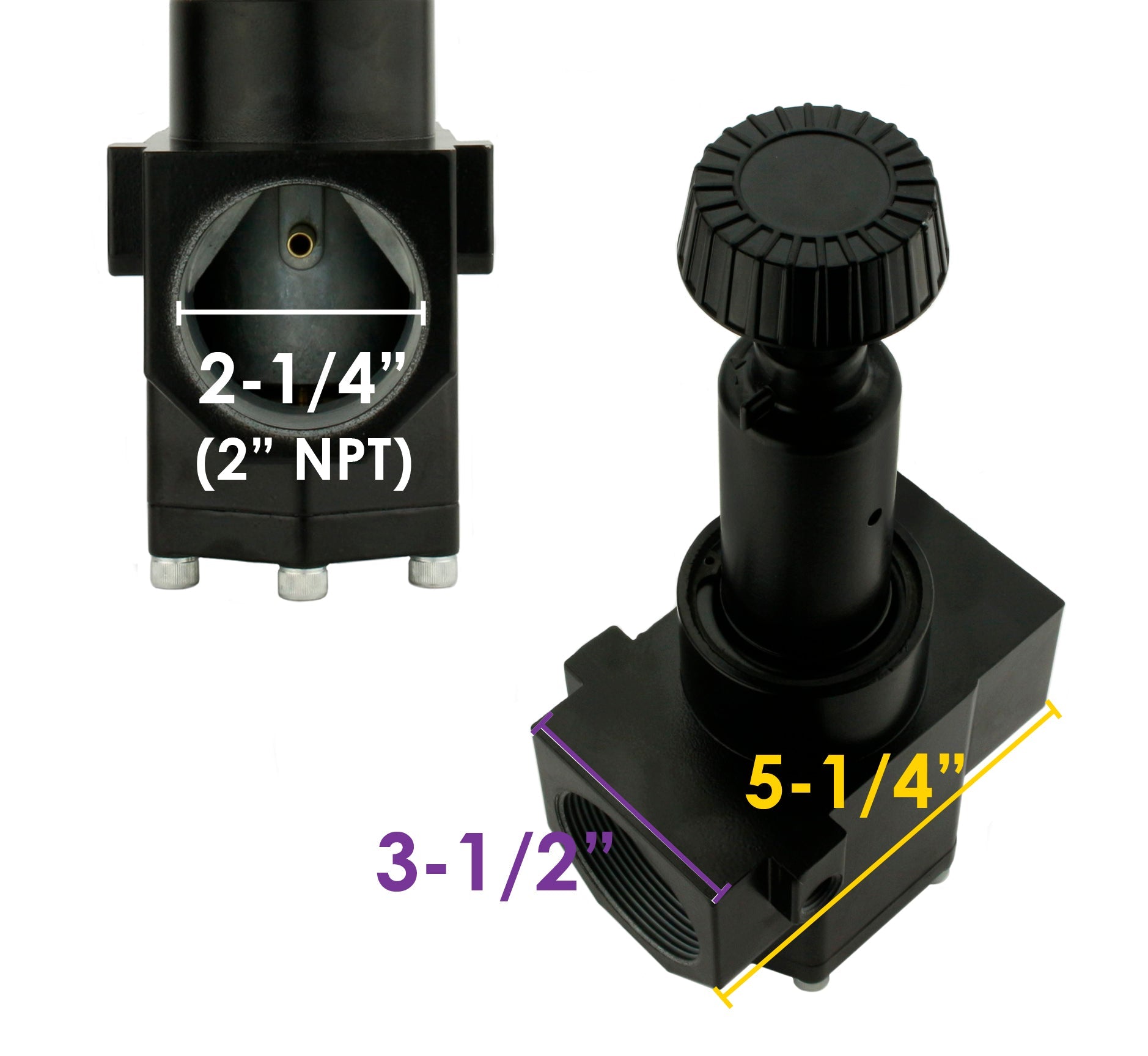

2" NPT THREADS MEASURE 2-1/4" DIAMETER

Specifications:

• Inlet / Outlet size: 2" Female NPT (measures about 2-1/4" in diameter)
• Width of regulator: 3.5"

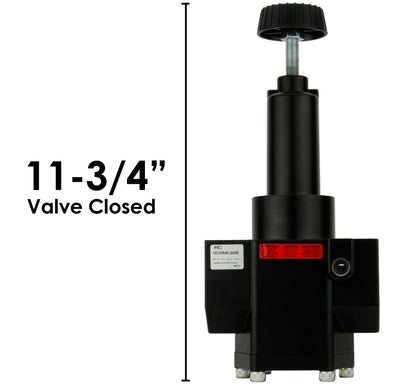

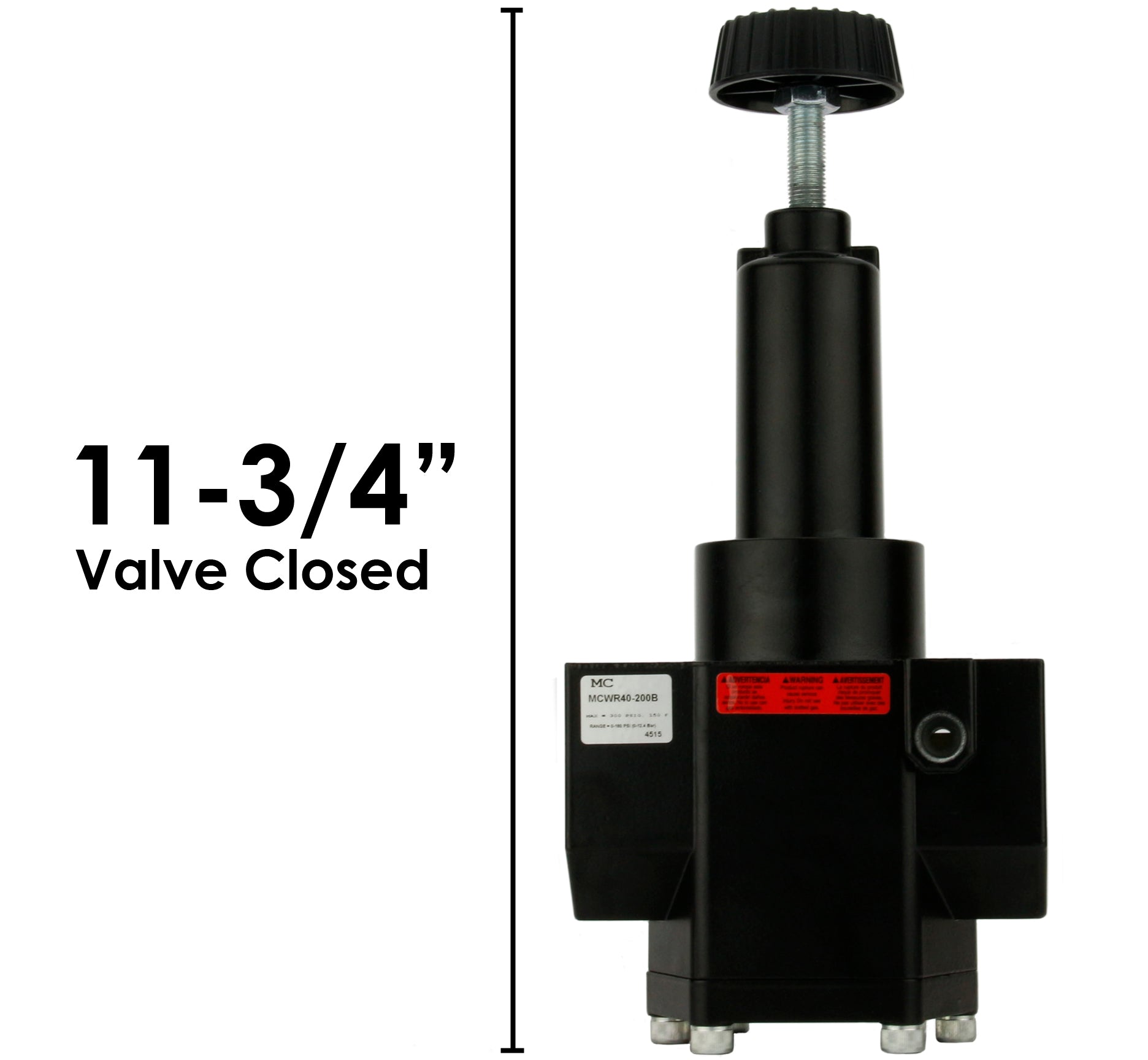

• Height (Valve Closed): 11-3/4"

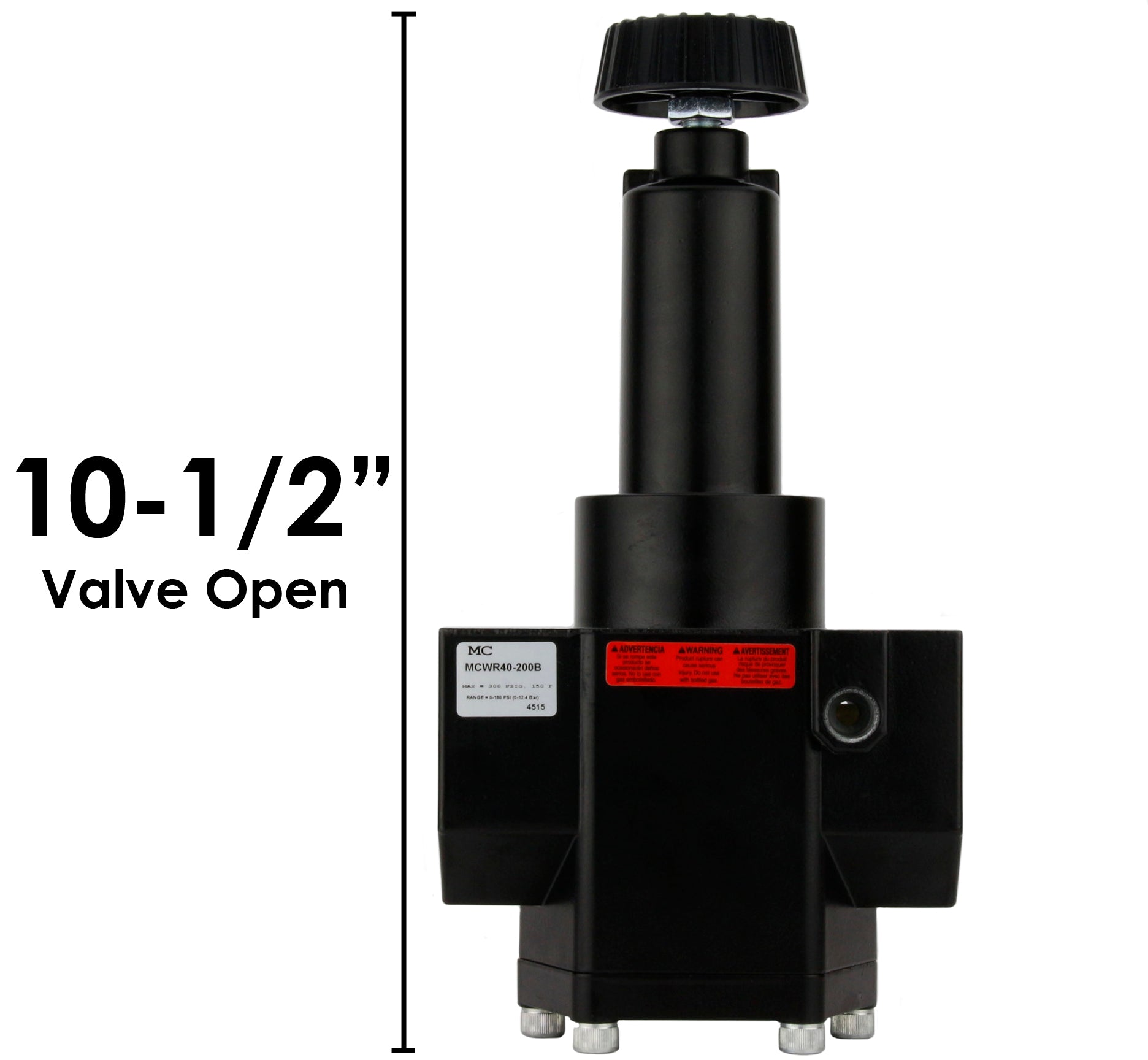

• Height (Valve Open): 10-1/2"
• Length (Port to Port): 5-1/2"
• Operating Temp: 32°F - 150°F
• Piston Operated
• Zinc Body
• Pressure Range: 10-180 psig (B)
• SCFM: 1200 @ 100 PSI

SEE PHOTOS FOR MEASUREMENT DIAGRAM
