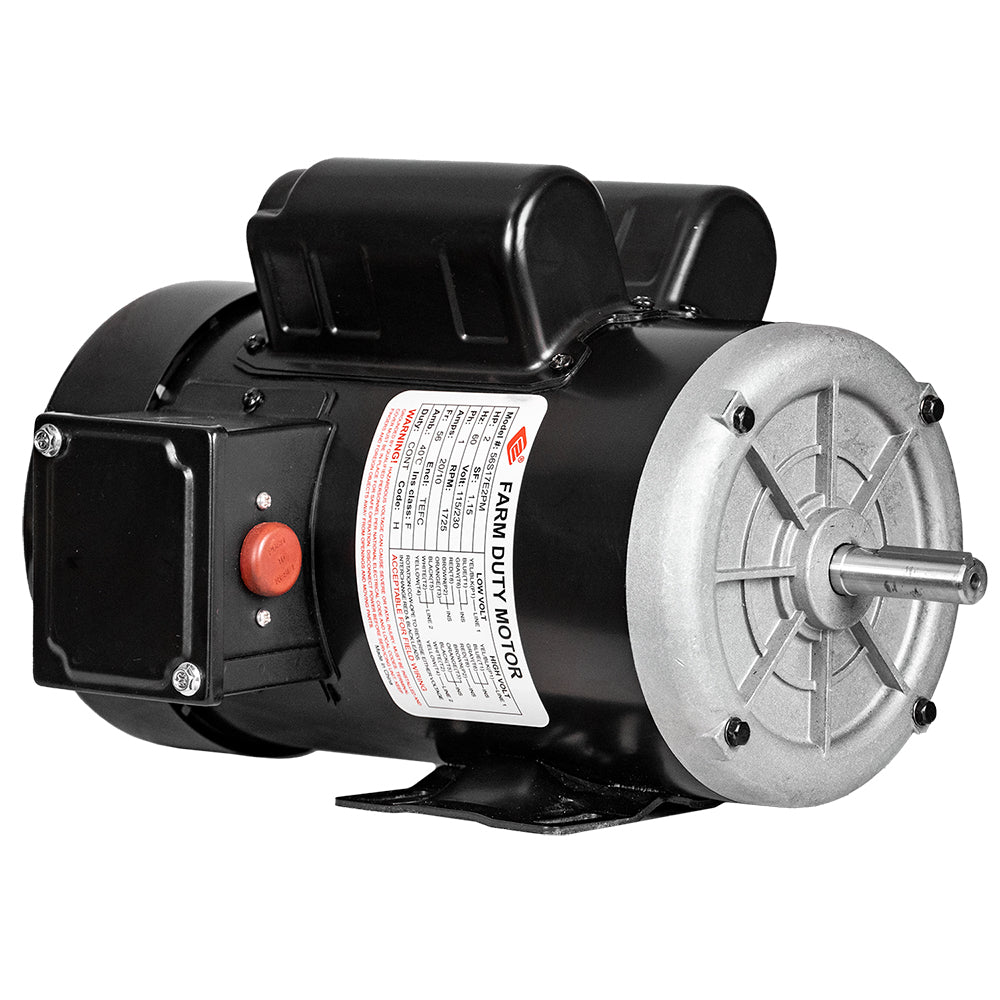

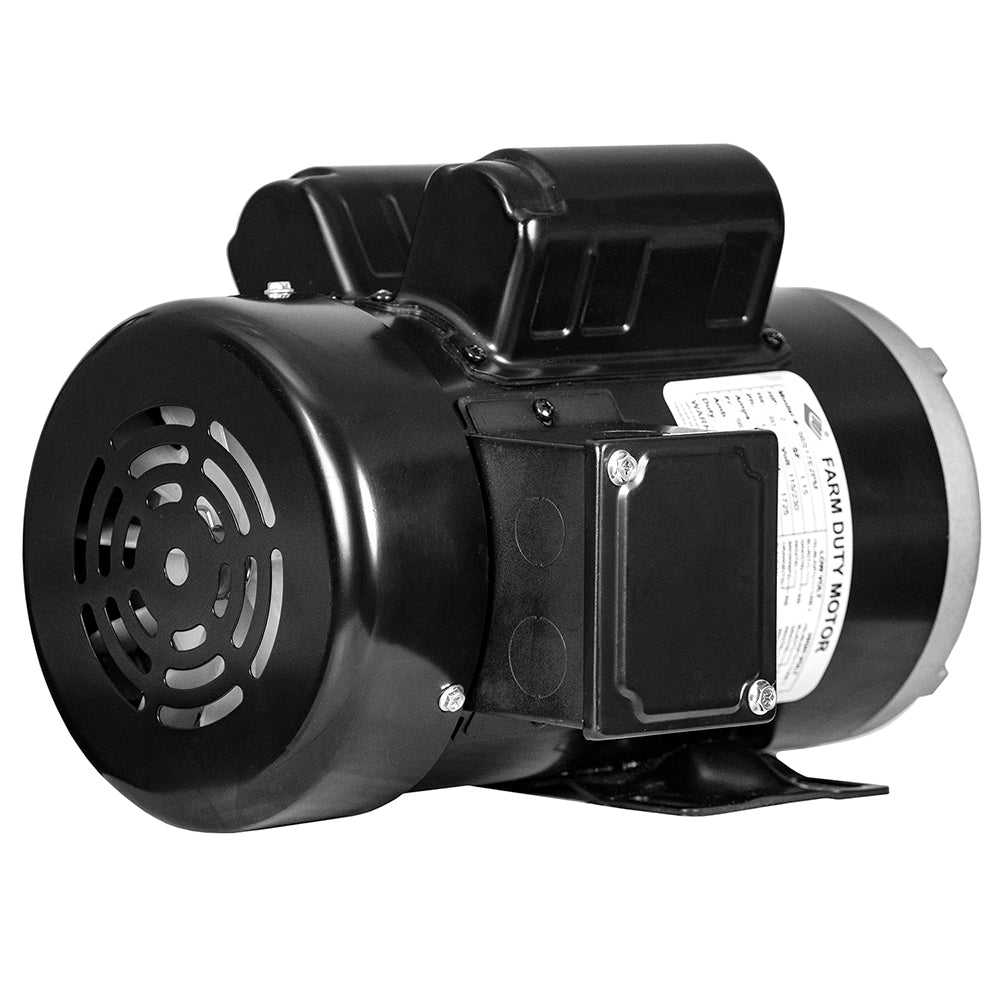

2 HP Single Phase Farm Duty Electric Motor 56 Frame 1725 RPM 115/230V TEFC EMZ 56S17E2PM(2 Hp Farm Duty Electric Motor 56 Frame 1725 Rpm Single Phase 115 230v 56s17e2pm)

2 HP Single Phase Farm Duty Electric Motor TEFC

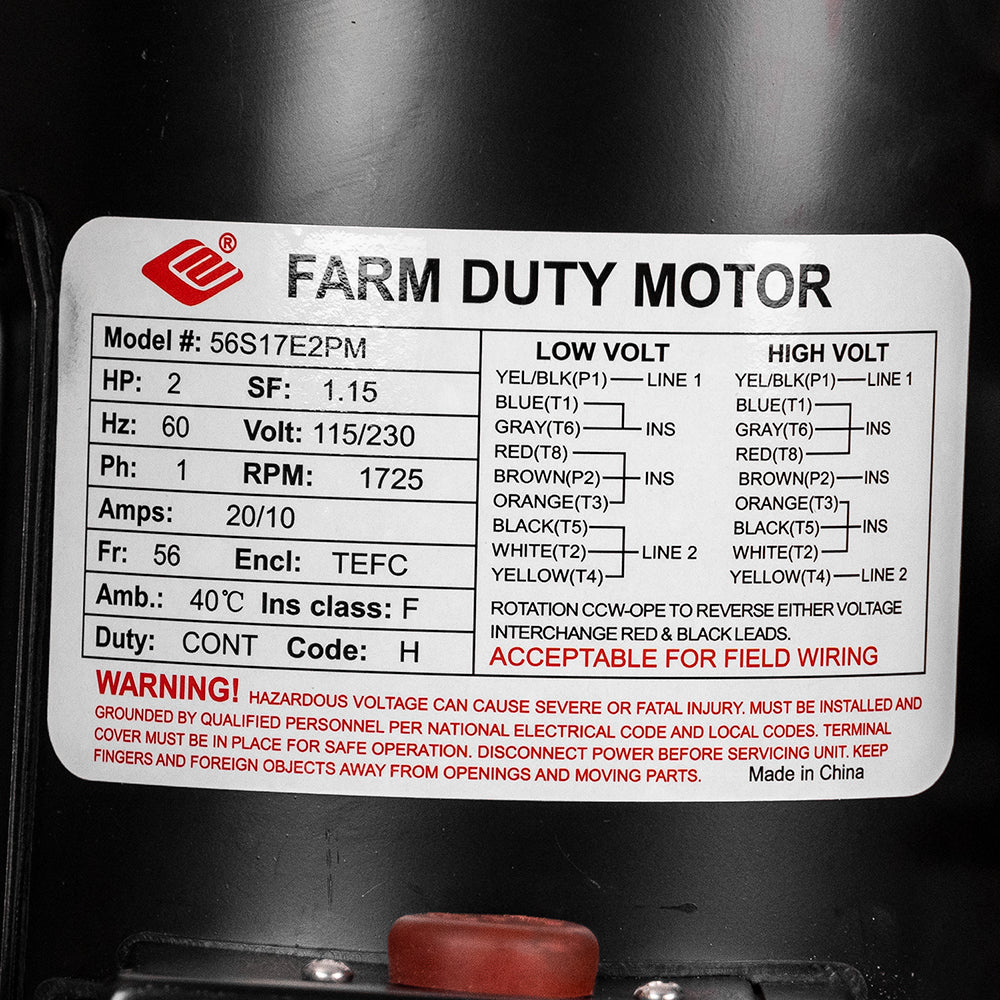

Brand new 2 HP 115/230-volt single-phase farm duty electric motor. This motor features a 56 frame with a 7/8" diameter shaft and rotates at 1725 RPM. This is a reversible motor that spins either clockwise (CW) or counter-clockwise (CCW) when you are facing the shaft. This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications. A wiring diagram is listed on the side of the motor for reference during installation. Please see below for more features and specifications.

Specifications:

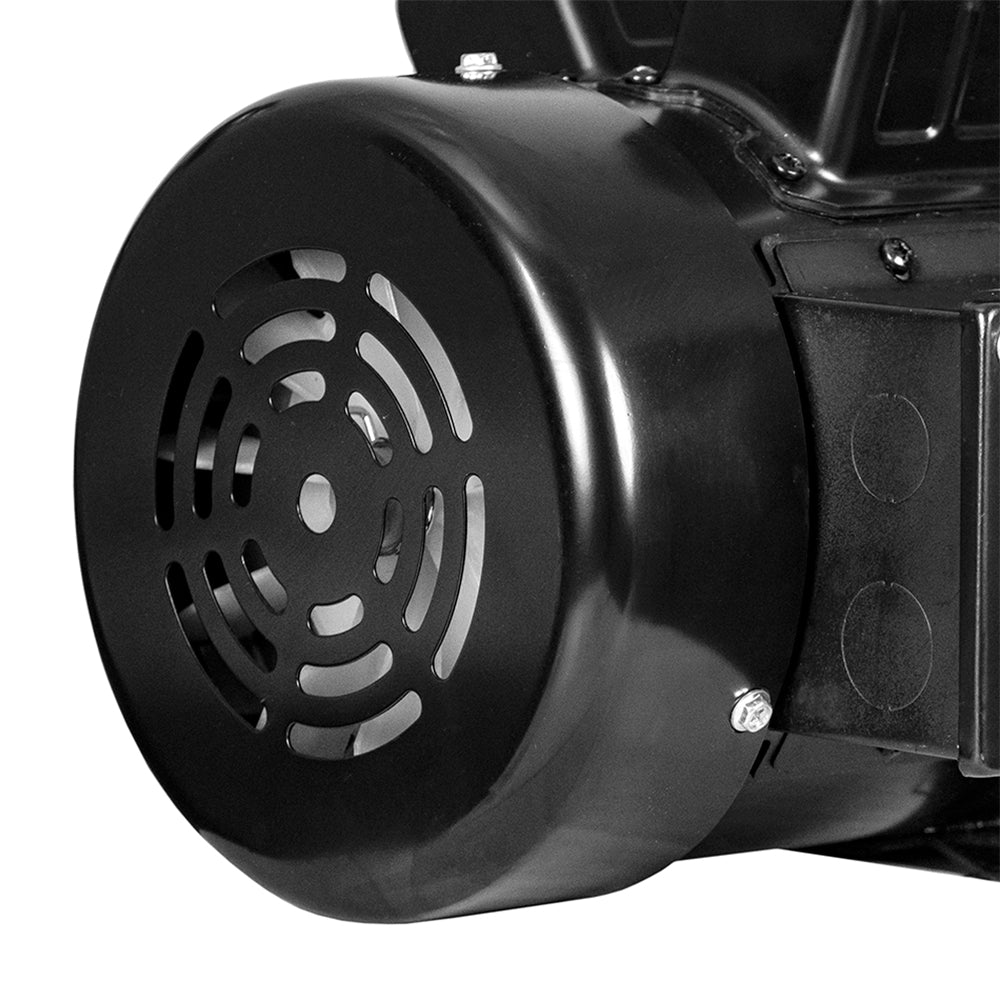

• Totally Enclosed Fan Cooled (TEFC)
• Single Phase
• 2 HP
• 1725 RPM
• 60hz
• 115/230 Volts
• AMB 40 °C
• Frame: 56
• Duty: Cont.
• Service Factor: 1.15
• Full Load Amps: 20/10
• INS.CL: F
• Reversible

• Overall Length W/O Shaft: 12"
• Overall Length With Shaft: 14-1/2
• Overall Height: 8-3/4"
• Overall Width: 6-3/8"

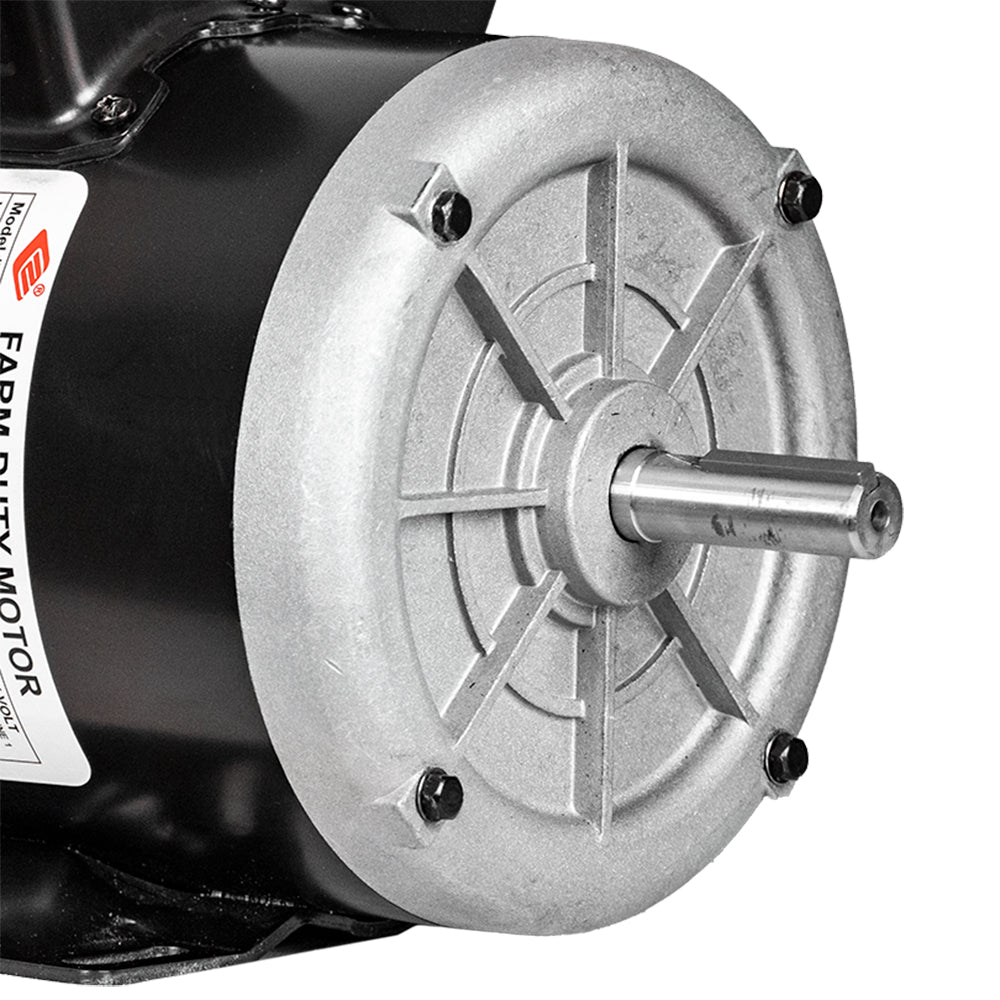

• Shaft Diameter: 7/8"
• Shaft Length: 2-1/8"
• Standard Size Keyway: 3/16"
