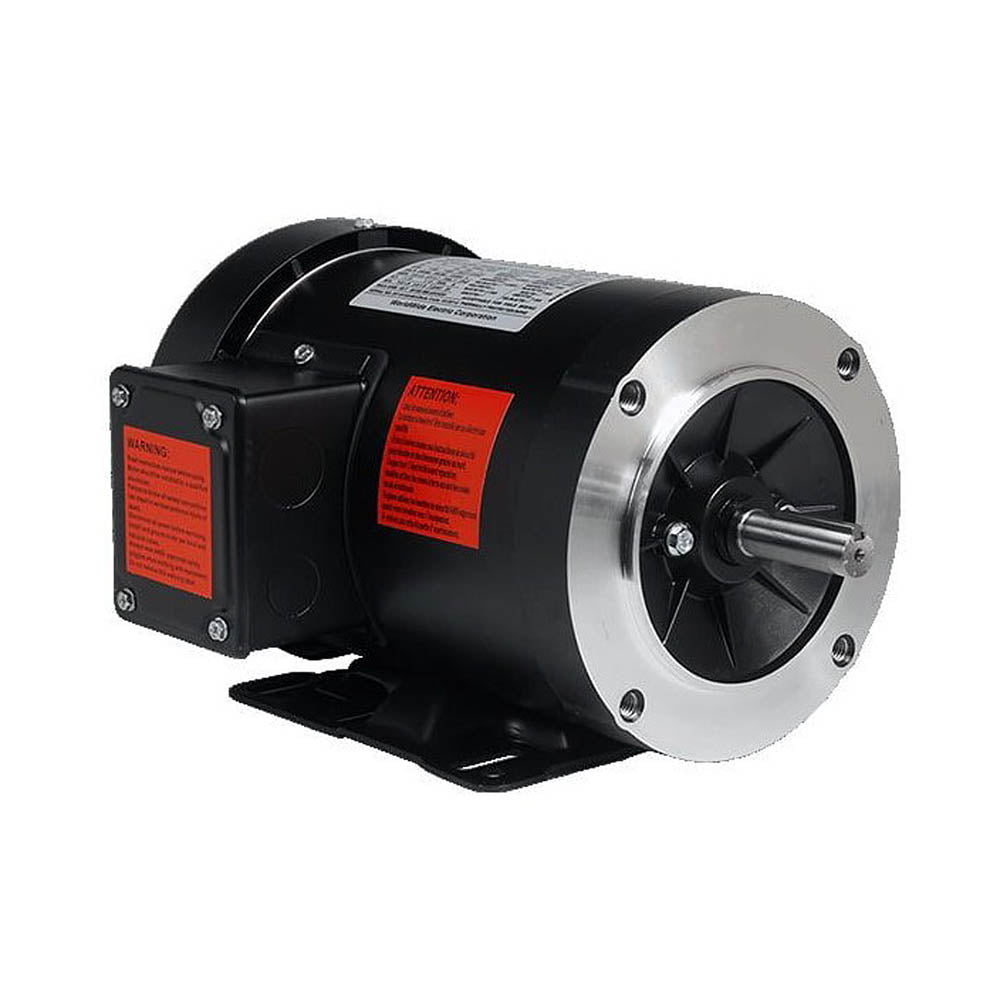

2 HP 3 Phase Electric Motor 1760 RPM 56HC Frame 230/460V TEFC C-Face NATE2-18-56CB(2 Hp Electric Motor 3 Phase 56c Frame 1800 Rpm Tefc 208 230 460 Volt New)
2 HP 3 Phase Electric Motor 1760 RPM 56HC Frame 230/460V TEFC C-Face NATE2-18-56CB(2 Hp Electric Motor 3 Phase 56c Frame 1800 Rpm Tefc 208 230 460 Volt New)
Brand New 2 horsepower, 3 phase electric motor. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.15 service factor, is a premium efficiency motor and rated for inverter duty. Also suitable for 50 hz operation with a 1.0 service factor. All the worldwide TEFC enclosed 56 frame fractional 3 phase motors have a removable base, with a C-face, and shaft slinger to keep moisture and contaminants from the end of the drive-end bearing for longevity.
Electric Motor Specifications
2 Horsepower
3 Phase
TEFC Fully Enclosed
56C Frame
208-230/460 Volt
1800 RPM
Fan Cooled
Class F Insulation
C-Face
Removable Base
Premium Efficiency / Inverter Rated
Worldwide Electric Brand
Shaft Length: Approximately 1 7/8"
Keyed 5/8" Diameter Shaft
Current: AC
Full Load Amps: 5.92/2.96A (5.56/2.78A)
60 HZ
