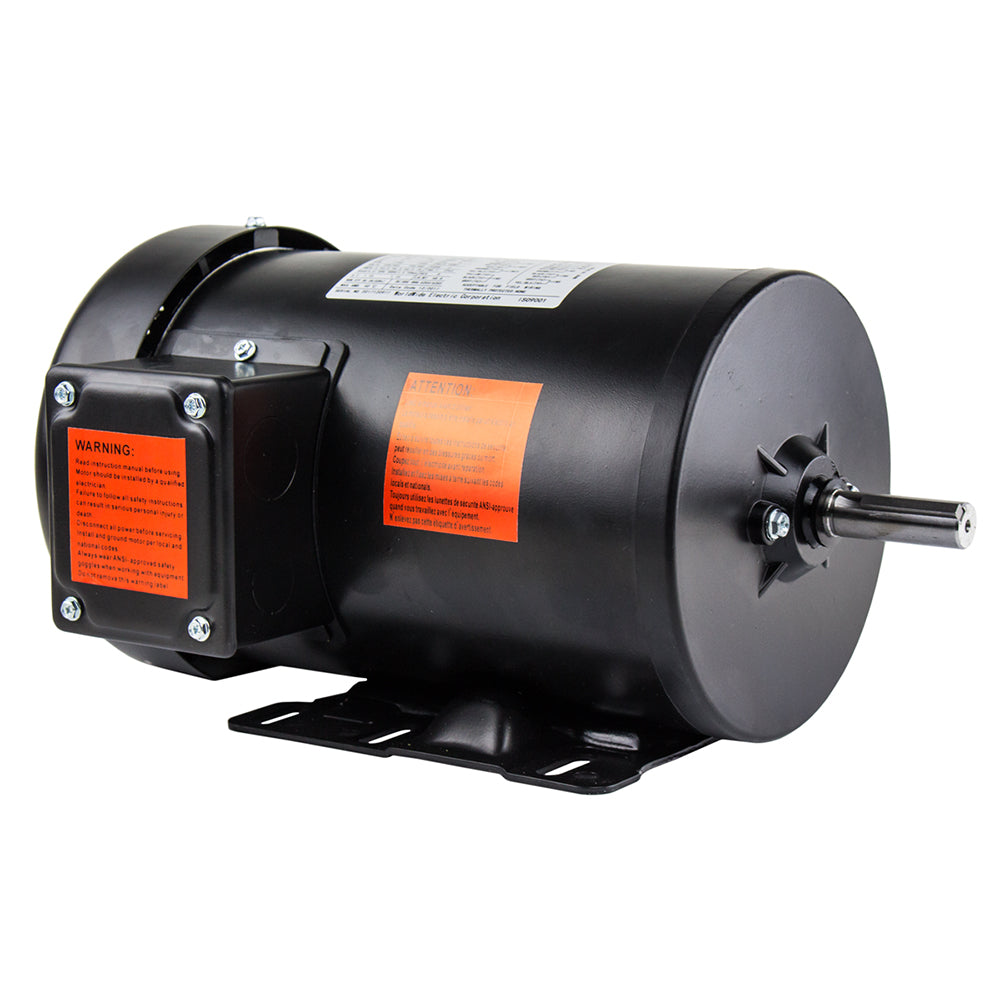

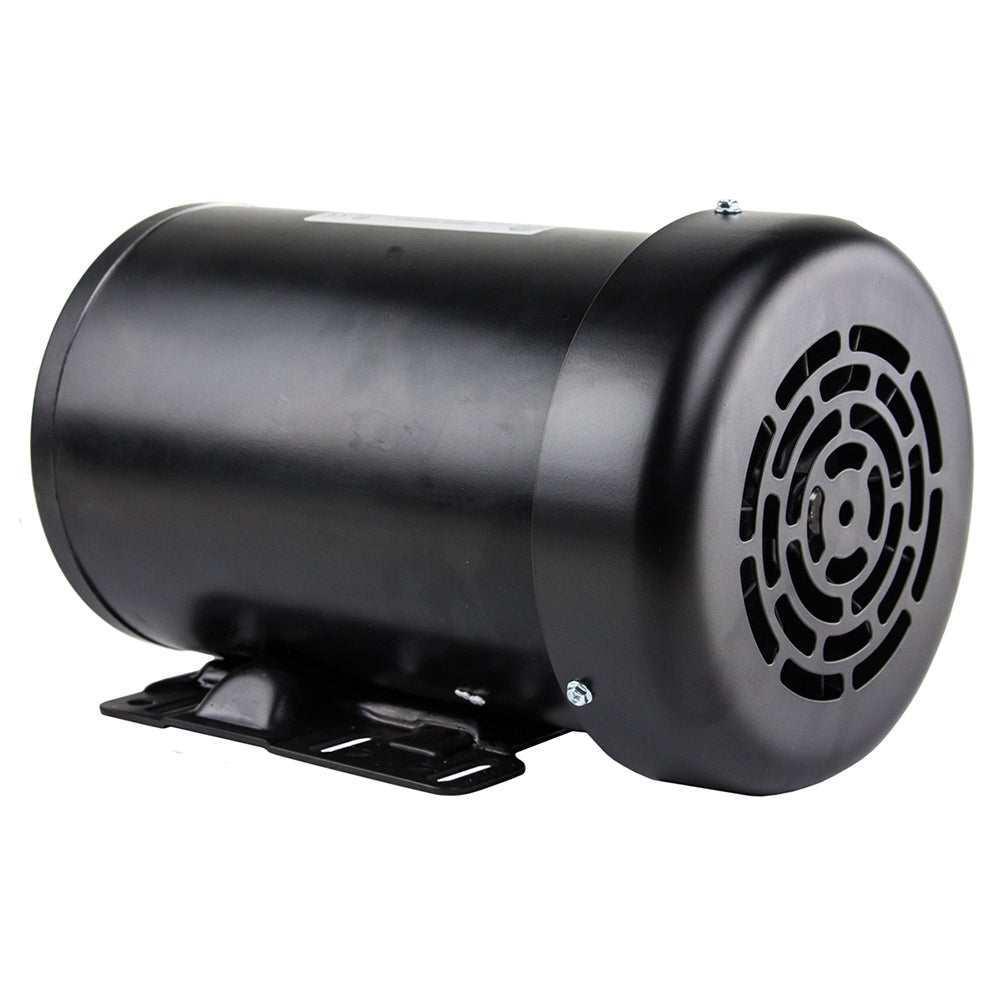

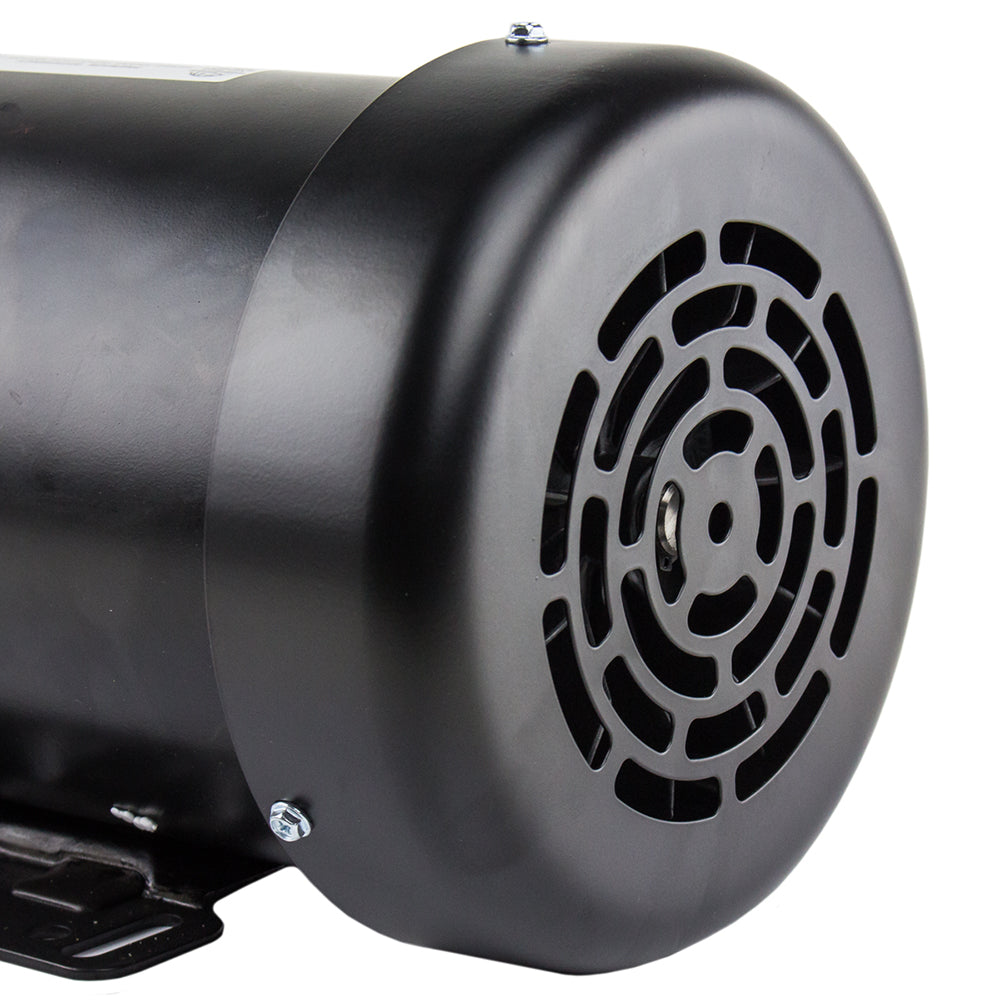

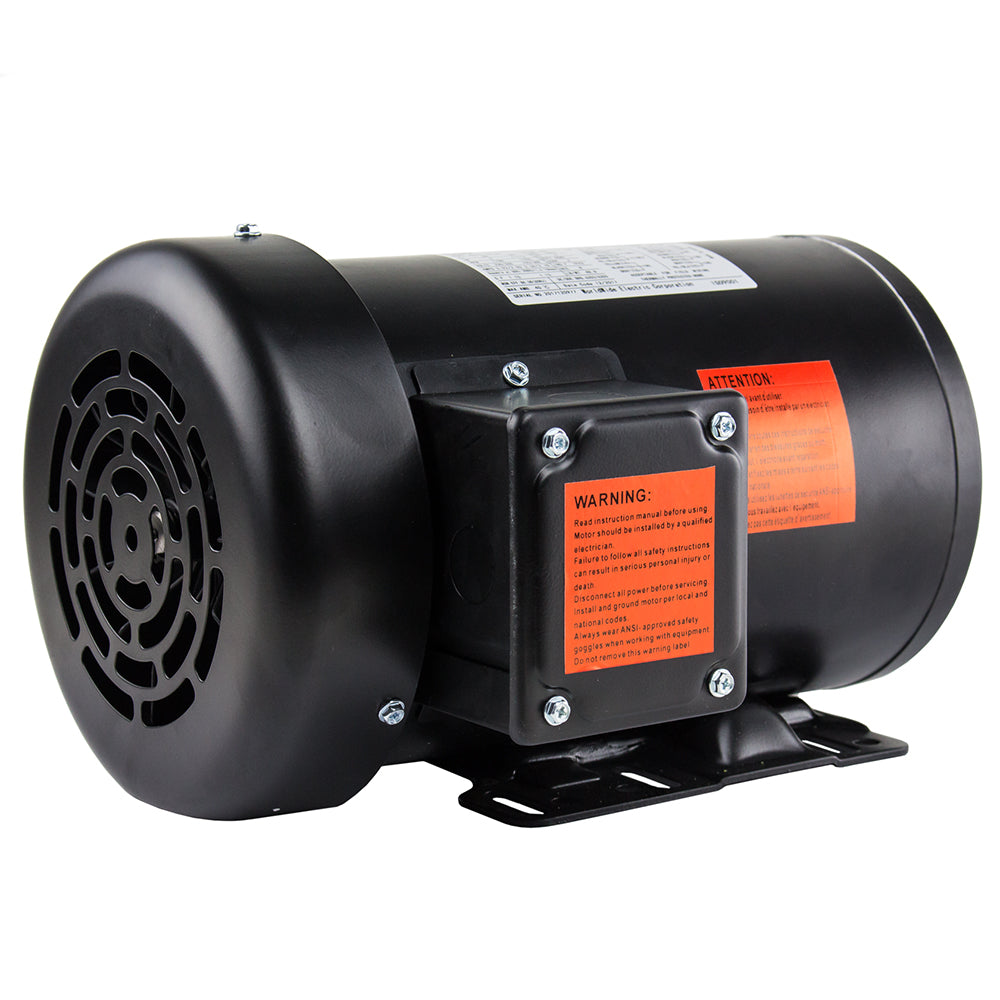

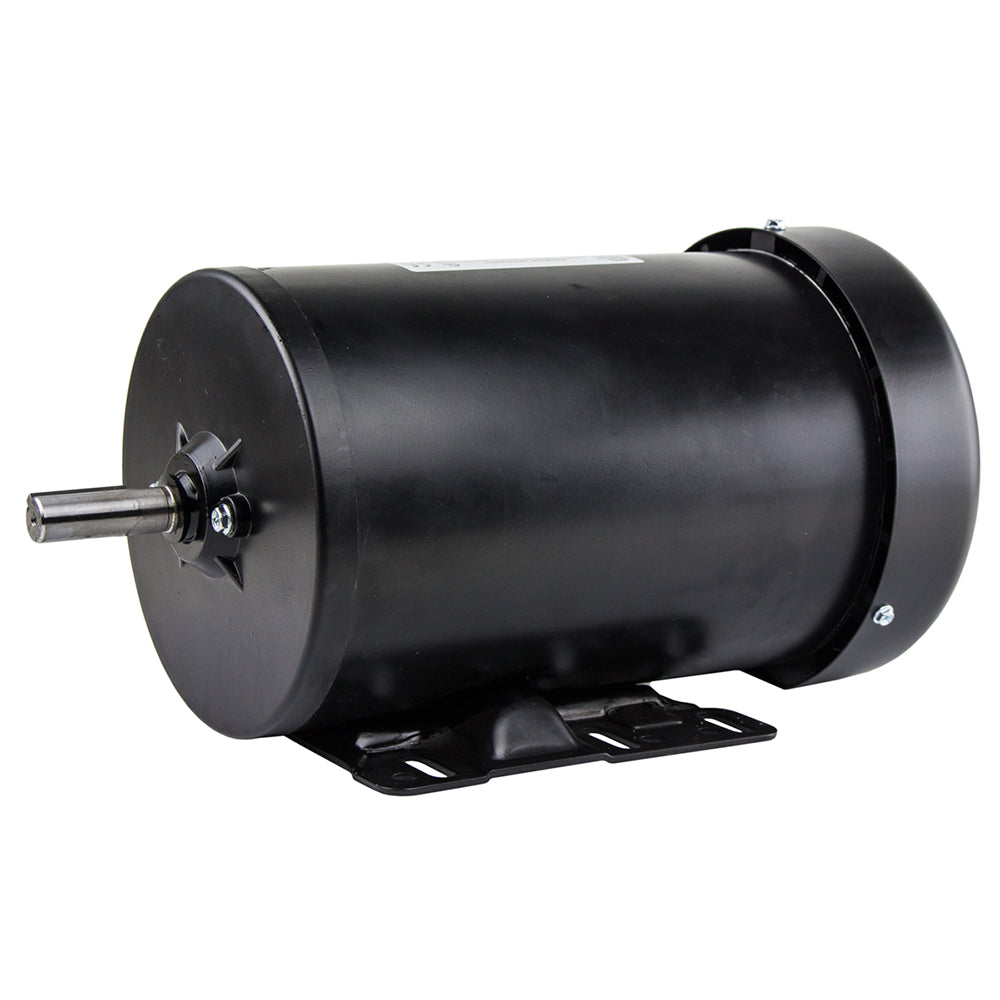

2 horsepower, three-phase, premium efficiency electric motor, 230/460 volt with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.15 service factor, and a TEFC enclosure. Designed for 60Hz and is a 56H frame.
SPECIFICATIONS:

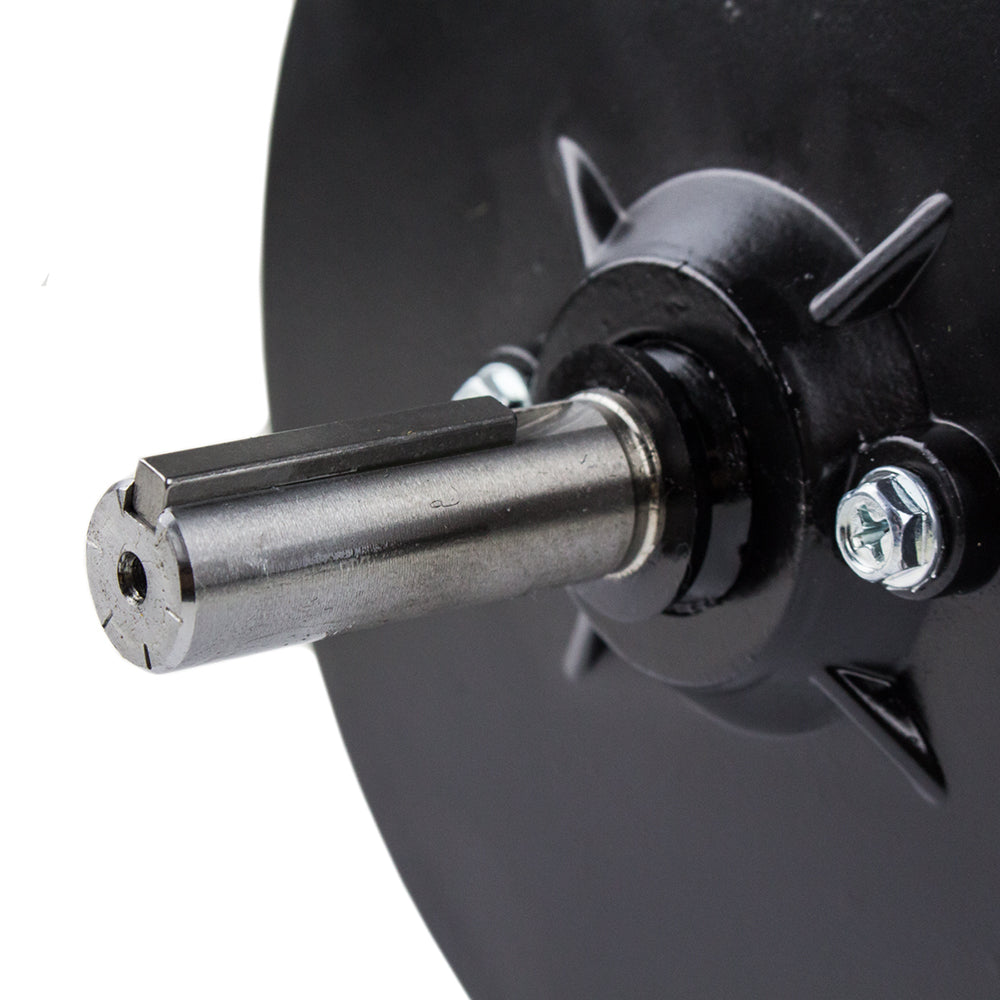

• 2 Horsepower • Three Phase • TEFC Enclosure • 56H Frame • Service Factor 1.15 • Class F Insulation • 230/460 Volts • 1800 RPM • Fan Cooled • Worldwide Electric Brand • Shaft Length: Approximately 1 7/8" • Keyed 5/8" Diameter Shaft • Current: AC • Full Load Amps: 5.92/2.96 • 60 HZ • Shaft Material: 1045 Carbon Steel • Max Temp: 40 Degrees C • Weight Approx: 48.8 LBS
