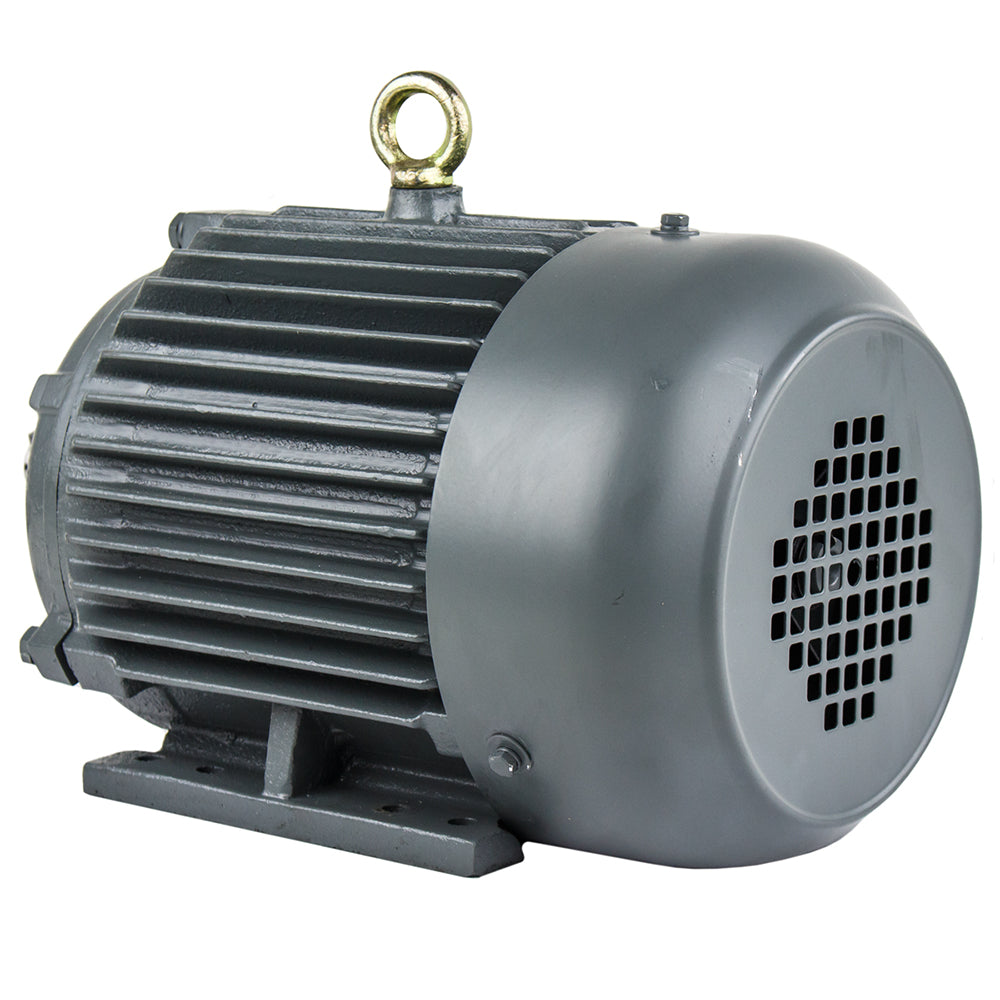

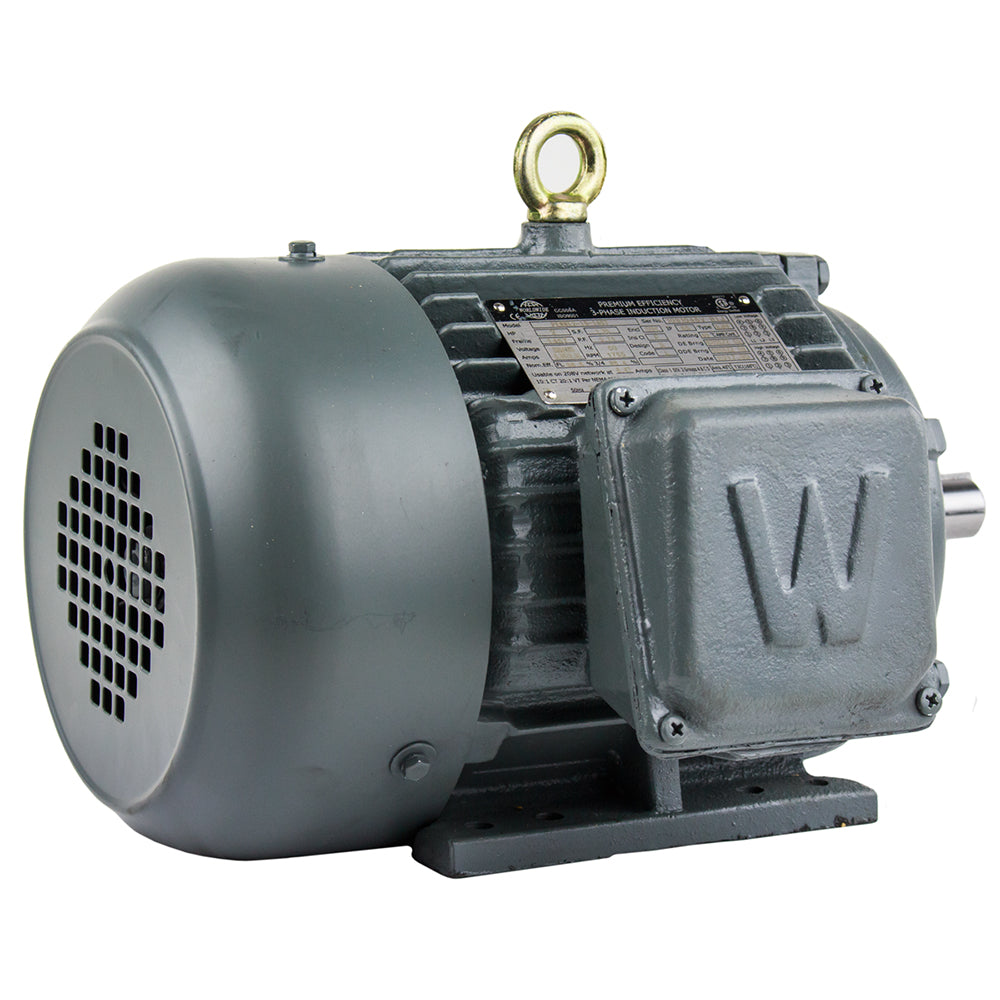

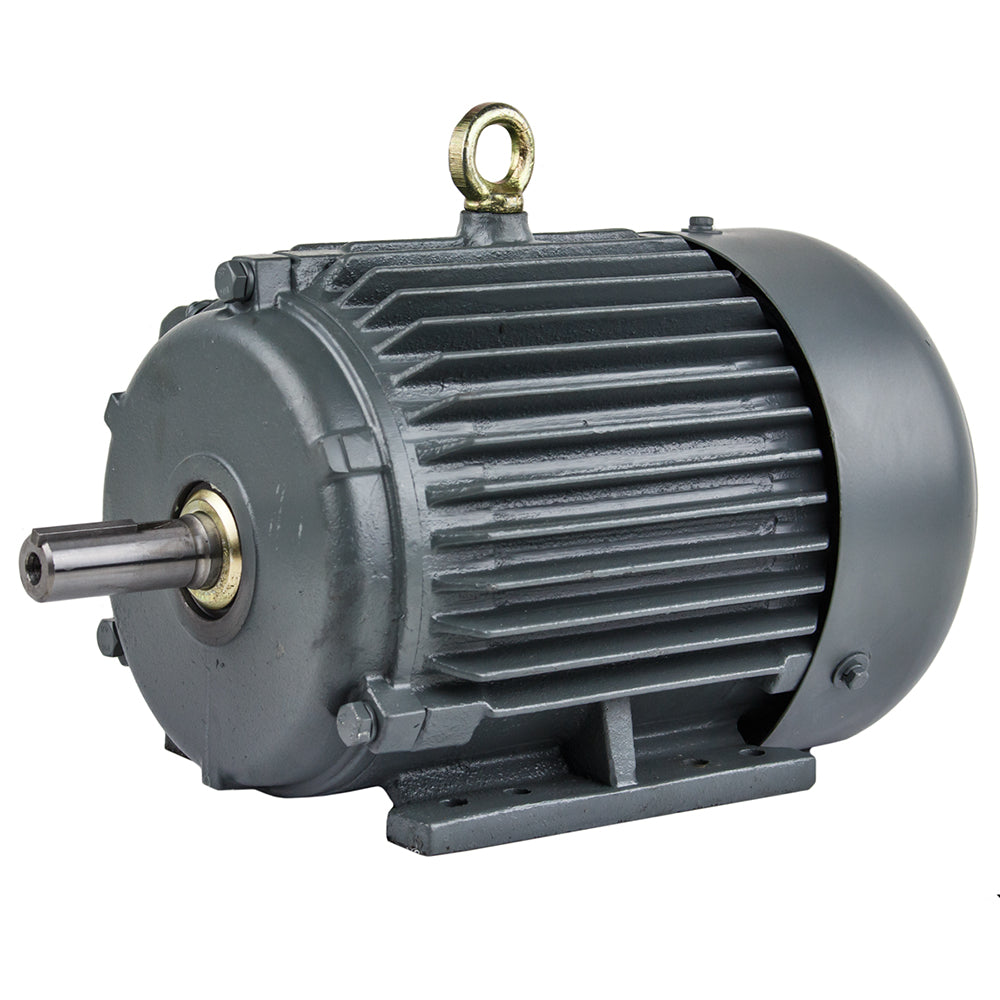

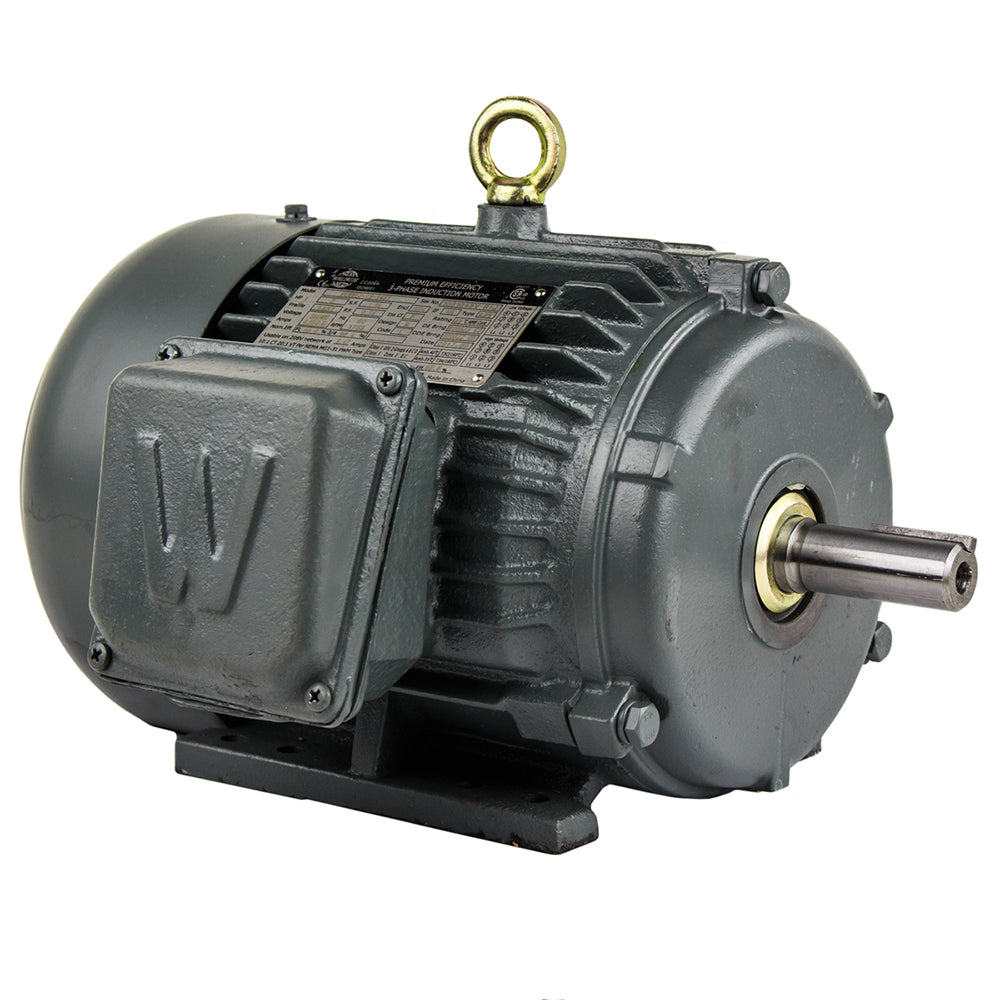

2 HP 3 Phase Electric Motor 1755 RPM 145T Frame 230/460V TEFC PEWWE2-18-145T(2 Hp 3 Phase Electric Motor 1800 Rpm 145t Frame Tefc 230 460v Premium Efficiency)

Brand new 2 horsepower, 3 phase premium efficiency severe duty electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.25 service factor (1.00 at 50Hz), is a premium efficiency severe duty motor. Designed for 60Hz, features a TEFC / IP55 enclosure, and is a 145T frame.

SPECIFICATIONS

• 2 Horsepower
• 3 Phase
• TEFC / IP55 Fully Enclosed
• 145T Frame
• Service Factor 1.25
• Class F Insulation
• 58.5 LBS
• 208-230/460 Volt
• 1800 RPM

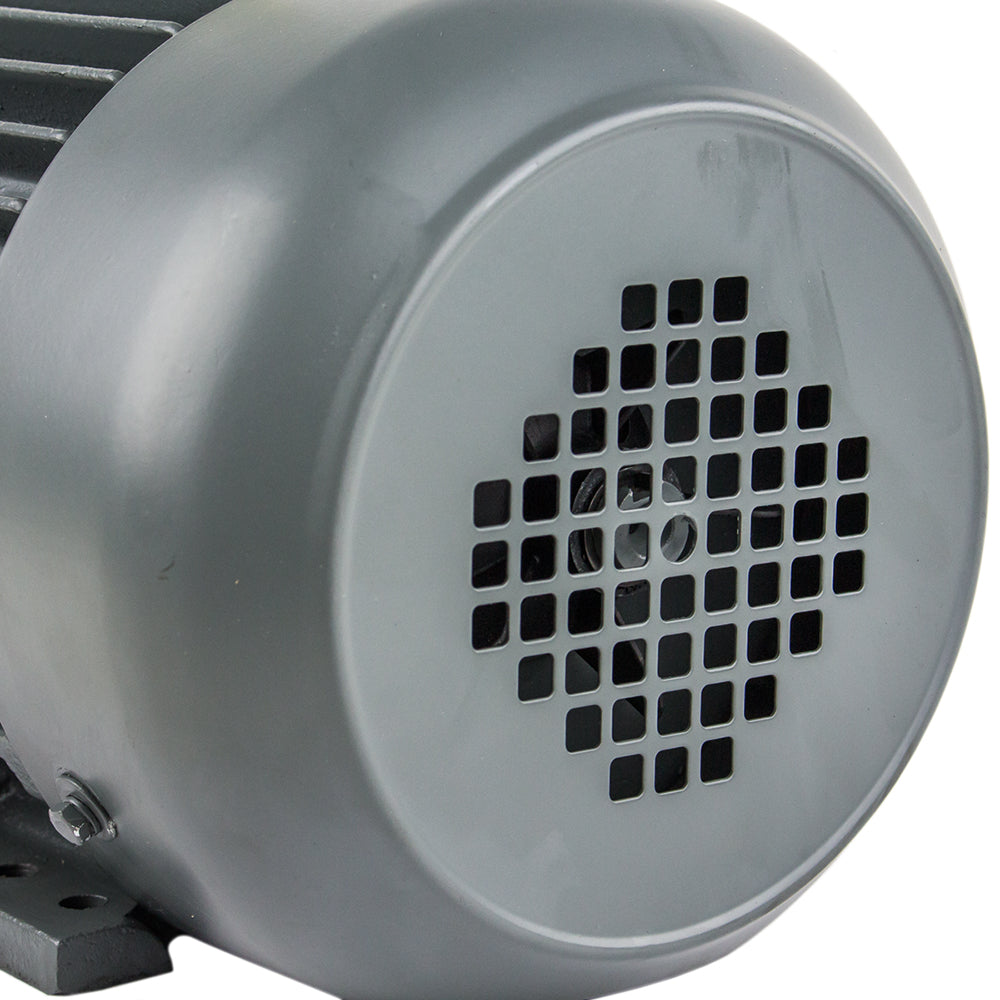

• Fan Cooled
• Worldwide Electric Brand
• Shaft Length: Approximately 2 3/8"

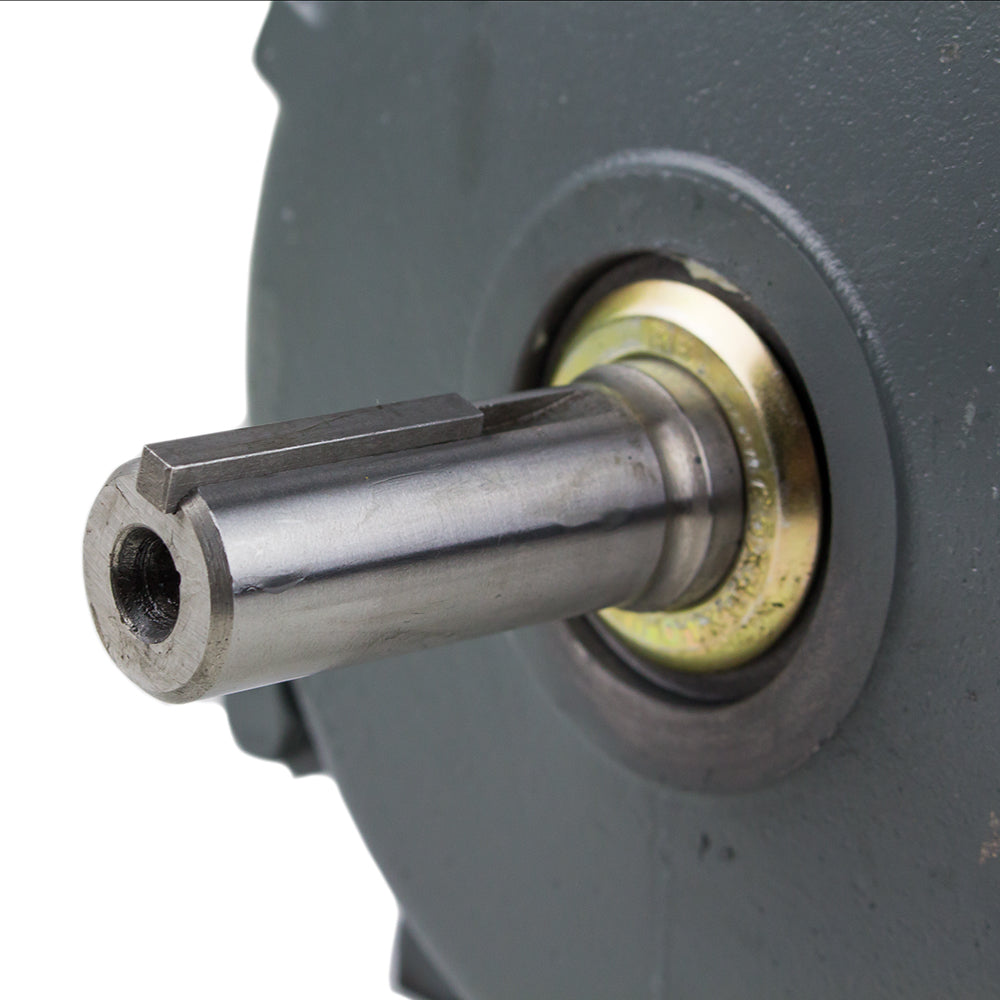

• Keyed 7/8" Diameter Shaft
• Current: AC
• Full Load Amps: 5.85/2.93 (Usable on 208V network at 6.47 amps)
• 60 HZ
• Rotation: Bi-Directional
• Shaft Material: 1045 Carbon Steel
• Nema Design B
• Max Temp: 40 Degrees C
