10 HP Replacement Air Compressor Pump Two Stage 4 Cylinder 36 CFM Max(10 Hp Replacement Air Compressor Pump Two Stage 4 Cylinder 36 Cfm Max)

10 HP Replacement Two Stage 4 Cylinder Air Compressor Pump

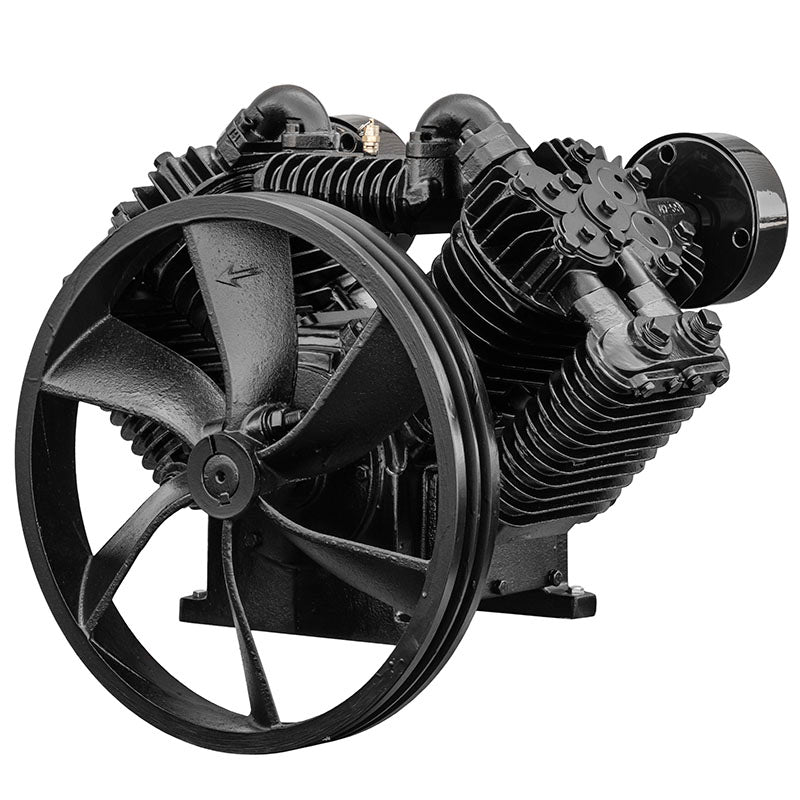

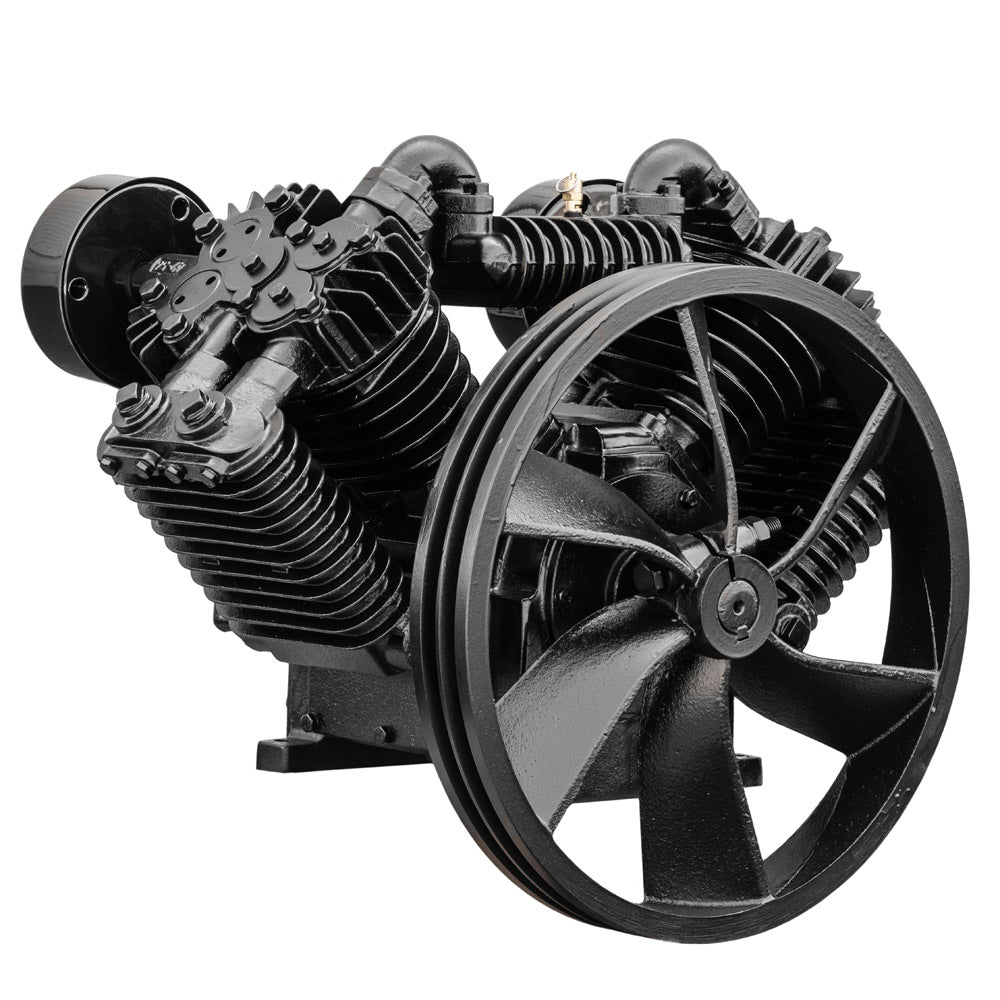

Brand new four cylinder cast iron two stage air compressor pump. This is a 10-horsepower pump that will deliver 35.3 CFM at 860 RPM with a max RPM of 900. This pump is most commonly used on compressor tanks of 80 gallons or larger in size and can be used with 220-volt 7.5 horsepower electric motors or larger. To verify your motor is large enough, it should be 32 amps or higher at 220 volts and at least 7.5 HP (Note: When running with a 7.5 HP motor, you will have to spin the pump slower in order for the motor to work properly. If wanting higher CFM and spinning at over 800 RPM, a 10 HP motor is needed). This pump has a minimum RPM of 730. This pump comes complete as shown in the photos, including intake filters and flywheel. See specifications below for more details.

Features:

• Cast Iron Cylinder and Crankcase

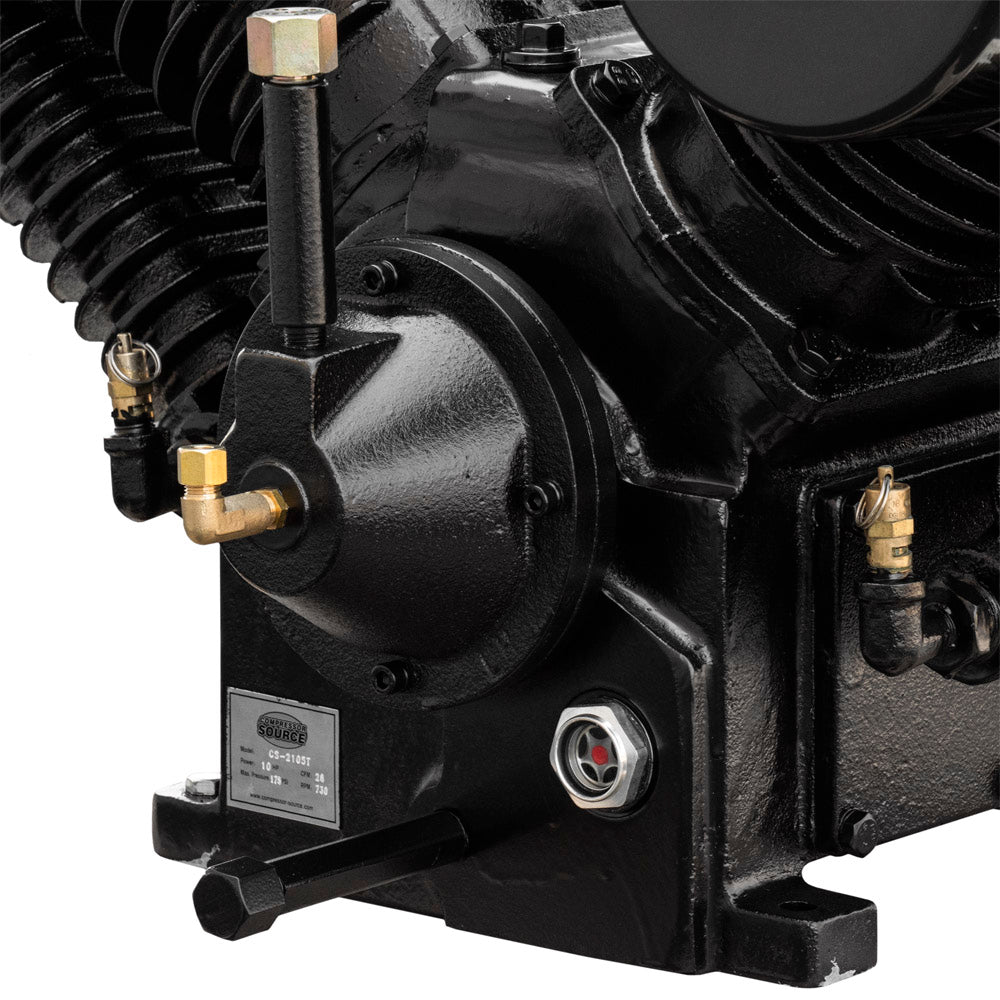

• Equipped with Sight Glass for Easy Viewing of Oil Level

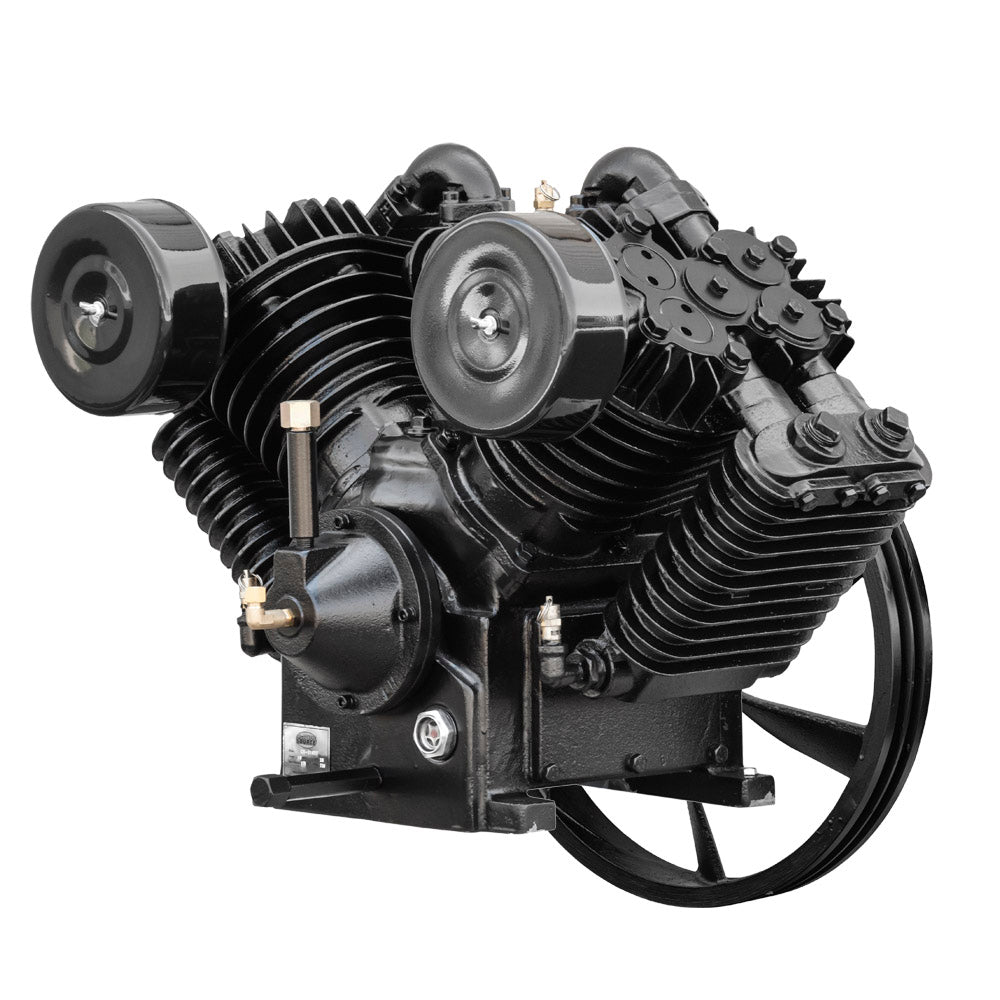

• Comes with Two Intake Filters

Specifications:

• Four Cylinder
• Two Stage
• 10 HP
• Maximum Recommended Working Pressure: 175 PSI
• Recommended RPM: 730-900
• CFM: 36 Max

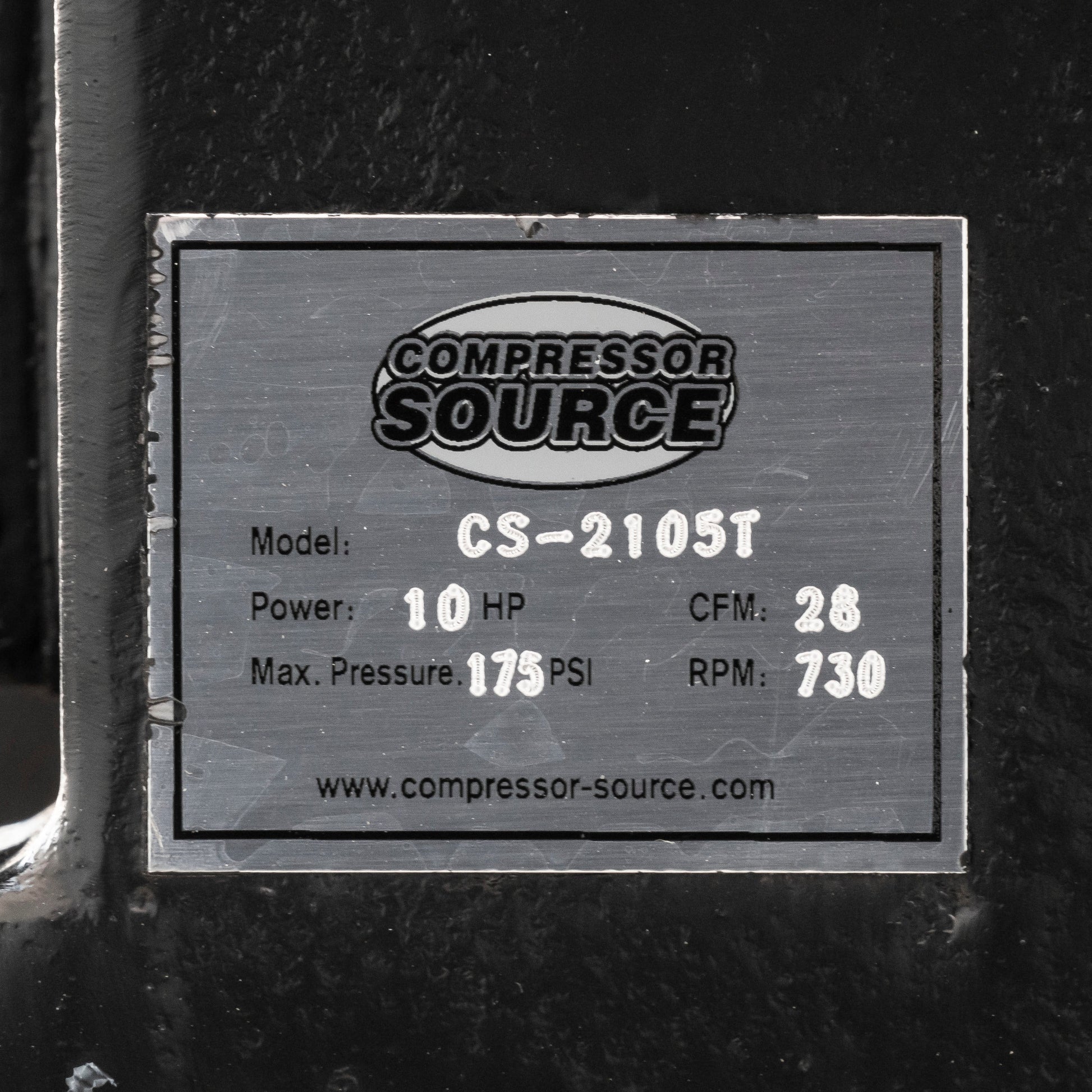

• CFM at 730 RPM: 28
• Bolt Pattern: 9-1/4" (Front to Back) x 9-5/8" (Side to Side)

Because of the weight of this pump, it has to ship freight. When purchasing please specify if it is going to a commercial address otherwise it will ship to your nearest trucking terminal for pickup. If you have questions about this, please contact us before purchasing.
