10 HP 3 Phase Electric Motor 1770 RPM 213/5T Frame 230/460V ODP WEG 01018OT3E215T-S(10 Hp 3 Phase Air Compressor Duty Electric Motor 213 5t Frame 1770 Rpm 3ph Weg)

10 HP 213/5T Frame Three Phase 1770 RPM WEG Electric Motor

This listing is for a brand new WEG 10 horsepower air compressor motor model number 01018OT3E215T-S. This motor is 208-230/460 volt, 27.4-24.8/12.4 AMPS, 60 Hz, 213/5T Frame, three phase, 1-3/8" diameter shaft, and 1770 RPM. It is specifically designed for use with air compressors to meet start up load / torque specifications. This motor can rotate in either direction. This can replace replace motors rated for different RPMs, you will just have to use a different sized pulley to make up the RPM difference on your compressor. If you have any questions about this motor or if it will work as a replacement on your compressor feel free to contact us.

Specifications

• Frame: 213/5T
• Output: 10 HP
• Frequency: 60 Hz
• Rated Speed: 1770 RPM
• Rated Voltage: 208-230/460 Volts
• Rated Current: 27.4-24.8/12.4 Amps
• Insulation Class: F
• Service Factor: 1.15 (1.00 at 208V)
• Ambient Temperature: -20°C to +40°C
• Enclosure: ODP
• Rotation: Both (CW and CCW)
• Approx. Weight: 115.10 lbs

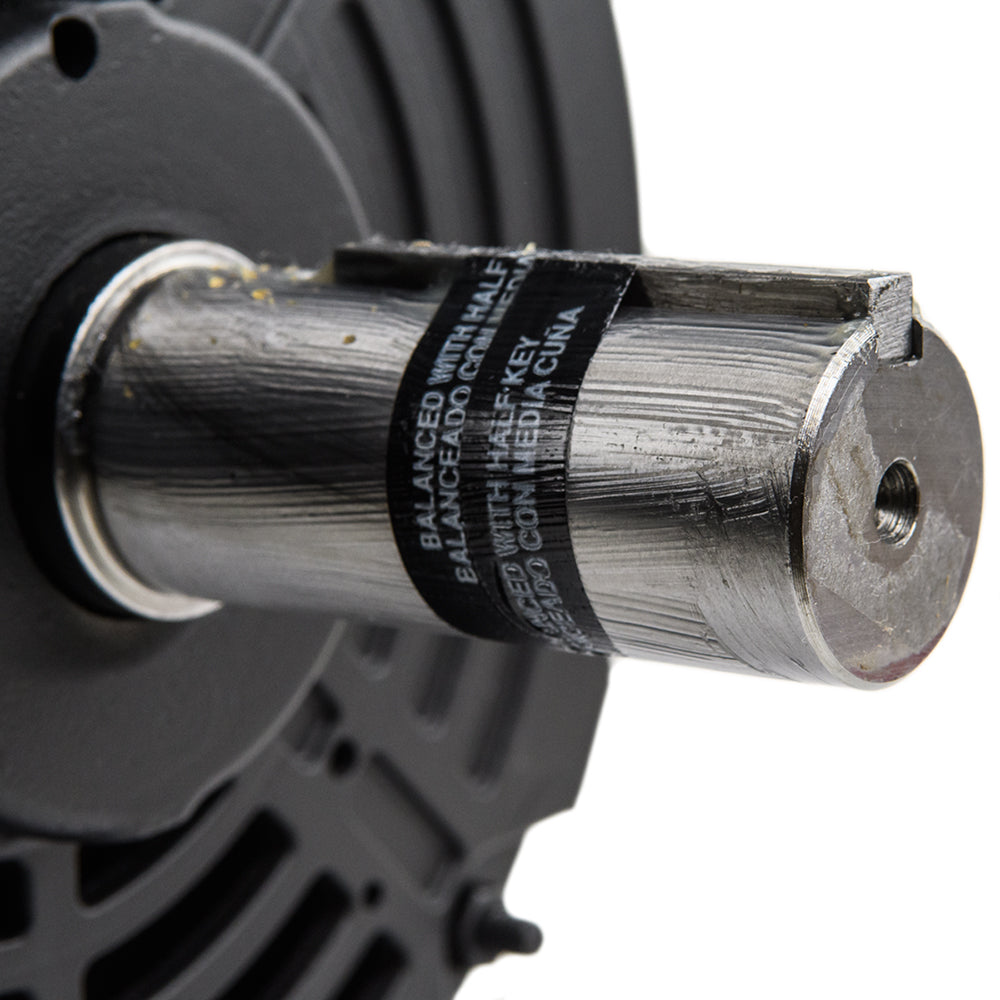

• Approximate Shaft Length: 3-3/8"
• Approximate Shaft Diameter: 1-5/16"

"THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES"

This motor has a one-year limited manufacturer's warranty

We strive for 100% customer satisfaction! We take the time to package these motors extremely well to make sure they get to you in perfect condition.

If you have any questions about this motor, feel free to reach out to us.
