Worldwide Electric 1.5 HP 3 Phase Electric Motor PEWWE1.5-18-145T

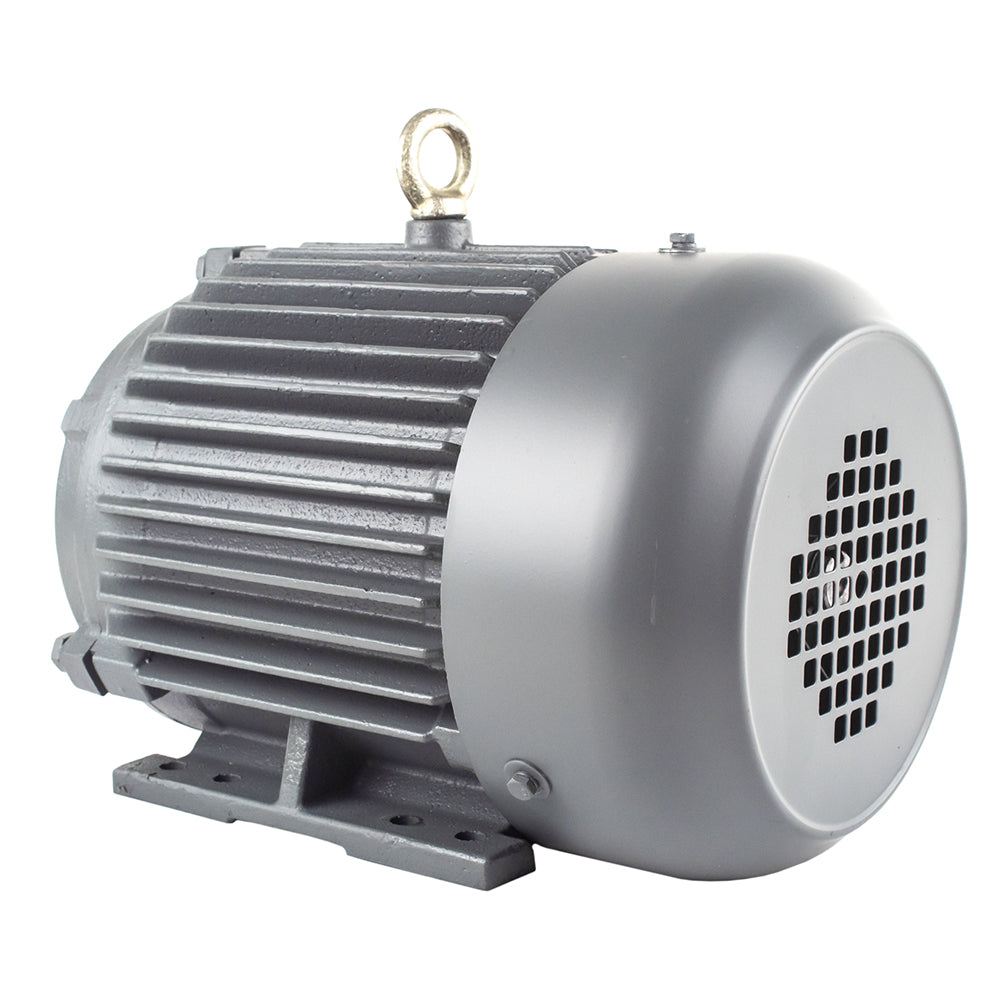

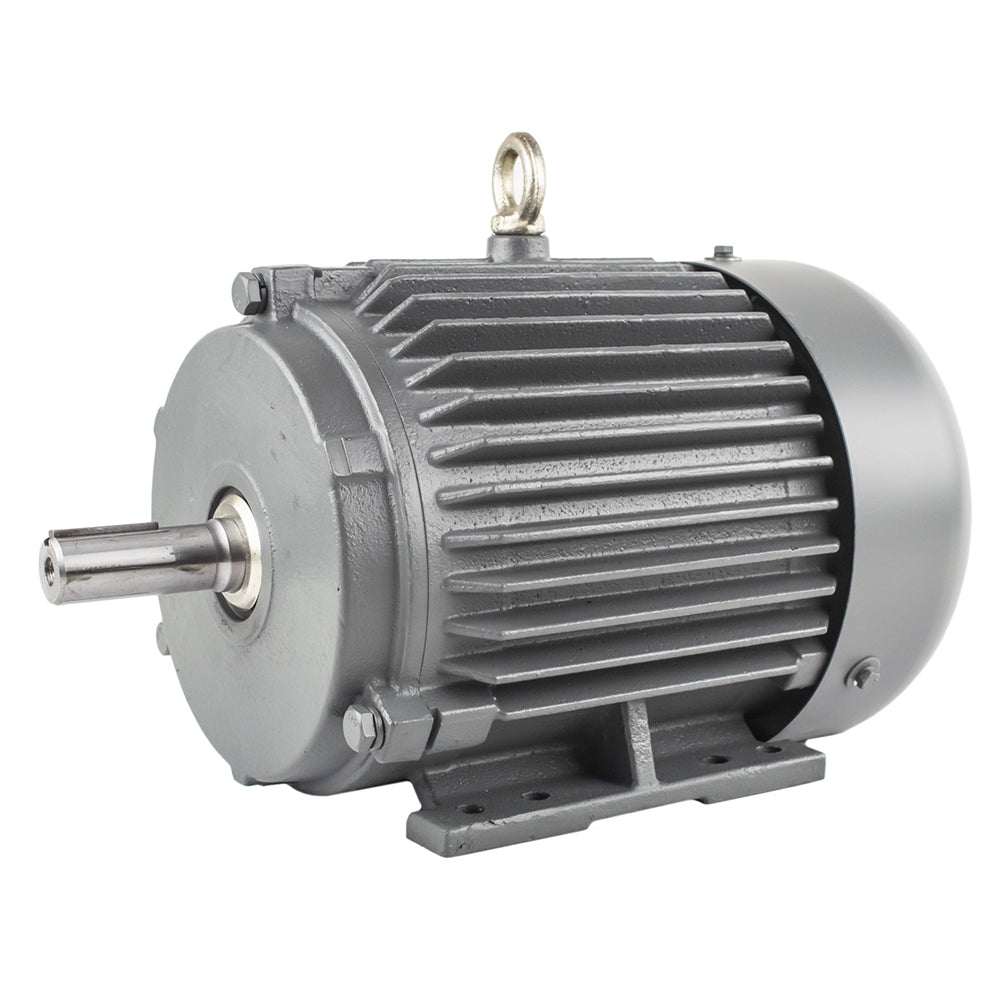

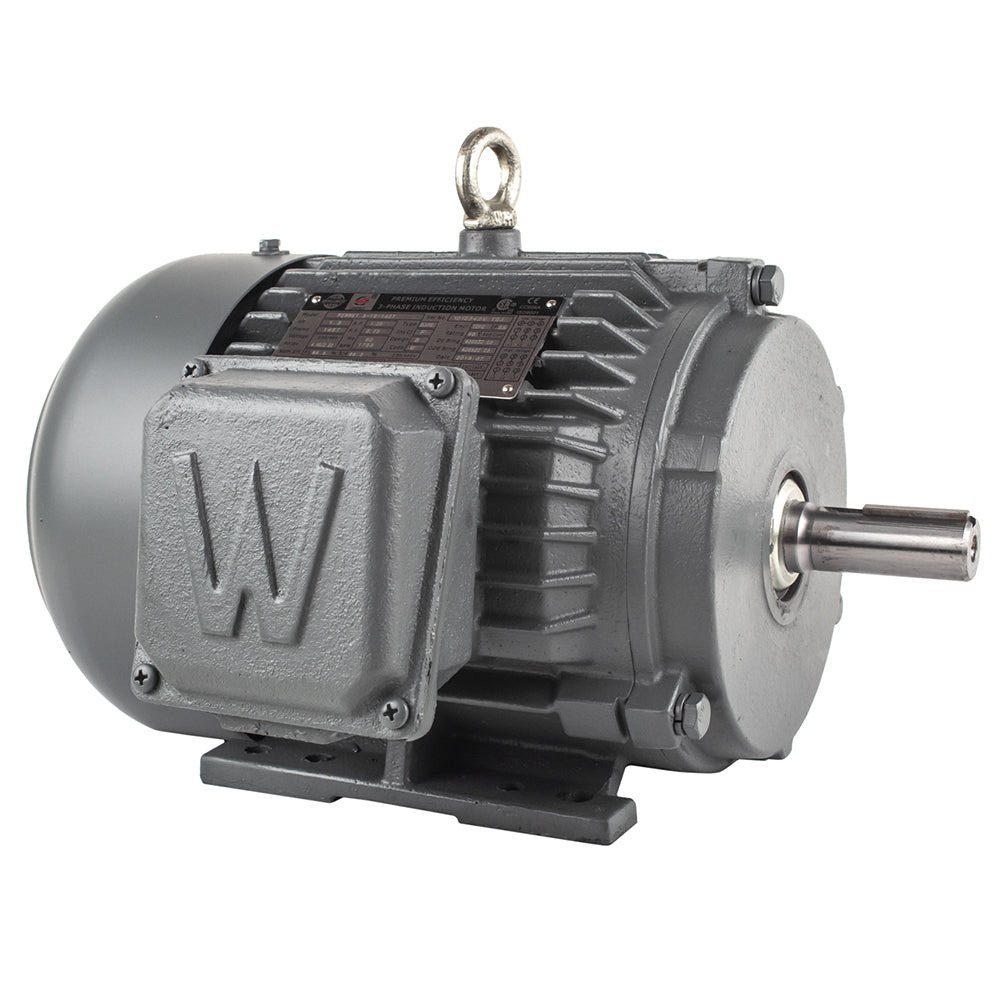

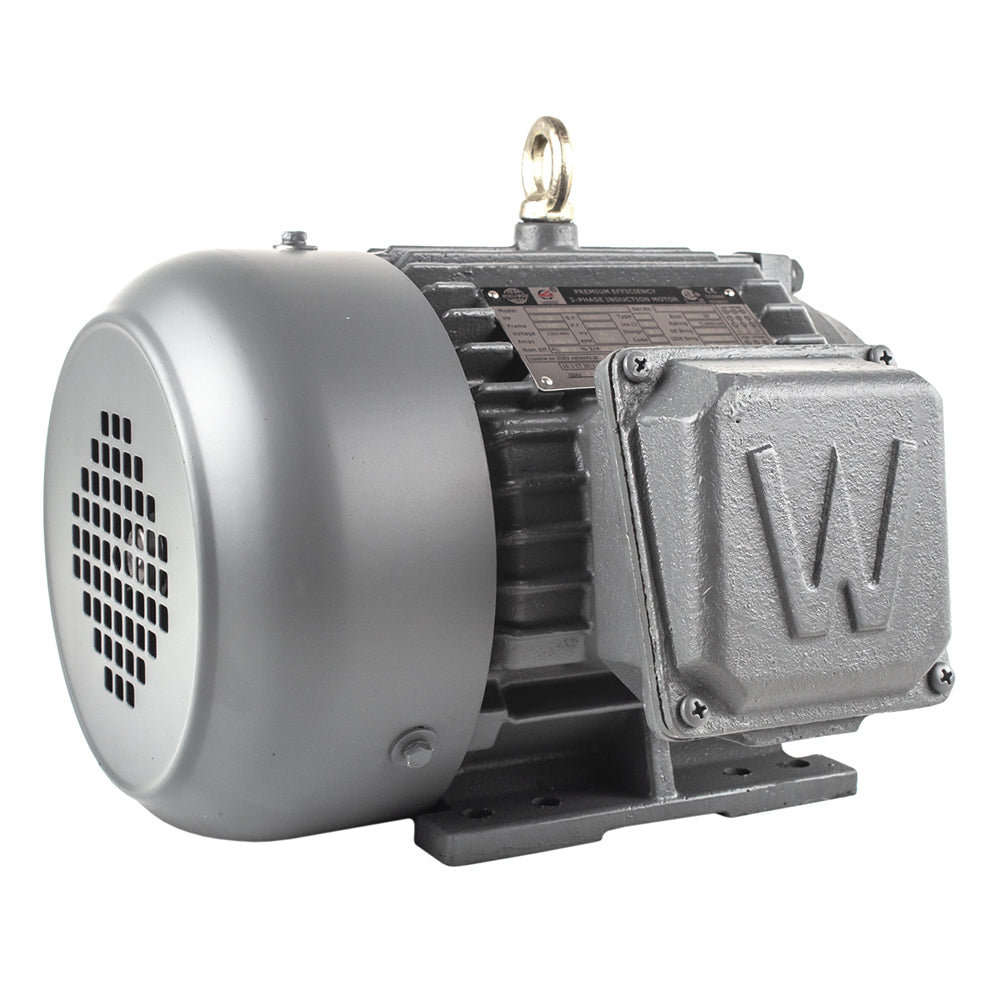

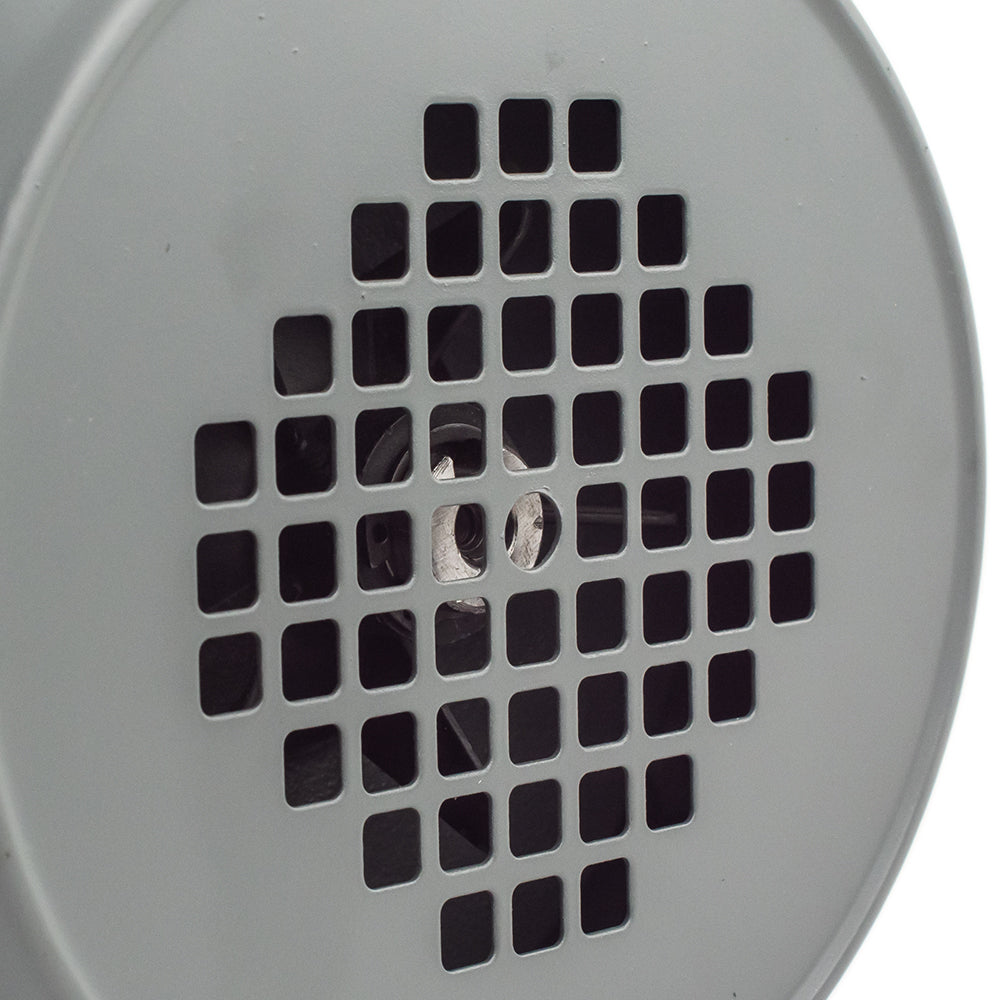

1.5 horsepower, 3 phase premium efficiency severe duty electric motor with a rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.25 service factor (1.00 at 50Hz), and is a premium efficiency severe duty motor. Designed for 60Hz, features a TEFC / IP55 enclosure, and is a 145T frame.
Specifications:

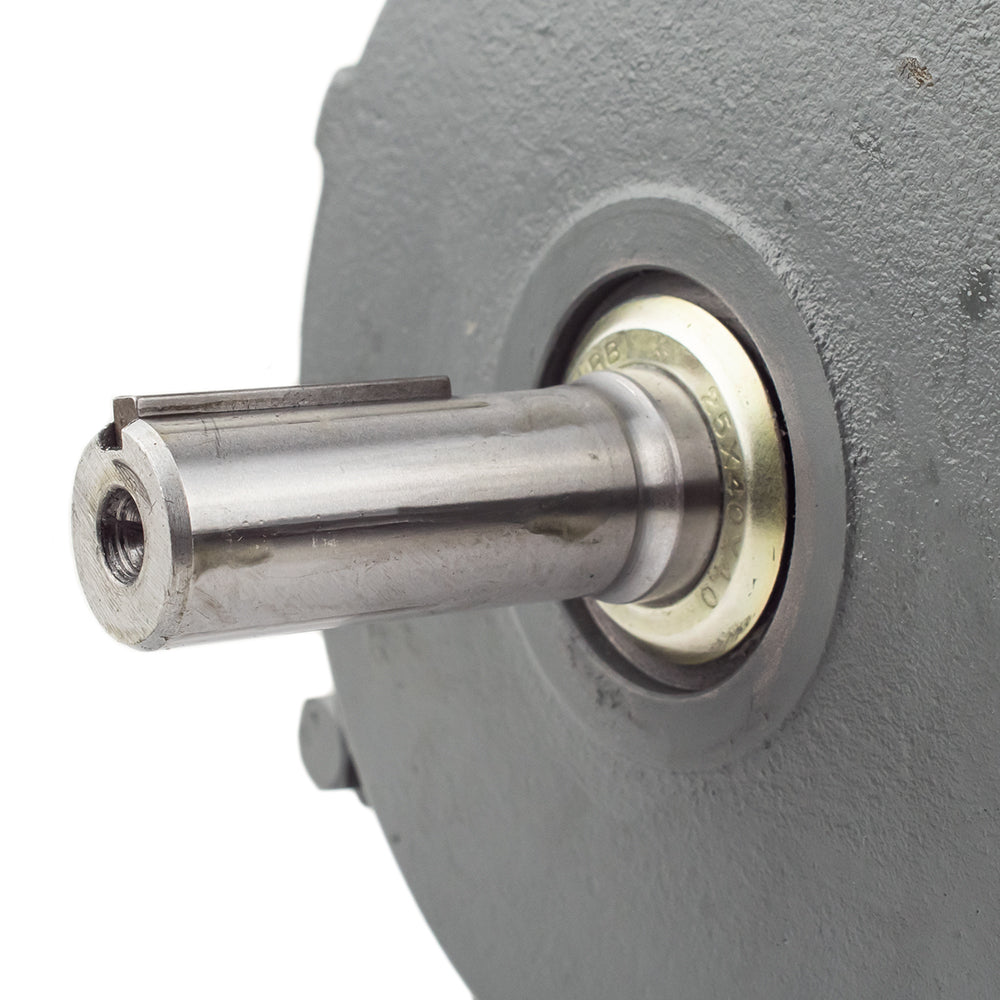

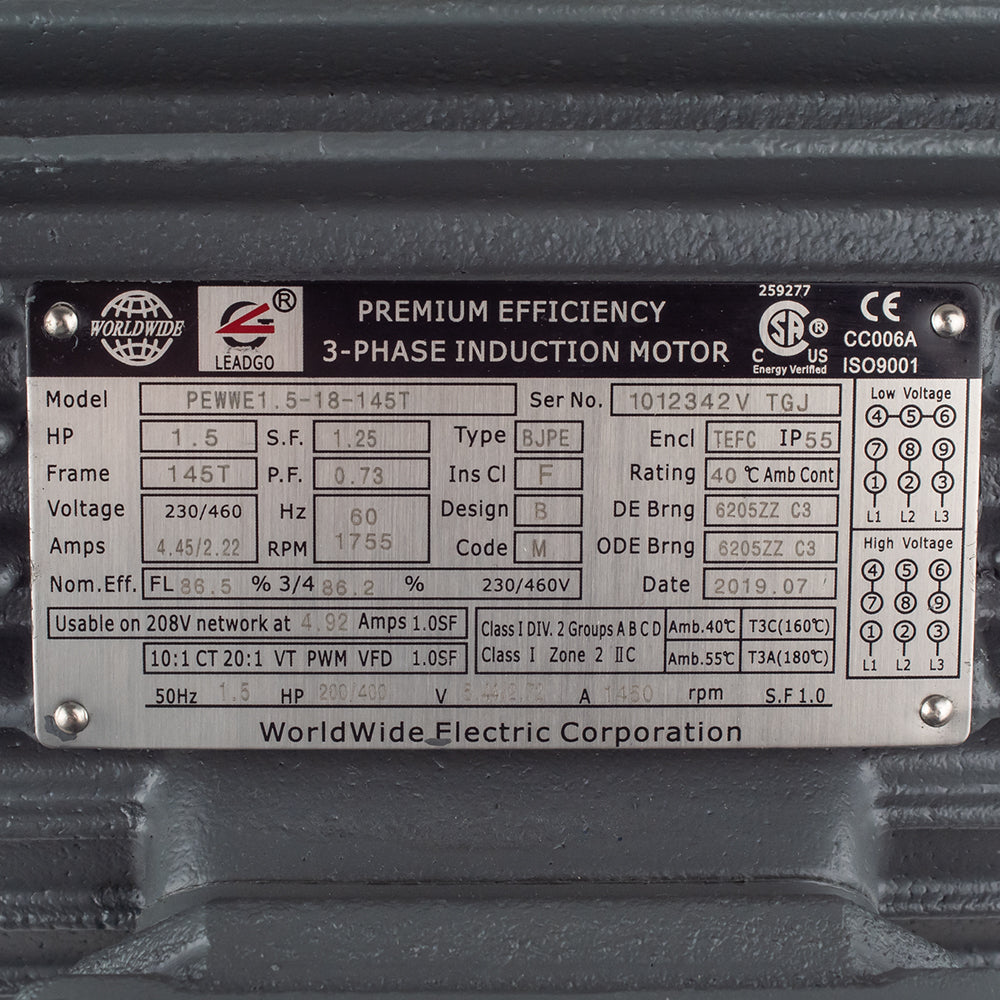

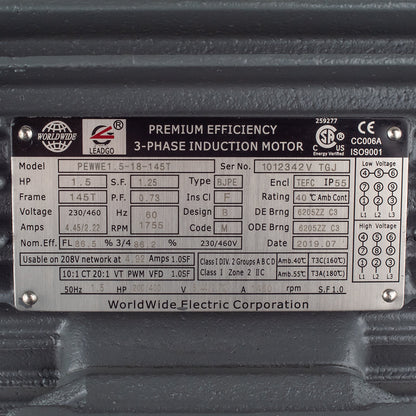

• 1.5 Horsepower • 3 Phase • TEFC / IP55 Fully Enclosed • 145T Frame • Service Factor 1.25 • Class F Insulation • 54.65 LBS • 230/460 Volt • 1755 RPM • Fan Cooled • Worldwide Electric Brand • Keyed 7/8" Diameter Shaft • Current: AC • Full Load Amps: 4.45/2.22 (Usable on 208V network at 4.92 amps) • 60 HZ • Shaft Material: 1045 Carbon Steel • NEMA Design B • Max Temp: 40 Degrees C
