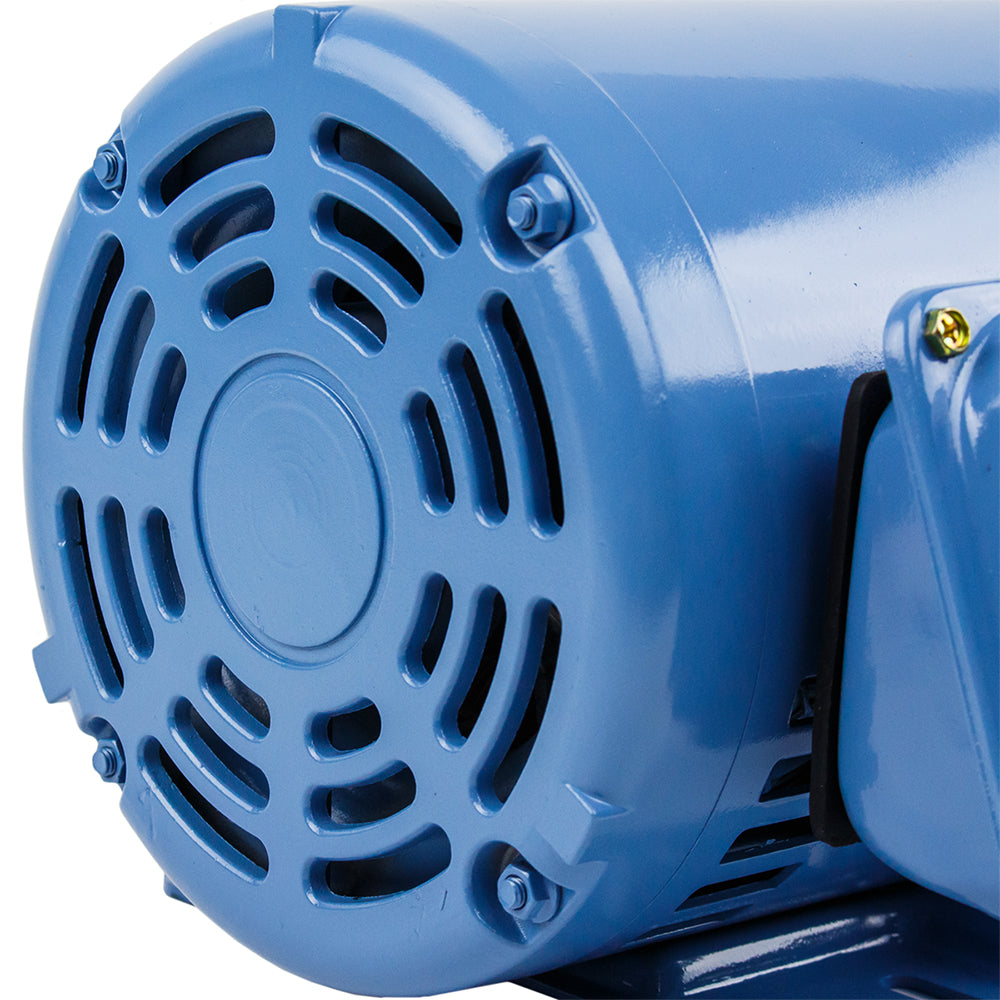

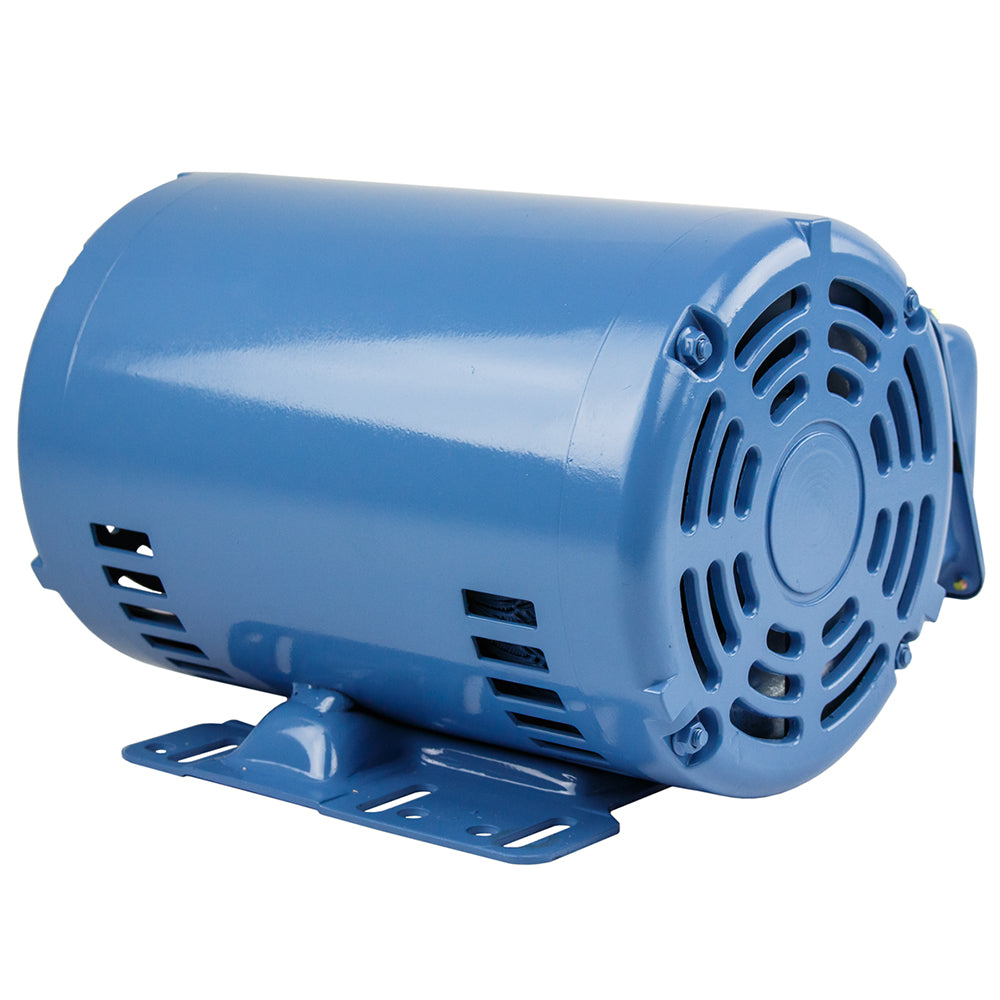

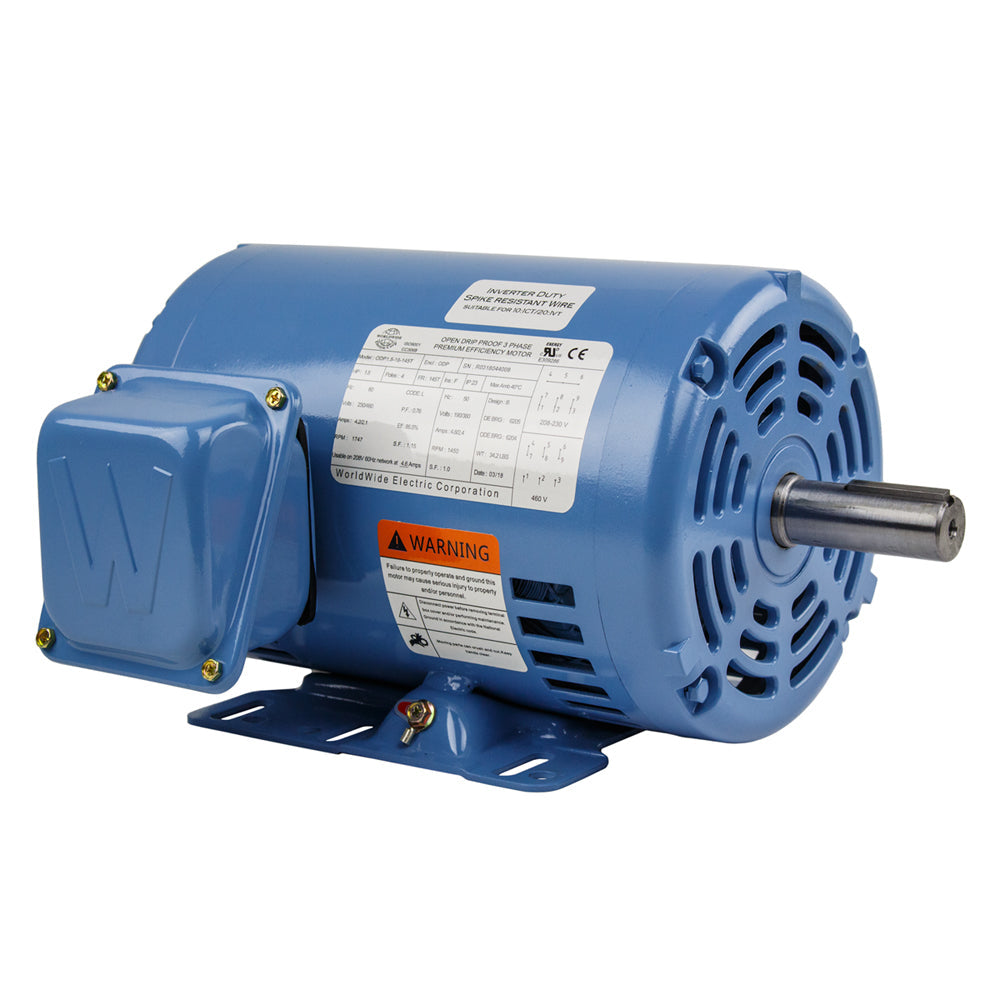

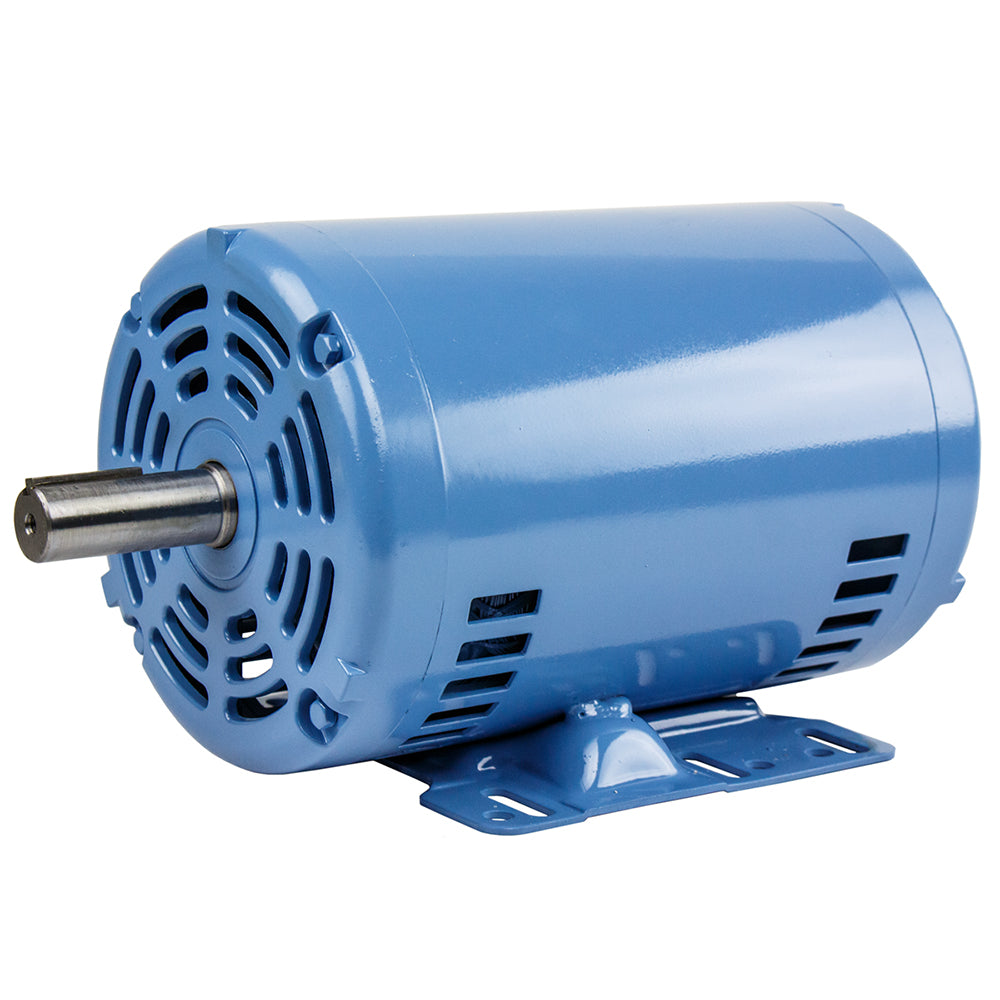

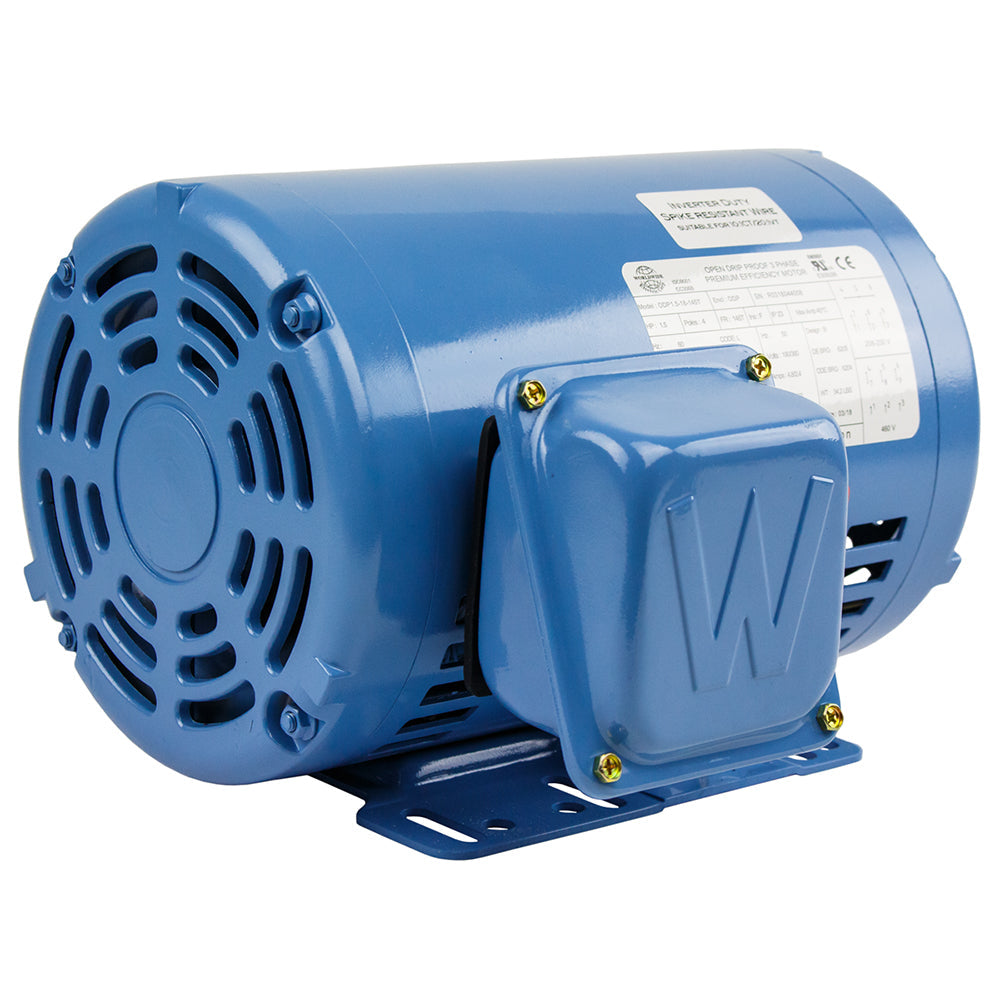

1.5 horsepower, open drip proof, 3 phase premium efficiency electric motor with rigid base. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.15 service factor (1.00 at 50Hz), is a premium efficiency inverter duty motor. Designed for 60Hz, features a ODP enclosure, and is a 145T frame.
SPECIFICATIONS:

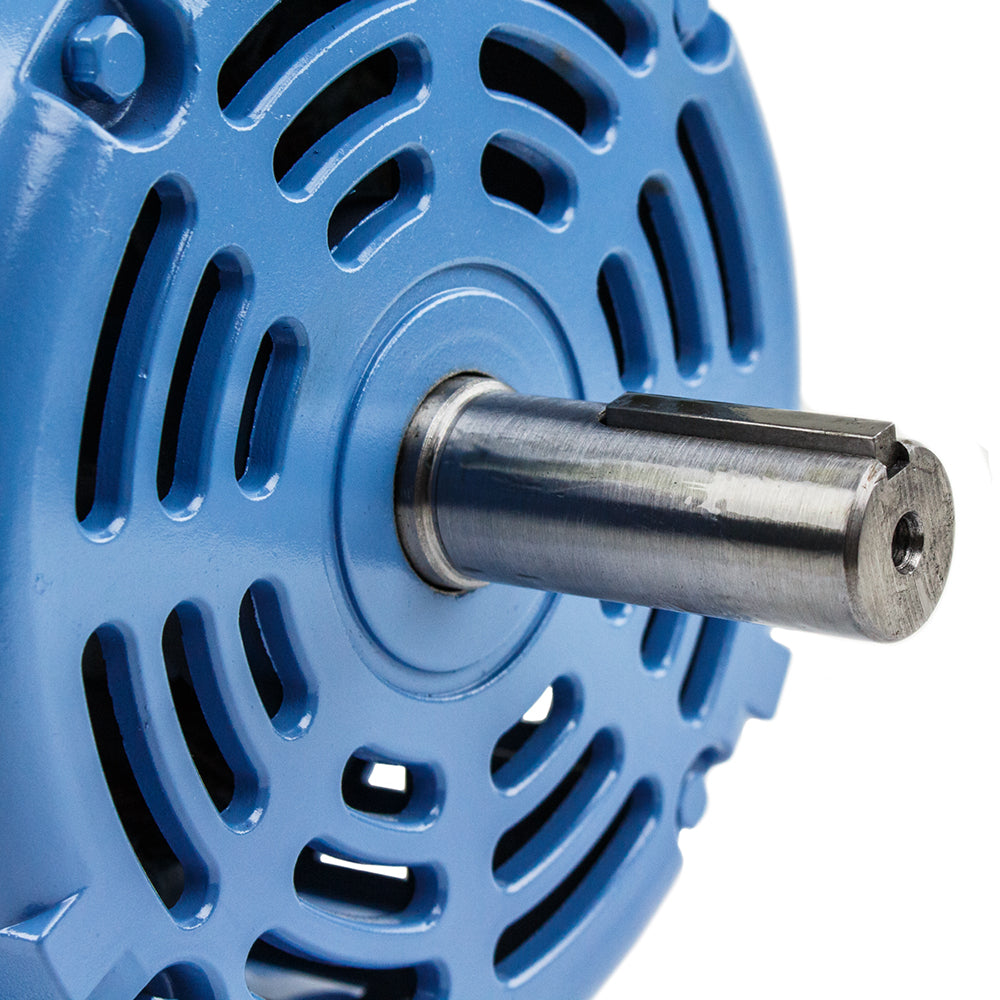

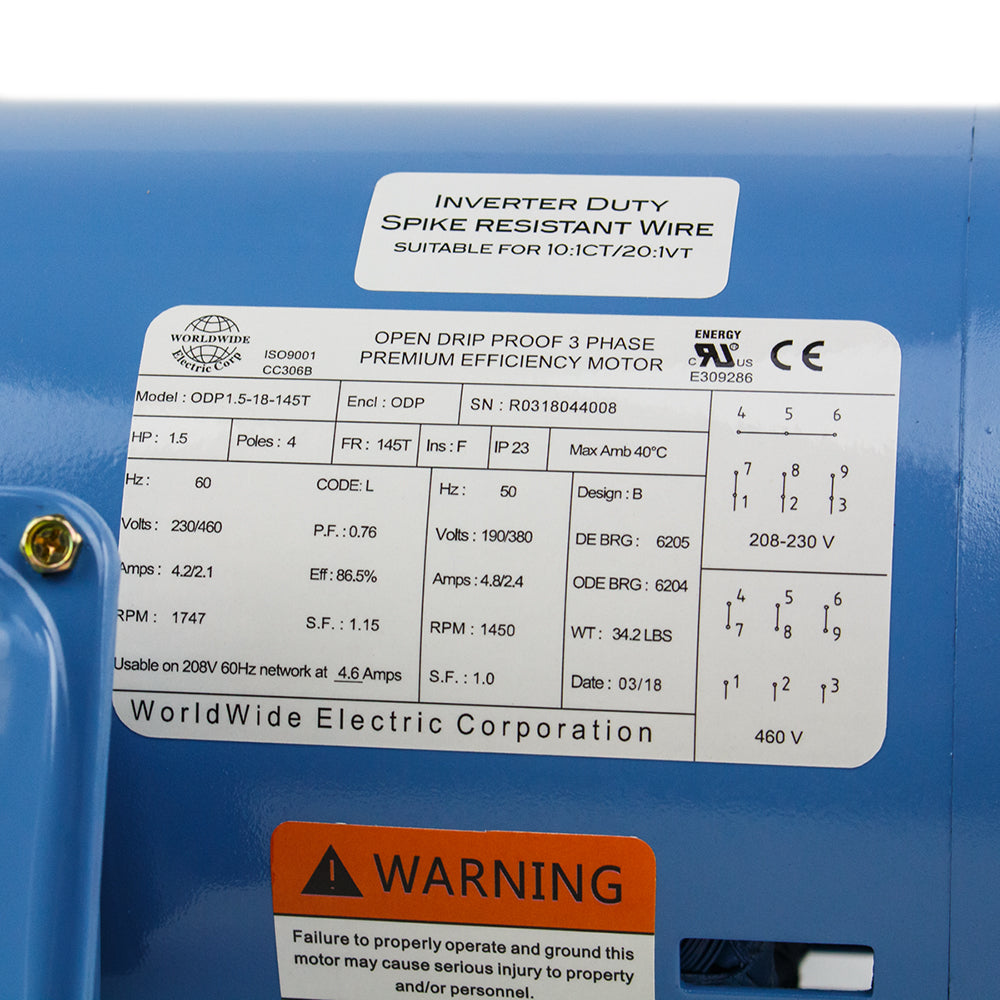

• 1.5 Horsepower • 3 Phase • ODP Enclosure • 145T Frame • Service Factor 1.15 • Class F Insulation • 34.2 LBS • 230/460 Volt • 1800 RPM • Fan Cooled • Worldwide Electric Brand • Shaft Length: Approximately 2 1/4" • Keyed 7/8" Diameter Shaft • Current: AC • Full Load Amps: 4.2/2.1 • Usable on 208V 60Hz Network at 4.6 Amps • 60 HZ • Shaft Material: 1045 Carbon Steel • Nema Design B • Max Temp: 40 Degrees C
