1/4" NPT Condensate Timer Drain Midwest Control MCDV-25-120ADK 115V 230 PSI(1 4 Fpt Condensate Timer Drain Mcdv 25 120adk 115v W Self Cleaning Valve Kit 230 Psi)

Midwest Control MCDV-25-120ADK Automatic Timer Drain

This is a brand new 115 volt electronic, automatic timed, moisture drain for air compressors and air tanks. This drain can be set to drain as often as every 30 seconds or up to every 45 minutes. The valve can be set to stay open between .5 and 10 seconds. Most commonly, these drains are set to drain for 3 seconds every 30-45 minutes. This valve also has a "Test" summary that you can use to manually drain it at any time.

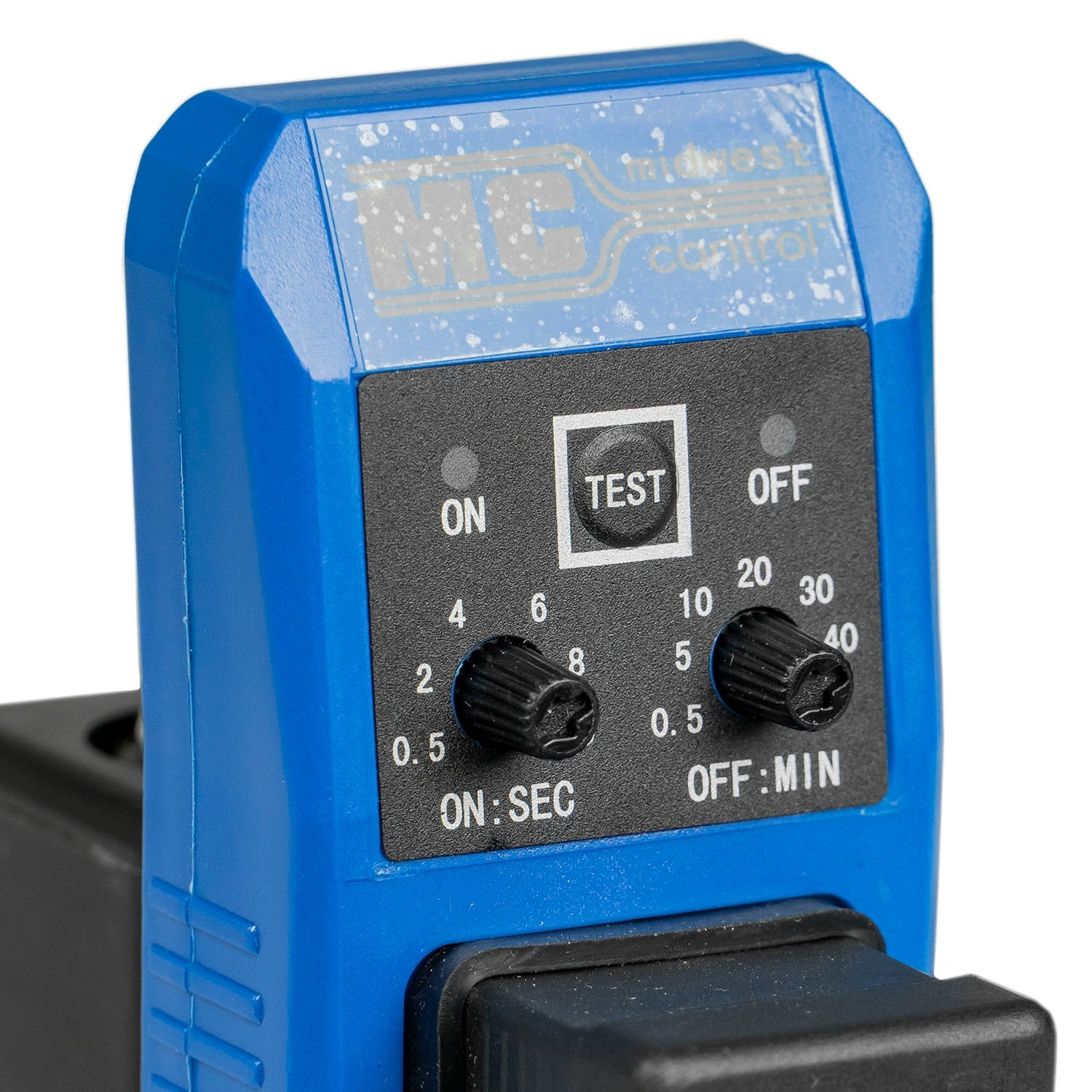

Timer Specifications:

• Interval Time: 0.5 - 45 Minutes
• Discharge Time: 0.5 - 10 Seconds
• Supply Voltage: 115V
• Current Consumption: 4mA Max
• Environmental Protection: NEMA 4
• Case Material: ABS Plastic FR Grade
• Connection: DIN 43650A ISO4400/6952
• Operating Temperature: 34°F to 140°F

Valve Specifications:

• Type: 2-Way Direct Acting Valve
• Operating Temperature: 34°F to 140°F
• Valve Body: Machined Brass Bar
• Maximum Working Pressure: 230 PSI
• 4.5 MM Orifice
• Insulation: Thermal Group H
• Environmental Protection: IP 65/NEMA 4
• Mounting: Any Position

What's Included:

• 1 x Timer with 6 Foot Power Cord
• 1 x 2-Way Brass Valve
• 2 x 1/4" NPT Push Lock Fittings
• 2 x Three Foot 3/8" Polyurethane Hose
