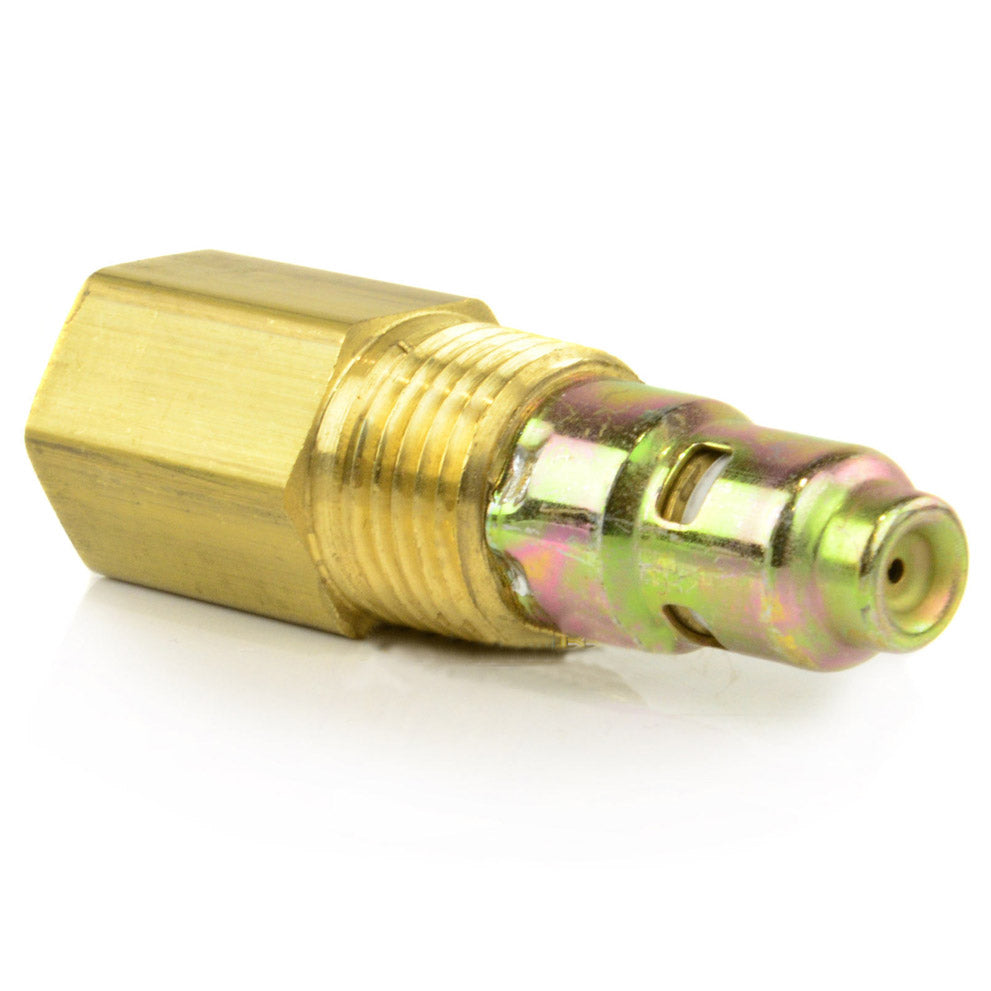

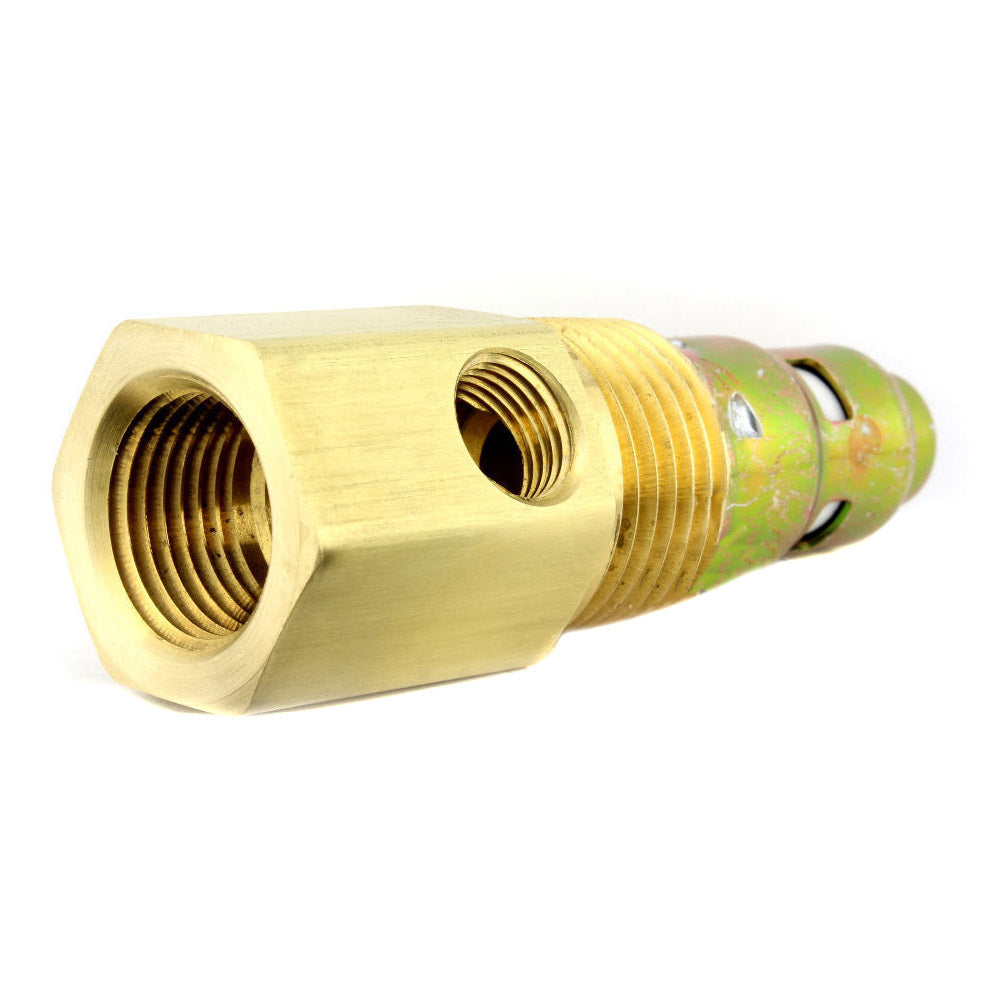

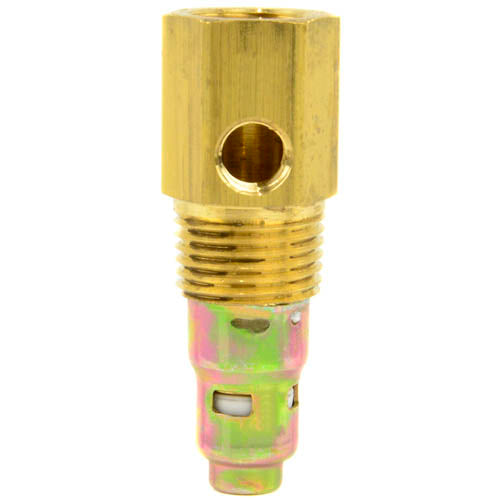

1/2" X 3/8" Air Compressor In Tank Check Valve Brass Construction USA Made(1 2 X 3 8 Air Compressor In Tank Check Valve)

3/8" Female x 1/2" Male NPT Brass Air Compressor In Tank Check Valve New

One new 3/8" female NPT x 1/2" male NPT in tank air compressor check valve. This style of check valve is usually screwed directly into the air tank, then the main line coming off the compressor pump is connected to it. This valve prevents back flow or tank pressure from getting back to the air compressor pump once the compressor is shut off. This valve has a 1/8" female NPT port in the side which usually goes to an unloader valve on your pressure switch or compressor pump. If you do not use an unloader in your application you can just plug this port.

Features & Specifications:

• Valve Inlet Threads: 3/8" Female NPT (measure about 9/16" inside diameter)
• Outlet Threads / Tank Threads: 1/2" Male NPT (measure about 10/32" inside diameter)
• Side Port: 1/8" Female NPT (measures about 10/32" inside diameter)
• Total Length: 2-3/4"
