1/2 HP Single Phase Farm Duty Electric Motor 1730 RPM W56 Frame 115-230V TEFC WEG(1 2 Hp Air Compressor Electric Motor W56 Frame 1730 Rpm Single Phase Weg New)

1/2 HP W56 Frame Single Phase 1730 RPM WEG Farm Duty Electric Motor

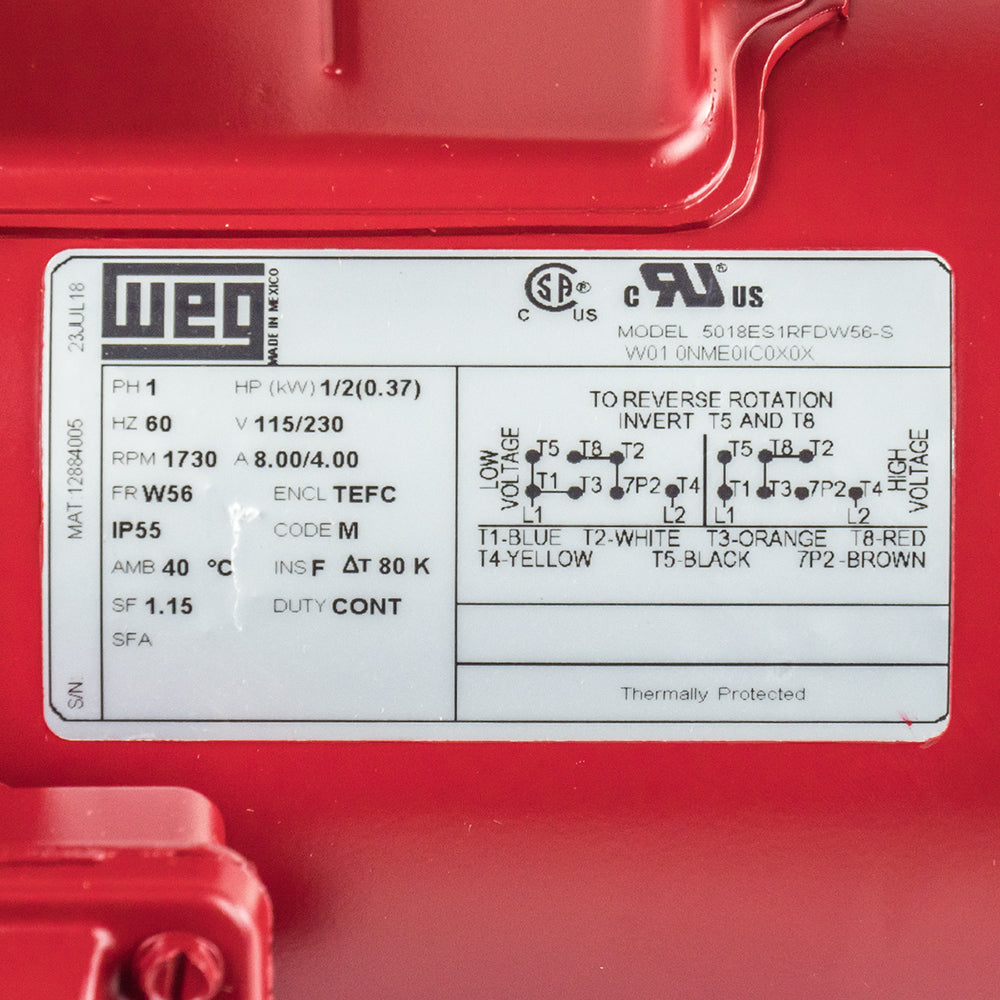

This listing is for a brand new WEG 1/2 horsepower air compressor motor model number .5018ES1RFDW56-S, this motor is 115/230 volt, 8.00/4.00 AMPS, 60 Hz, W56 Frame, single phase, 5/8" diameter shaft, and 1730 RPM. This motor is the perfect option for applications that require robustness, low weight, and high performance in a single product. Because of their high starting torque, they are particularly well-suited for heavy starting loads such as compressors and other equipment. If you have any questions about this motor or if it will work as a replacement on your compressor feel free to contact us.

Specifications

• Frame: W56
• Output: 1/2 HP
• Phase: Single
• Frequency: 60 Hz
• Rated Speed: 1730 RPM
• Rated Voltage: 115/230 Volts
• Rated Current: 8.00/4.00 Amps
• Insulation Class: F
• Temperature Rise: 80 K
• Service Factor: 1.15
• Enclosure: TEFC
• Rotation: Both (CW and CCW)
• Approx. Weight: 21.05 lb

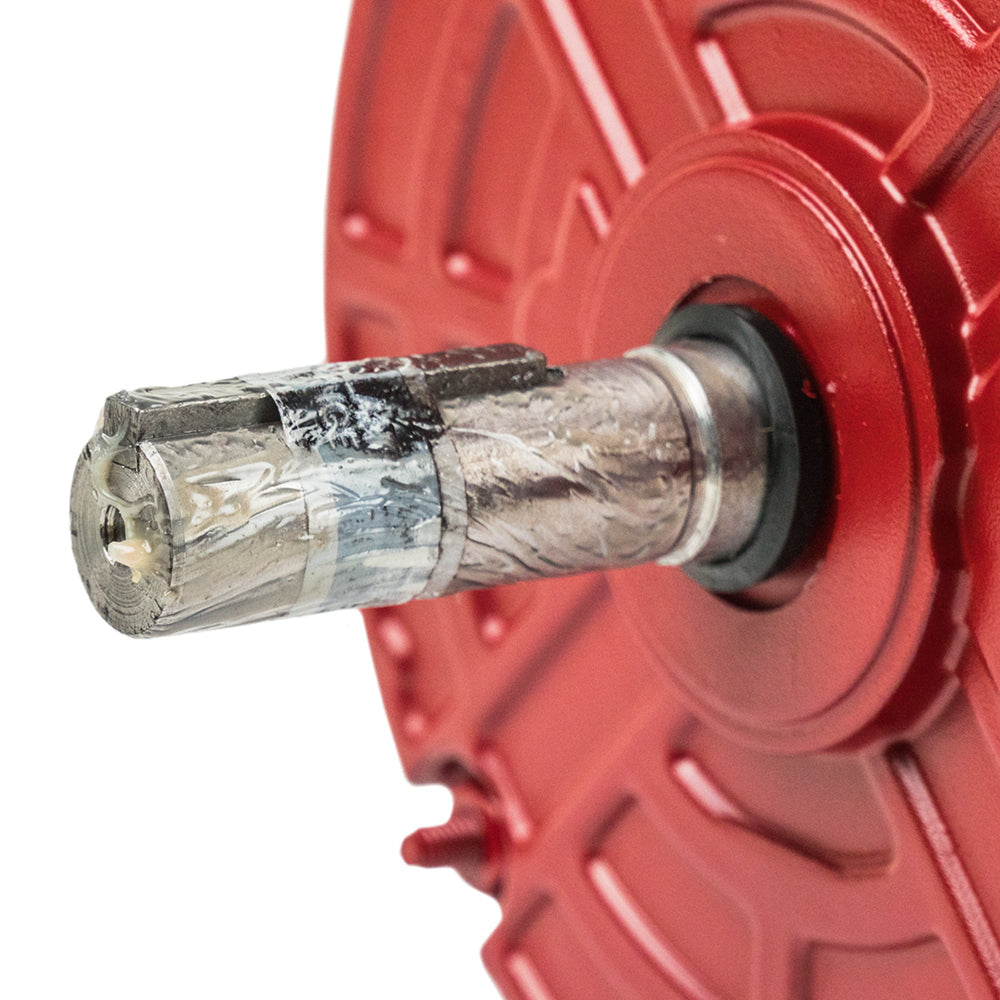

• Shaft Diameter: 5/8" Keyed
• Shaft Length: 2-1/8"

"THIS MOTOR ONLY SHIPS TO THE CONTINENTAL 48 UNITED STATES"

This motor has a 1 year limited manufacturer's warranty

We strive for 100% customer satisfaction! We take the time to package these motors extremely well to make sure they get to you in perfect condition.
If you have any questions about this motor, feel free to reach out to us.
