1/2 HP Single Phase Electric Motor 1750 RPM 56 Frame 115/230V ODP EMZ(1 2 Hp Electric Motor 56 Frame 1750 Rpm Single Phase 115 230v 5 8 Shaft)

1/2 HP Single Phase Electric Motor with 5/8" Shaft

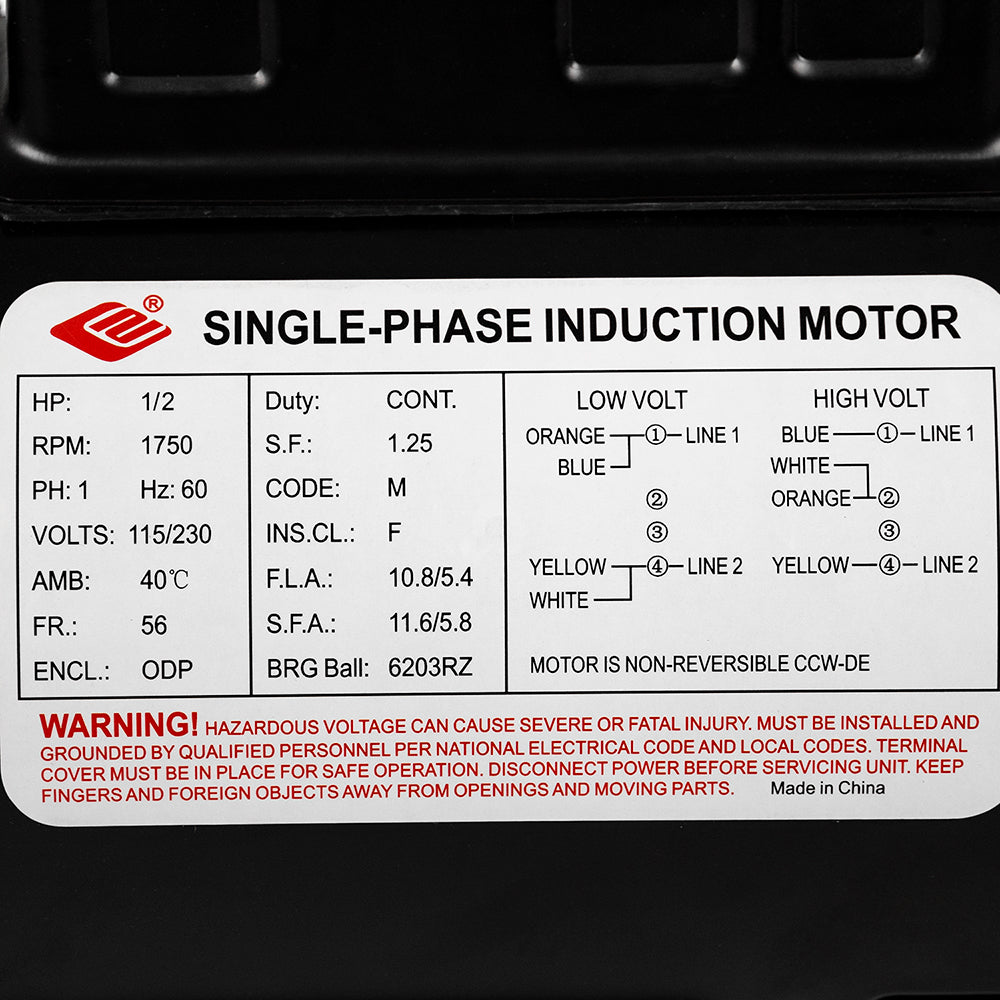

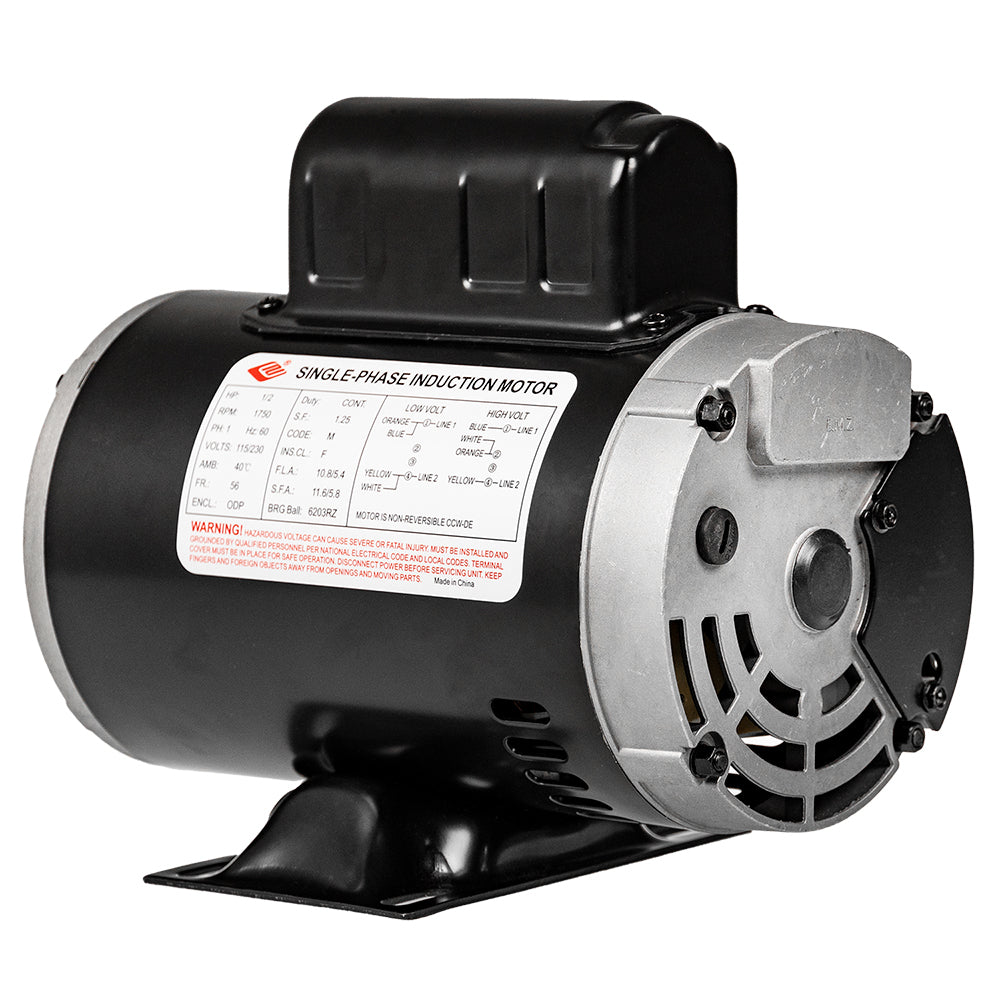

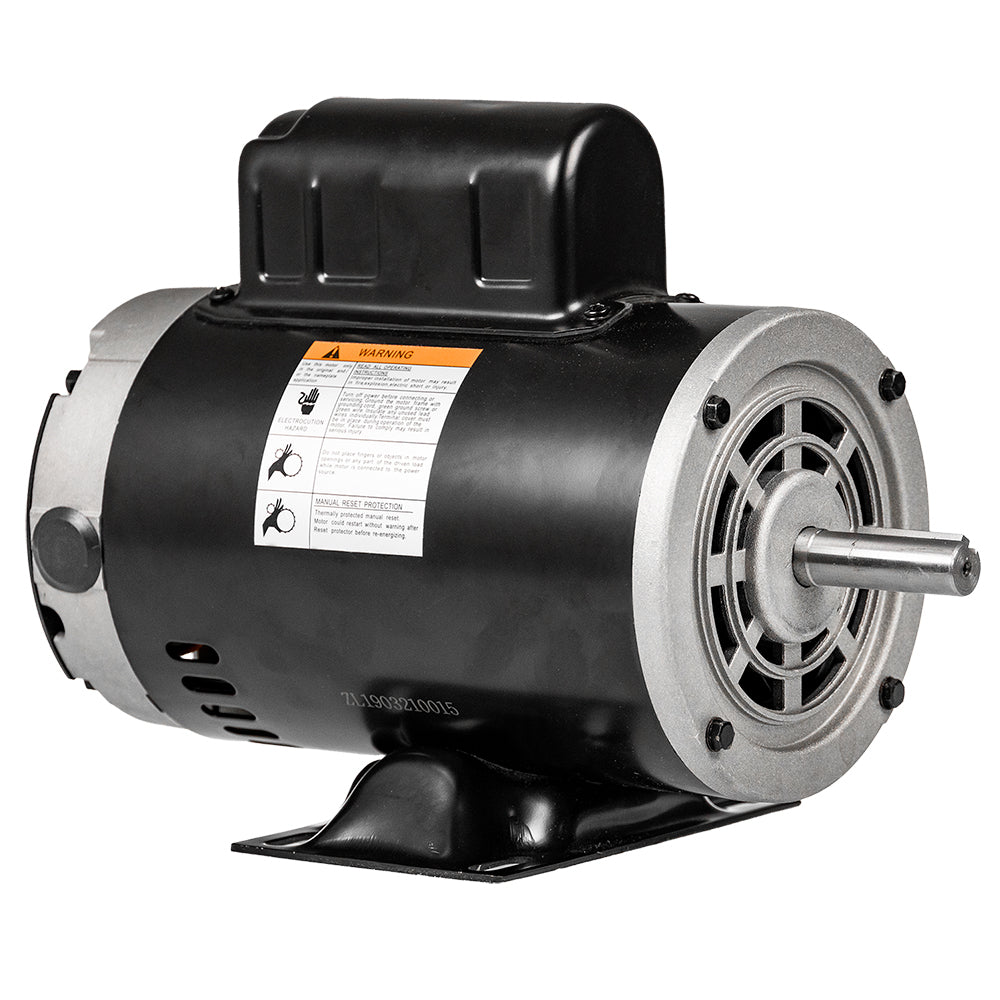

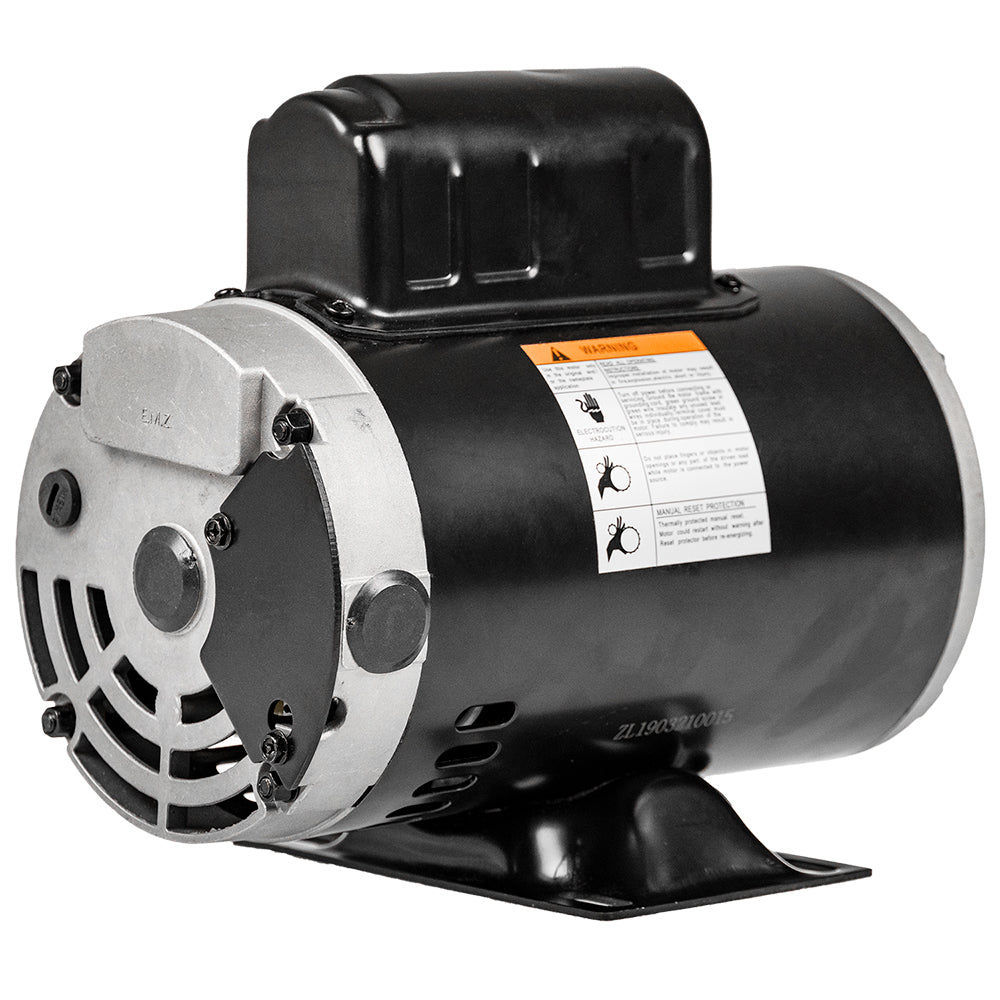

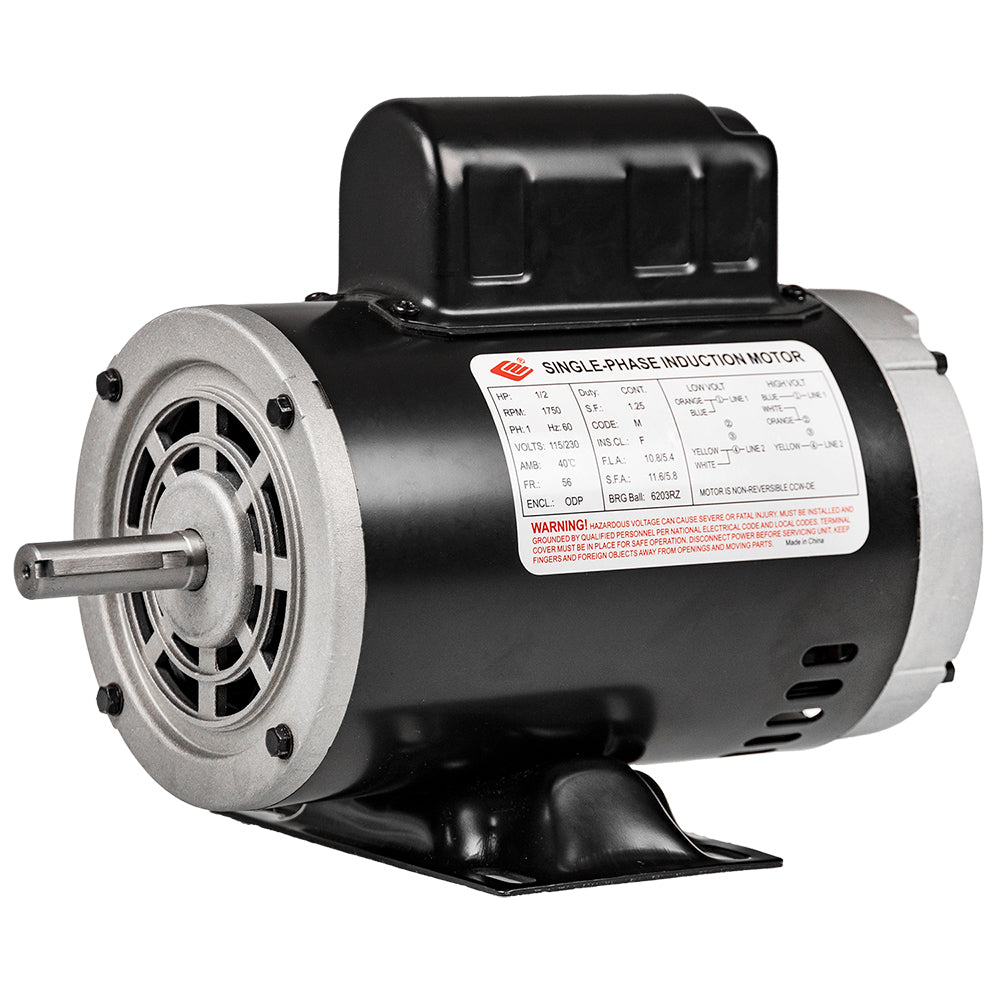

Brand new 1/2 HP 115/230-volt single phase electric motor. This motor features a 56 frame with a 5/8" diameter shaft and rotates at 1750 RPM. This is a non-reversible motor that spins counter-clockwise (CCW) when you are facing the shaft. This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications. A wiring diagram is listed on the side of the motor for reference during installation. Please see below for more features and specifications.

Specifications:

• Open Drip Proof Enclosure (ODP)
• Single Phase
• 1/2 HP
• 1750 RPM
• 60hz
• 115/230 Volts
• AMB 40 °C
• Frame: 56
• Duty: Cont.
• Service Factor: 1.25
• Full Load Amps: 10.8/5.4
• INS.CL: F
• Non-reversible, CCW Rotation Facing Shaft

• Overall Length W/O Shaft: 9-1/8"
• Overall Length With Shaft: 11-1/2"
• Overall Height: 9"
• Overall Width: 5-5/8"
• Shaft Diameter: 5/8"
• Shaft Length: 2"
• Standard Size Keyway: 3/16"
