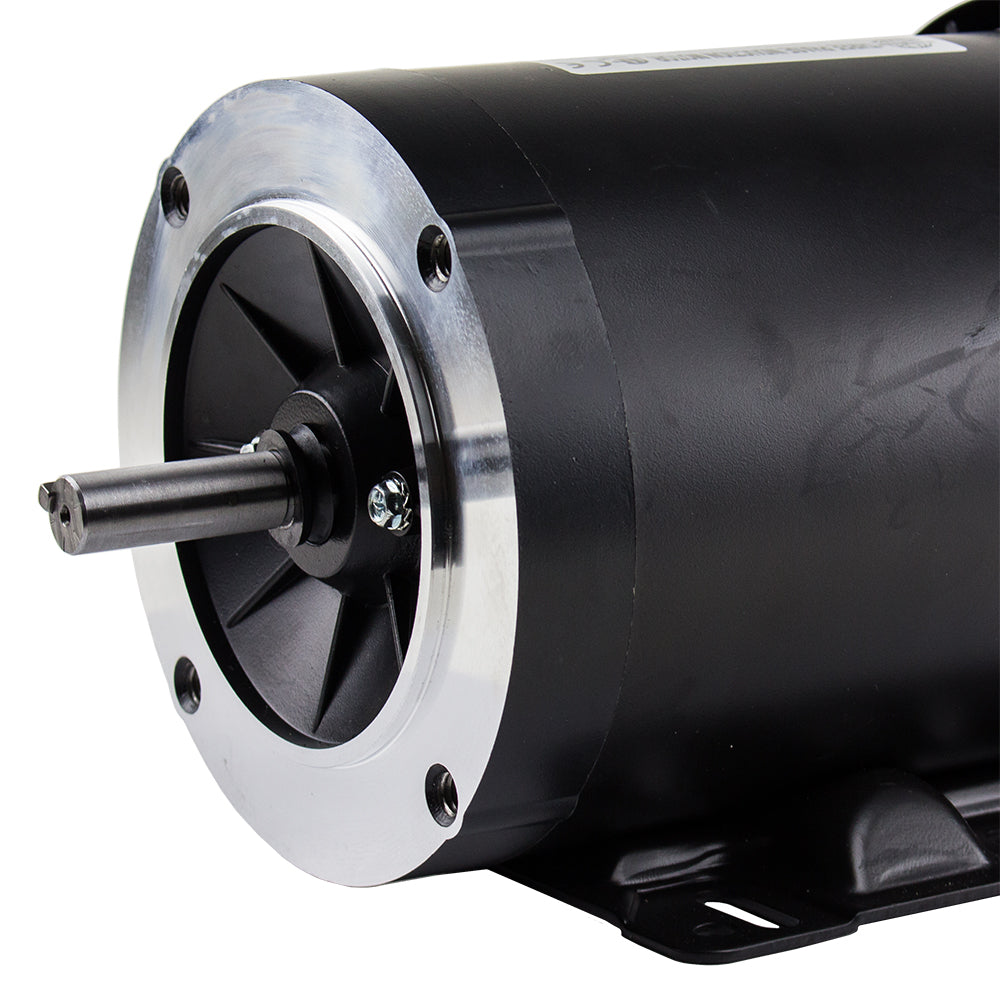

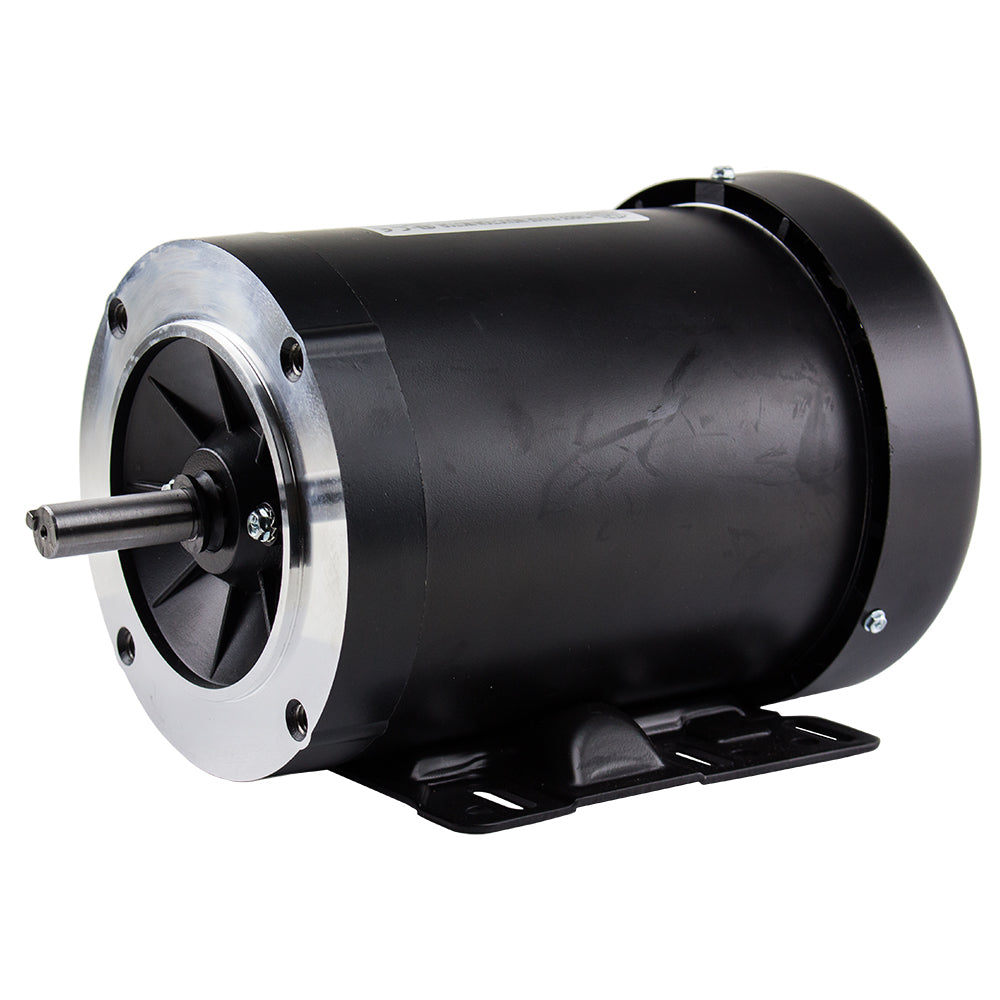

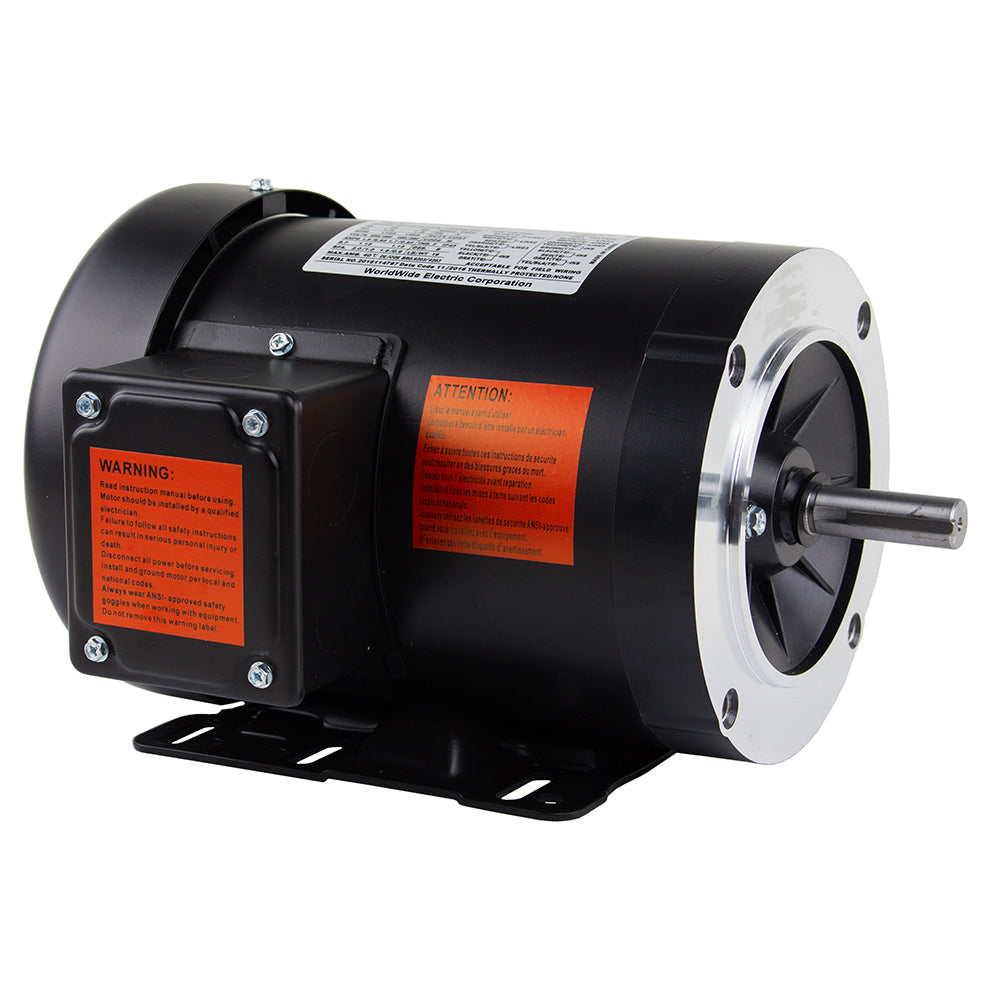

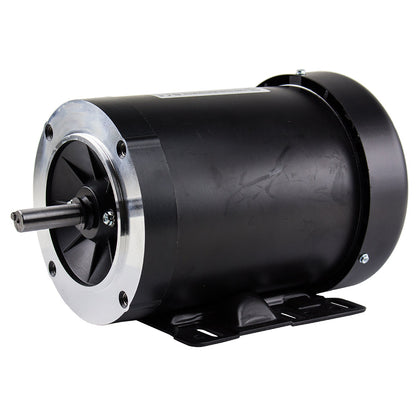

1/2 HP 3 Phase Electric Motor 1725 RPM 56C Frame 230/460V TEFC NAT12-18-56CB C-Face(1 2 Hp Electric Motor 3 Phase 56c Frame 1800 Rpm Tefc 208 230 460 Volt New)

Brand New 1/2 horsepower, 3 phase electric motor. Worldwide Electric designs and manufactures motors with quality and reliability in mind. This motor features Class F insulation, fan cooling, a 1.15 service factor, is a premium efficiency motor and rated for inverter duty. All the worldwide TEFC enclosed 56 frame fractional 3 phase motors have a removable base, with a C-face, and shaft slinger to keep moisture and contaminants from the end of the drive-end bearing for longevity.

Electric Motor Specifications

• 1/2 Horsepower
• 3 Phase
• TEFC Fully Enclosed
• 56C Frame
• 208-230/460 Volt
• 1800 RPM

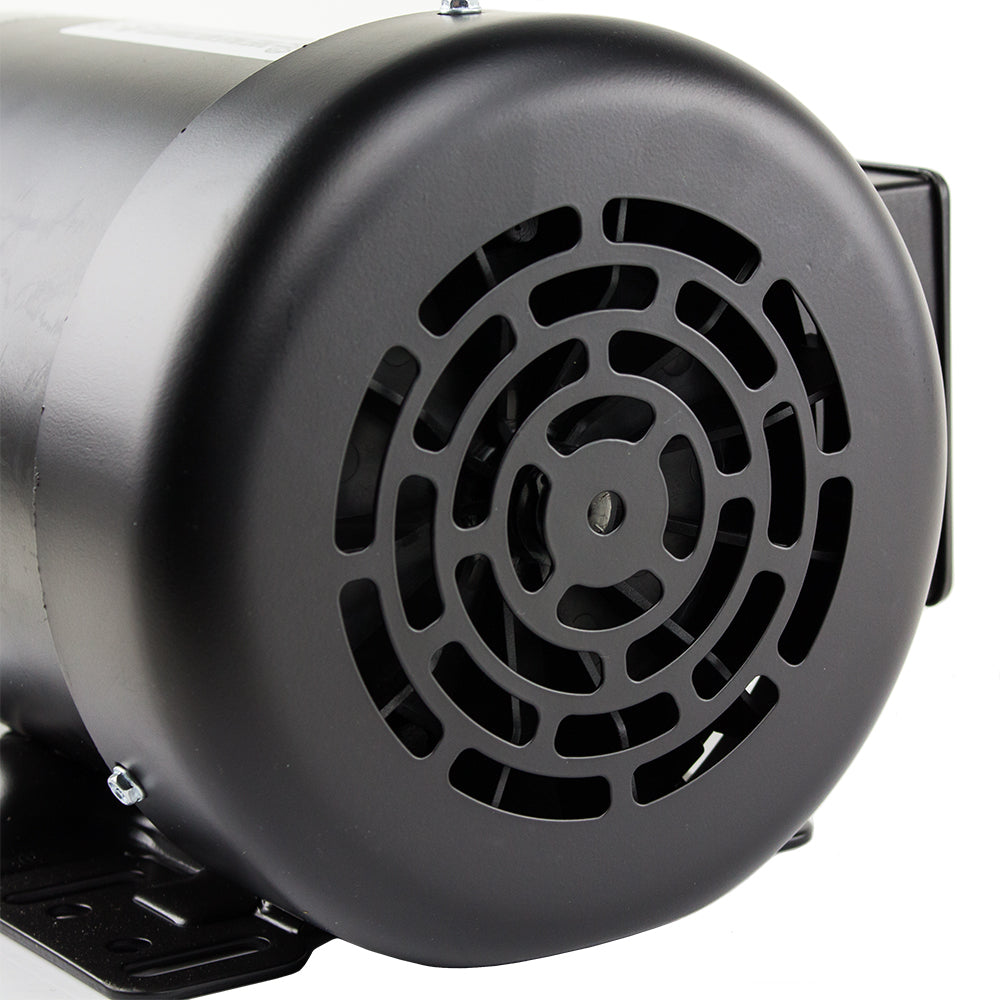

• Fan Cooled
• Class F Insulation

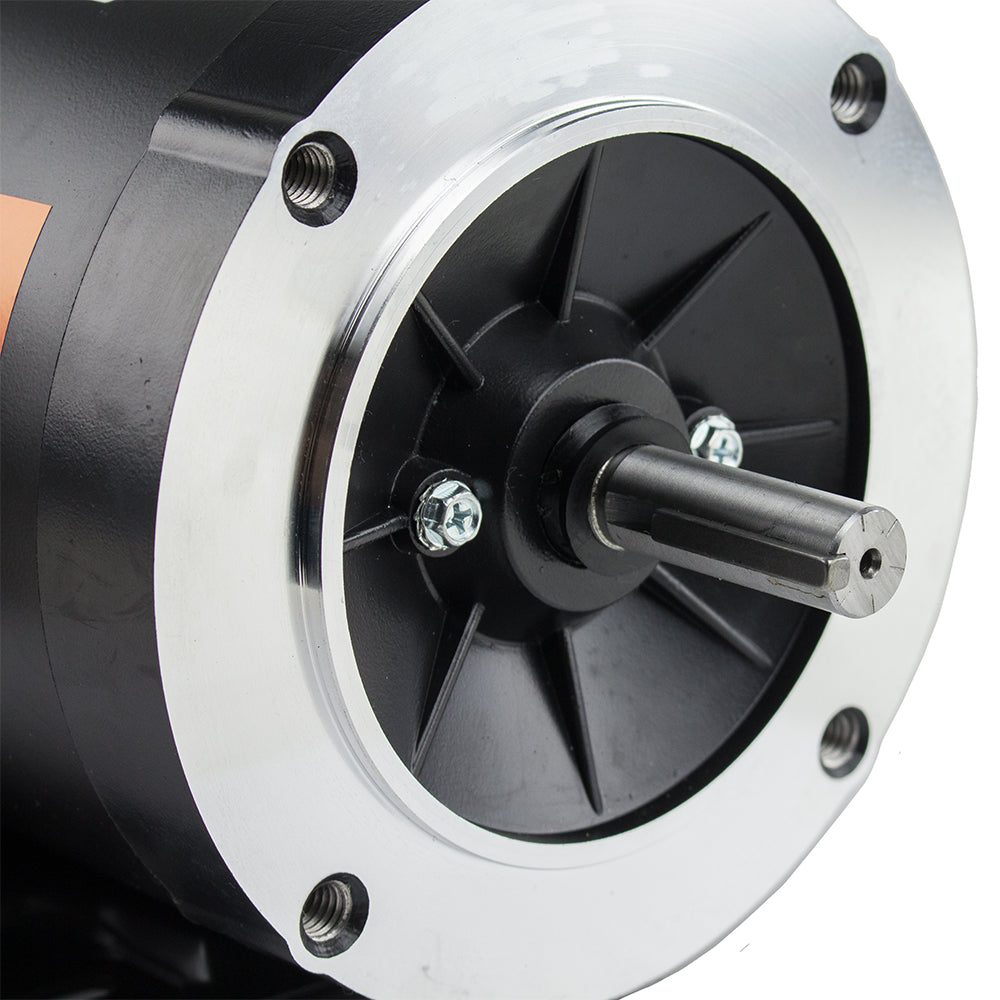

• C-Face
• Removable Base
• Premium Efficiency / Inverter Rated
• Worldwide Electric Brand
• Keyed 5/8" Diameter Shaft
• Shaft Length: Approximately 1 7/8"
• Current: AC
• Full Load Amps: 2.0/1.0A (1.8/0.9A)
• 60Hz
